AirHumidity MeterPCE-CMM 10 CO2 meter / Battery operation / Alarm limits / 400 … 5000 ppm / Temperature measurement / Visual and acoustic alarm / Automatic switch-off / USB charging / Units can be changed / LC display / Temperature range -10 … 50°C(4 … 122°F)

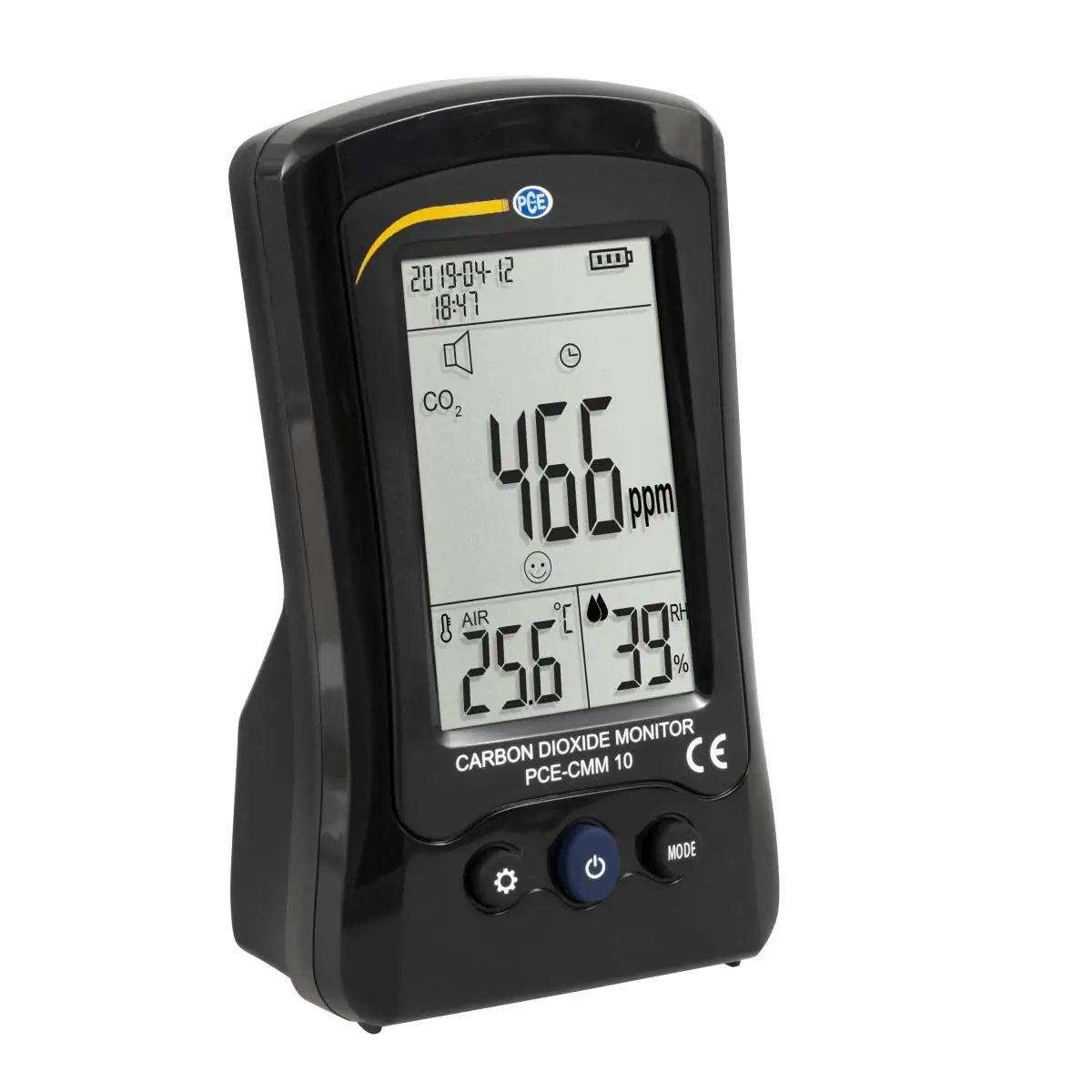

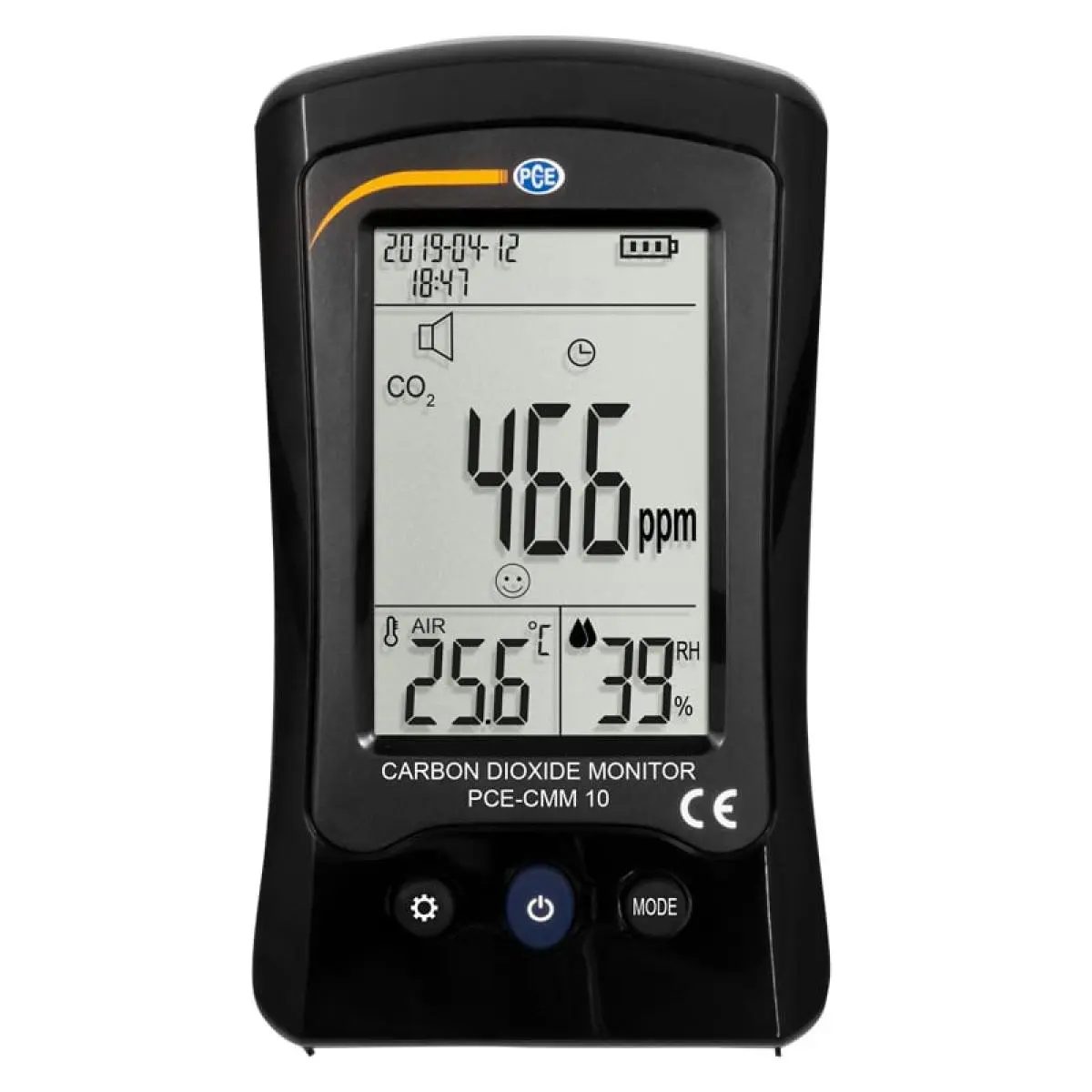

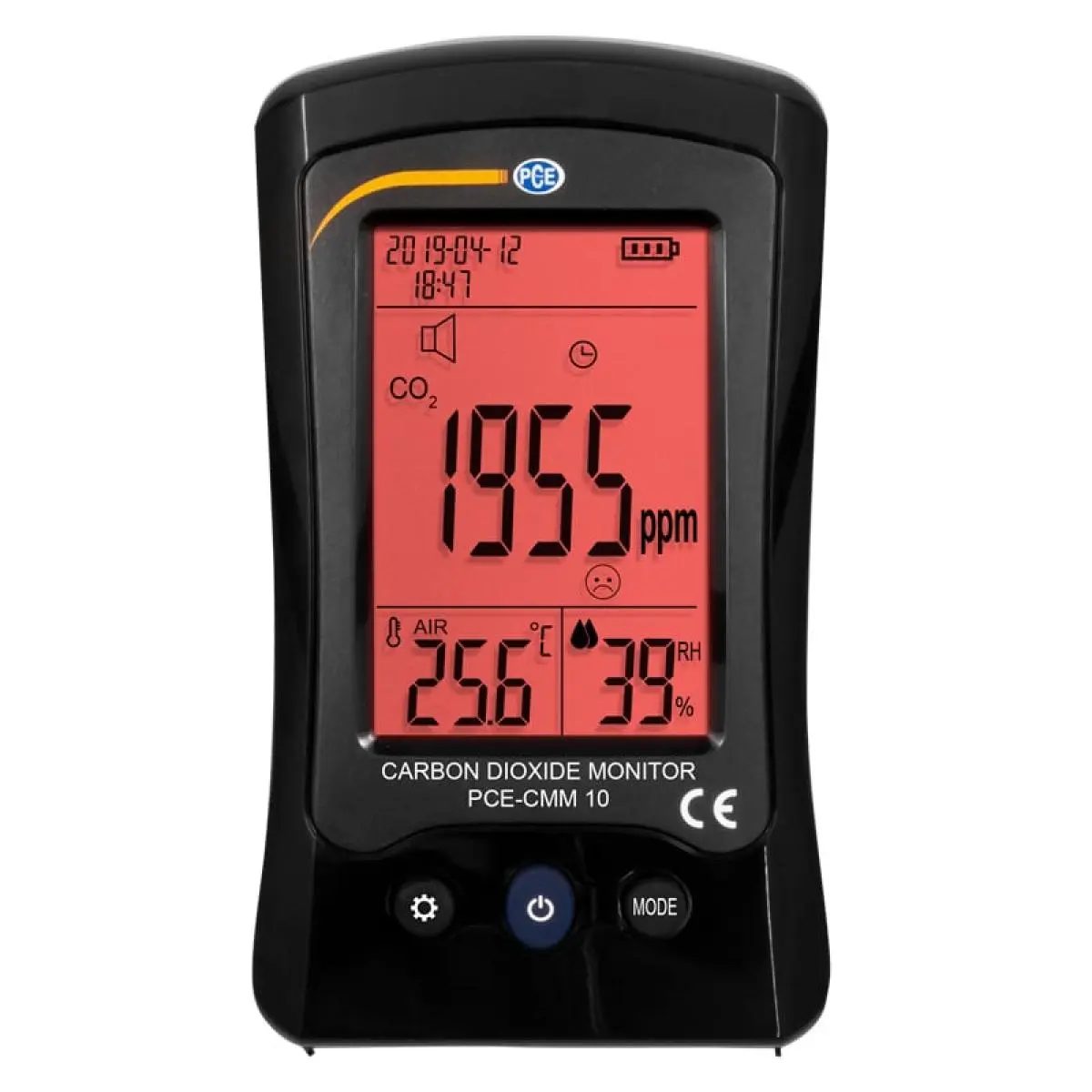

The CO2 measuring device PCE-CMM 10 is a multi-function measuring device for measuring the air quality. This CO2 meter measures synchronously the CO2 concentration, the air temperature and the humidity. In addition, the CO2 meter has permanently programmed alarm limits. As soon as the currently measured CO2 measured value exceeds the alarm limit, the alarm is activated. The user is alerted to the CO2 meter by an audible and visual signal.
Using the built-in USB interface, you can continuously charge the CO2 meter to your PC workstation, for example. Thanks to the small blue shape, you can optimally position the CO2 meter at your workplace. Due to the 3 inch display and the strong backlight, you can read the measured values optimally.
Highlights
- CO2 measurement
- Battery operation
- Limit exceeded
- Backlight
- Air temperature
- Table housing
- Humidity
- Beep
Technical specifications
- CO² — Measuring range: 400 … 5000 ppm
- CO² — Resolution: 1 ppm
- CO² — Accuracy: ±(5 % + 50 ppm) between 400 … 2000 ppm and an atmospheric pressure of 1013 mbar
- Relative humidity — Measuring range: 0 … 99 % RH
- Relative humidity — Resolution: 1 % RH
- Relative humidity — Accuracy: ±(5 % at 25 °C) between 10 … 90 % RH
- Temperature — Measuring range: -10 … +50 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: ±1 °C (can be influenced by own waste heat)
- General technical data — Measuring functions: MIN, MAX, HOLD, ALARM, Average value
- General technical data — Display type: LCD with backlight
- General technical data — Display size: 3 Inch
- General technical data — Display refresh rate: 3 s
- General technical data — Sensor: NDIR
- General technical data: Automatic power-off 2 h
- Alarm optical, Acoustic — Menu language: English, English (GB)
- Alarm optical, Acoustic — Protection class (device): IP21
- Alarm optical, Acoustic — (Rechargeable) battery: 1 x 3,7 V internal , Lithium-ion battery
- Alarm optical, Acoustic — Capacity: 1000 mAh
- Alarm optical, Acoustic — Operating conditions: 0 … 50 °C , 0 … 85 % RH
- Alarm optical, Acoustic — Storage conditions: -20 … 60 °C , 0 … 95 % RH
- Alarm optical, Acoustic — Dimensions: ( L x W x H )130 x 75 x 55 mm
- Alarm optical, Acoustic — Weight: 195 g
Delivery scope
- 1 x Aerosol meter / Aerosol measuring device PCE-CMM 10
- 1 x USB cable
- 1 x User manual
