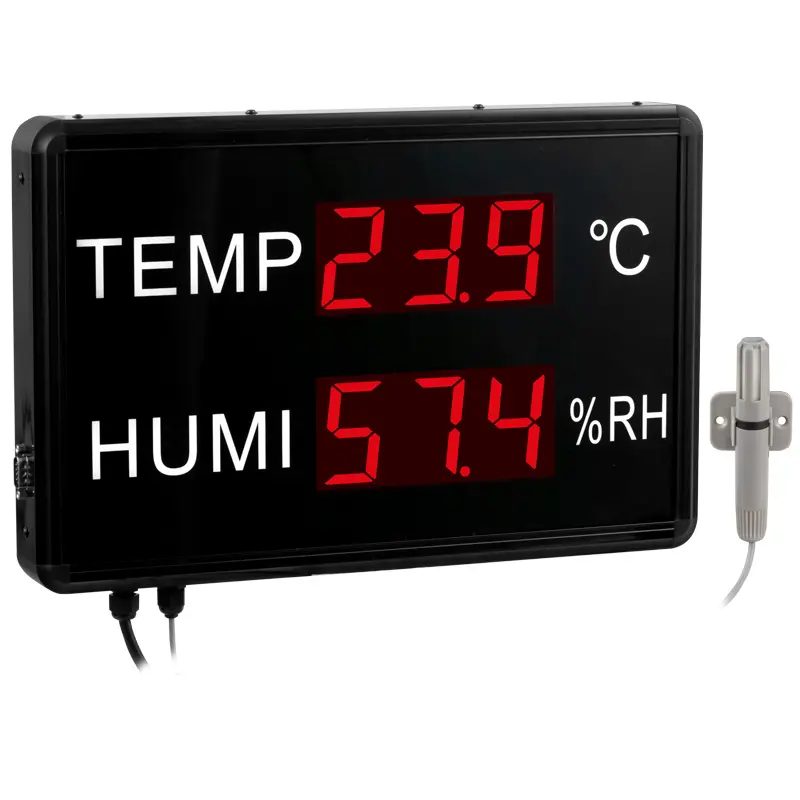

Large display PCE-G 2
Large display for temperature and humidity/ 55 mm character height / up to 30 m reading distance /external sensor / 230 V mains operation
The large display is used to measure the environmental parameters of temperature and humidity. The large display finds its application in warehouses, open-plan offices, schools, etc. The large display has 55 mm high digits that indicate the temperature and humidity.

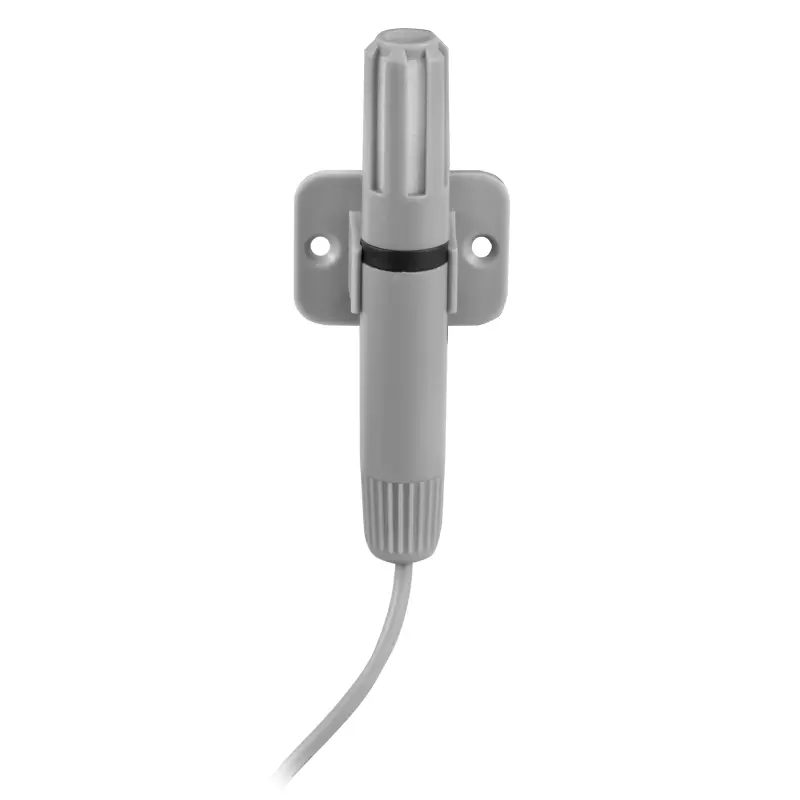

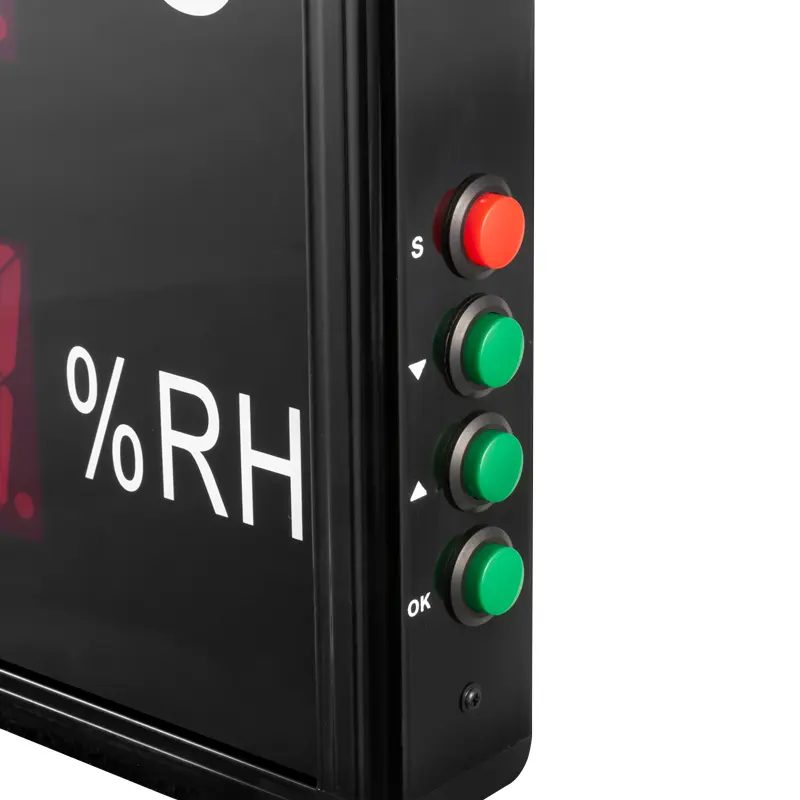

Due to the large size of the digits, the large display can be read from distances up to 30 m. The temperature and humidity sensor of the large display is connected by a 2 m long cable. The large display is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the large display.
Highlights
- Temperature and air measurement
- Wall mounted
- 230 V AC power supply
- 55 mm character height
- Up to 30 m reading distance
- External sensor (wired)
Technical specifications
- Measuring function — Measuring range: temperature-40 … 85 °C
- Measuring function — Resolution: -10 … 85 °C: 0.1 °C
- Measuring function: <-10 °C: 1 °C
- Measuring function — Accuracy: ± 0.3 °C
- Measuring function — Measuring range: humidity0 … 99 % r.H.
- Measuring function — Resolution: 0.1 % r.H.
- Measuring function — Accuracy: ± 4 % r.H.
- Measuring function: Display 2 x 3 digit LED display (red)
- Measuring function: 55 mm character height
- Measuring function: Reading distance ca. 30 m
- Measuring function: Cable lengths Sensor cable ca. 2 m
- Measuring function — Power supply: : ca. 1 m
- Measuring function — Power supply: Primary: 100 .. 240 V AC 50/60 Hz
- Measuring function: Secondary: 12 V DC, 0.5 A
- Measuring function — Operating conditions: -20 … 70 °C / max. 85 % r.H.
- Measuring function — Dimensions: 395 x 255 x 50 mm
- Measuring function — Weight: ca. 2.5 kg
Delivery scope
- 1 x Large Display PCE-G 2
- 1 x Wall mounting set (
- 2 x dowels and screws)
- 1 x Power adapter
- 1 x User manual
