PCE-VA 20-SET Multifunctional Air Flow Meter
Anemometer with volumetric hood PCE-VA 20-SET
Measurement of wind speed, volumetric flow rate, temperature, humidity, dew point, and wet bulb temperature / Backlight / vane diameter 10 cm
Measurement of extreme values / HOLD function / automatic shut-off

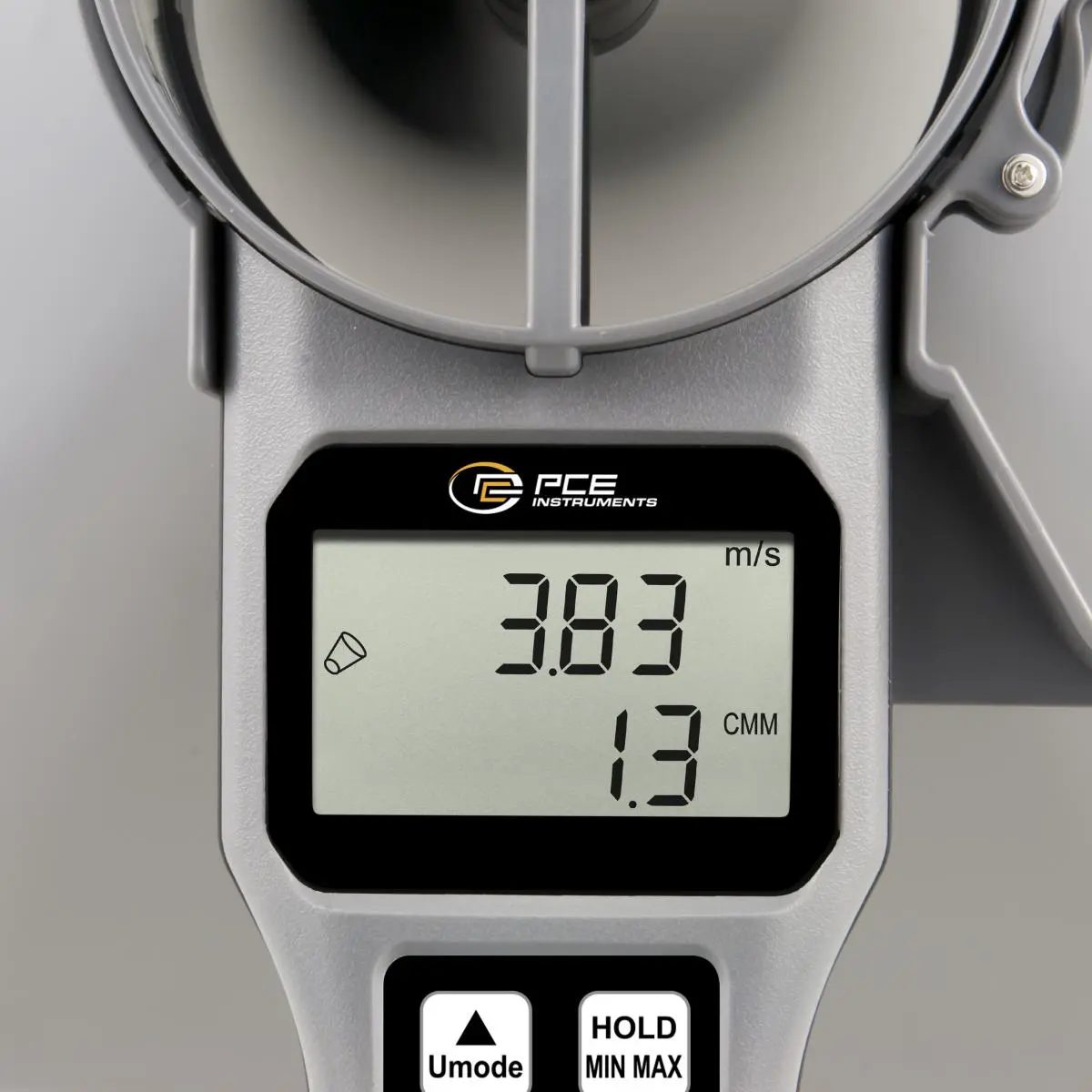

In the field of ventilation and air conditioning maintenance, the PCE-VA 20 anemometer, which comes with a volumetric air sampler, is used to measure air velocity and volumetric flow rate. In addition, the anemometer with the volumetric air sampler can measure climate parameters such as temperature and humidity. Based on these measurements, the meter calculates the dew point (DP) and wet bulb temperature (WBT). All measured and calculated parameters are displayed on the anemometer’s two-line LCD screen alongside the volumetric flow rate. The upper portion displays air velocity, humidity, and the average value in average value mode. Depending on the measurement mode, the lower portion of the display shows temperature, volumetric flow rate, wet bulb temperature, and dew point. To enable users to evaluate measured values more easily and quickly, the anemometer with volumetric flow measurement also provides maximum, minimum, and average readings.

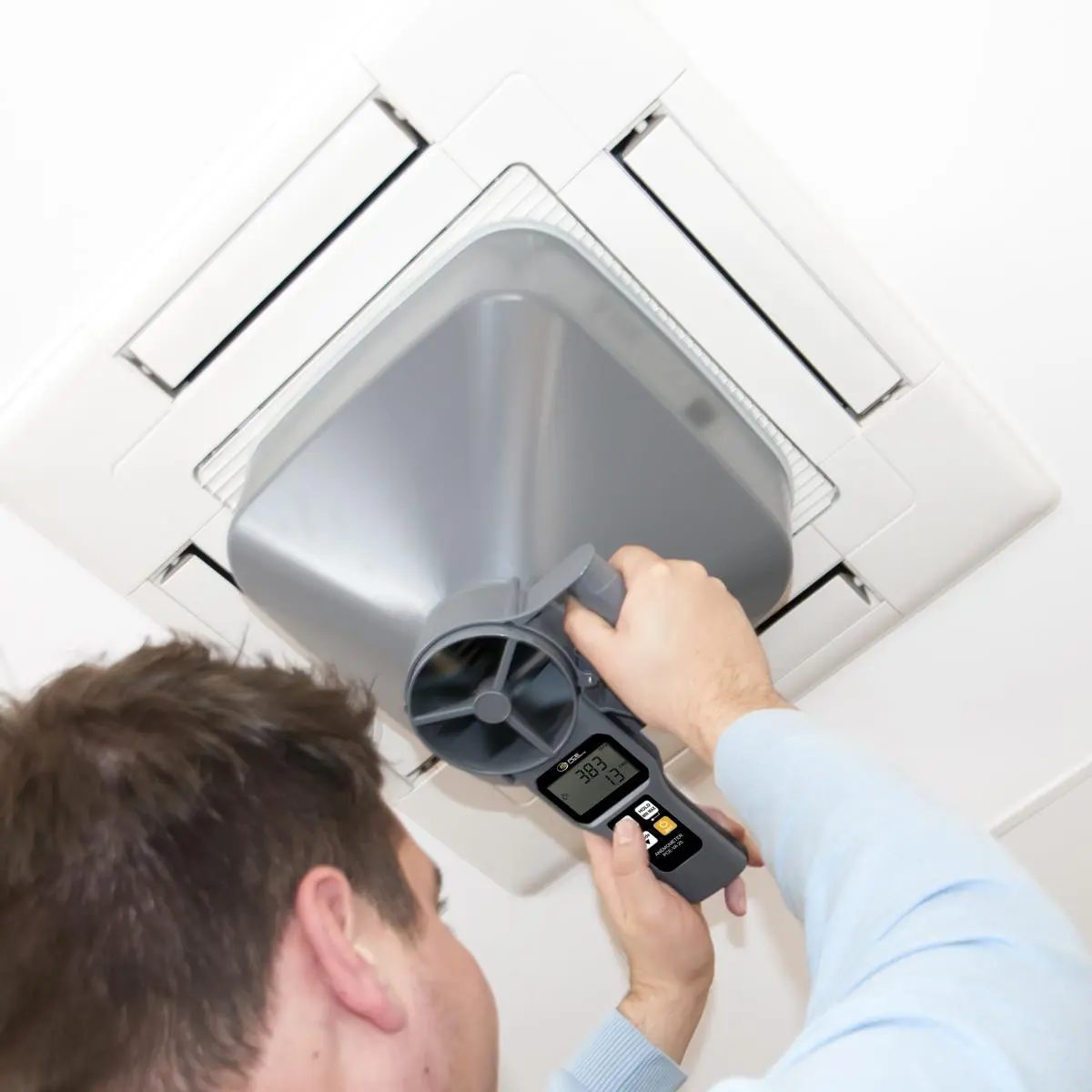

The anemometer is powered by four 1.5 V AAA batteries. This allows the anemometer with a volumetric flow cover to be used as a portable device. In addition to the anemometer, this measurement kit also includes two volumetric flow meters that can be attached directly to the display. The flow guides are suitable for measuring air mass at the inlets or outlets of round and rectangular ducts.
Advantages
– Measures air velocity, airflow, relative humidity, air temperature, dew point temperature, and wet bulb temperature
– Air velocity range: 0.2 … 30 m/s (39.4 … 5905.5 fpm)
– Accuracy: ±(1.5% of the measured value + 0.3 m/s) for speeds below 20 m/s; ±(3% of the measured value + 0.3 m/s) for speeds above 20 m/s
– Resolution: 0.1

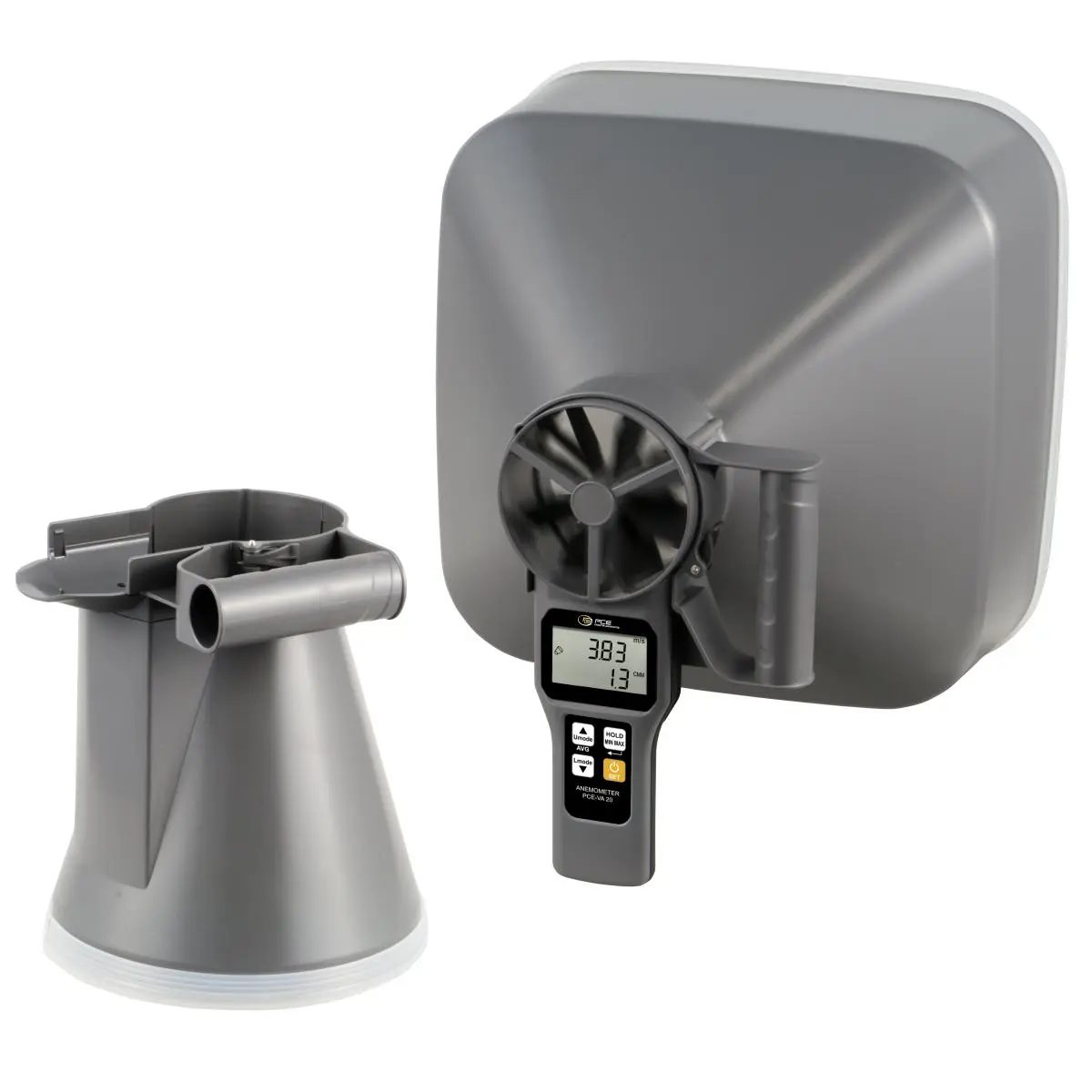

– Includes 2 x imaging covers (1 x round 210 mm / 8.3 inches Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 inches)
– 10 cm / 3.9 fan blade Ø
– easy-to-read backlit LCD
– screen hold, average value, maximum value, minimum value, battery-saving auto-off, low-battery indicator, and the ability to select between metric and imperial units
Specifications
| Technical Specifications | ||
| Airflow velocity measurement range |
|
|
| Airflow Velocity Accuracy | <20 m/s: ±(1.5% of reading + 0.3 m/s) >20 m/s: ± (3% of reading + 0.3 m/s) |
|
| Air temperature measurement range | -20 … 60 °C / -4 … 140 °F | |
| Air temperature accuracy | ±0.6 °C | |
| Air Temperature Resolution | 0.1 °C / °F | |
| Humidity measurement range | 0.1…99.9% relative humidity | |
| Humidity Accuracy | ±3% rH (at 25 °C / 77 °F and 10–90% rH) otherwise: ±5% rH |
|
| Moisture Absorption Capacity | 0.1% relative humidity | |
| Temperature response time | 60 seconds | |
| Moisture reaction time | 60 seconds | |
| LCD refresh rate | 1x per second | |
| Wet Bulb Temperature Gauge | -20 … +59.9 °C / -4 … 139.8 °F | |
| Dew Point Temperature Display | -5 … +59.9 °C / 23 … 139.8 °F | |
| Volume Flow Display | 0 … 99,999 m³/min | |
| Volume Flow Resolution | 0.1 m³/min (0…9999.9 m³/min) 1 m³/min (10000…99999 m³/min) |
|
| Automatic Shut-Off | after 20 minutes of inactivity | |
| LCD size | 32.5 x 54 mm / 1.28 x 2.13 inches (H x W) | |
| Power Source | 4 x 1.5 V AAA batteries | |
| Operating Conditions | 0 … +50 °C / 32 … 89.6 °F, <80% relative humidity | |
| Storage Conditions | -10 … +50 °C / 14 … 89.6 °F, <90% relative humidity | |
| Dimensions | 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0 inches | |
| Weight | approx. 200 g / 7 ounces |

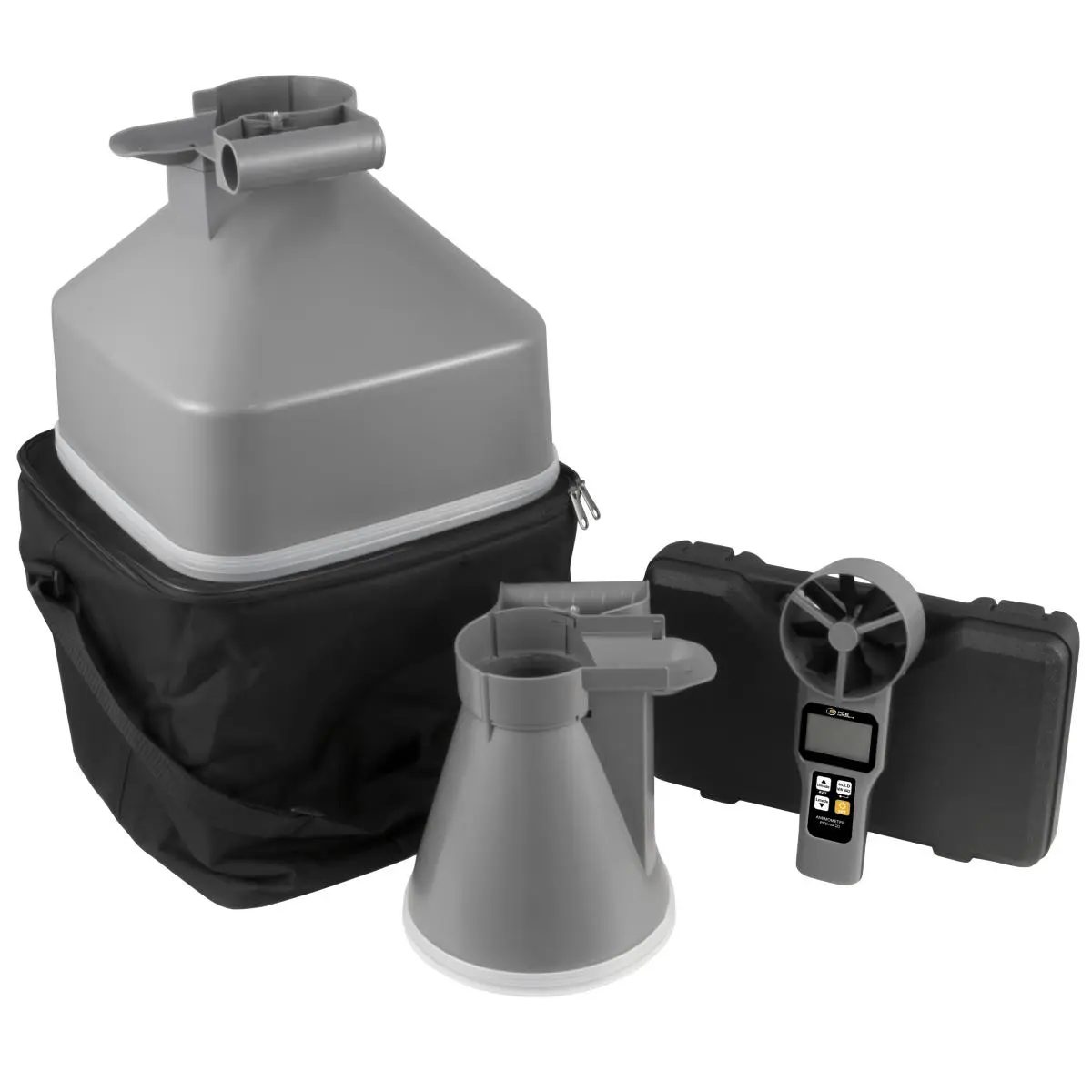

Package Contents
1 x Anemometer with volumetric flow meter PCE-VA 20
1 x Square flow hood
1 x Round air purifier
4 x AAA batteries
1 x User manual
1 x Carrying case
