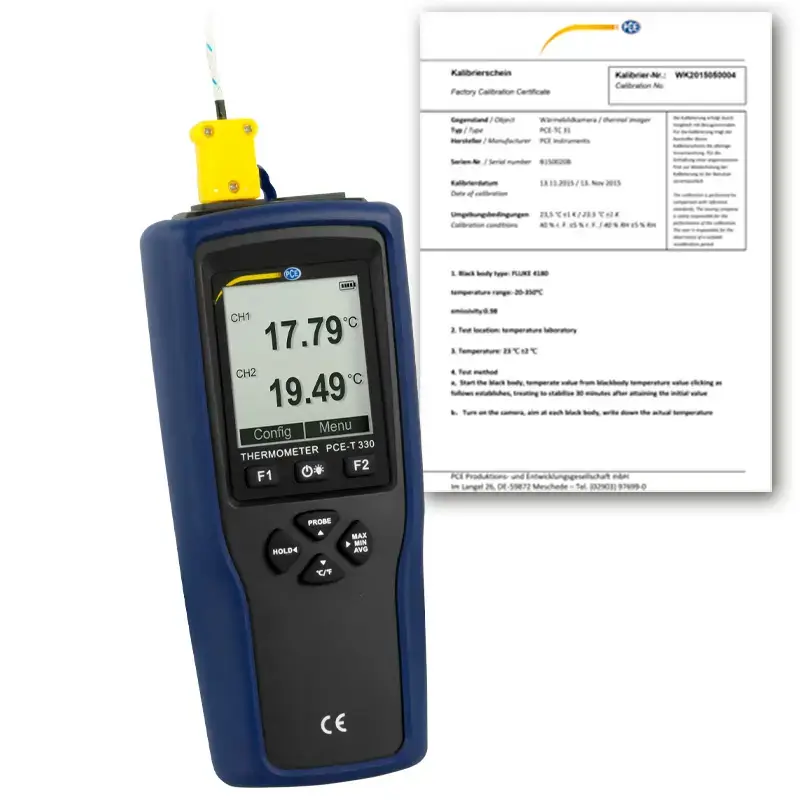

PCE-T 330-ICA Precision Thermometer with ISO Calibration Certificate
Dual-channel precision thermometer / Battery life: approx. 190 hours /.
various file formats / no software required / storage capacity for 20,000 data points
The precision thermometer has two measurement inputs. Each measurement input on the precision thermometer can be connected to a K, T, or J-type thermocouple. With a measurement frequency of 2 Hz, the precision thermometer displays rapid temperature fluctuations. With high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be accurately displayed by the precision thermometer.
With a data memory consisting of 20,000 data points, the precision thermometer can store data over a long period of time. Each data point from the precision thermometer contains a single measured value per channel and date, along with the current time. When connected to a computer, the precision thermometer is recognized as a removable storage device. This means that the precision thermometer can be connected to computers running various operating systems, as no additional software is required for further analysis. The precision thermometer’s measurement data can be saved in TXT, CSV, XLS, and DLG formats.
Features
– Dual-channel precision thermometer
– For K, T, and J-type thermocouples
– Long battery life
– Data storage for 20,000 measurement points
– File formats: TXT, CSV, XLS, and DLG
– rubberized protective cover
Accessories:
Surface Sensor TF-101 – 92 euros + shipping
– Tmax.: 450 °C
– Accuracy: ±1.5 °C
– Diameter: Ø 3.0 mm
– Length: 120 mm
– Type K thermocouple
TF-104A High-Temperature Sensor – 62 euros + shipping
– Tmax.: 1100 °C
– Accuracy: ±1.5 °C
– Diameter: Ø 3.0 mm
– Length: 300 mm
– Type K thermocouple
Air temperature sensor TF-108 52 euros + shipping
Stainless steel air sensor with a handle and a 1-meter cable for air and gases, featuring a fast response time
– Tmax.: 600 °C
– Accuracy: ±1.5 °C
– Diameter: Ø 6 mm
– Length: 130 mm
– Type K thermocouple
TF-121 High-Temperature Wire Sensor – 83 euros + shipping
Flexible wire sensor with ceramic insulation for the highest temperatures
– Measurement range: Tmax. 1150 °C (according to IEC 584-2)
– Accuracy: ±1.5 °C
– Diameter: Ø 4 mm
– Length: 1 m
– Cable type: ceramic-insulated, max.: 1430 °C
– Thermocouple: Type K
Flexible sensor for air and liquids at higher temperatures – 42 euros + km
– Tmax.: 480 °C
– Accuracy: ±1.5 °C
– Diameter: Ø 2 mm
– Length: 1 m
– Cable type: Fiber optic
– Thermocouple type: K
Temperature sensor TF-RA330-3 – 56 euros + shipping
Cable type: Teflon
Cable length: 3 m
Cable diameter: 2 mm
Thermocouple: Type T
Class 1. Class
Accuracy 0.4% of the Mw., but at least 0.5°C
Measurement range -270°C … 400°C
Velcro length 450 mm
Tube diameter 10 mm … 140 mm
Connector: Miniature thermocouple connectors
Application: Pipe contact sensor
Temperature Contact Sensor / Pipe Contact Sensor TF-RA330-5 – 59 euros + shipping
Tube-contact sensor with clamp mounting / versatile / accurate measurement / wide measurement range: -270 °C to 400 °C / 5 m cable
The pipe contact sensor is used for fast and accurate temperature measurement in pipe systems and piping. The pipe contact sensor is optimized for determining surface temperatures of pipes. The temperature sensor features an integrated clamp mount, which makes it very easy to attach to the measurement point, thanks also to the availability of cables in various lengths. The Velcro strap is 450 mm long, which means that pipe diameters ranging from 10 mm to 140 mm can be measured.
Thanks to its wide measurement range of -270 °C to 400 °C and an accuracy of 0.5 °C (Type T Class 1 thermocouple), the tube contact sensor is suitable for a wide variety of applications. For example, the tube contact sensor is used to measure supply and return flow temperatures in heating systems or to measure the temperature of refrigerant pipes. This makes the temperature probe ideal for applications such as solar energy, air conditioning, heating, ventilation, etc. When used with a temperature measuring device or a temperature data logger, the pipe contact sensor can record surface temperatures over extended periods of time.
Cable type: Teflon-
; Cable length: 5 m
Cable diameter 2 mm
Type T thermocouple
Class 1
Accuracy 0.4% of Mw, but at least 0.5°C
Measurement range -270°C … 400°C
Velcro length 450 mm
Tube diameter 10 mm … 140 mm
Connector Miniature thermocouple connectors
Application Tube contact sensor
Temperature Sensor Specifications
| Temperature Sensor | Measurement range | Resolution | Accuracy |
| Type K | -200…1370 °C | 0.01 °C | ±0.3% ItI +0.4 °C |
| Type T | -200 … 400 °C | 0.01 °C | ±0.3% ItI +0.4 °C |
| Type J | -200 … 1200 °C | 0.01 °C | ±0.3% ItI +0.4 °C |
| units | °C / °F | ||
| Number of channels | 2 | ||
| Measurement rate | 2 Hz | ||
| Data Storage | 15,328 kB for 20,000 data points | ||
| File Formats | TXT, CSV, XLS, DLG | ||
| Retention period | 1 …. 86,399 s | ||
| interface | Micro-USB | ||
| Power Supply | 3 x 1.2 V AAA batteries | ||
| 3 x 1.5 V AAA batteries | |||
| Battery life | approx. 190 hours | ||
| (without backlight, battery capacity | |||
| 1200 mAh, ambient temperature 25 °C) | |||
| Operating Conditions | -10 … 50 °C | ||
| Storage Conditions | -20 … 60 °C (without batteries) | ||
| Dimensions | 173 x 71 x 38 mm | ||
| Weight | about 226 g | ||
1 x PCE-T 330 precision thermometer
1 x micro-USB cable
1 x User Manual
1 x ISO calibration certificate
