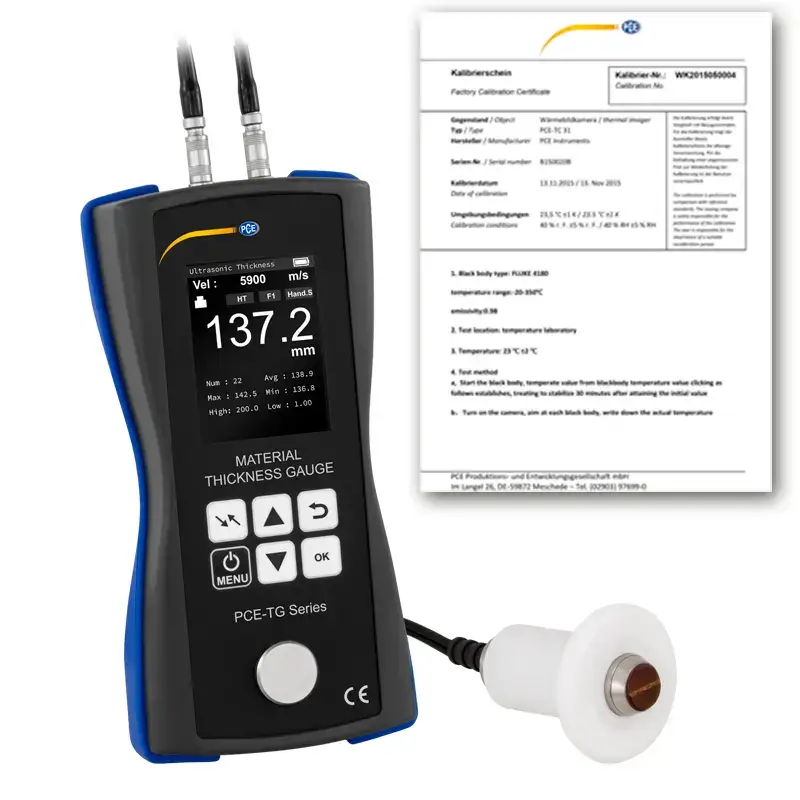

PCE-TG 150 HT-ICA Wall Thickness Gauge, including ISO calibration certificate
Wall Thickness Gauge with Data Storage / Adjustable Sound Speed /
Calibration reference mounted on the housing / Material thickness measurement up to 300 mm /
Boundary Alarm / Optional ISO Calibration Certificate
The wall thickness gauge can measure material thicknesses up to 300 mm / 11.81″. To measure the thickness of a wide variety of homogeneous materials, the corresponding sound velocity can be stored in the wall thickness gauge. For materials such as steel, aluminum, zinc, silver, and gold, the appropriate sound speeds are already stored in the device’s universal wall thickness measurement function.
The meter can store individual maximum and minimum values; if the measured value of the test specimen is outside the limits, the wall thickness gauge emits an audible signal in addition to the visual display, if necessary
After a series of measurements, the recorded measurement values can be analyzed directly on the wall thickness gauge. The recorded data is displayed graphically on the wall thickness gauge. In addition, you can zoom in on each individual measurement point and read the data from the wall thickness gauge’s graph. For a simplified analysis of the measured values, the wall thickness gauge displays the average, maximum, and minimum measured values.
Highlights
– Measured value memory
– Calibration reference on the housing
– Automatic shut-off
– Material thickness measurement up to 300 mm / 11.81″
– Battery status indicator
Specifications
| Measurement range | 1.20 … 300.0 mm / 0.04 … 11.81 inches |
| Resolution | 0.01 mm ≤ 99.99 mm |
| 0.1 mm at ≥100.0 mm | |
| Accuracy | ±0.5% of the measured value + 0.05 mm |
| Storage | 1,500 measured values |
| Standard sensor | PCE-TG HT |
| Temperature Range Sensor | -10 … 350 °C / 14 … 662 °F |
| Transmitter frequency | 5 MHz |
| Diameter | Ø12 mm |
| Additional Specifications | |
| Adjustable sound speed | 1000 … 9999 m/s |
| Smallest pipe diameter | Ø20 x 3 mm (steel) |
| Resource Library | 15 memory locations |
| Calibration Reference | 4 mm |
| Display | 2.4-inch TFT LCD color screen |
| with brightness control | |
| Power Source | 3 x 1.5 V AA batteries |
| Automatic Shut-Off | Off, 2, 5, 10, 30 minutes |
| Environmental Conditions | 0 … 40 °C / 32 … 104 °F, <90% relative humidity, non-condensing |
| Dimensions | 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5 inches |
| Weight | 320 g / 11.2 ounces |
Scope of Delivery
1 x PCE-TG 150 HT wall thickness gauge 1 x PCE-TG HT sensor 1 x coupling gel (K-GEL) 1 x carrying case 3 x 1.5 V AA batteries 1 x quick start guide 1 x ISO calibration certificate
