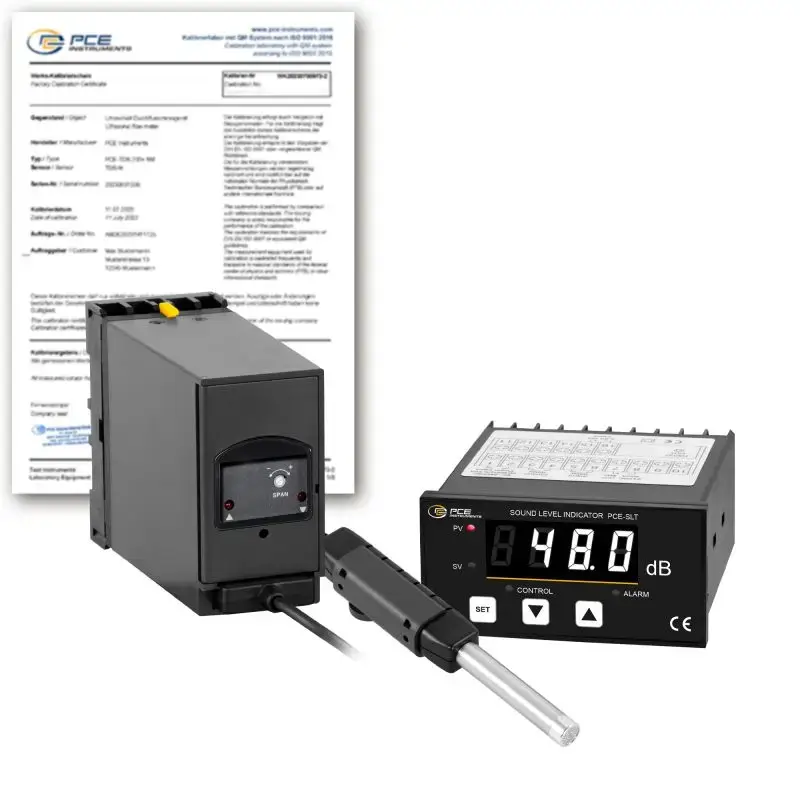

PCE-SLT-ICA Noise Meter with ISO Calibration Certificate
SLT-ICA Noise Meter with ISO Calibration Certificate for Fixed Installation, with Relay Output and Control Output
The occupational safety measuring device consists of a handheld measuring microphone, a wall mount with a 1.5-meter cable, a noise transmitter, and a digital display. The primary application of this occupational safety measuring device is continuous noise measurement and monitoring in factory halls, production areas, and at large events (discos, folk festivals, go-kart tracks, etc.). The digital display features a relay output for controlling alarm signals or flashing lights to provide visual or audible warnings, as well as a control output.
The output limit for this alarm can be programmed on the display. The analog output signal can also be used to control window shutters… or to record, evaluate, and document the transmitter’s signals in a logger. The noise alarm device is very easy to connect and can be powered by a 240 V AC power supply. The digital display for the noise alarm is delivered preconfigured for the noise transmitter and is ready for immediate use.
| sound sensor | |
| Measurement range | 30 … 130 dB in three ranges |
| resolution | 0.1 dB |
| accuracy | ±1.5 dB |
| Evaluation | A |
| Offer | via the sender |
| Cable length | 1.5 m, 8 m, or 15 m |
| Wall mount | for screw mounting (included with delivery) |
| Environmental Conditions | Max. 85% relative humidity / 0 … +50 °C |
| microphone | 1/2″ precision electret microphone |
| standard | IEC 61672 Class II |
Sender |
|
| Housing | ABS plastic |
| Offer | 90…260 ACV (max 1.5 A) |
| calibration | adjustable with a screw |
| Outputs | 4 … 20 mA |
| Protection Class | IP54 |
| Environmental Conditions | Max. 85% relative humidity / 0 … +50 °C |
Digital display |
|
| Input signal from the transmitter | 4–20 mA |
| Advertisement | -1999 … 9999 (1 … 3 decimal places, depending on the measured value / user-selectable) |
| Programming data (comma, limit value…) | are stored in the device |
| Control Output | 3-point (Com, NO, NC) |
| Alarm Output | Relay output: 5 A / 240 VAC |
| Offer | 90 … 260 ACV / 50 … 60 Hz |
| Dimensions/panel cutout according to DIN | 92 (+0.8) mm x 45 (+0.5) mm |
| Weight | about 250 g |
| Environmental Conditions | Max. 85% relative humidity / 0 … +50 °C |
| Protection Class | IP65 |
1 x noise sensor with a 1.5 m cable
1 x noise transmitter
1 x digital display
1 x swivel sensor mount
1 x user manual
1 x ISO calibration certificate
