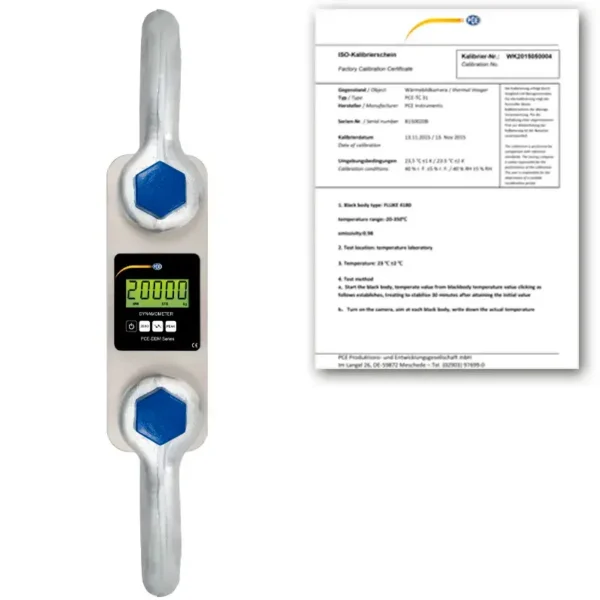

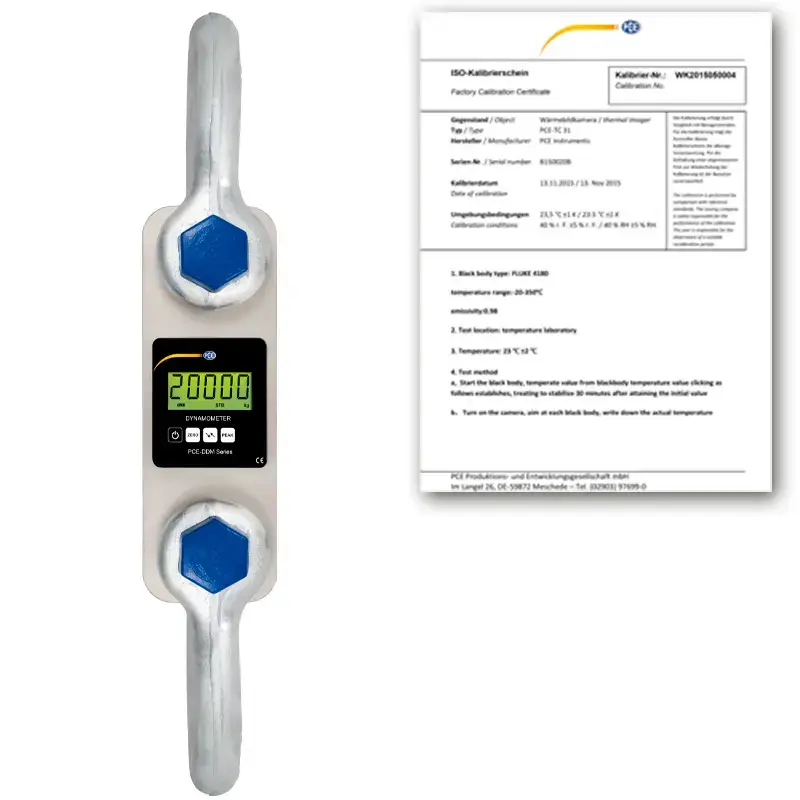

PCE-DDM 20WI-ICA Faucet Scale Includes: ISO calibration certificate
Portable force gauge / Measurement range up to 20 t /
PEAK hold function / Includes straps and carrying case
The force gauge is ideal for mobile tension measurements, such as those performed by inspectors. High-quality materials have been used in the manufacture of the tension dynamometer. Despite its high measurement capacity, these materials allow for a compact and lightweight design. The tension dynamometer comes with two chains in a carrying case.
Some of the force gauge’s notable features include the PEAK hold function, the summation function, and various units of measurement, such as kg, t, lb, N, or kN. The tensile dynamometer is suitable only for measuring tensile strength; for compression tests, other force measurement devices must be used, such as our PCE-FB series force gauges.
2 x straps
1 x carrying case
3 x AA 1.5 V batteries
1 x user manual
1 x ISOcalibration certificate N.B. Calibration certificates are issued specifically to the customer and are not subject to the right of return.
| Measurement range | 20,000 kg / 200 kN / 44,092 pounds |
| Resolution | 10 kg / 100 N / 22 pounds |
| Min. range | 200 kg / 440 pounds |
| Weight (including binding) |
18 kg / 39 pounds
(49 kg / 108 pounds)
|
| Accuracy | ±0.1% of the measurement range |
| Measurement Range | Max 20% of the measurement range |
| Display | LCD screen with a digit height of 22 mm / 0.9 |
| Units of Measurement | kg / t / lb / N / kN |
| Sampling frequency | 2.5 Hz |
| Operating temperature | -10 °C … +40 °C / +14 °F … +104 °F |
| Power Source | 3 x 1.5 V AA batteries |
| Working hours | approx. 50 hours |
