Material Tester PCE-2600N for measuring surface hardness/ OLED /
compact design / Handheld measuring instrument/
Limit alarm / Measuring direction 360°
The material tester is used wherever a fast hardness test has to be carried out. It is possible with the material tester to determine the surface hardness of many metals. The material tester is particularly suitable for quality or material inspection. The measured values can be stored in the internal memory and recalled later. Please note that the measured values can only be read from the material tester on the display and it does not offer any readout.

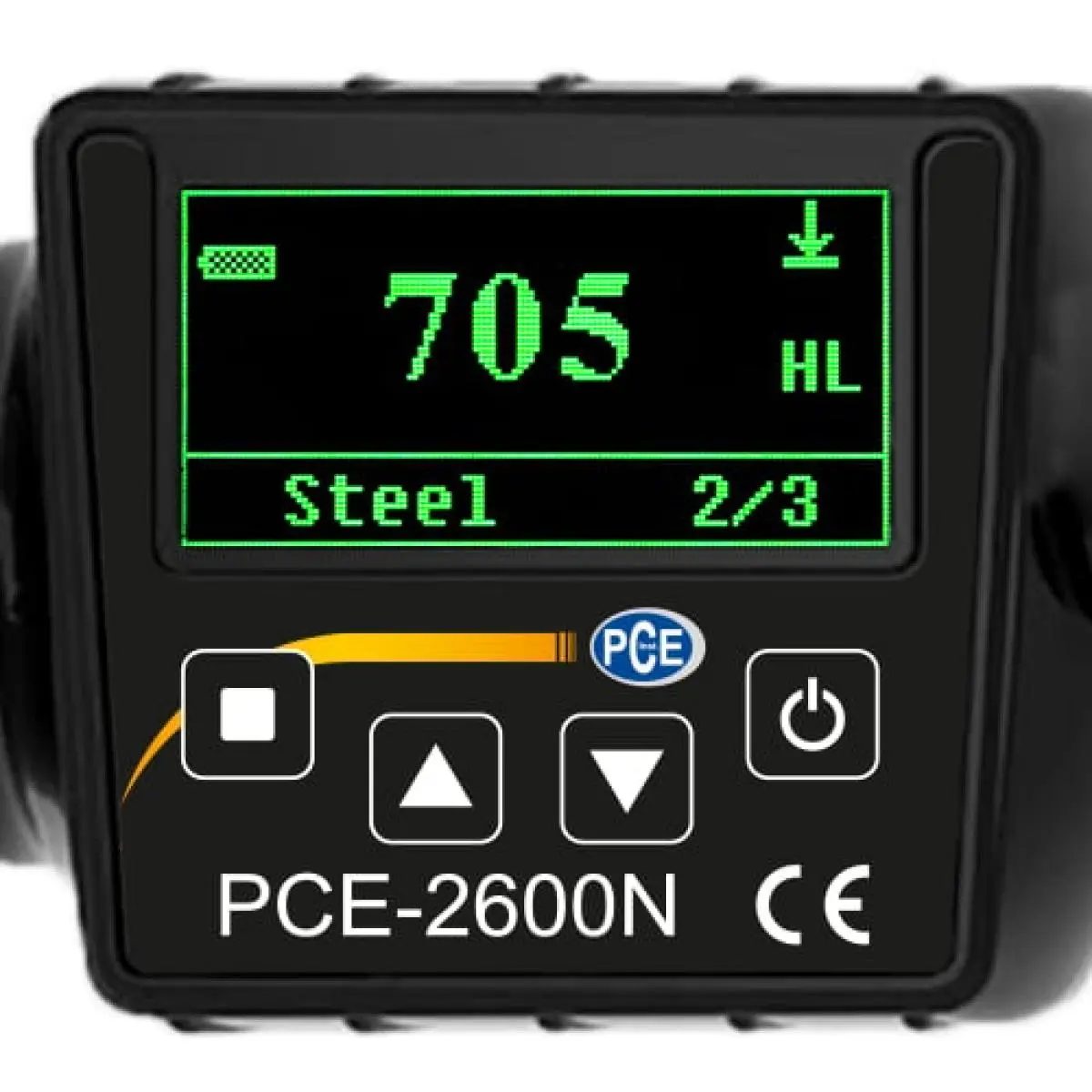

One-hand operation of the material tester allows for convenient use in different locations. Due to its construction, the material tester also offers the possibility to determine the surface hardness in bores or other depressions. The small design of the material tester contributes to the functionality as does the light OLED. The OLED from the material tester shows many functions so that the user directly recognizes which parameters are measured, which measuring direction is selected, and which hardness has been measured.
Highlights
- Limit alarm
- Suitable for measurement in bores
- Surface measurement on many metals
- Internal memory for measurements
- Bright OLED
- Handheld measuring instrument
Technical specifications
Hardness Measuring range 170 … 960 HLD Resolution 1 HLD Accuracy±0.5% Hardness Measuring range 17,9 … 69,5 HRC Resolution 0,1 HRC Accuracy±0.5% Hardness Measuring range 19 … 683 HB Resolution 1 HB Accuracy±0.5% Hardness Measuring range 80 … 1042 HV Resolution 1 HV Accuracy±0.5% Hardness Measuring range 30,6 … 102,6 HS Resolution 0,1 HS Accuracy±0.5% Hardness Measuring range 59,1 … 88 HRA Resolution 0,1 HRA Accuracy±0.5% Hardness Measuring range 3,5 … 101,7 HRB Resolution 0,1 HRB Accuracy±0.5% General technical data Measuring functions MIN, MAX, Average value Measuring principle Rebound method Display type OLED Display size 0,6 Inch Display resolution 128 x 64 Storage medium Internal memory Storage capacity 600 Values Memory capacity (additional information)6 files Interface Micro-USB Materials Steel, Cast steel, alloyed tool steel, Stainless steel, Grey cast iron, Cast aluminium alloy, Brass, Bronze, Tin bronze Operating time 10 h Repeatability 0,8 % Impact device Type DL Hardness scales HLD, HRC, HB, HV, HS, HRA, HRB Test specimen Tungsten carbide, hardness-1600 HV, ø 3 mm Menu language English, Chinese, English (GB) Protection class (device)IP52 Power supply 5 V DC Connector type Device-europlug (Rechargeable) battery 1 x 3,7 V internal , Lithium-ion battery Capacity 240 mAh Operating conditions-10 … 50 °C , 0 … 90 % RH Storage conditions-30 … 60 °C , 0 … 90 % RH Dimensions ( L x W x H )205 x 32 x 25 mm Weight 650 g
Delivery scope
1 x Durometer PCE-2600N 1 x Impactor 1 x Calibration block 1 x Cleaning brush 1 x Carrying case 1 x Operation manual
