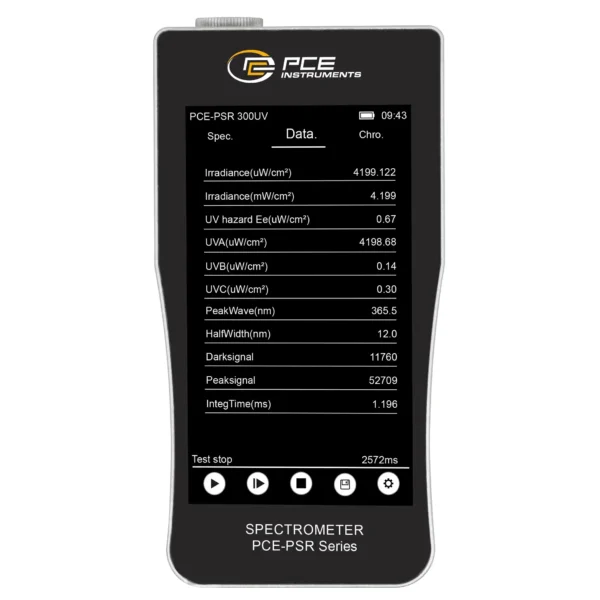

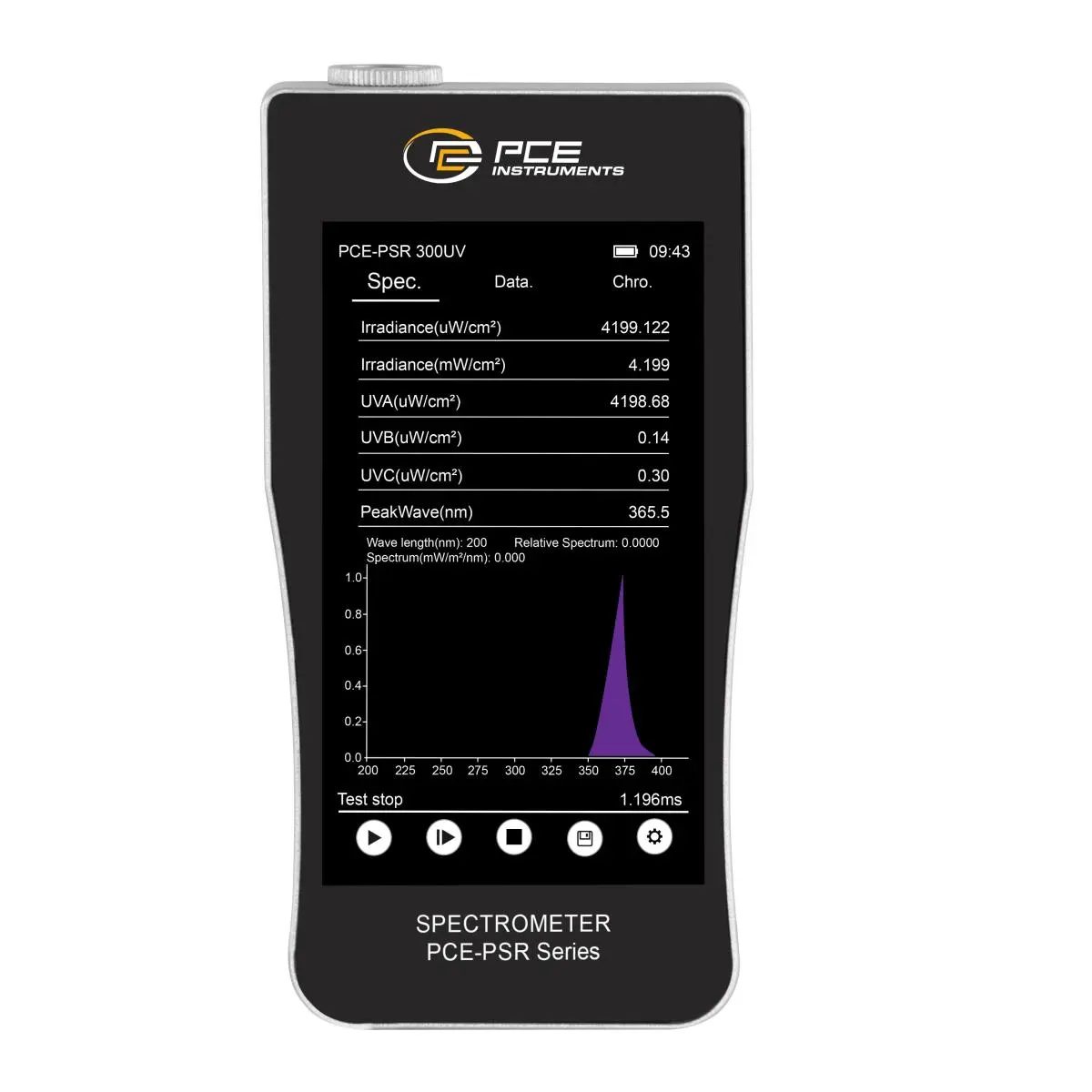

UV Meter / UV Tester PCE-PSR 300UV
UV meter / UV tester / UV radiation intensity / Color Rendering Index (CRI) / color coordinates and spectral distributions / illumination / data in CSV and PDF formats. file / USB-C interface / touchscreen
The UV Meter / UV Tester is a highly accurate instrument for analyzing UV-A, UV-B, and UV-C radiation, offering exceptional measurement accuracy and versatility. With a measurement range of 0.1 to 500,000 µW/cm² and an accuracy of ±0.01 µW/cm², it is ideal for demanding applications in photobiology, materials testing, and UV protection analysis. The spectral resolution is ±0.2 nm, and the repeatability is ±0.5 nm, ensuring consistent and reliable data collection.
In addition to precise measurements of UV radiation, the device records color coordinates and spectral distributions with a chromatic coordinate accuracy of ±0.005 (Δx, Δy). The UV meter/UV tester is not only technically powerful but also user-friendly. The capacitive 5-inch IPS touchscreen offers intuitive operation and ensures clear display of all measurement data even in difficult lighting conditions. With its integrated rechargeable 4000 mAh lithium-ion battery, the UV meter / UV tester ensures a long runtime, allowing even extensive measurements to be carried out without any issues. The 8 GB internal memory provides ample space for a large volume of measurement data, which can be saved directly to the device.
Computer software is available for seamless data processing and advanced analysis functions. It allows you to easily transfer, analyze, and archive measured values. This UV meter/UV tester combines accuracy, versatility, and ease of use in a compact device, making it the ideal solution for professional applications in industry, research, and education.
| Radiation | |
| Measurement range up to | 0.1 … 500,000 µW/cm² |
| Resolution | 0.001 µW/cm² |
| Accuracy | 0.01 µW/cm² |
| General Technical Specifications | |
| Screen Type | LCD touchscreen |
| Screen size | 5 inches |
| Screen resolution | 480 x 854 |
| Storage Medium | Internal memory |
| Storage Capacity | 8 GB |
| Memory capacity (more information) | Approx. 5,000 data entries |
| Interface | USB, BLE switch |
| Working Hours | 20 hours |
| Automatic shut-off from…to | 2 … 60 min. |
| You can turn off the automatic shut-off feature | Yes |
| Reproducibility | ±0.5 nm |
| Color Spaces | CIE1931, CIE1960, CIE1976, SDCM, CRI1, CRI2, TM30 (accuracy distribution), TM30 (distribution shift), TM30 (Rg/Rf) |
| Wavelength range | 200…400 nm |
| Light Parameters | Irradiance (µW/cm²), irradiance (mW/cm²), UV risk Ee (µW/cm²), UVA (µW/cm²), UVB (µW/cm²), UVC (µW/cm²), peak wavelength (nm), half-width (nm), dark signal, peak signal, transmission time (%) |
| Menu Language | English, Chinese, English (GB) |
| Protection Class (device) | IP56 |
| Power Supply | 100 … 240 V AC | 50/60 Hz |
| Connector Type | Euro plug |
| (Rechargeable) battery | 1 x 3.7 V internal lithium-ion battery |
| Capacity | 4,000 mAh |
| Operating Conditions | -10 … 40 °C, 70% relative humidity |
| Storage Conditions | -20 … 45 °C, 70% relative humidity |
| Dimensions (W x L x H) | 160 x 82 x 22 mm |
| Weight | 390 g |
