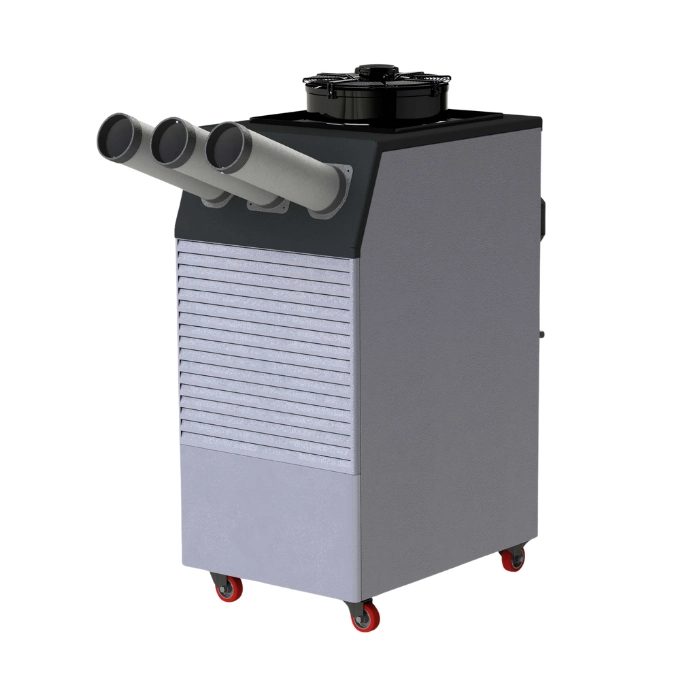

FRAL FSC40 13 kW 44,300 BTU/h Portable Commercial Air Conditioner
Key Features
- Fittings for connecting continuous drain pipes
- Adjustable Air Delivery
- Two fan speeds
- Power consumption: 34. 00 W
- Cooling Capacity 44,300 BTU/h
- Airflow up to 17, 000 mc/h
- Refrigerant R454C
- Weight: 135 kg
Air Conditioner FSC40
A powerful and reliable air conditioner with a cooling capacity of up to 44,300 BTU/h.
The single-fan SPOT COOLER, with a high airflow rate starting at 1,700 m³/h, is ideal for cooling server rooms, production areas, and workspaces.
The SPOT COOLER is designed for quick rental, installation, and startup. In addition, the unit is fully portable and features wheels with brakes. This makes it easy to move the lightweight unit around during cleaning.
RAAM
A structure made of heavy-duty galvanized steel panels coated with epoxy powder, ensuring high resistance to atmospheric conditions and harsh environments. The panels are removable to allow for quick inspection and maintenance of internal components.
COMPRESSOR
A rotary compressor mounted on vibration dampers.
REFRIGERANT SYSTEM
Evaporator and condenser: the coil is made of copper tubes and aluminum fins. Dryer filter, Schrader valves, minimum and maximum pressure switches. Defrost thermostat and solenoid valve in the S version.
FAN
A centrifugal double-inlet fan constructed with sturdy galvanized steel blades, statically and dynamically balanced. A two-speed fan.
TESTING
Tests are conducted to check the tightness of the refrigeration circuit. Electrical insulation tests and functional tests are also performed.
AIR FILTER
The air filter that comes standard with the unit is washable and easy to replace. It is made of polyurethane and is a high-efficiency filter.
MICROPROCESSOR
It controls the defrost cycles, the compressor timer, the temperature, and the alarm panel. The humidifier is equipped with step-sequence control.
CONTROL PANEL AND ELECTRICAL CONTROL PANEL
Located inside the machine. IP protection rating. Manufactured in accordance with European standards 73/23 and 89/336.
IP
Standard IP22; IP44 upon request.
TECHNICAL STANDARDS
These machines comply with the essential requirements set forth in European Community Directive 2006/95/EC of December 12, 2006, on the safety of electrical equipment designed for use at low voltage; 2004/108/EC of December 15, 2004, on electromagnetic compatibility; and 2006/42/EC of May 17, 2006, on machinery safety. Conformity is declared with reference to the following harmonized technical standards: CEI-EN 60335-2-40, CEI-EN 55014-1, CEI-EN 55014-2. We also confirm that the product has been manufactured in accordance with the applicable RoHS Directive, i.e., 2002/95/EC, which was transposed by Legislative Decree No. 151 of July 25, 2005 (Article 5).
| TECHNICAL SPECIFICATIONS | |||
| Maximum cooling capacity | 13,000 W | ||
| Cooling Capacity | 44,300 BTU/h | ||
| Cooling capacity (27°C – 60%) | 3,400 W | ||
| Absorbed power (27°C – 60%) | 6.6 A | ||
| Fan speed – maximum speed | 1,700 m³/h | ||
| Fan speed – low speed | 1,400 m³/h | ||
| Heating Section Air Flow | 2,000 m³/h | ||
| Refrigerant Type | R454C | ||
| High-efficiency compressor | Rotary | ||
| Indoor unit noise (3 m) at minimum speed | 59 dB(A) | ||
| Condenser water tank | 20 liters | ||
| Power Supply (volts/phase/frequency) | 400/3N/50 | ||
| Dimensions (L x H x W) | 670 x 899 x 1552 mm | ||
| Weight | 135 kg | ||
