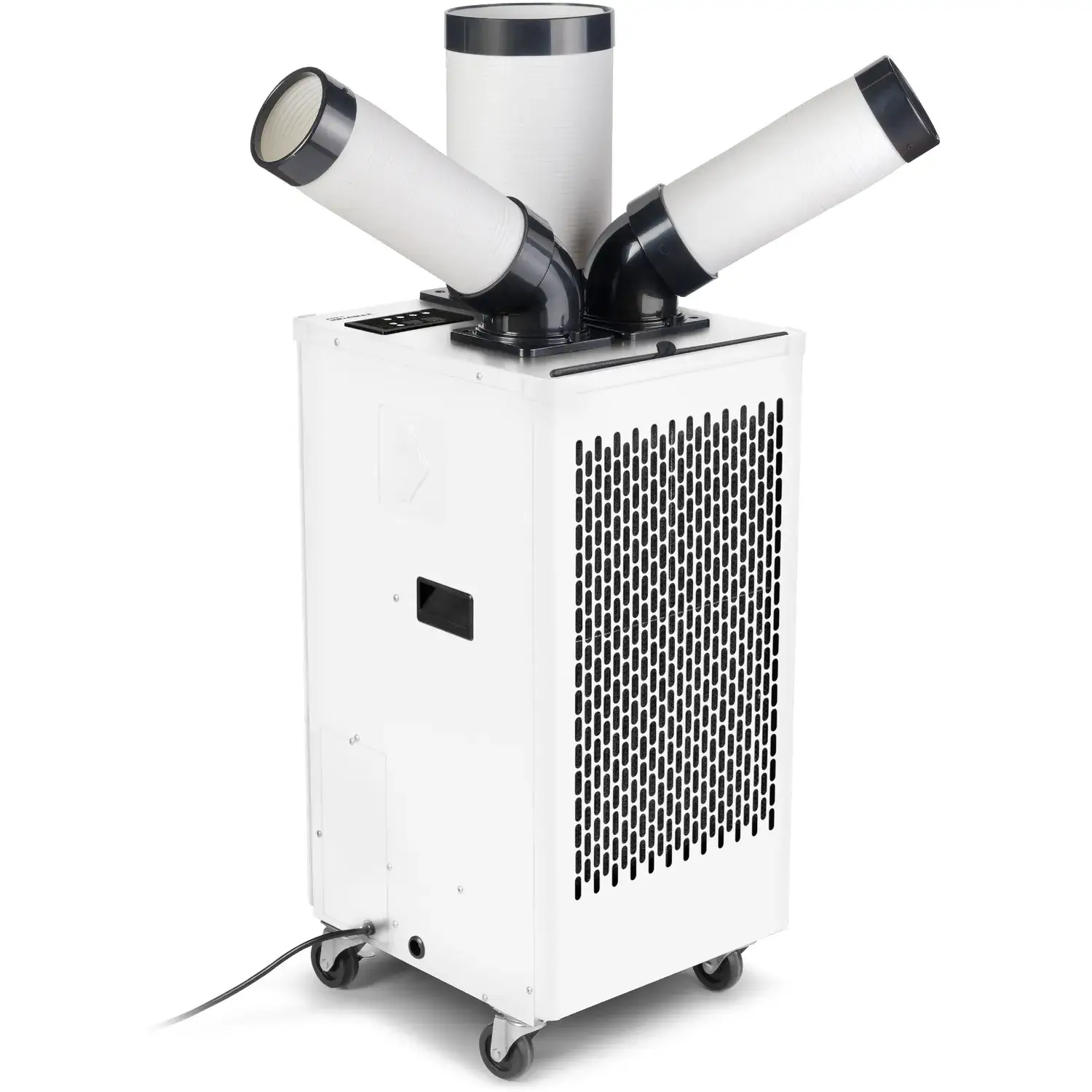

Spotcool PT 3500 SP Portable Air Conditioner
Whether the ambient air temperature is too high for people and machinery or the factory floor is stuffy, the mobile Spotcooler PT 3500 SP is the perfect solution for a cool working environment free of heat stress.
Pro Air offers lower prices—compare them with prices on German websites— TROTEC GmbH
The PT 3500 SP, with a cooling capacity of 3.5 kW and an airflow of up to 600 m³/h, provides instant cooling exactly where it’s needed. Just turn it on and start cooling. The spot cooler is ready to use with no setup required. It is equipped with two separate cold-air ducts, allowing the cold airflow to be easily directed in multiple directions. Both cold air ducts can be tilted 150 degrees and rotated 360 degrees for precise cooling.
As a truly multifunctional spot cooler, the PT 3500 SP can be used not only for spot or room cooling, but also for ventilation or dehumidification. Combined with its high mobility, this versatility enables a very wide range of applications, such as the efficient cooling of individual workstations or machines and system components, server and network rooms, spot cooling at events, during welding operations, or in the food service industry, and much more.
With the Troteci Spotcooler PT 3500 SP, cool, dry air is available quickly and immediately anywhere—all you need is an outlet!
One device, four operating modes—a really cool solution.
The Spotcooler PT 3500 SP offers you four different application options that can be configured easily and intuitively via the large control panel:
room air conditioning
In this operating mode, the PT 3500 SP cools the room air using the principle of a conventional monoblock air conditioner. The built-in thermostat automatically regulates the flow of cool air according to the set room temperature and cools the room until the preselected target temperature is reached.
spot cooling operation
With local cooling, selective cooling air supply can be provided through three adjustable cold air ducts. In this mode, the ambient air temperature is not a significant control variable; instead, the desired outlet temperature is set via the thermostat. Thanks to this operating mode, the unit can also be placed in an adjacent room and cool air can be delivered to the destination via connected air ducts.
fan function
If air cooling is not needed but fan-based air circulation is desired, the PT 3500 SP can also be used in fan mode. In this energy-saving mode, the compressor turns off, and all fan functions remain available.
dehumidification function
The PT 3500 SP can be set to dehumidification mode for targeted room dehumidification. In this mode, the unit still provides a cooling effect, but the fan speed is reduced to a minimum.
In addition to various operating modes, the PT 3500 SP control panel also allows you to set the automatic on and off times for the spot cooler. The timer function can be used both to preset the desired shutdown time for the unit and to automatically turn it on at a preset time. In addition, the control panel is equipped with a warning light that indicates when the condensate tank is full, as well as error codes from the self-diagnostic function.
Benefits of exercise:
- Multifunctional air conditioner for room cooling, spot cooling, ventilation, or dehumidification
- Dual-channel room cooler with two separately adjustable cold-air ducts for different target areas
- No installation required; ready to use
- Timer function for presetting the start or end time
- Sturdy sheet steel construction, ideal for use in harsh environments
- Excellent maneuverability and mobility thanks to its compact design and stable casters with a brake lock
- Electronic thermostat with two displays for the setpoint and actual value
- LED screen with membrane keys
- Level warning light when the water tank is full
- External Condensate Drain Connection
- Washable air filter to protect internal components from contamination
- Option to connect a hose to direct warm air to an outdoor area
| Type | ||
|---|---|---|
| monoblock | ||
| spot cooling | ||
| cooling capacity | ||
| maximum [kW] | 3.5 | |
| max [Btu/h] | 12,000 | |
| air volume | ||
| Max. flow rate [m³/h] | 600 | |
| fan | ||
| fan levels | 2 | |
| axial | ||
| radial | ||
| Achievable room temperature (min.) | ||
| depending on operating conditions [°C] | 0 | |
| cooling system | ||
| cooling system | Air | |
| Environmental Conditions | ||
| Temperature range, min [°C] | 18 | |
| Maximum temperature range [°C] | 45 | |
| electrical values | ||
| Power connection | 220–240 V/50 Hz | |
| Power consumption [kW] | 1.7 | |
| Rated Current [A] | 6.2 | |
| electrical connection | ||
| plug plug | CEE 7/7 | |
| Cable length [m] | 1.6 | |
| compressor | ||
| Refrigerant type | R290 | |
| Amount of refrigerant [g] | 300 | |
| GWP factor | 3 | |
| CO ₂ equivalent | 0.001 | |
| Suction Side Pressure [MPa] | 1 | |
| Pressure on the outlet side [MPa] | 2.5 | |
| water tank | ||
| Content location [l] | 7 | |
| sound levels | ||
| Distance 1 m [dB(A)] | 57 | |
| dimension | ||
| Length (without packaging) [mm] | 430 | |
| Width (without packaging) [mm] | 493 | |
| Height (without packaging) [mm] | 944 | |
| Weight | ||
| (without packaging) [kg] | 49 | |
| EQUIPMENT, FEATURES, AND FUNCTIONS | ||
|---|---|---|
| condensate drain | ||
| with condensate drainage | ||
| room thermostat | ||
| present | ||
| room air filter | ||
| washable | ||
| Additional Features | ||
| dehumidification function | ||
| ventilation function | ||
| room air conditioning | ||
| spot cooling operation | ||
| Compressor Protection | ||
| overheating protection | ||
| Automatic defrosting | ||
| Automatic Error Diagnosis | ||
| Displaying the current room temperature | ||
| Displaying the Set Room Temperature | ||
| Room Thermostat with Temperature Display | ||
| Adjustable airflow direction | ||
| Warning signal when the water tank is full | ||
| Level warning light when the water tank is full | ||
| Sensor-Controlled Temperature Gauge | ||
| mobility | ||
| Plastic transport rollers with hand brakes | ||
| recessed handles | ||
