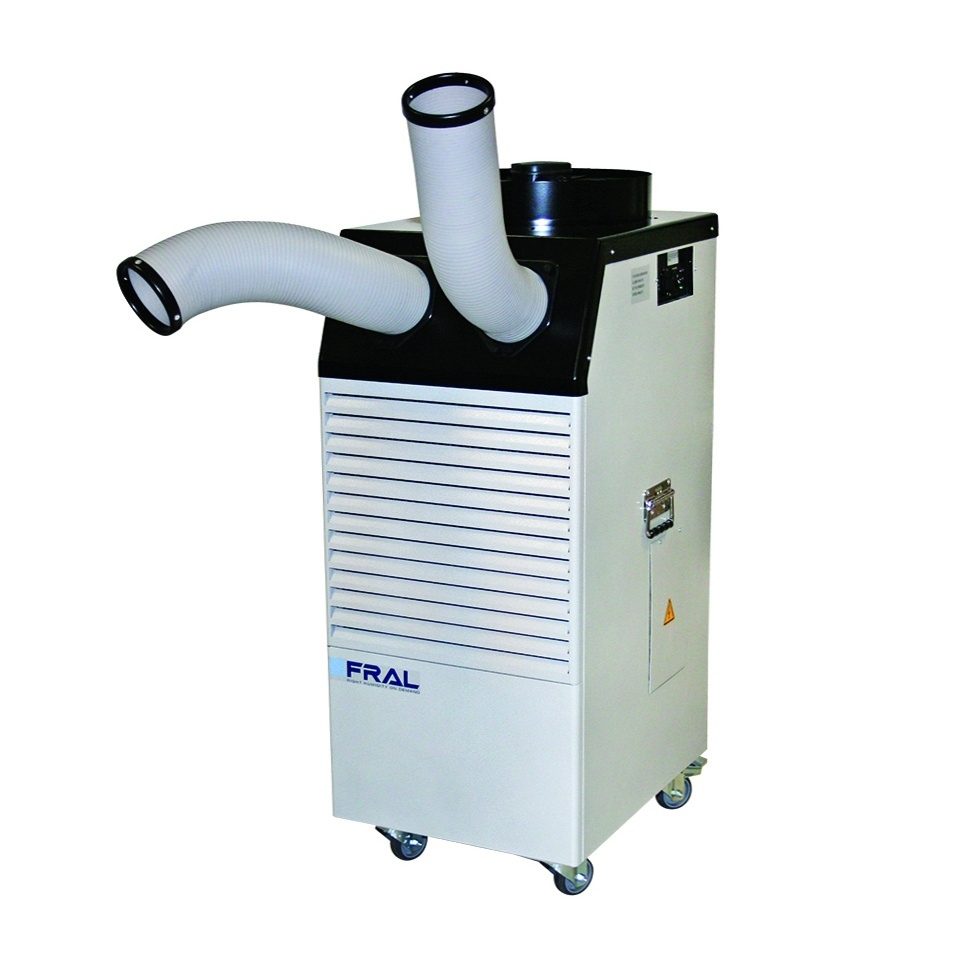

A range of high capacity monoblock portable air conditioning. Powerful and reliable tools with cooling/heating capacity up to 24100 BTU/h.
This single fan SPOT COOLER with large volume air movement from 1,020m³/hr is ideally suited to cool server rooms, production areas and workplaces.
The SPOT COOLER unit has been designed for a fast rental installation and start up. In addition to this, the unit is entirely portable and has castors with brakes. This allows easy movement when cleaning around this lightweight unit.
Main characteristics
- Fittings for continuous draining pipe connection
- Adjustable air delivery
- Two fan speed
- Cooling absorbed power 2020 W
- Heating absorbed power 1940 W
- Cooling capacity 7000 W
- Heating capacity 6500 W
- Refrigerant R134a
- Weight 85 kg
Characteristics
Frame
Structure with panels made of sturdy galvanized steel, painted with epoxy powder ensuring high resistance to atmospheric agents and aggressive environments. The panels are removable to allow a quick inspection and maintenance of the internal parts.
Compressor
Rotative compressor mounted on vibration dampers.
Refrigerant circuit
Evaporator and condenser: the coil is made of copper pipes and aluminium fins. Drying fi lter, Shrader valves, minimum and maximum pressure switch. Defrosting thermostat and solenoid valve in version S.
Fan
Centrifugal double suction fan, built with sturdy blades in galvanized stell, statically and dynamically balanced. Two-speed fan.
Testing
Tests are performed to check the tightness of the refrigeration circuit. Electrical discharge tests and functional tests are performed as well.
Air filter
The air filter, supplied as standard with the unit, is washable and easily replaceable. It is in Polyurethane and High-efficiency filter.
Microprocessor
Controls the defrosting cycles, the compressor timer , temperature and the alarm card. The dehumidifier is equipped with step sequence control.
Control panel and electrical control panel
Located inside the machine. IP protection degree. Made in compliance with the European standards 73/23 and 89/336.
Ip
Standard IP22 on request IP44.
Technical standards
This dehumidifier meets the essential requirements included in the Directives of the European Community 2006/95/EC of 12 December 2006 on the safety of electrical products for use in Low Voltage; 2004/108/EC of 15 December 2004 in the field of electromagnetic compatibility; 2006/42/EC of 17 May 2006 in the fields of machinery safety. The conformity is declared with reference to the following harmonized technical standards: CEI-EN 60335-2-40, CEI-EN 55014-1, CEI-EN 55014-2. We also declare that the product is manufactured in compliance with the RoHS Directive in force, that is 2002/95/EC, transposed with the Legislative Decree of 25 July 2005 no. 151 (article 5).
