UV Meter / UV Tester / External sensor / Hold function / Battery operation / Compact and lightweight / Automatic switch-off
The UV Meter / UV Tester is a compact measuring device for detecting UV-A radiation in the range of 300 … 390 nm, with a peak wavelength of 365 nm. The UV Meter / UV Tester measures radiation intensities from 0 … 19,999 µW/cm² with a resolution of 1 µW/cm² and an accuracy of ±4% FS. The measuring rate is one measurement per second, a hold function enables the current value to be recorded.

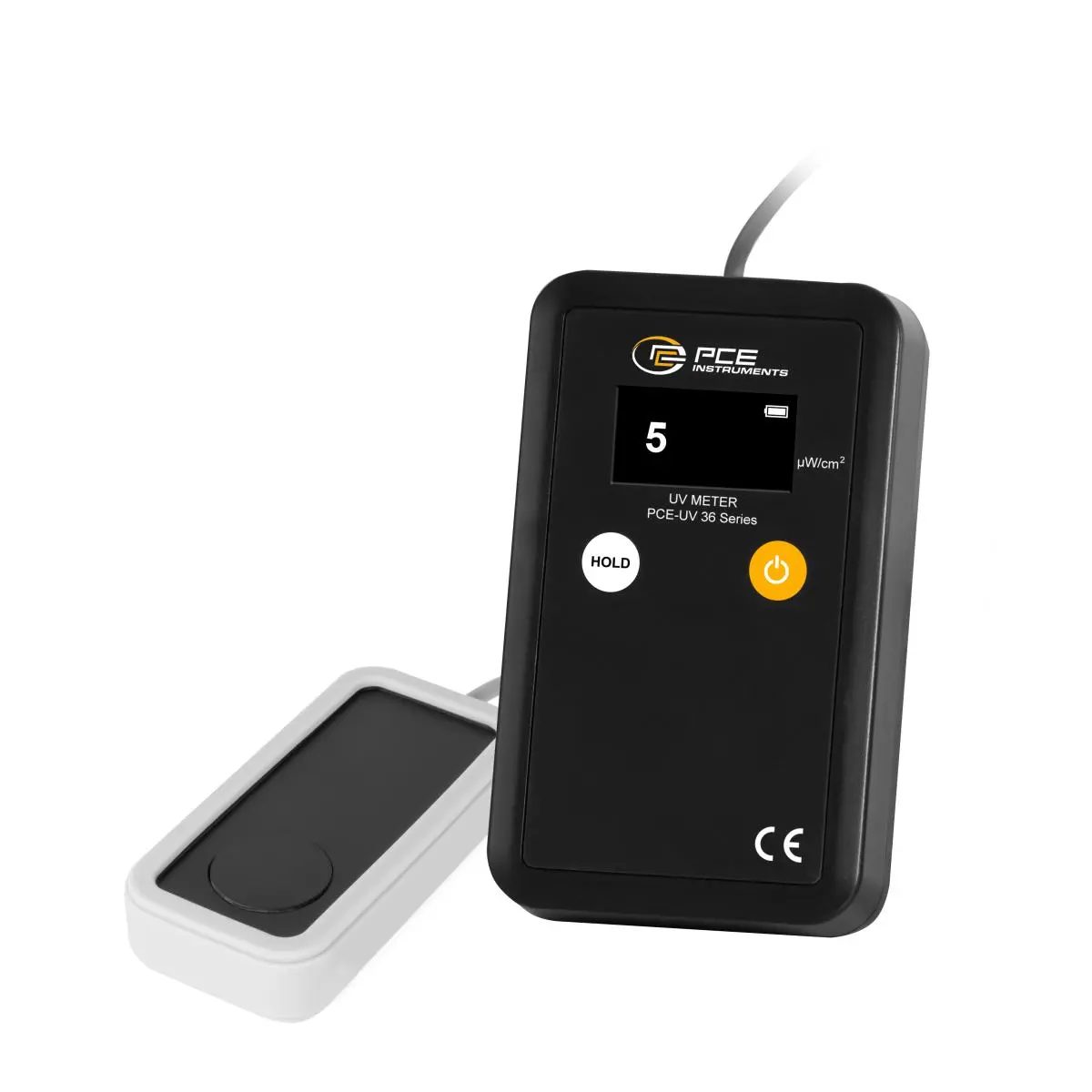

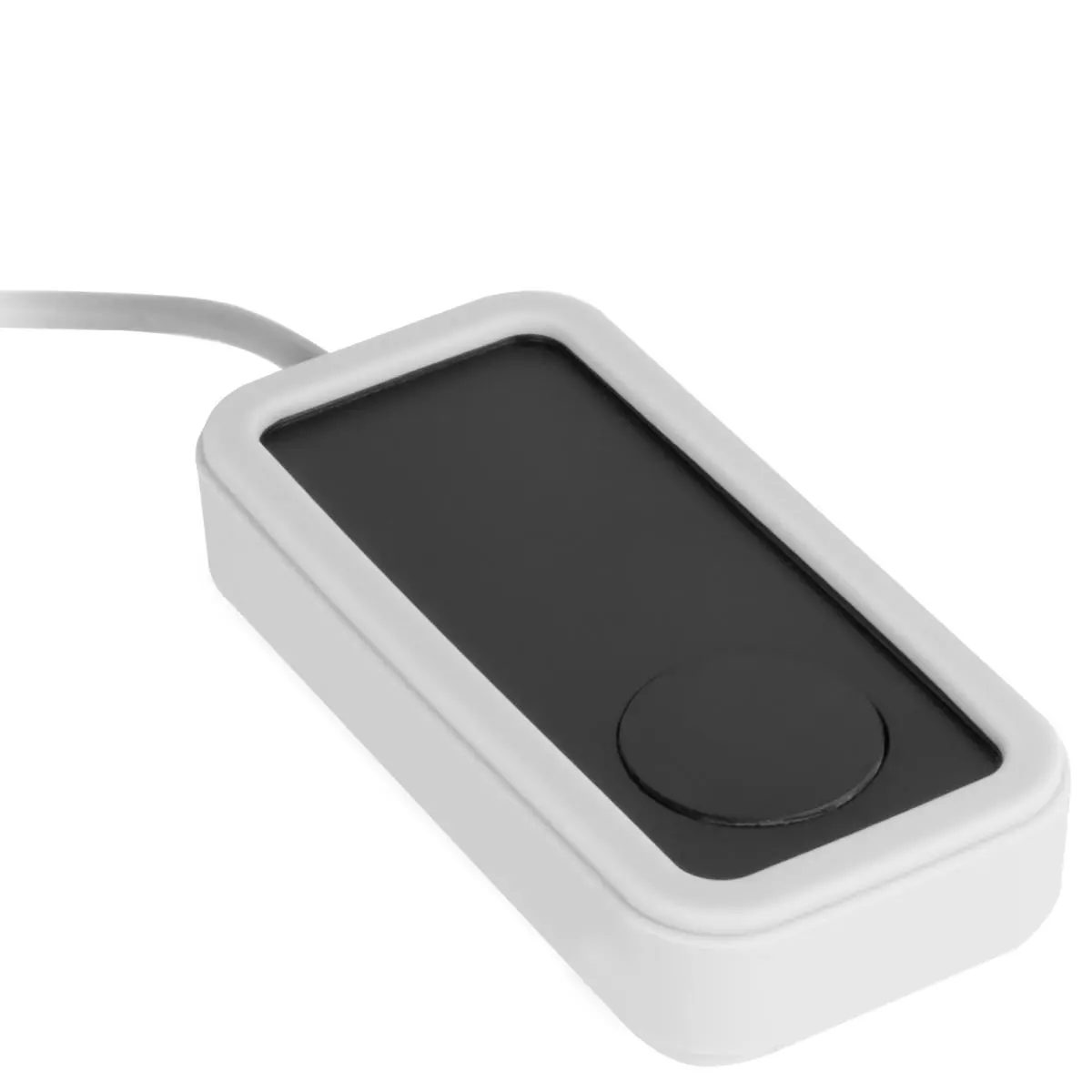

The UV Meter / UV Tester has an easy-to-read 1.4-inch LED display, a battery indicator and automatic switch-off after 4 minutes. The external sensor measures 78 × 38.5 × 15.5 mm and is connected via a 1 m cable – ideal for flexible applications. It is powered by two 1.5V AA batteries.
The UV Meter / UV Tester is suitable for numerous applications such as UV curing in industry, UV controls in medicine, occupational safety measurements and for laboratory and environmental technology. Thanks to the accuracy of the UVA radiation meter and its ease of use, the UV Meter / UV Tester is a reliable tool for many professional applications.
Highlights
- Hold function
- External sensor
- Automatic switch-off
- 1.4 inch LED display

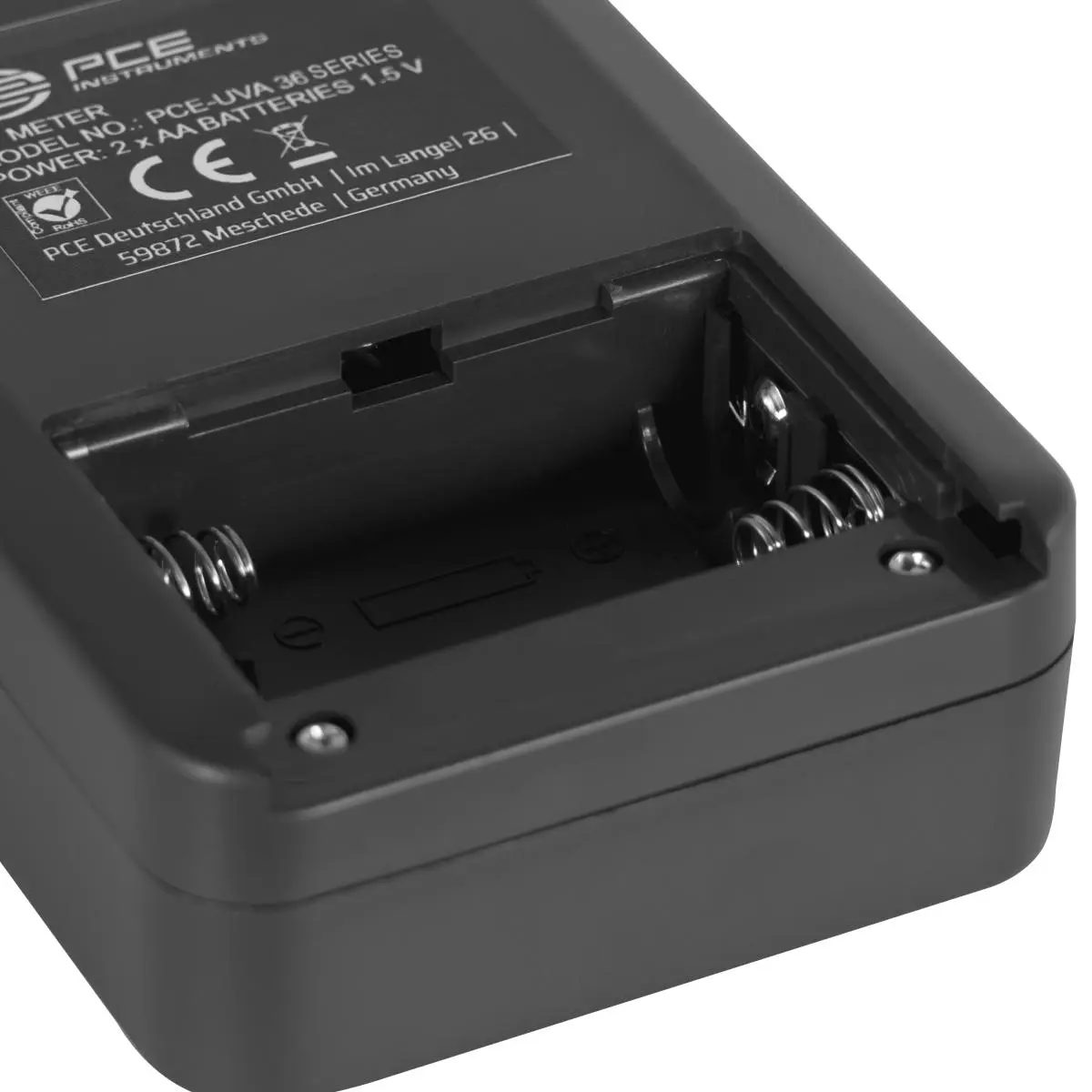

- Battery operation 1.5V AA
- Battery indicator
- Compact design
Technical specifications
UV Measuring range 0 … 19999 µW/cm² Resolution 1 µW/cm² Accuracy±4% FS General technical data Cable length 1 m Measuring functions HOLD Display type LED Display size 1,4 Inch Measuring rate 1 x per second Automatic power-off 4 min Wavelength range 300 … 390 Nm Dimensions Sensor: 78 x 38.5 x 15.5 mm Peak wavelength 365 Nm Protection class (device)IP20 (Rechargeable) battery 2 x 1,5 V AA battery , Alkali-manganese Capacity 3000 mAh Operating conditions 0 … 60 °C , 0 … 80 % RH Storage conditions 0 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )116 x 68 x 28 mm Weight 174 g
Delivery scope

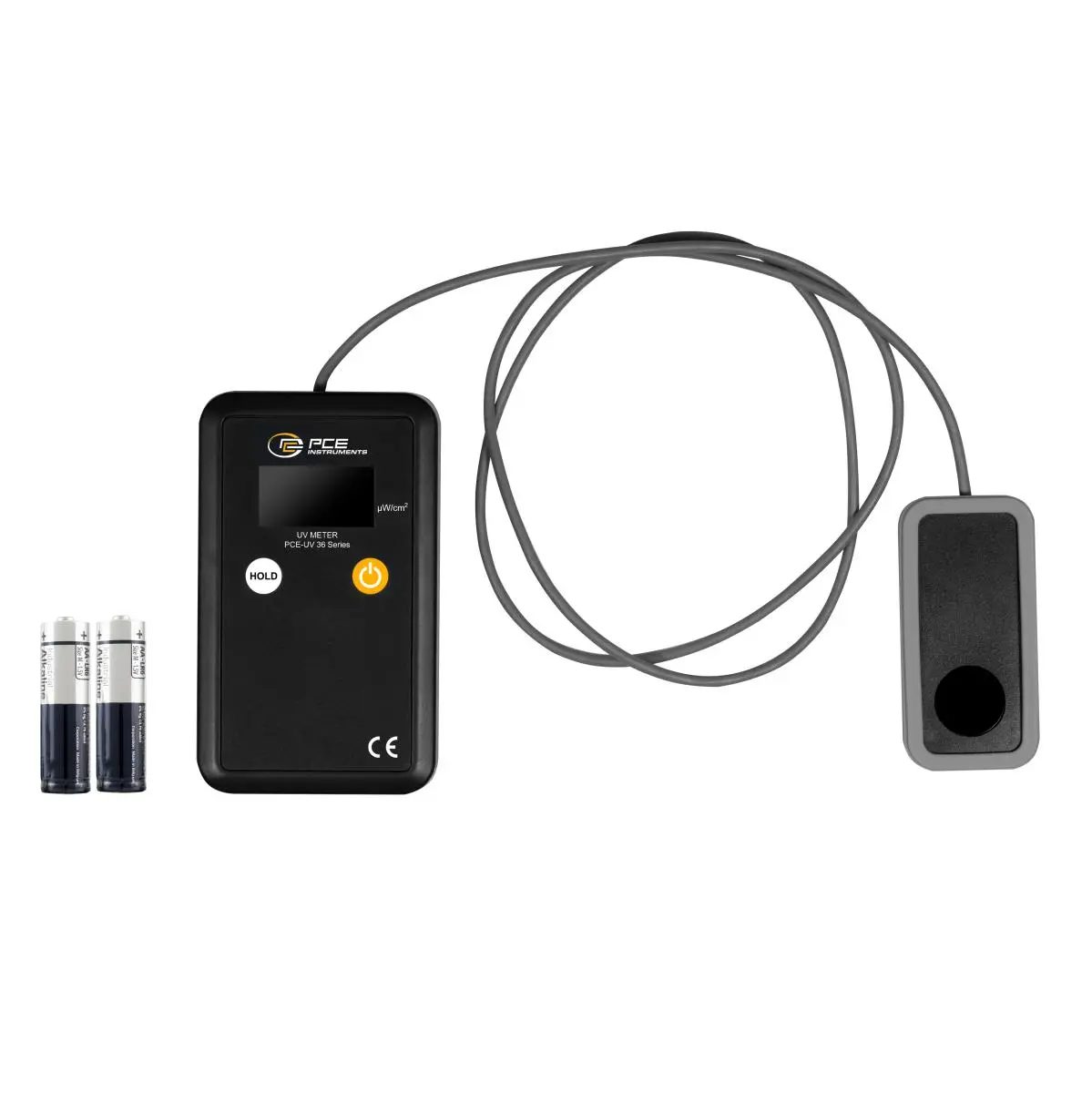

1 x UV Meter / UV Tester PCE-UVA 36ES 1 x Instruction manual 2 x 1.5V AA batteries
