Agricultural measuring device / Colour determination and colour comparison / 4 RAL colour palettes / CIELAB and RGB colour space / Multiple measurement / 2.3-inch LC colour display / Battery and power supply

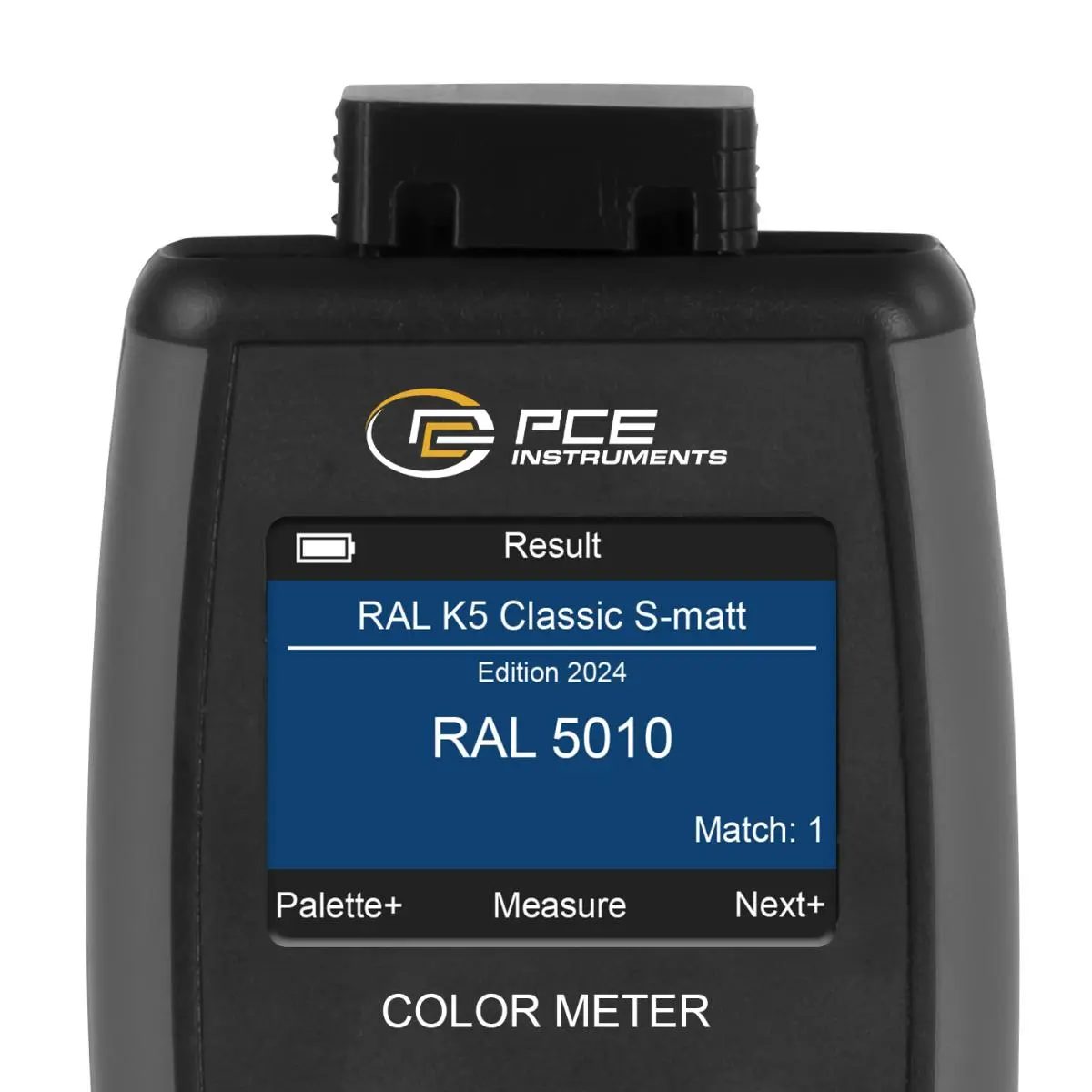

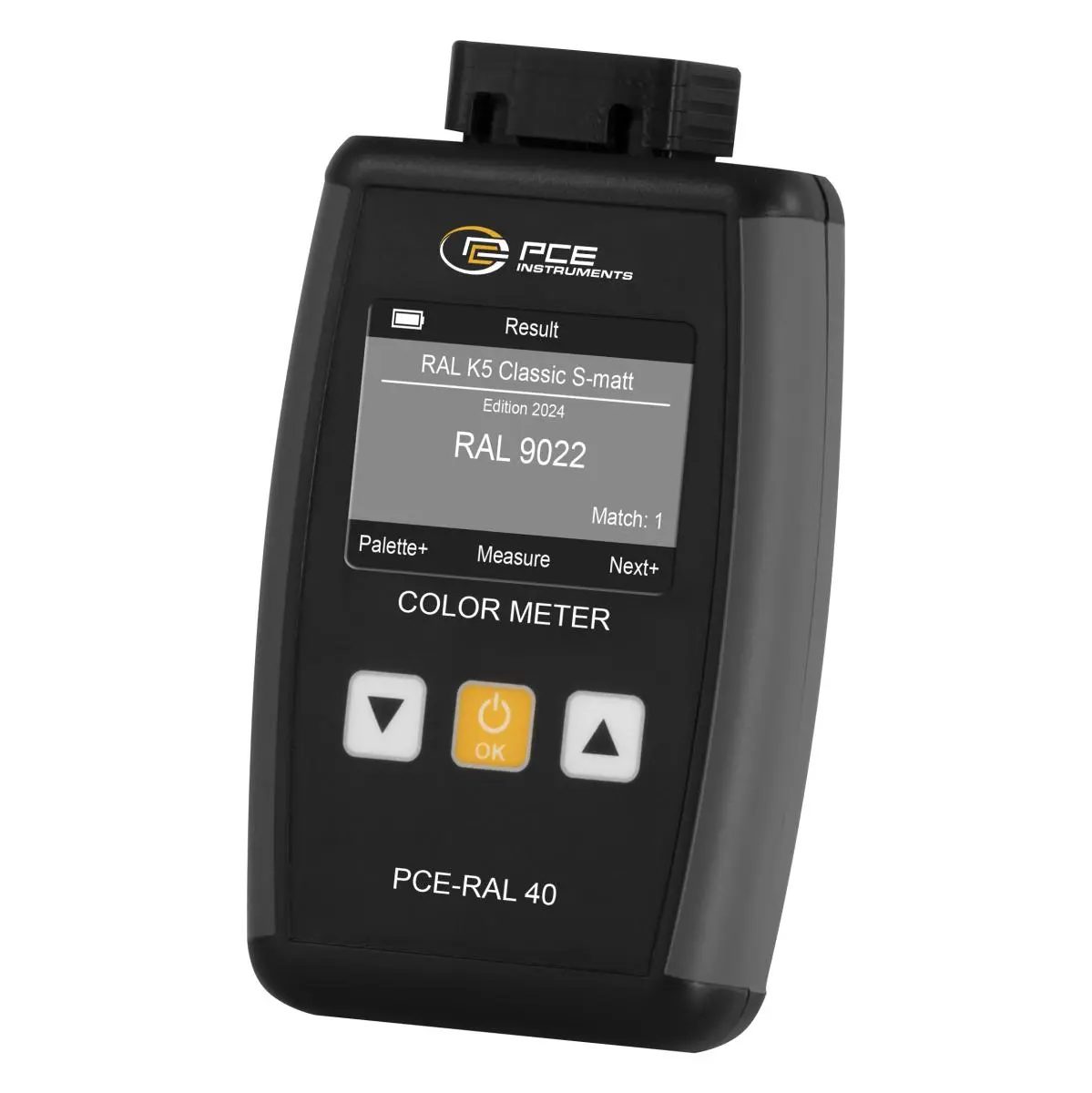

The agricultural measuring device is used for measuring colours and enables the colour difference between a measured sample and a colour standard to be determined. The result shows the three colours closest to the sample, based on a selected colour palette or LAB colour space values. The compact, vertical design of the agricultural measuring device allows measurements on small areas from a minimum measuring area of 32 x 20 mm.

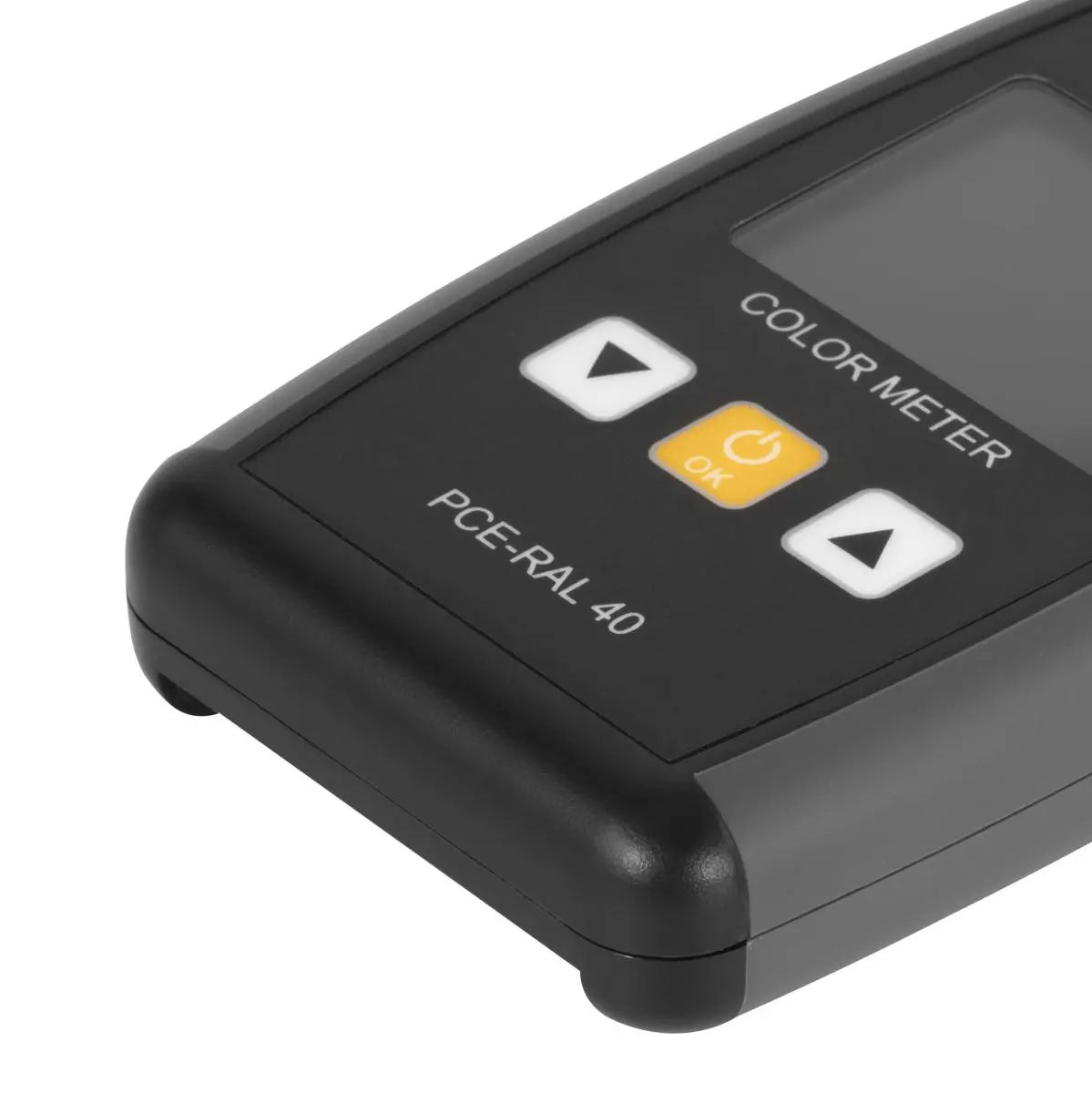

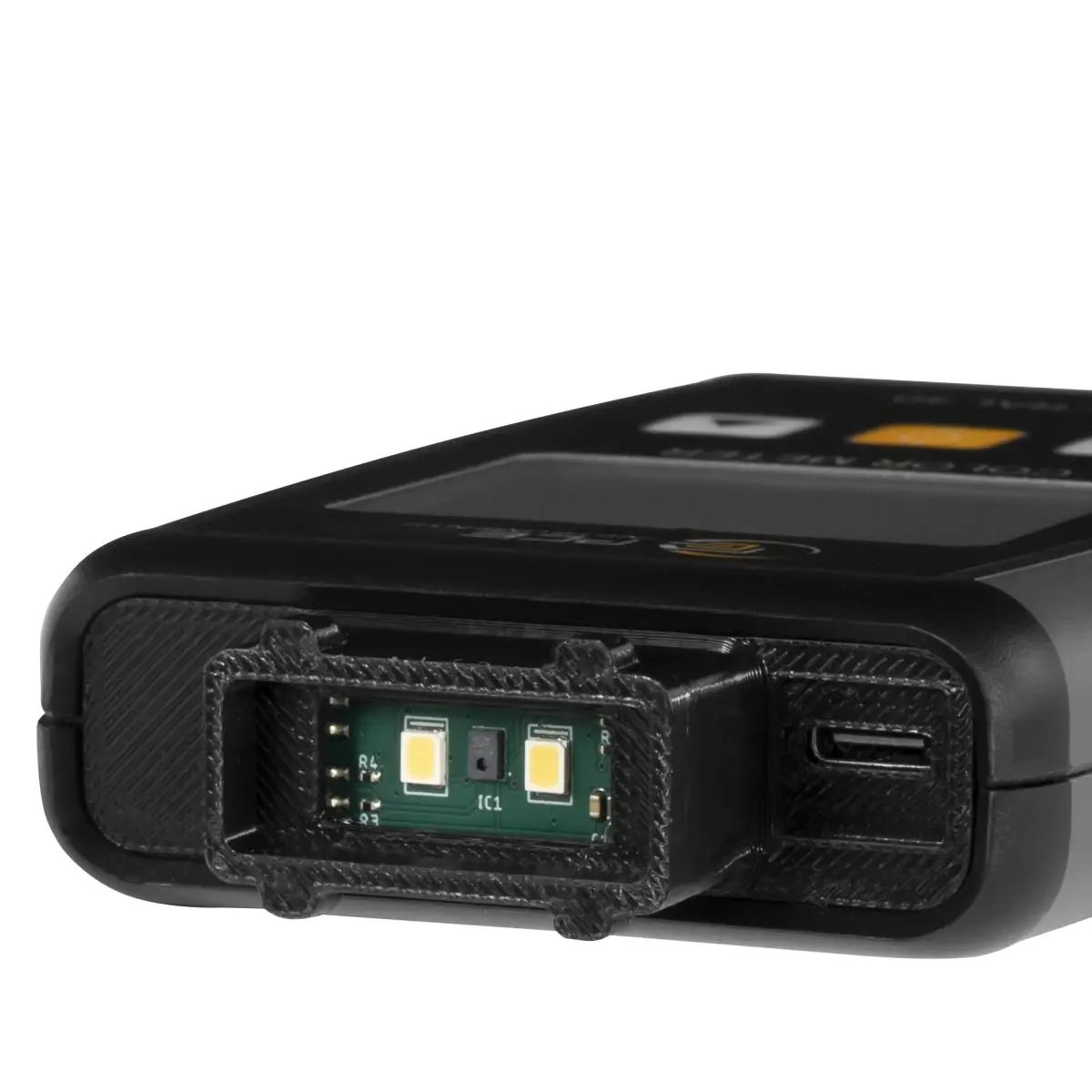

The agricultural measuring device operates with a white LED light and uses 45°/0° geometry, with the sample illuminated at 45° and the detector mounted perpendicular to the surface. The measurement provides an analogue colour difference value between sample and reference. Measurement accuracy is an average of 99.5% based on two measurements and around 95% for the first optimal match. The agricultural measuring device features an LCD display with battery status indicator, colour palette information and menu functions. It supports multiple languages and offers functions such as multiple measurements, contrast measurement (LRV) and automatic shut-off.

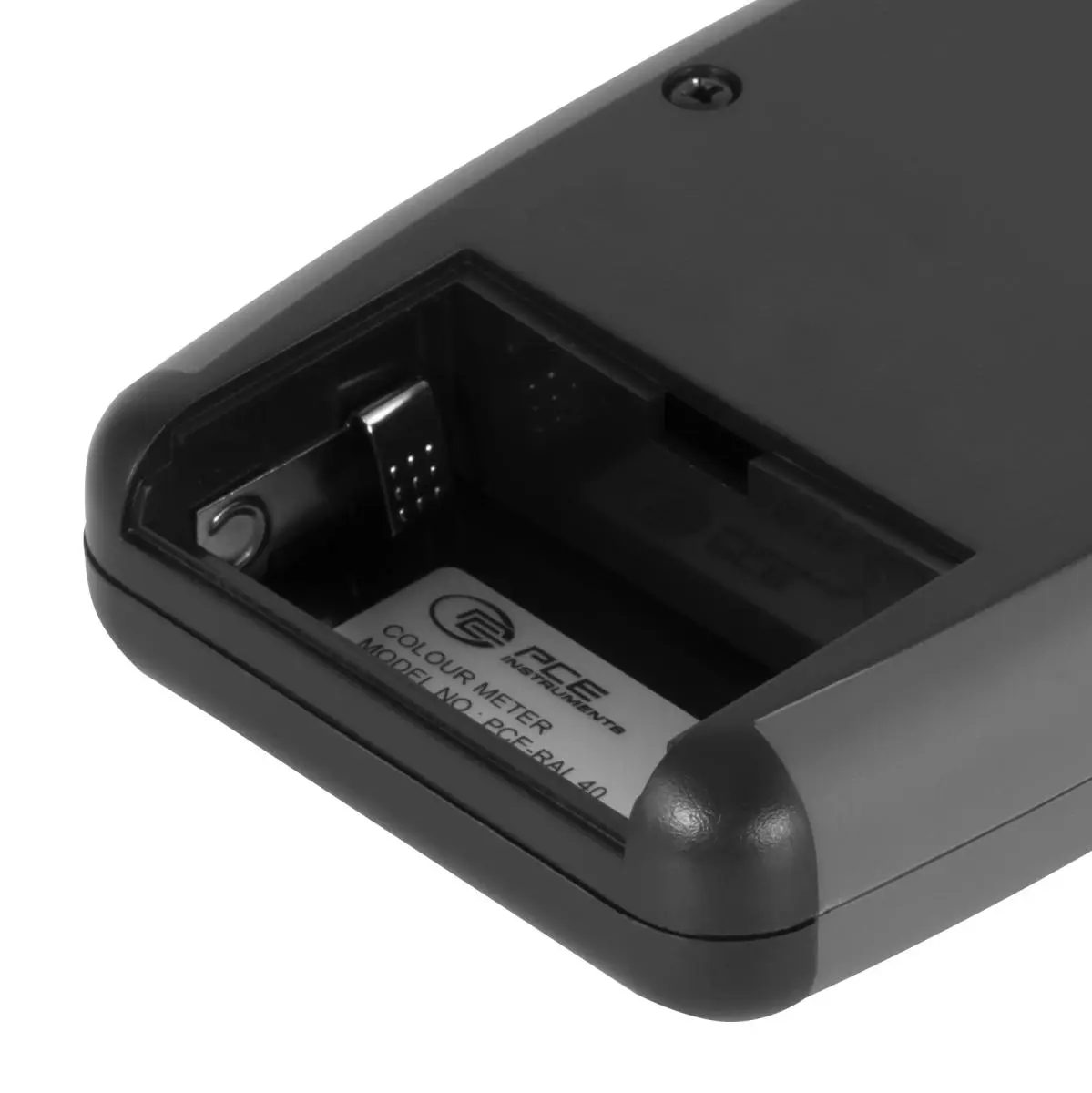

Software and colour palettes can be updated via Wi-Fi. Power is supplied either by two AA batteries or via the USB-C interface, so the agricultural measuring device can also be operated directly from a USB-C power adapter without batteries inserted. The agricultural measuring device is suitable for colour inspection and colour matching in areas such as painting, printing, production, quality control and surface testing, and is used in particular by professionals who need to compare colours quickly and reliably with colour standards.
Highlights
- Contrast LRV measurement
- Measurement geometry: 45°/0°
- 4 RAL colour palettes
- Colour spaces: CIE Lab and RGB
- Multiple measurement: up to 32 measurements
- Min. measuring area: 32 × 20 mm
- LC colour display, 2.3 inches
Technical specifications
General technical data Display type LC colour display Display size 2,3 Inch Interface USB-C Automatic power-off from…to 3 … 10 min. Light source 2 white LEDs Colour spaces CIEL a* b*, RGB Measuring geometry 45/0 Colour palette RAL D2 Design ’23, RAL E3 Effect ’21, RAL K5 Classic S-matt ’24, RAL K7 Classic Gloss ’24 Min. measuring surface 32 × 20 mm Menu language German, English, English (GB), French, Dutch Protection class (device)IP20 Power supply batteries (Rechargeable) battery 2 x 1,5 V AA battery , Alkali-manganese Capacity 2970 mAh Performance 4,46 Wh Operating conditions 10 … 40 °C , 10 … 90 % RH Storage conditions-30 … 55 °C , 10 … 90 % RH Dimensions ( L x W x H )128 x 79 x 25 mm Weight 116 g
Delivery scope
1 x Agricultural measuring device PCE-RAL 40 2 x 1.5V AA batteries 1 x Carry case 1 x Operating instructions
