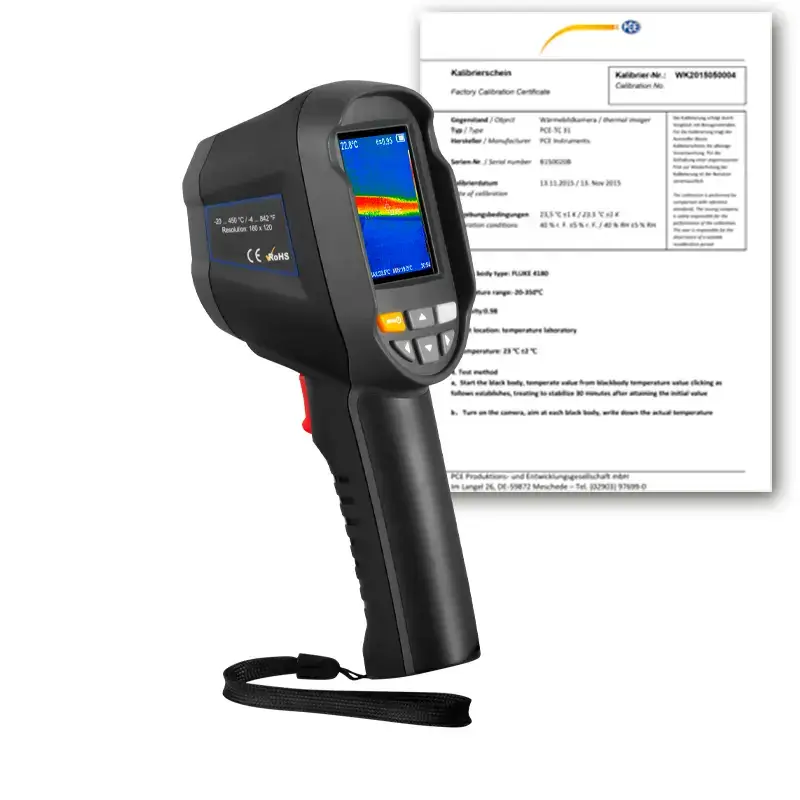

PCE-TC 30N-ICA Thermal Imaging Camera, including ISO calibration certificate
PCE-TC 30N Thermal Imaging Camera with Calibration Certificate
Maintenance Tool – Infrared Thermometer for maintenance with a measurement range of up to 450°C (842 °F) / 160 x 120 pixels / Image memory for more than 20,000 images / Thermal sensitivity ≤ 0.1°C (0.18 °F) / Measurement frequency color palette: 9 J / PG with different focus patterns at 9 Hz / PG
The PCE-TC 30N thermal imaging camera is the ideal tool for preventive maintenance. A thermal imaging camera is indispensable for electricians, installers, and general maintenance workers for troubleshooting and preventing malfunctions in electrical equipment, electromechanical devices, manufacturing machinery, heating, ventilationand HVAC systems, especially when working in harsh environments. Operators can use the PCE-TC 30N high-resolution thermal imaging camera for preventive maintenance to detect emerging faults in machines and equipment. Preventive maintenance and routine maintenance are thus made simple.
The PCE-TC 30N thermal imaging camera features an ergonomic design for one-handed use. Thanks to its very light weight of 389 g, it is ideal for analyzing machines and systems. In maintenance and service applications, the thermal imager is used, for example, for visual inspection of bearings and bearing housings, heat exchangers, steam separators, etc., or for inspecting electrical installations. The PCE-TC 30N thermal imaging camera, with a sensitivity of less than 0.1 °C / 0.18 °F, offers maximum accuracy of ± 2 °C / 3.6 °F or ± 2% in the temperature range of -20 … 300 °C / -4 … 572 °F. The thermal imager’s color display automatically locates and highlights the hottest and coldest spots in the image. A built-in LED helps locate sources of error more easily in low-light conditions. Powerful features allow for the immediate detection of machine irregularities, enabling appropriate measures to be taken on-site to prevent them. Saved thermal images can be transferred to a computer or laptop using the appropriate connection cable.
– IR resolution: 160 x 120 pixels
– Measurement range: -20 … 450°C / -4 … 842°F
– Thermal sensitivity: 70 mK
– Memory: 3 GB of memory for more than 20,000 photos
– 5 different color palettes
– Location of hot and cold spots
– Picture-in-Picture feature
|
Infrared Sensor |
|
|
Resolution |
160 x 120 pixels |
|
Wavelength |
8 … 14 μm |
|
Thermal Sensitivity |
70 mk |
|
Refresh Rate |
9 Hz |
|
Field of View (FOV) |
35° x 26° |
|
Focus |
A Clear Focus |
|
The shortest distance |
0.15 m / 5.9 inches |
|
Temperature range |
-20 … 450 °C / -4 … 842 °F |
|
Accuracy |
± 2 °C / 3.6 °F, ± 2% From 300°C / 572°C, ± 5% |
|
Calibration of Measurements |
Automatic |
|
Number of dots |
1 |
|
Number of measurement ranges |
1 |
|
Emissivity |
Range: 0.01 … 1.00 |
|
Color Palettes |
Rainbow, iron oxide red, cool color, black and white, white and black |
|
Other Specifications |
|
|
Picture-in-Picture feature |
Adjustable: 25%, 50%, 75%, 100% |
|
Camera resolution |
300,000 pixels |
|
Screen |
2.8″ TFT |
|
Screen resolution |
320 x 240 pixels |
|
Visual Memory |
Built-in 3 GB SD card for more than 20,000 photos |
|
Image format |
JPG |
|
Power Supply Battery |
Built-in 18650 battery, approximately 2800 mAh |
|
Power Supply Power Supply |
Primary: 100 … 240 V AC 50/60 Hz |
|
Interface |
Micro USB for charging and reading memory on a computer |
|
Working Hours |
Between 2 and 3 hours |
|
Menu Languages |
English, Chinese, Italian, German |
|
Automatic Shutdown |
5, after 20 minutes, or turned off |
|
Ambient temperature |
0 … 45 °C / 32 … 113 °F |
|
Storage Conditions |
-20 … 60 °C / -4 … 140 °F |
|
Humidity |
≤ 85% relative humidity (non-condensing) |
|
Dimensions |
96 x 72 x 226 mm / 3.8 x 4.1 x 8.9 inches |
|
Weight |
389 g / < 1 pound |
1 x T thermal imaging camera PCE-TC 30N-ICA
1 x Micro USB cable
1 x USB charging adapter
1 x carrying bag
1 x user manual
1 ISO calibration certificate
