Water Analysis MeterPCE-PWT 10
pocket size conductivity tester / for ultrapure water /
smallest measuring range 20µS/cm / salinity measurement / temperature compensation up to 60 °C

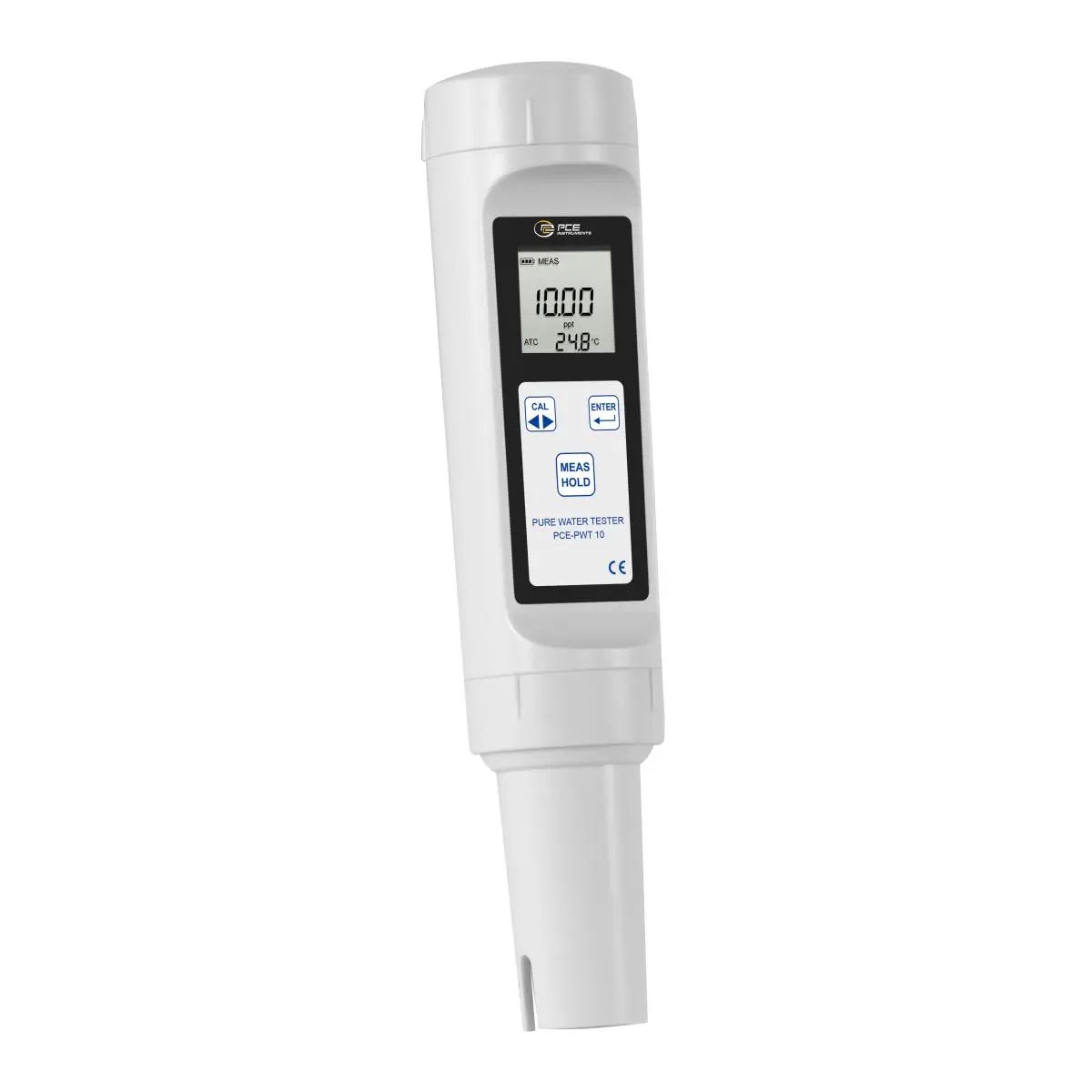

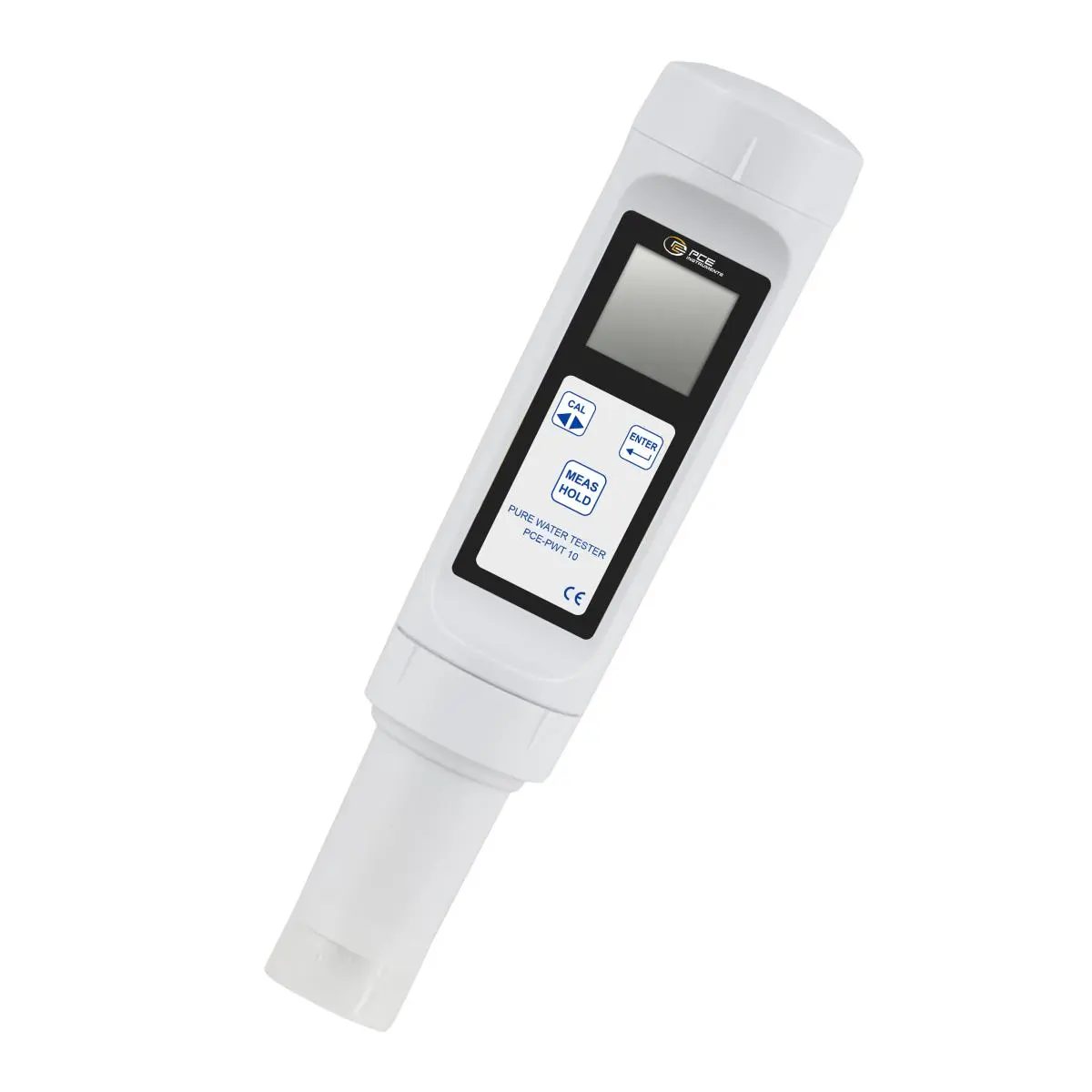

The water analysis meter is a good solution for anyone who wants to check the conductivity of ultrapure water. This water analysis meter is a compact device with an integrated temperature sensor for optimum temperature compensation. Among other things, the water analysis meter has a very low measuring range of only 0 … 20 μS / cm.
Furthermore, the water analysis meter is able to accurately determine the salinity of liquids. The water analysis meter has an automatic temperature compensation in the range of 0 … 60 ° C. The calibration of the water analysis meter is carried out via a three-point calibration.
Highlights
- smallest measuring range up to 20 µS/cm
- compact design
- automatic temperature compensation
- salinity measurement
- internal three-point calibration

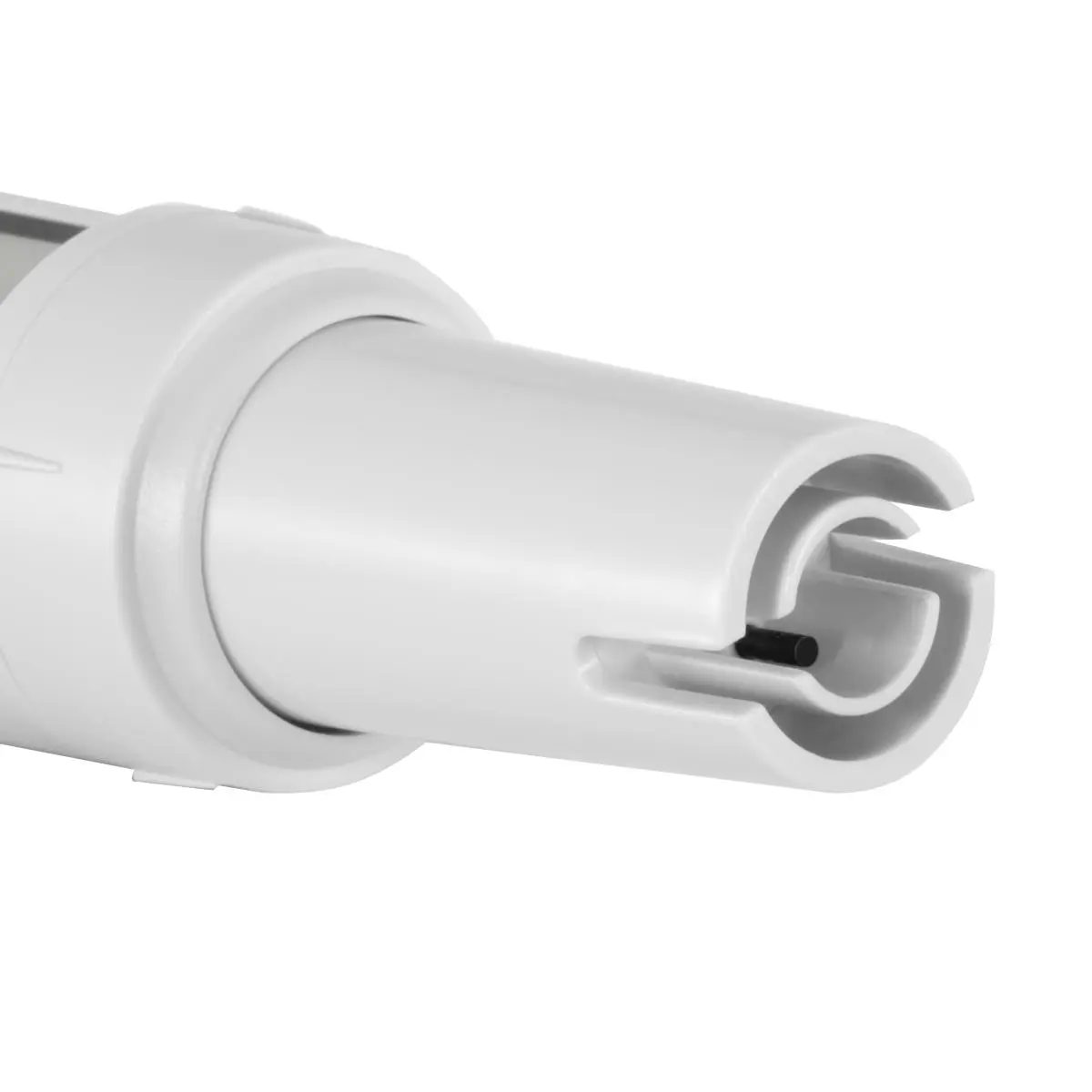

- changeable electrode
Technical specifications
Conductivity Measuring range 0 … 20 µS/cm Resolution 0,01 µS/cm Accuracy±1% FS Conductivity Measuring range 0 … 200 µS/cm Resolution 0,1 µS/cm Accuracy±1% FS Conductivity Measuring range 0 … 2000 µS/cm Resolution 1 µS/cm Accuracy±1% FS Conductivity Measuring range 0 … 20 mS/cm Accuracy±1% FS Salinity Measuring range 0 … 10 ppt Resolution 0,01 ppt Accuracy±1 % FS Temperature Measuring range 0 … 60 °C Resolution 0,1 °C Accuracy±1 °C Temperature Measuring range 32 … 140 °F Resolution 0,1 °F Accuracy±1.8 °F General technical data Measuring functions HOLD Temperature compensation 0 to 60°C / 32 to 140°F, automatically Display type LCD Display size 1 Inch Automatic power-off 8 min Calibration Temperature: 1 point, measured value ±10°C Conductivity: 1 … 3 points, with 84 µS/cm / 1413 µS/cm / 12.88 mS/cm Menu language English, English (GB) Protection class (device)IP54 (Rechargeable) battery 2 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions 0 … 50 °C , 0 … 80 % RH Storage conditions 0 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )185 x 40 x 40 mm Weight 100 g
Delivery scope

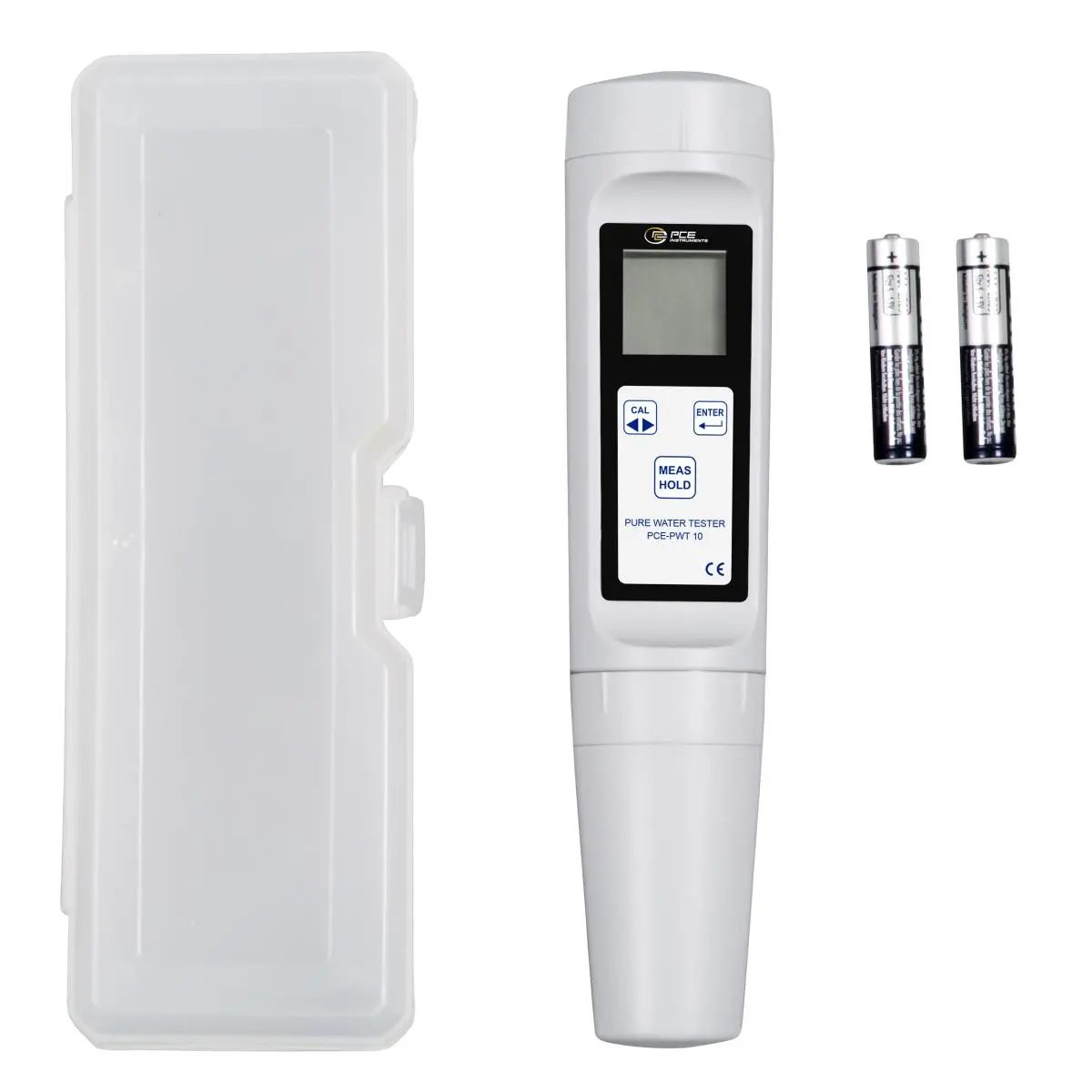

1 x Water Analysis Meter PCE-PWT 10 2 x 1.5 V AAA batteries 1 x User manual
