pH, conductivity, salt, oxygen and temperature measuring device/
**SD card memory (1 … 16 GB), data is stored as an Excel file /
large, easy-to-read display / RS-232 interface and
optional software for direct transfer to the PC**
The conductivity meter PCE-PHD-1-KIT1 is a true all-rounder for checking water quality. The portable conductivity meter is used to control the water parameters pH, redox, conductivity, salinity, oxygen and is also very suitable for temperature measurement.
A 2-point calibration and an automatic temperature compensation guarantees high accuracy even with highly fluctuating measuring temperatures. The data logging meter is supplied with pH and conductivity probe. Different probes are available as accessories. All values can be stored directly on the SD card (1 … 16 GB) as an Excel file or transferred via the RS-232 interface directly from the device to a PC. For this we optionally offer software and the suitable RS-232 interface cable as an accessory.
Highlights
- optimal price/performance ratio
- real-time datalogger
- SD memory card (1 … 16 GB)
- the stored data is saved directly as an Excel file on the SD card
- (no software needed for evaluation)
- RS-232 interface for online data transmission
- measures pH, redox (optional), conductivity, salinity, oxygen, and temperature
- high precision
- low-battery display
- large LCD display
- adjustable measuring rate
- easy to use
- robust housing
- incl. pH and conductivity electrode
- automatic calibration
- manual or autom. temperature compensation
- BNC connector
- suitable for laboratory and on-site measurement
- REDOX Elektrode (optional)
Technical specifications
pH Measurementautomatic 10 … 40 °C / 50 … 104 °F Measurement range 0.00 … 14.00 pH Resolution 0.01 pH Accuracy± 0.02 pH +2 digits Calibration 2-point calibration (pH4, pH7) Temperature compensation Automatic with additional temperature sensor (0 … 60 ºC / 32 … 140 ºF) or manual (0 … 100 ºC / 32 … 212 ºF) RedoxMeasurement Measurement range 1999 … 0 … 1999 mV Resolution 1 mV Accuracy± 0.5 % + 2 digits ConductivityMeasurement Measurement range 0 … 200 μS/cm 0.2 … 2.0 mS/cm 2 … 20.0 mS/cm 20 … 200 mS/cm Resolution 0.1 μS/cm 0.001 mS/cm 0.01 mS/cm 0.1 mS/cm Accuracy± 2 % of the measurement range + 1 digit Calibration at 1413 μS/cm Temperature compensation Automatic (0 … 60 ºC / 32 … 140 ºF) Total dissolved solids (TDS) Measurement Measurement range 0 … 132 ppm 132 … 1320 ppm 1320 … 13200 ppm 13200 … 132000 ppm Resolution 0.1 ppm 1 ppm 10 ppm 100 ppm Accuracy± 2 % of the measurement range + 1 digit Temperature compensation Automatic (0 … 60 ºC / 32 … 140 ºF) Salt ContentMeasurement Measurement range 0 … 20 mg/l (in water) 0 … 100 % (in air) 0 … 50 °C / 32 … 122 ºF Resolution 0.1 mg/l 0.1 % 0.1 °C Accuracy± 0.4 mg/l ± 0.7 % ± 0.8 °C Calibration In the air Temperature compensation Automatic (0 … 50 ºC / 32 … 122 ºF) Electrode usable in the pH range pH 4 … pH 10 Temperature Measurement Measurement range 0 … 60 °C/ 32 … 140 ºF Resolution 0.1 °C Accuracy± 0.8 °C General Specifications Measurement rate adjustable from 1 second to 8 hours 59 minutes 59 seconds Display LC-Display 52 x 38 mm / 2 x 1.5" Memory flexible via SD card memory 1 … 16 GB Interface RS-232 Software available as accessory (optional) Power supply 6 x 1.5 V AA batteries / 9 V-power adapter (optional) Operating conditions 0 … +50 °C / < 85 % r.H. Dimensions 177 x 68 x 45 mm / 7.0 in x 2.7 in x 1.8 in Weight 490 g / 1.1 lbs
Delivery scope

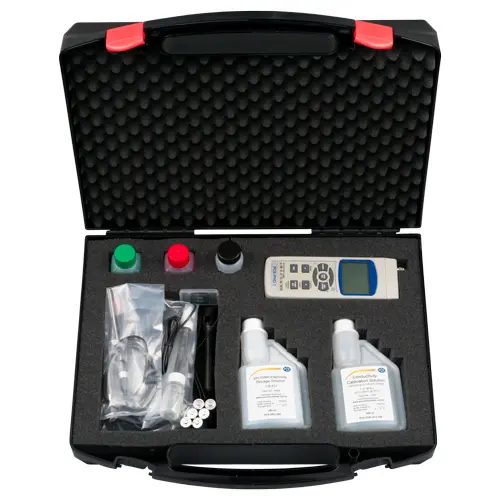

1 x pH-Meter PCE-PHD-1-KIT1 1 x oxygen probe OXPB-11 1 x pH electrode PE-03 1 x conductivity electrode CDPB-03 1 x temperature sensor TP-07 1 x SD memory card 2 GB 1 x storage solution PCE-SSO-250 (250ml) 1 x calibration solution PCE-PH4-50 (50ml) 1 x calibration solution PCE-PH7-50 (50ml) 1 x electrolyte solution OXEL-03 for oxygen probe (50ml) 1 x conductance solution PCE-CDS-1413-250 (250ml) 6 x batteries 1 x user manual 1 x carrying case (inner foam prepunched)
