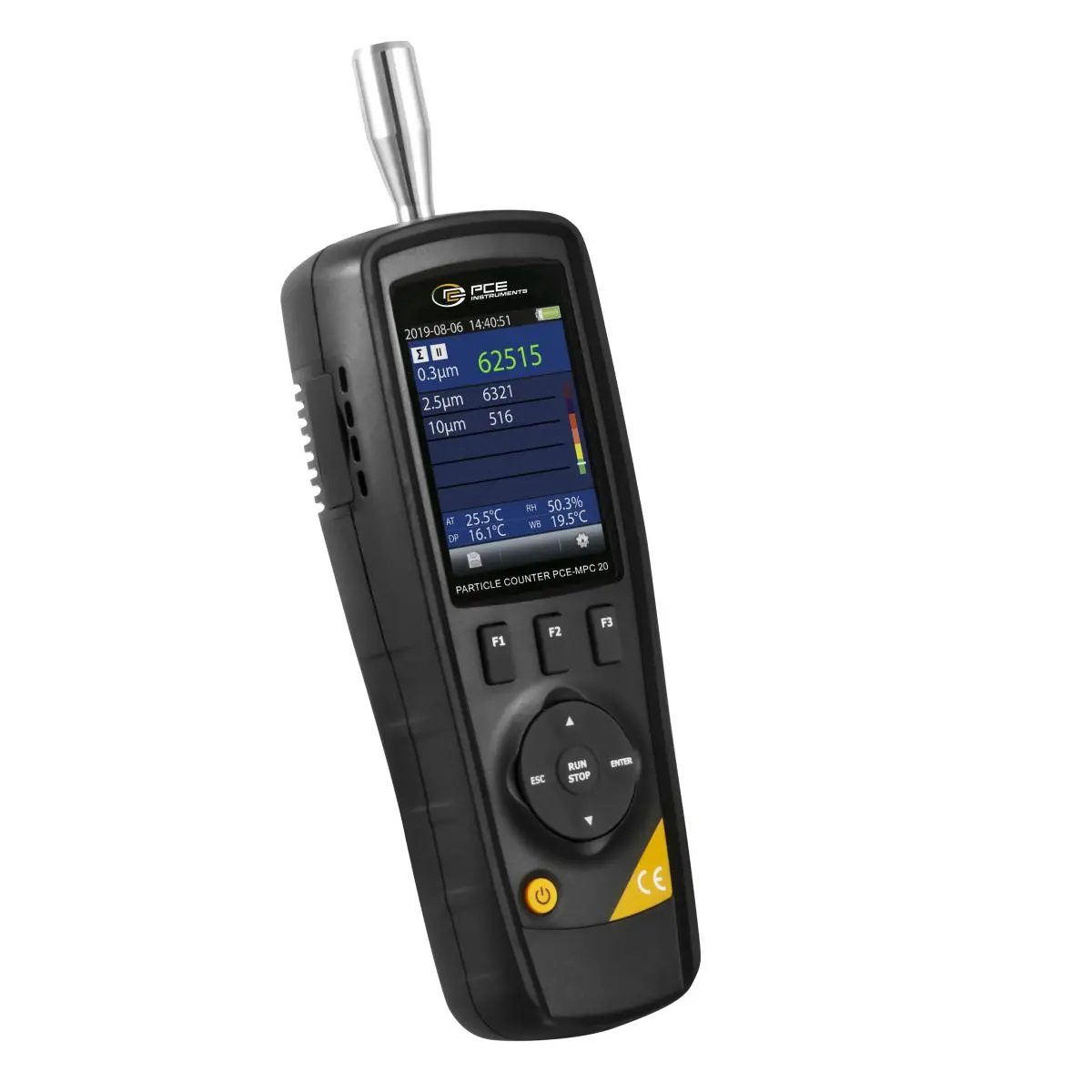

Particle collector PCE-MPC 20 Dust measuring device for the measurement of pollutant content of the atmosphere / With data memory / USB interface / Mass concentration / Particle counter
The dust measuring device PCE-MPC 20 is a particle counter that measures the particles in the atmosphere. The measurable particle sizes of the dust measuring device are 0.3, 2.5 and 10 μm. In addition to the particle counter function, the dust meter also measures the mass concentrations PM2.5 and PM10. The built-in high-performance pump ensures a sufficient flow rate at the dust measuring device. In addition, the dust meter can also measure the temperature, humidity and dew point. The measured values can be read directly on the display of the dust measuring device. Data storage is also possible with the dust measuring device in order to analyze the measured values after a measuring process. The battery used ensures a mobile application. This allows a mobile continuous operation of about 4 hours. A dust measuring device is used wherever a possible health hazard due to fine dust could occur. These include pollution from incineration, manufacturing, energy production, vehicle engine emissions, and the pollution that the construction industry generates.
Highlights
- Mass concentration PM2.5 / PM10
- Data memory up to 5,000 data sets
- Flow rate 2.83 l / min

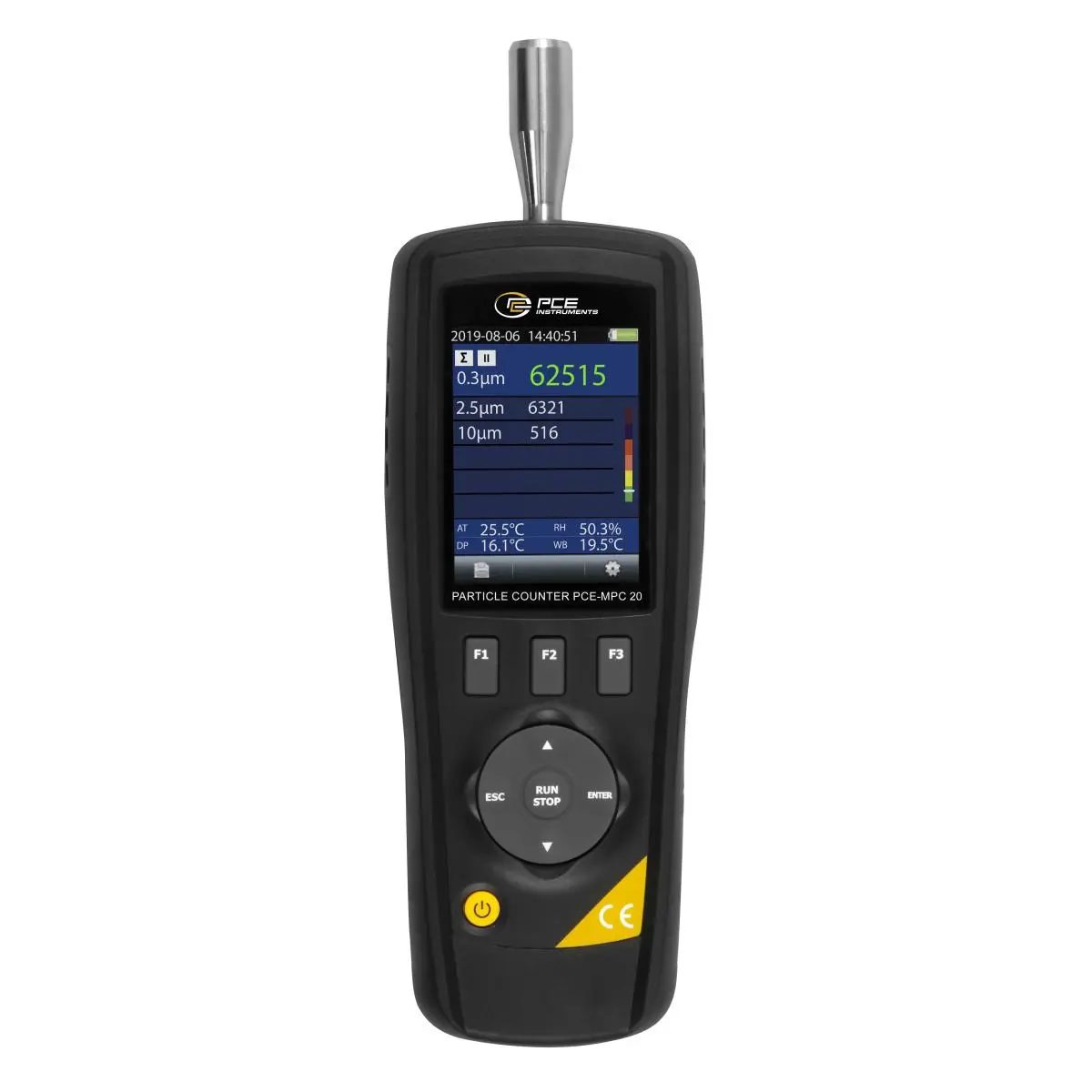

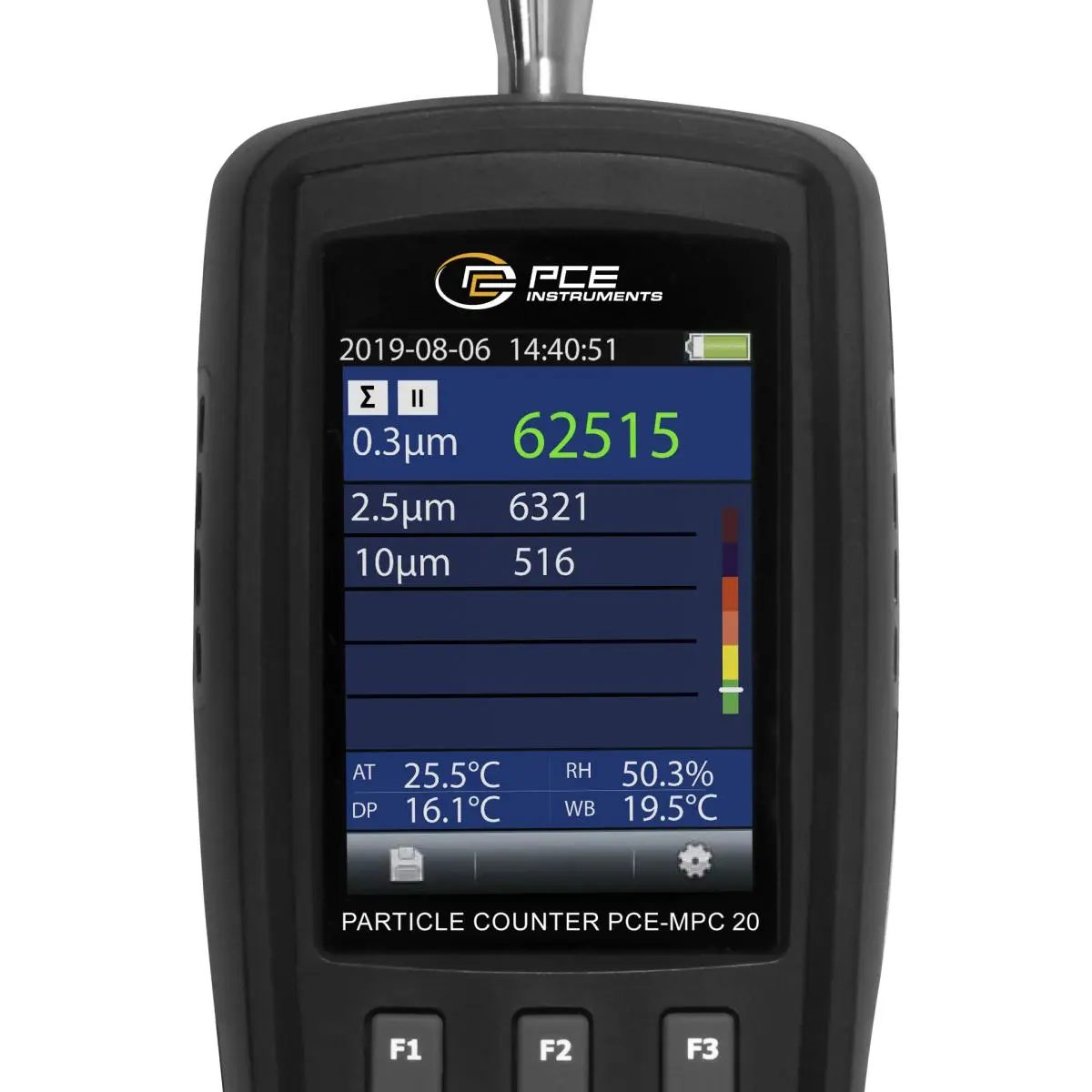

- Display with graphic real-time diagram
- Battery or AC charger operation possible
- Alarm function
Technical specifications
Particle Measuring channel sizes PM2,5, PM10 Measuring range 0 … 2000 µg/m³ Resolution 1 µg/m³ Particle Measuring channel sizes 0.3, 2.5, 10 Counting efficiency 50% for 0.3 µm 100% for particle size > 0.45 µm Flow volume 2,83 l/min Coincidence error<5% at 2,000,000 particles per ft³ Dew point Measuring range 0 … 10 °C Resolution 0,1 °C Accuracy± 2°C Dew point Measuring range 10 … 40 °C Resolution 0,1 °C Accuracy±1°C Dew point Measuring range 40 … 50 °C Resolution 0,1 °C Accuracy± 2°C Relative humidity Measuring range 0 … 20 % RH Resolution 0,1 % RH Accuracy±5 % Relative humidity Measuring range 20 … 80 % RH Resolution 0,1 % RH Accuracy±3.5 % Relative humidity Measuring range 80 … 100 % RH Resolution 0,1 % RH Accuracy±5 % Temperature Measuring range 0 … 10 °C Resolution 0,1 °C Accuracy± 2 °C Temperature Measuring range 10 … 40 °C Resolution 0,1 °C Accuracy±1 °C Temperature Measuring range 40 … 50 °C Resolution 0,1 °C Accuracy± 2 °C Temperature Measuring range 32 … 50 °F Resolution 0,2 °F Accuracy±3.6 °F Temperature Measuring range 32 … 104 °F Resolution 0,2 °F Accuracy±1.8 °F Temperature Measuring range 105 … 122 °F Resolution 0,2 °F Accuracy±3.6 °F General technical data Display type LCD with backlight Display size 2,8 Inch Display resolution 320 x 240 pixels Storage medium SD card Storage capacity 5000 Data records Interface Mini-USB Sensor Temperature Operating time 4 h Automatic power-off from…to 3 … 60 min. Measurement mode kumulativ, differential, Concentration Menu language English, French, German, Spanish Protection class (device)IP20 Power supply 100 … 240 V AC | 50/60 Hz Connector type Device-europlug (Rechargeable) battery 1 x 7,4 V internal , Lithium-ion polymer battery Capacity 1200 mAh Operating conditions 0 … 50 °C , 10 … 90 % RH Storage conditions-10 … 60 °C , 10 … 90 % RH Dimensions ( L x W x H )240 x 75 x 57 mm Weight 570 g

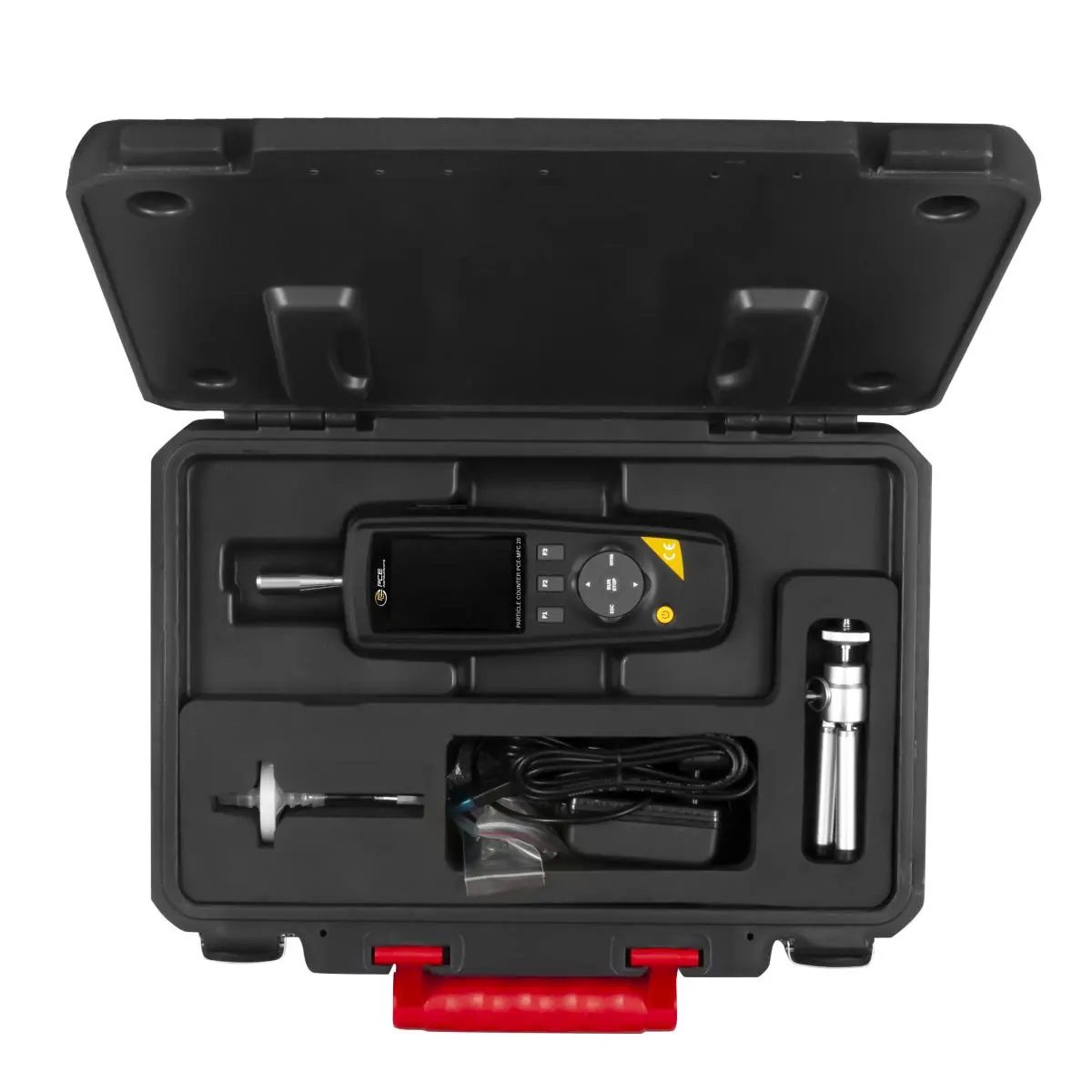

Delivery scope
1 x Particle Counter PCE-MPC 20 1 x Zero filter 1 x Battery 1 x Charger 1 x USB cable 1 x Mini tripod 1 x Hard case 1 x User manual
