Earth Tester / Earth Resistance Meter PCE-ET 5000
Grounding meter with memory / Mobile use possible thanks to battery / Resistance measurement / Protective conductor test / Visual connection aid / Lightning conductor test / Backlight Testing of disturbing voltages, frequencies and currents
The earth tester / earth resistance meter is a versatile ohmmeter. With this grounding meter a variety of resistance measurements can be performed. Thus, with the grounding meter, the possibility exists to perform a normal resistance measurement of 2- or 4-pole application. It is also possible to determine the resistance of the soil with the grounding meter. For the measurement of earth resistance corresponding earth spikes are included in the scope of supply. These ground spikes can easily be connected to the grounding device via the supplied separate 20 meter / 66 ft cable.
Another important measuring function is the measurement of the resistance of, for example, lightning conductors. This measurement is used to control the lightning conductors on, for example, schools or university buildings and is essential to derive a possible lightning strike into the ground. This earth tester / earth resistance meter can thus be used to determine whether the lightning rod is properly connected to the ground and whether it has the right resistance value to discharge a lightning bolt into the ground.

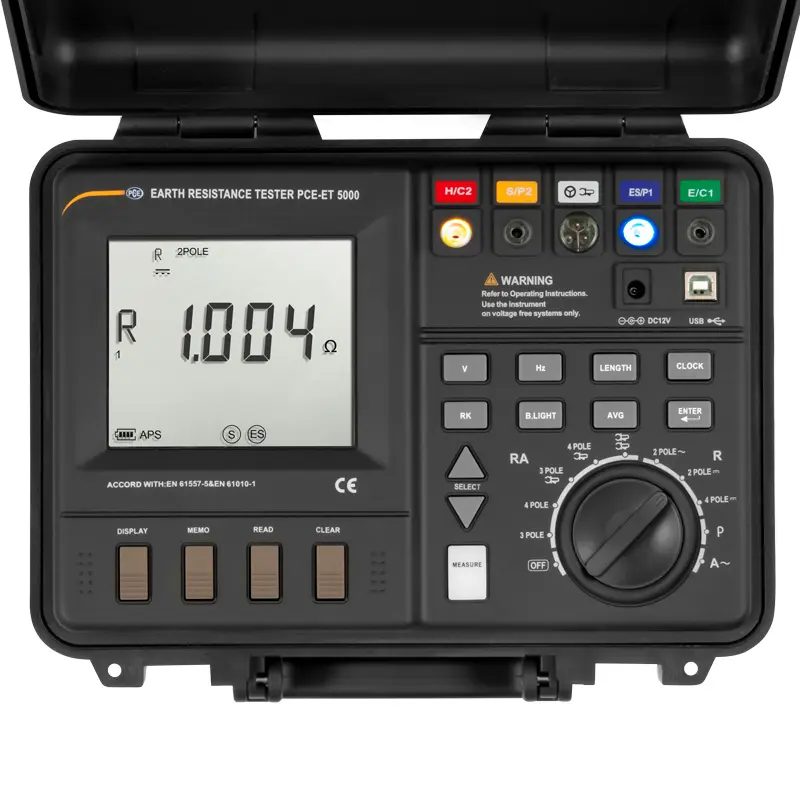

To ensure a perfect measurement, the earth tester / earth resistance meter has a measuring terminal detection. After the operator has set the grounding meter to the desired measurement function, the terminals to be used light up. If an incorrect connection has been selected by the operator, the grounding meter signals the operator both acoustically and visually. At the same time, the measurement by the grounding meter is refused until the test setup has been properly connected. This massively limits faulty measurements by the intelligent grounding meter. Also, the grounding device has a memory. This allows the measurement data from the grounding meter to be transferred to a PC and evaluated after a measurement.
Highlights
- Mobile use thanks to battery and batteries
- Data memory for later analysis on the PC
- Visual connection aid for easy operation
- Alarm in case of incorrect connection of the measuring line
- Direct and indirect resistance measurement
- Interference currents, interference voltages, frequencies
Technical specifications
3-pole earth resistance Test voltage 20, 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Probe resistance Rs<100 kΩ Auxiliary earth resistance Rh<100 kΩ Resolution 0.001 Ω Measuring range Re 0.02 Ω … 300 kΩ Accuracy± (5% + 10 digits) Ust< 24V Fst 16 … 400 Hz The accuracy is ensured in an environment of 0 … 28°C / 32 … 82°F, < 80% RH (non-condensing). Response time < 15 seconds (Time required to reach the specified accuracy, after the start of the measurement with the average function switched off.) 4-pole grounding resistor Test voltage 20, 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 30 seconds Probe resistance Rs< 100 kΩ Auxiliary earth resistance Rh< 100 kΩ Resolution 0.001 Ω Measuring range Re 0.02 Ω … 300 kΩ Accuracy± (5% + 10 digits) Ust< 24V Fst 16 … 400 Hz The accuracy is ensured in an environment of 0 … 28°C/ 32 … 82°F, < 80% RH (non-condensing). Response time < 25 seconds (Time required to reach the specified accuracy, after the start of the measurement with the average function switched off.) 3-pole earth resistance with current clamp Test voltage 20, 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Probe resistance Rs< 100 kΩ Auxiliary earth resistance Rh< 100 kΩ Resolution 0.001 Ω Measuring range Re 0.02 Ω … 20 kΩ Accuracy± (5% + 10 digits) Ust< 24V Fst 16 … 400 Hz The accuracy is ensured in an environment of 0 … 28°C/ 32 … 82°F, < 80% RH (non-condensing). Response time < 25 seconds (Time required to reach the specified accuracy, after the measurement has started with the average function switched off.) If the current on the current probe is too low, the measurement can be aborted. 4-pole earth resistance with current clamp Test voltage 20, 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Probe resistance Rs< 100 kΩ Auxiliary earth resistance Rh< 100 kΩ Resolution 0.001 Ω Measuring range Re 0.02 Ω … 20 kΩ Accuracy± (5% + 10 digits) Ust< 24V Fst 16 … 400 Hz The accuracy is ensured in an environment of 0 … 28°C/ 32 … 82°F, < 80% RH (non-condensing). Response time < 25 seconds (Time required to reach the specified accuracy, after the measurement has started with the average function switched off.) If the current on the current probe is too low, the measurement can be aborted. Grounding resistor only with current clamps Test voltage 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Measuring range Re 0.02 Ω … 150 Ω Resolution 0.001 Ω Accuracy± (5% + 10 digits) Ust< 24V Fst 16 … 400 Hz The accuracy is ensured in an environment of 0 … 28°C/ 32 … 82°F, < 80% RH (non-condensing). Response time < 25 seconds (Time required to reach the specified accuracy, after the measurement has started with the average function switched off.) If the current on the current probe is too low, the measurement can be aborted. Soil resistance (removal resistance) Test voltage 20, 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Resolution 0.001 Ω * m Measuring range Re 0.02 Ω … 1000 kΩ * m Accuracy± (5% + 10 digits) 2-pole resistance measurement (AC) Test voltage 20V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Measuring range Re 0.02 Ω … 300 kΩ Resolution 0.001 Ω Accuracy± (5% + 10 digits) Ust< 24V Fst 16 … 400 Hz 2-pole resistance measurement (DC) Test voltage 20V DC Short circuit current 250-mA Test time 26 seconds Measuring range Re 0.02 … 3 kΩ Resolution 0.001 Ω Accuracy± (5% + 10 digits) Ust< 3V Fst 16 … 400 Hz 4-pole resistance measurement (DC) Test voltage 20V DC Short circuit current 250-mA Test time 26 seconds Measuring range Re 0.02 Ω … 3 kΩ Resolution 0.001 Ω Accuracy± (5% + 10 digits) Ust< 3V Fst 16 … 400 Hz Line compensation Test voltage 20, 48V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250-mA Test time 26 seconds Resolution 0.001 Ω Measuring range Re 0.02 Ω … 30 Ω Accuracy± (3% + 10 digits) Ust< 24V Fst 16 … 400 Hz Interference voltage Measuring range± 50V DC 1 … 50V AC Resolution 0.1V Accuracy± (5% + 5 digits) Interference current Measuring range 20-mA … 2 A Resolution 1-mA Accuracy± (5% + 5 digits) Interference frequency Measuring range 16 … 400 Hz Resolution 1 Hz Accuracy± (1% + 10 digits) Other specifications Data storage 100 readings Operating conditions 0 … 40°C / 32 … 104°F, < 80% RH (non-condensing) Charge ambient conditions to the battery 10 … 40°C / 50 …104°F, < 80% rh (non-condensing) Storage conditions-10 … 50°C / 50 … 122°F, < 90% rh (non-condensing) Storage conditions for the battery-20 … 30°C / -4 … 86°F, < 80% rh (non-condensing) Storage height< 12,000 m / 39,370 ft Operating altitude< 2,000 m / 6,561 ft Clamp diameter 51 mm Display Backlit LCD, 9,999 digits Display measuring range exceeded> LIMIT Display below measuring range- Measuring frequency earthing resistance / leakage current 1 Hz (If the average value function is activated: one value every four seconds) Measuring frequency voltage measurement 2 Hz Measuring frequency interference voltage 4 Hz Measuring frequency interference frequency 1 Hz Measuring frequency interference current 1 Hz interfaces Measuring connection: E, ES, S, H, pliers connection USB-B, charging connection Power supply batteries 6 x 1.5V D LR14 batteries Power supply battery 1 x 7.2V nickel-metal hydride battery pack Power supply power supply Primary: 100 … 240V, 50 … 60 Hz Secondary: 12V, 3A Max. Power consumption with power supply 15V A Max. Power consumption with battery or rechargeable battery 6V A Running time in battery mode About 5 hours Running time in the battery About 9 hours (without backlight) Maximum input voltage Maximum input voltage relative to earth 300V rms (CAT III) Insulation thickness 6880V AC: 15 seconds Overvoltage protection 250V AC between the connections Dimensions 260 x 125 x 280 mm / 10.2 x 4.9 x 11 in Weight About 2.5 kg / 5.5 lbs Standardize Safety: EN61010-1: 2001, EN61010-031: 2002 Pollution degree 2, CAT III 300V, EMC: EN61000-3-2: 2000, IEC61326-1: 1997 A
Delivery scope

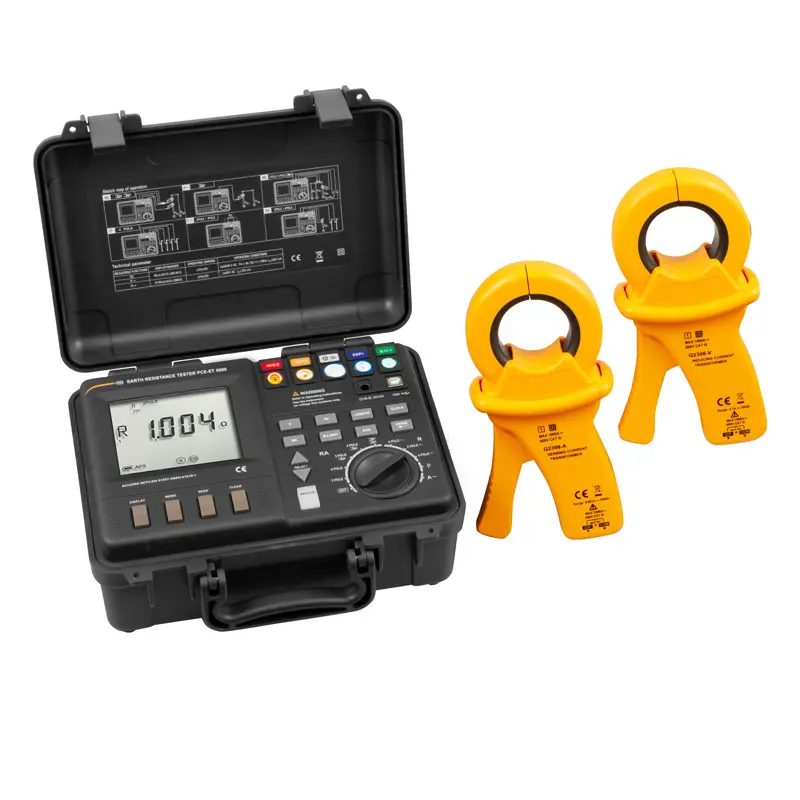

1 x Earth Tester / Earth Resistance Meter PCE-ET 5000 4 x Crocodile clips 1 x Power supply 1 x USB cable 4 x Test cable 1 x Voltage terminal cable 1 x Power terminal cable 6 x 1.5V C batteries 2 x Current clamps 1 x Rechargeable Ni-MH battery 4 x Insert samples 1 x User manual
