Psychrometer for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display
The precise psychrometer from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The psychrometer is versatile and provides accurate results for air and various gases.
The psychrometer offers a robust and handy design, the housing of the psychrometer was specially developed for industrial applications.
The operation of the psychrometer is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the psychrometer. The psychrometer offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.
In addition, the psychrometer is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the psychrometer to be used quickly and also saves time during measurement.
In addition, the psychrometer has a psychrometer function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.
When the optional Smart Features are purchased, the psychrometer can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the psychrometer to document the measurement location using the integrated camera.
Highlights
- Taupunkt Messbereich von -100 … +50 °C
- Druckbereich bis 15 bar Differenzdruck
- Datenlogger für bis zu 100 Millionen Messwerte
- Alarmgrenzen einstellbar.
- Touch LC Display
Technical specifications
- Differential pressure — Measuring range: 0 … 15 bar
- Differential pressure — Resolution: 0,01 bar
- Differential pressure — Accuracy: 0.5 % of range
- Dew point — Measuring range: -100 … +50 °C
- Dew point — Resolution: 0,1 °C
- Dew point — Accuracy: ±3°C
- Dew point — Measuring range: 0 … 20 °C
- Dew point — Resolution: 0,1 °C
- Dew point — Accuracy: ±1°C
- Dew point — Measuring range: -60 … +50 °C
- Dew point — Resolution: 0,1 °C
- Dew point — Accuracy: ±2°C
- Dew point — Measuring range: -100 … -60 °C
- Dew point — Resolution: 0,1 °C
- Dew point — Accuracy: ±3°C
- Temperature — Measuring range: -30 … +50 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: ±0.3 °C
- General technical data — Measuring functions: Average value
- General technical data: Units°C, °F, bar, psi, MPa, °C Td, %RH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.

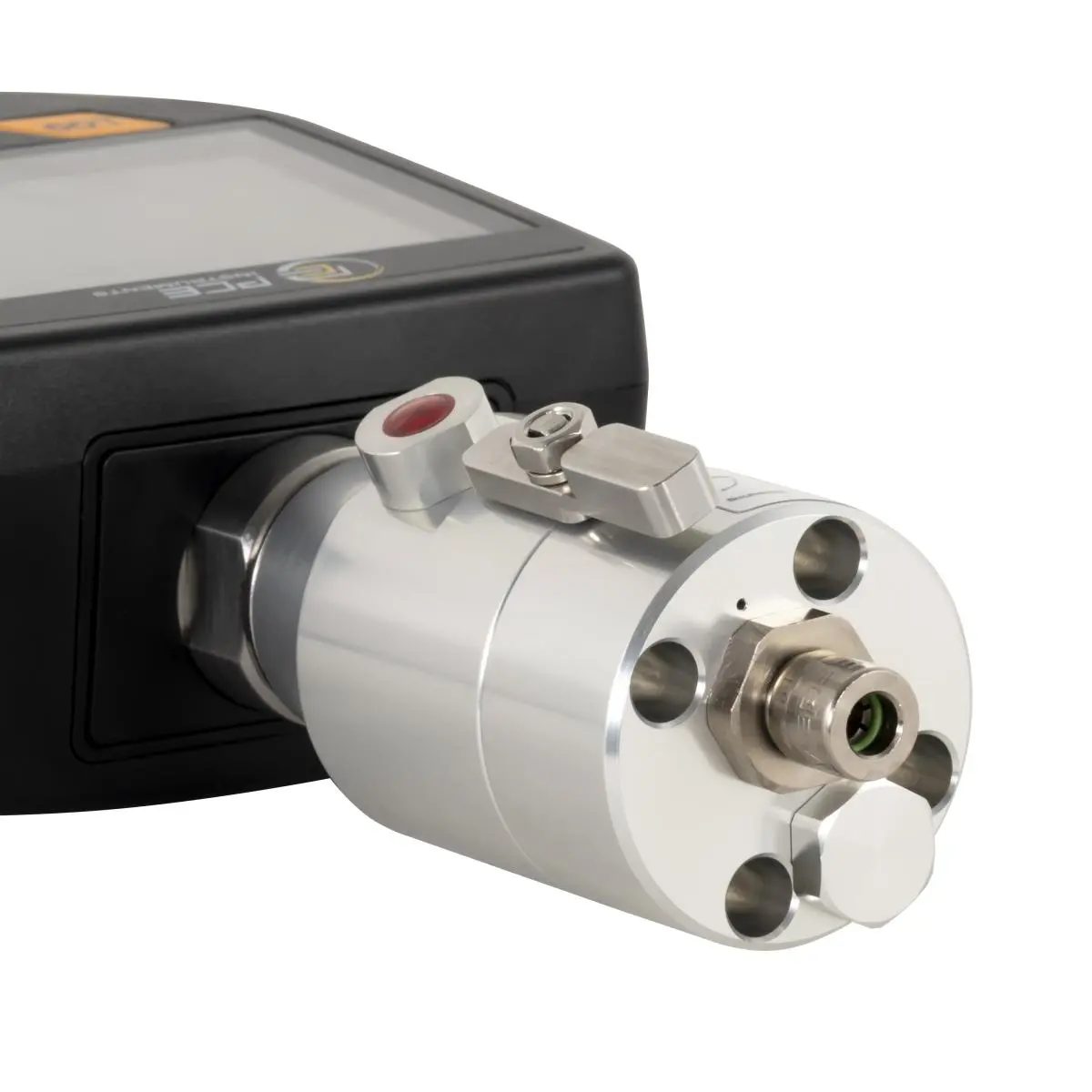

- General technical data: Connections G1/2 inch with 6mm quick coupling
- General technical data — Display type: LC touch display
- General technical data — Display size: 3,5 Inch
- General technical data — Display refresh rate: 1 x per second
- Storage medium Internal memory — Storage capacity: 100 Million values
- Storage medium Internal memory — Storage interval from: 1 s
- Storage medium Internal memory — Storage interval to: 60 s

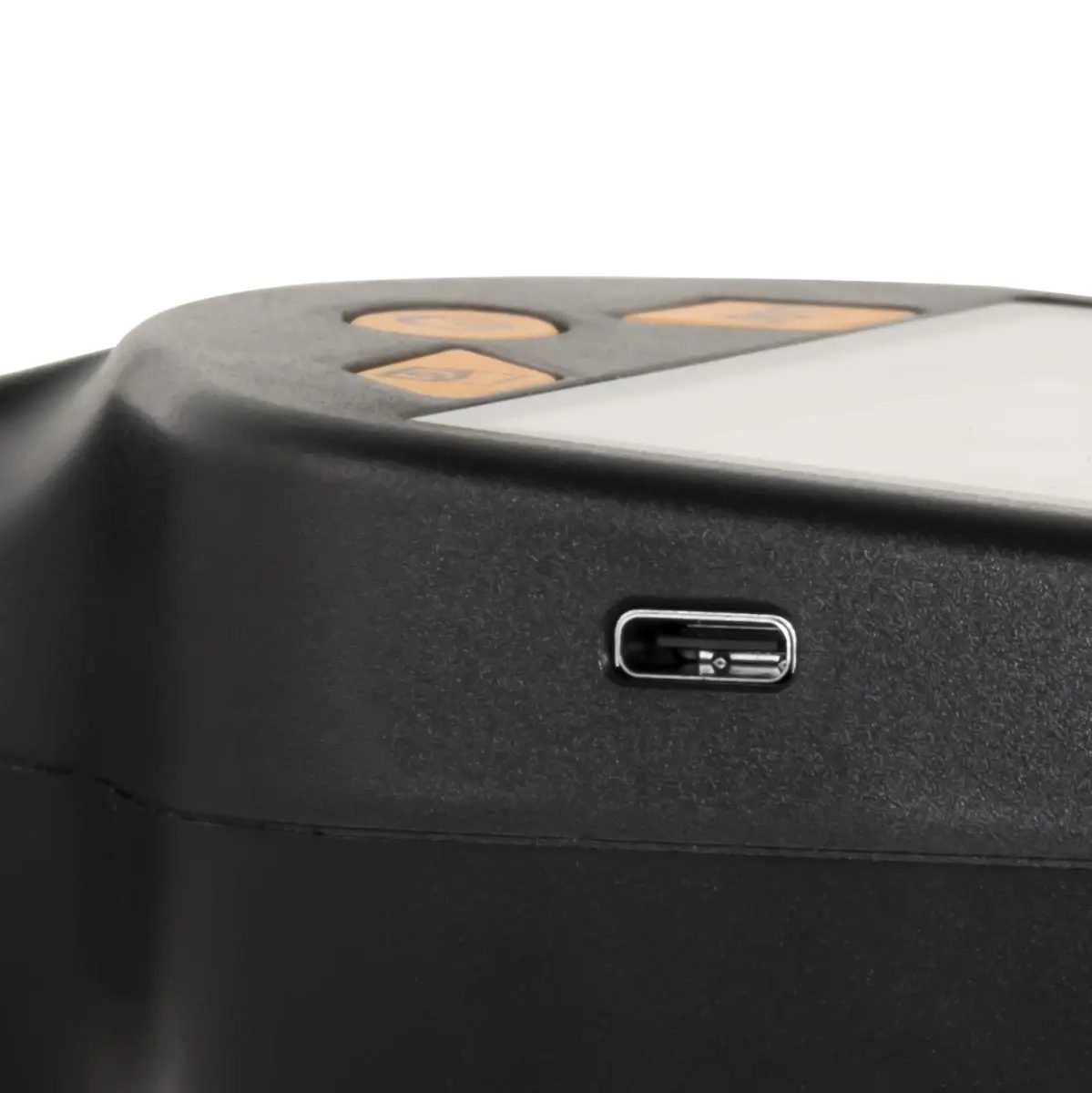

- Storage medium Internal memory — Interface: USB-C
- Storage medium Internal memory: Standard(s)ISO8573-1
- Storage medium Internal memory: Standard(s) additional information Evaluation according to ISO8573-1 only possible when purchasing the additional functions!
- Storage medium Internal memory: Item no. PCE-DPM 10-SF
- Storage medium Internal memory: Current consumption meter 400 mA DC
- Storage medium Internal memory — Sensor: QCM (Quartz crystal microbalance)
- Storage medium Internal memory — Response time: 1 s
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen: Operating time 8 h
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen: Operating time additional information The charging process takes approx. 3 h.
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen: Automatic power-off from…to 10 … 60 min.
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen — Housing: ABS (acrylonitrile-butadiene-styrene copolymers)
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen — Menu language: English, Spanish, German, Chinese, Japanese, French, Korean
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen — Protection class (device): IP30
- Measured medium Air, Nitrogen, Argon, Carbon dioxide, Oxygen — Power supply: 5V DC 3 A (via USB-C)
- Connector type Device-europlug — Capacity: 3500 mAh
- Connector type Device-europlug — Operating conditions: 0 … 40 °C , 0 … 80 % RH
- Connector type Device-europlug — Storage conditions: 0 … 40 °C , 0 … 80 % RH
- Connector type Device-europlug — Dimensions: ( L x W x H )310 x 100 x 60 mm
- Connector type Device-europlug — Other dimensions: PTFE hose 1.5 m with 6 mm quick coupling
- Connector type Device-europlug — Weight: 775 g
Delivery scope

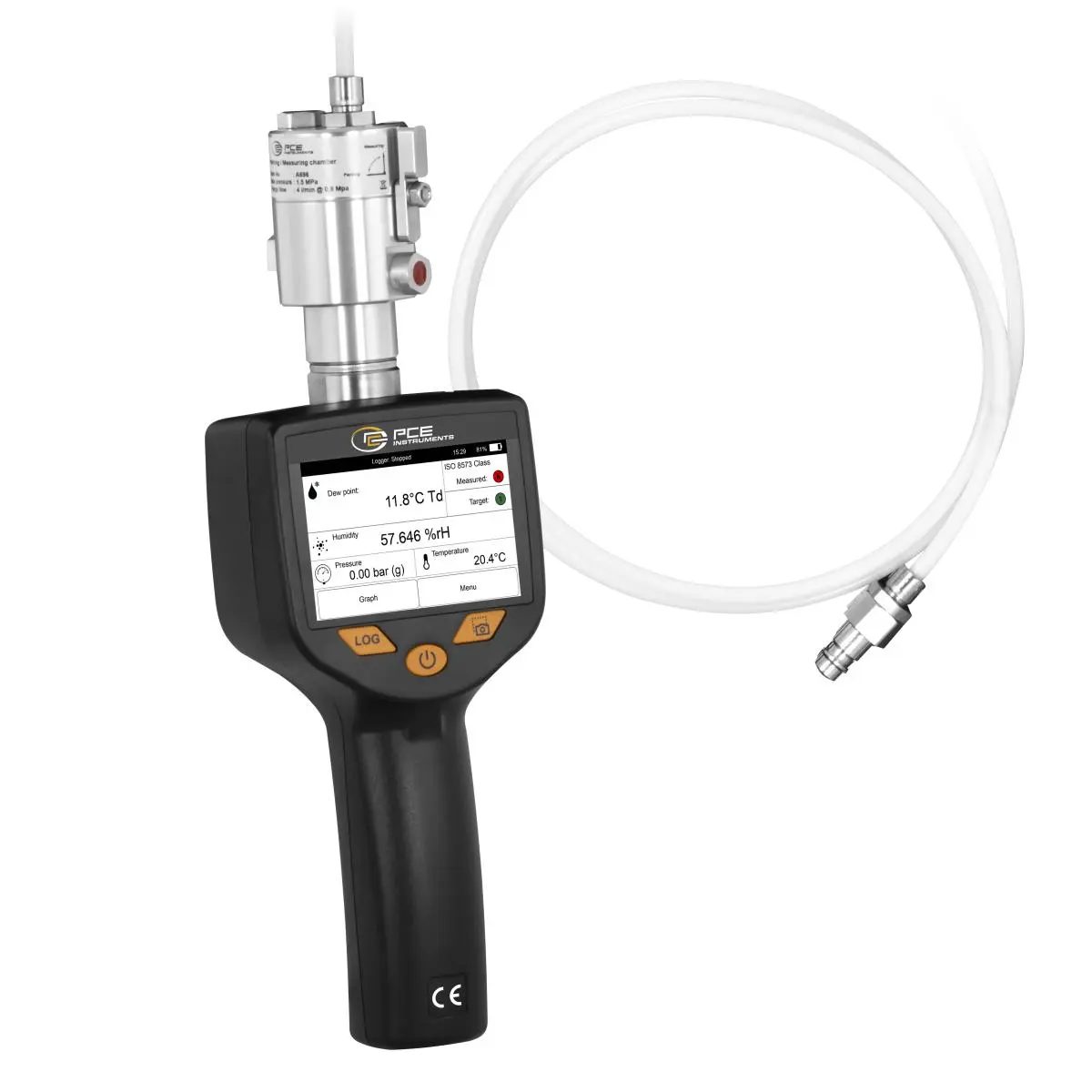

- 1x Psychrometer PCE-DPM 10

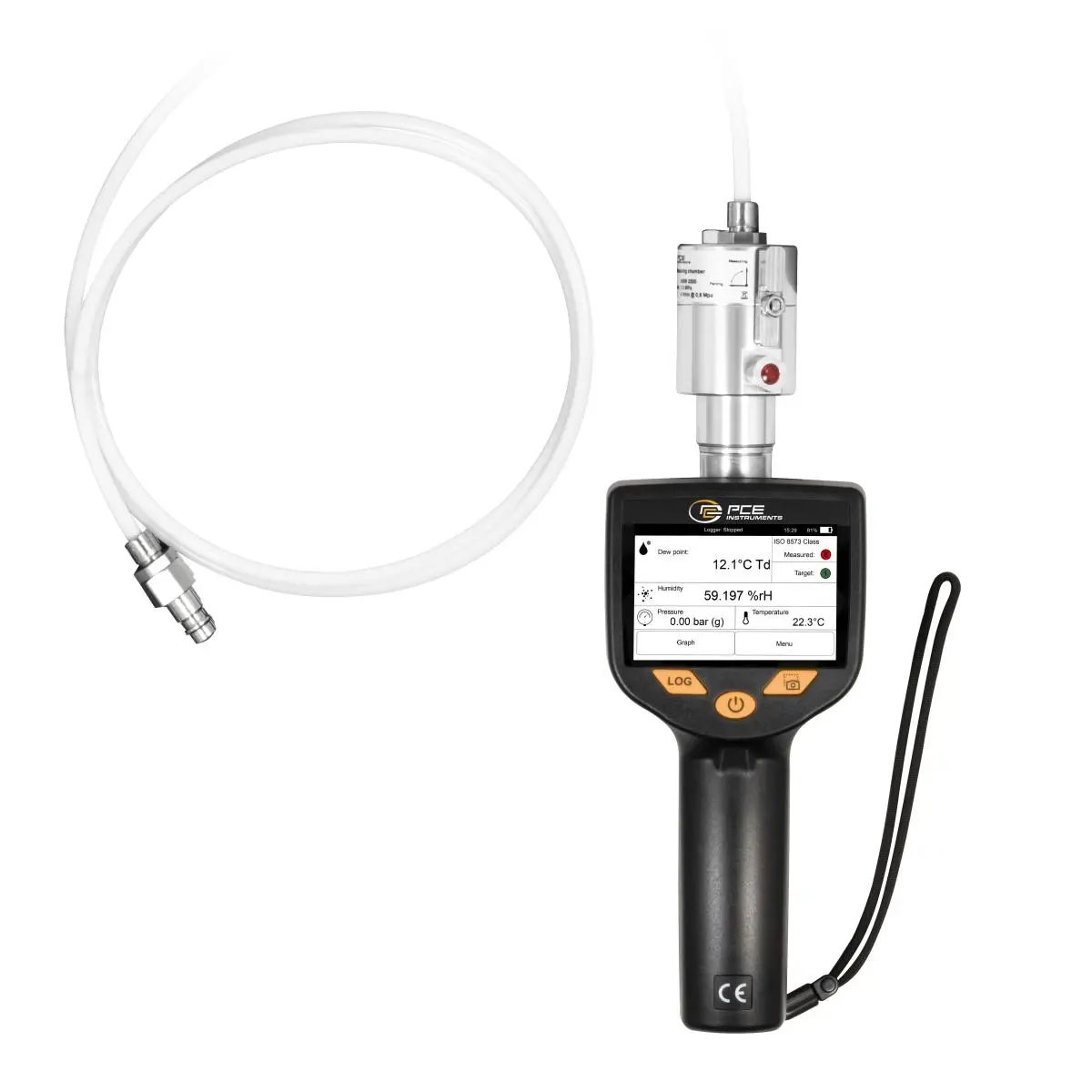

- 1x PTFE hose with quick coupling

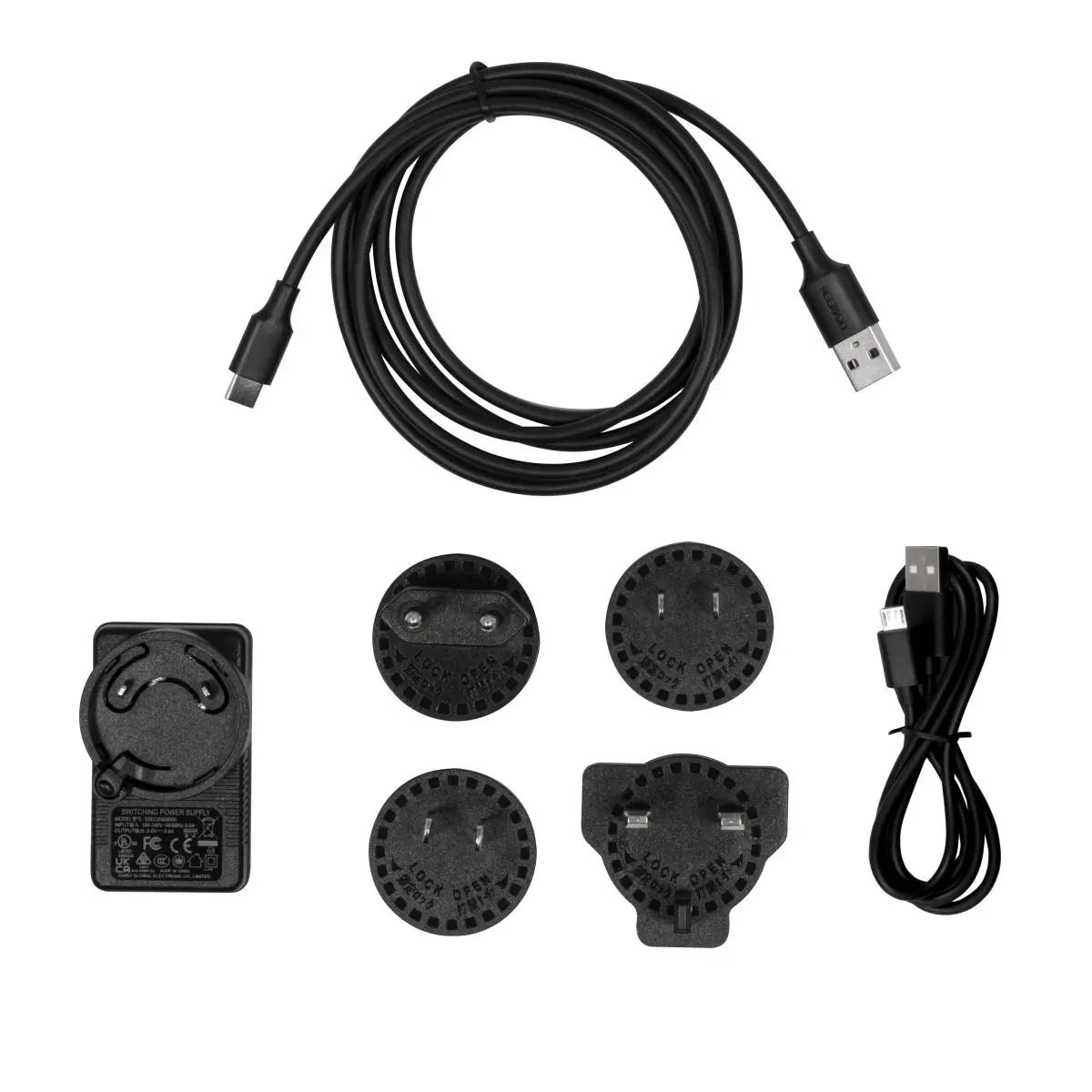

- 1x USB power supply with adapters
- 1x USB-C cable
- 1x USB-C stick

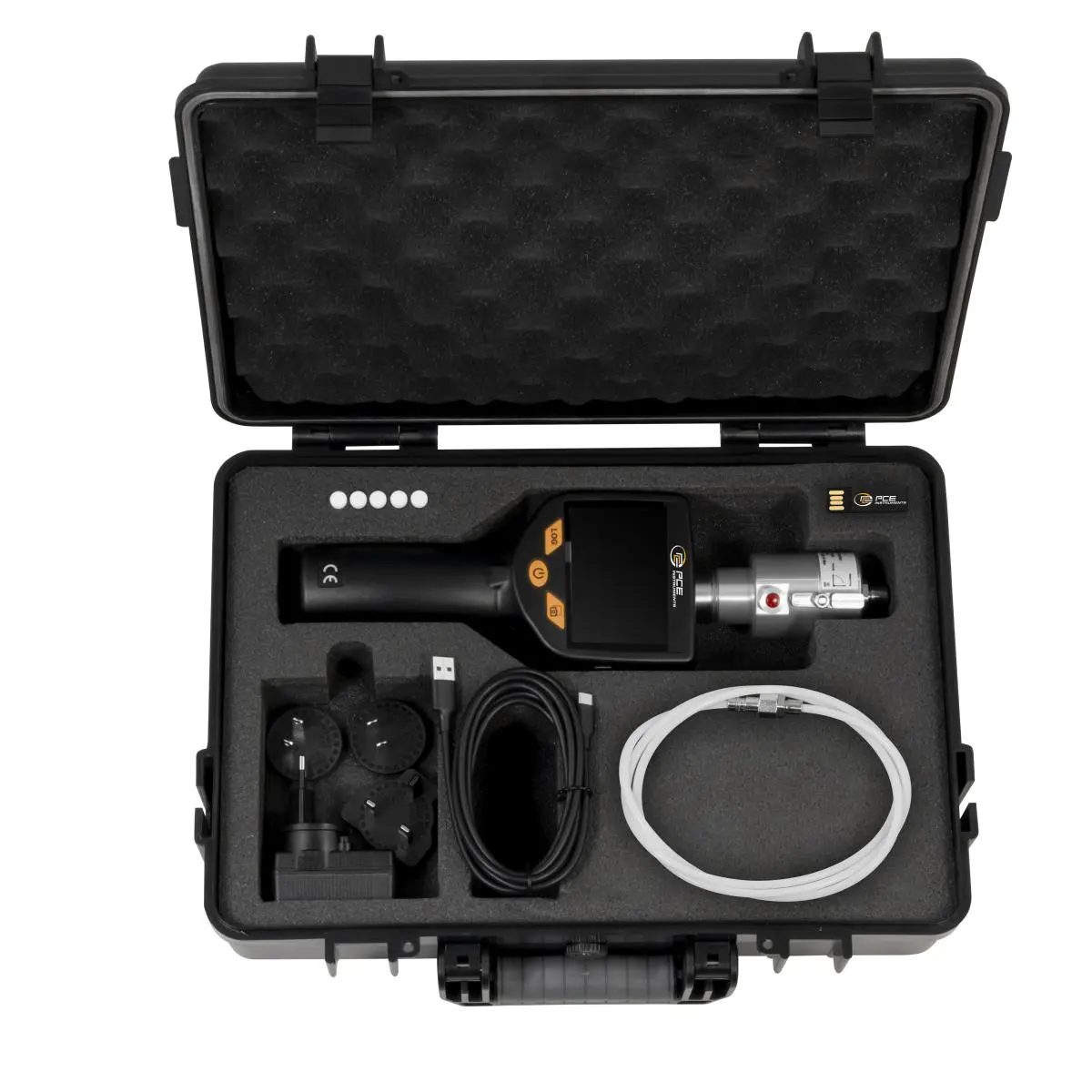

- 1x transport case
- 1x software (download)
- 1x operating instructions
