Temperature LoggerPCE-HT 300 With 7″ display for long-term recording of temperature, dew point and relative humidity / 7″ display / Data logger with touch screen / CSV memory / Graphic display / Battery / USB

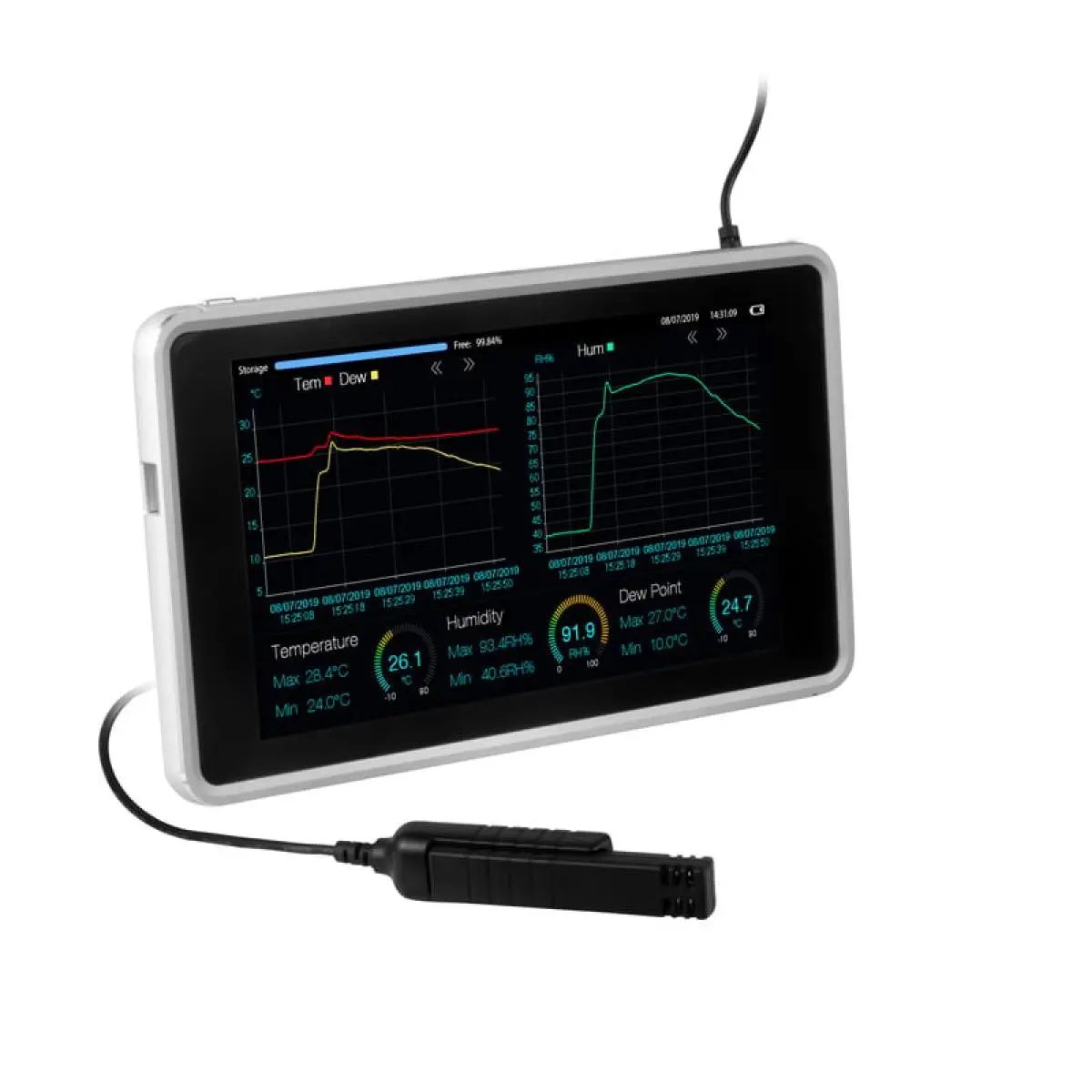

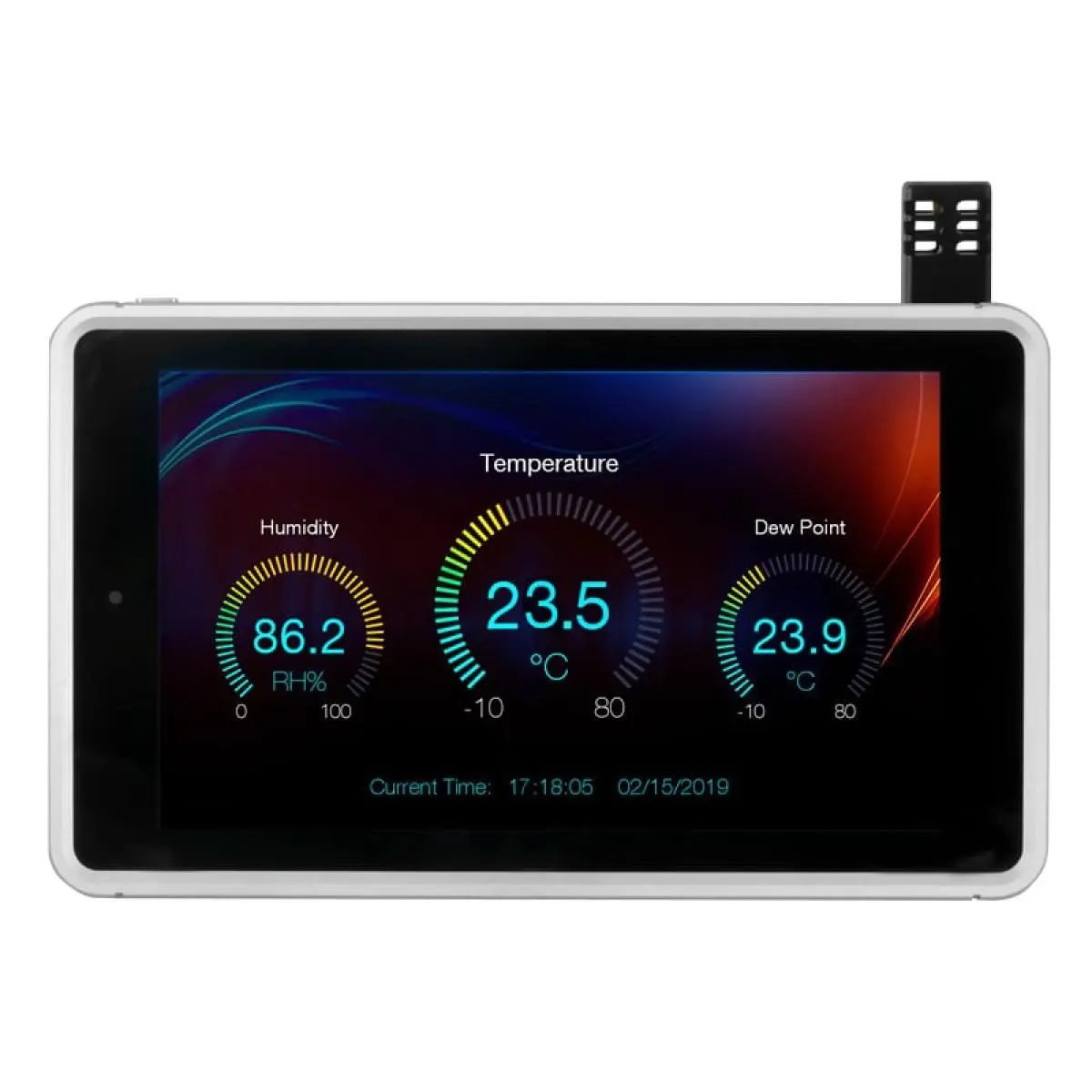

The Temperature Logger PCE-HT 300 is a laboratory Temperature Logger for temperature, dew point and humidity. The data logger stores the measurement data on an internal 16 GB memory in CSV format. The memory is read by the Temperature Logger via the micro-USB interface. The Temperature Logger’s 7″ touch screen has two different display modes: Numeric display with circular bargraphs and a display of measured values as a graph In graph mode, it is easy to see the temperature, dew point and humidity -HT 300 Temperature Logger can be clipped on the back of the Temperature Logger, but it is also possible that this sensor is operated by a Temperature Logger via a 200 cm cable.

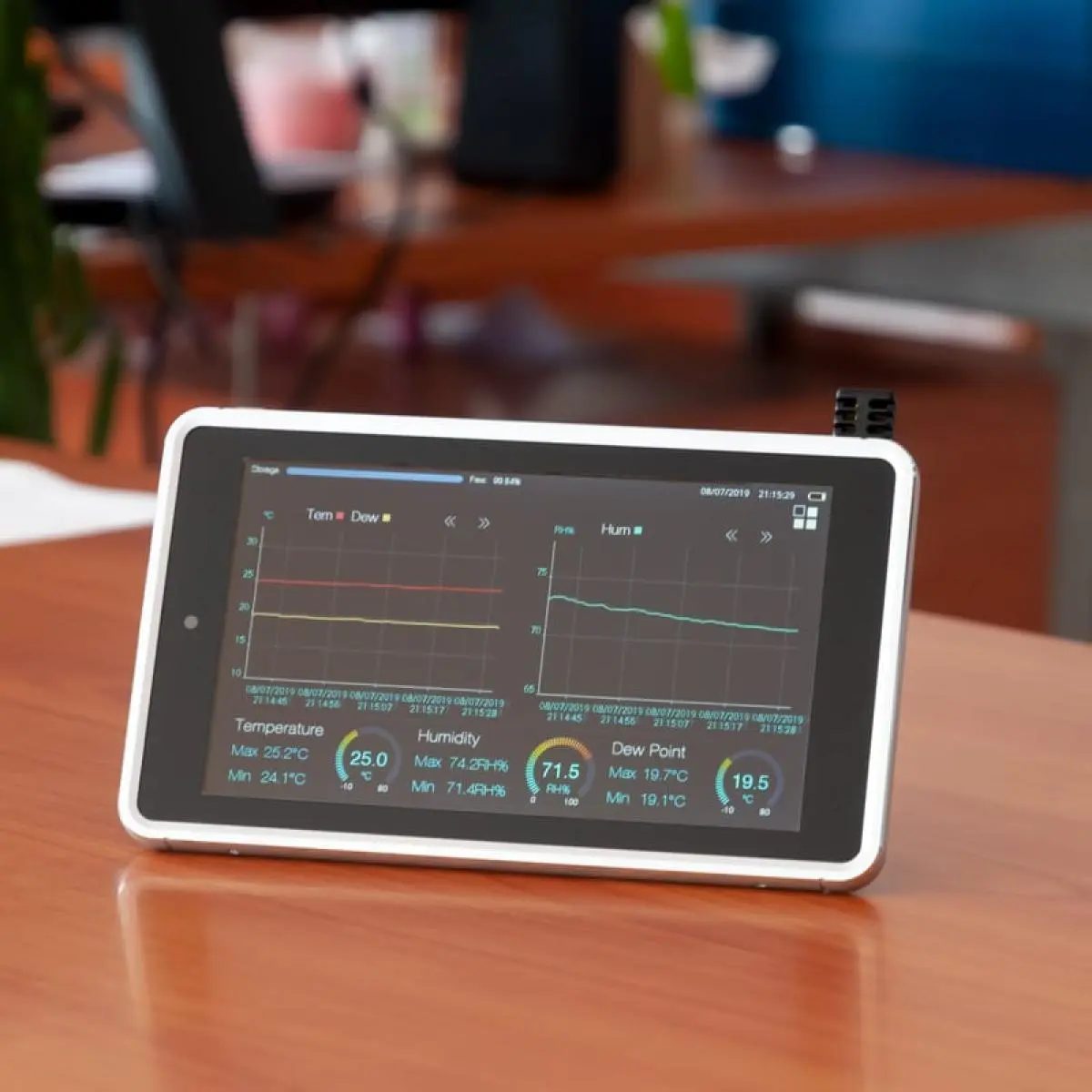

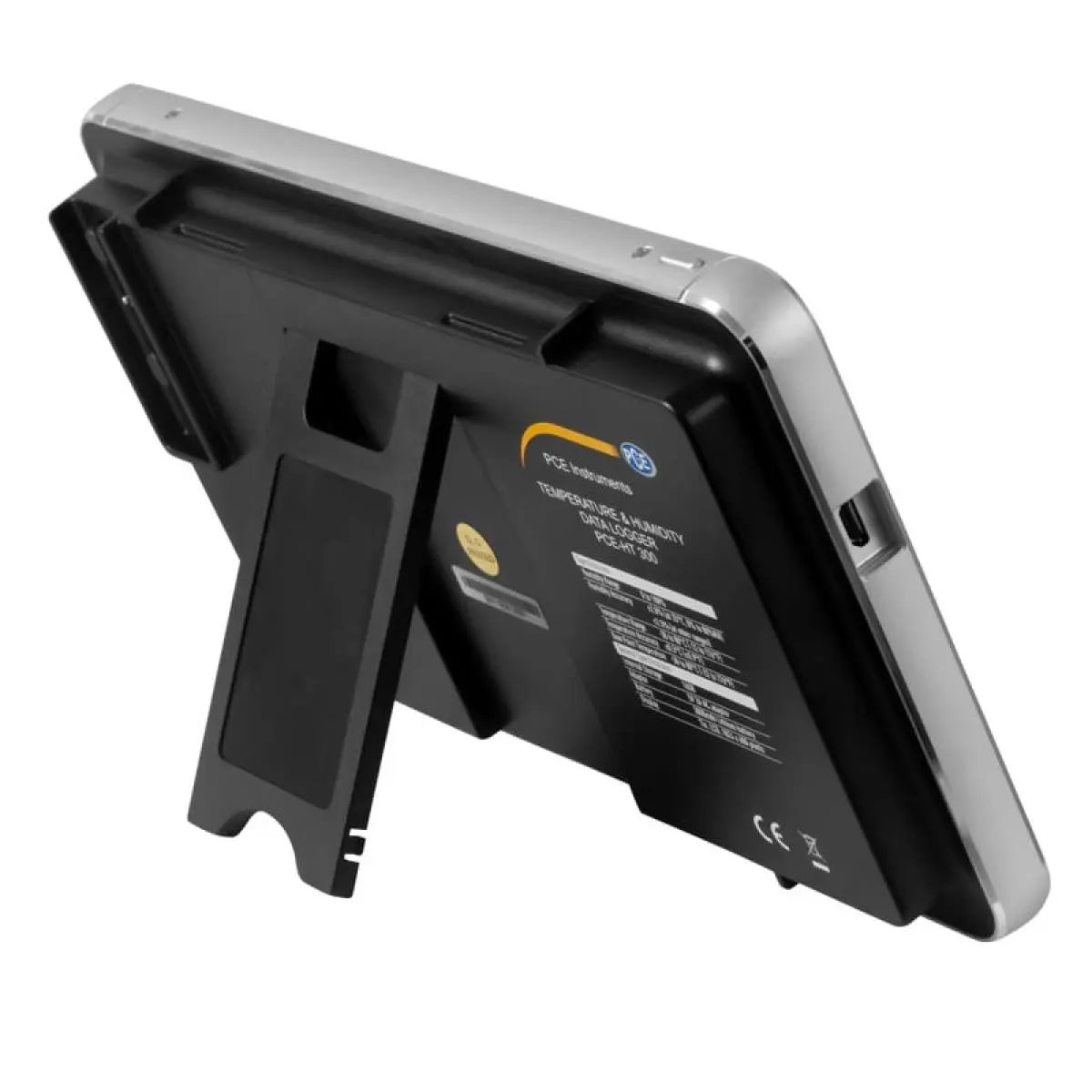

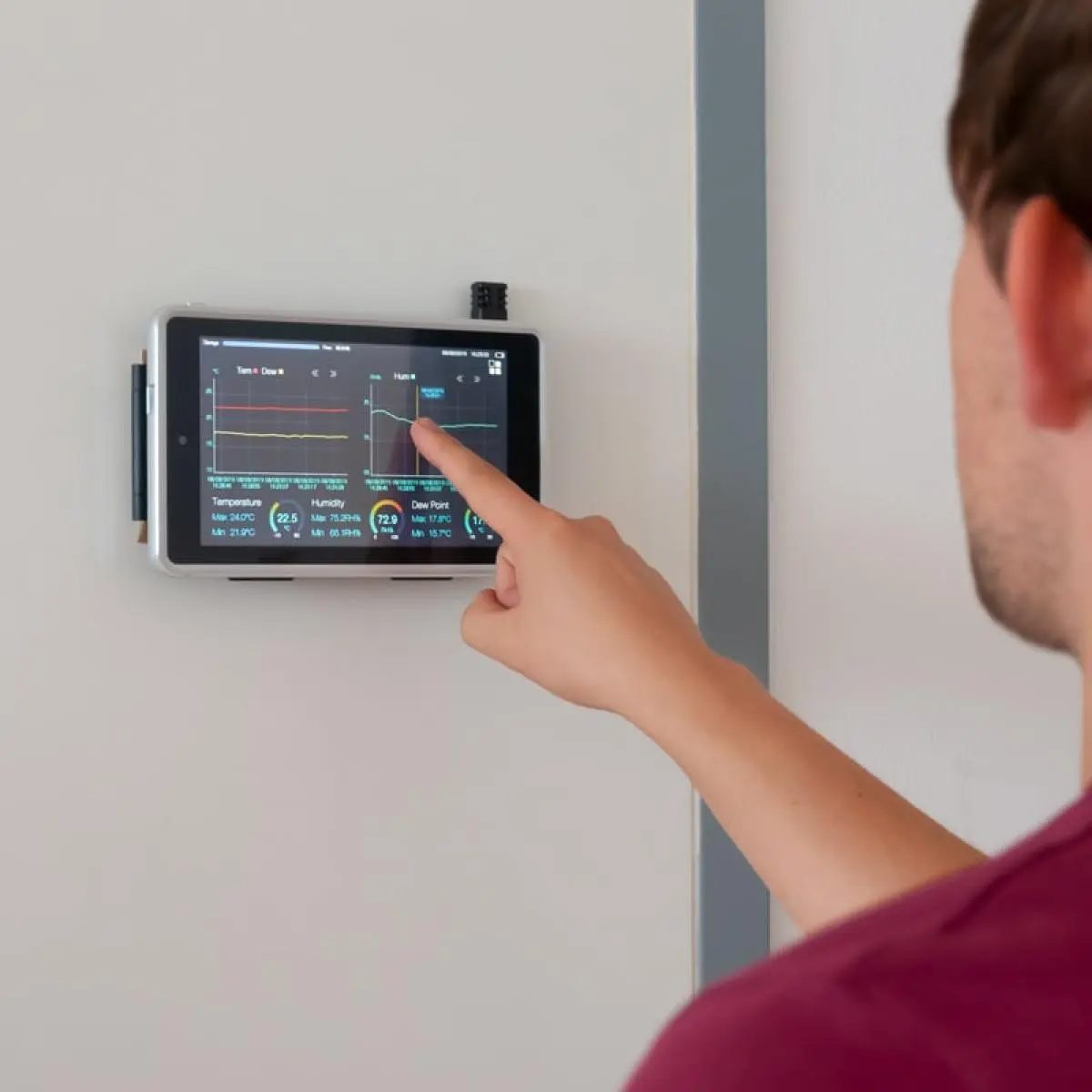

The Temperature Logger PCE-HT 300 is operated completely via the touchscreen. All settings are easy to make on the Temperature Logger. In addition to the measurement and storage of the measured values, the Temperature Logger is able to set an alarm if the measured values are exceeded or not reached. As power supply the Temperature Logger uses a Li-Ion battery. This is charged via the USB socket, with the help of the enclosed power supply. The Temperature Logger can be operated on the back stand on the table or on the wall mount on the wall.
Highlights
- 7″ touch screen
- 16 GB of memory
- storage as CSV
- measures temperature, dew point and humidity
- micro USB interface
- battery and mains operation
Technical specifications
- Dew point — Measuring range: -10 … +80 °C
- Dew point — Resolution: 0,1 °C
- Dew point — Accuracy: ±0.5°C
- Relative humidity — Measuring range: 0 … 80
- Relative humidity — Resolution: 0,1
- Relative humidity — Accuracy: ±2 % RH
- Temperature — Measuring range: -10 … +80 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: ±0.5 °C
- General technical data — Display type: Touch screen
- General technical data — Display size: 7 in
- Storage medium Internal memory — Storage capacity: 16 GB
- Memory capacity (additional information)Storage format: CSV — Interface: Micro-USB
- Memory capacity (additional information)Storage format: CSV: Operating time 5 Year(s)
- Memory capacity (additional information)Storage format: CSV — Dimensions: Sensor cable length: 200 cm
- Memory capacity (additional information)Storage format: CSV — Menu language: English, English (GB)
- Memory capacity (additional information)Storage format: CSV — Protection class (device): IP20
- Memory capacity (additional information)Storage format: CSV — Power supply: 5 V / 2 A
- Connector type Device-europlug — (Rechargeable) battery: 1 x 3,7 V internal , Lithium-ion battery
- Connector type Device-europlug — Capacity: 3000 mAh
- Connector type Device-europlug — Operating conditions: -10 … 80 °C , 0 … 100 % RH
- Connector type Device-europlug — Storage conditions: -10 … 80 °C , 0 … 80 % RH
- Connector type Device-europlug — Dimensions: ( L x W x H )180 x 115 x 19 mm
- Connector type Device-europlug — Weight: 450 g

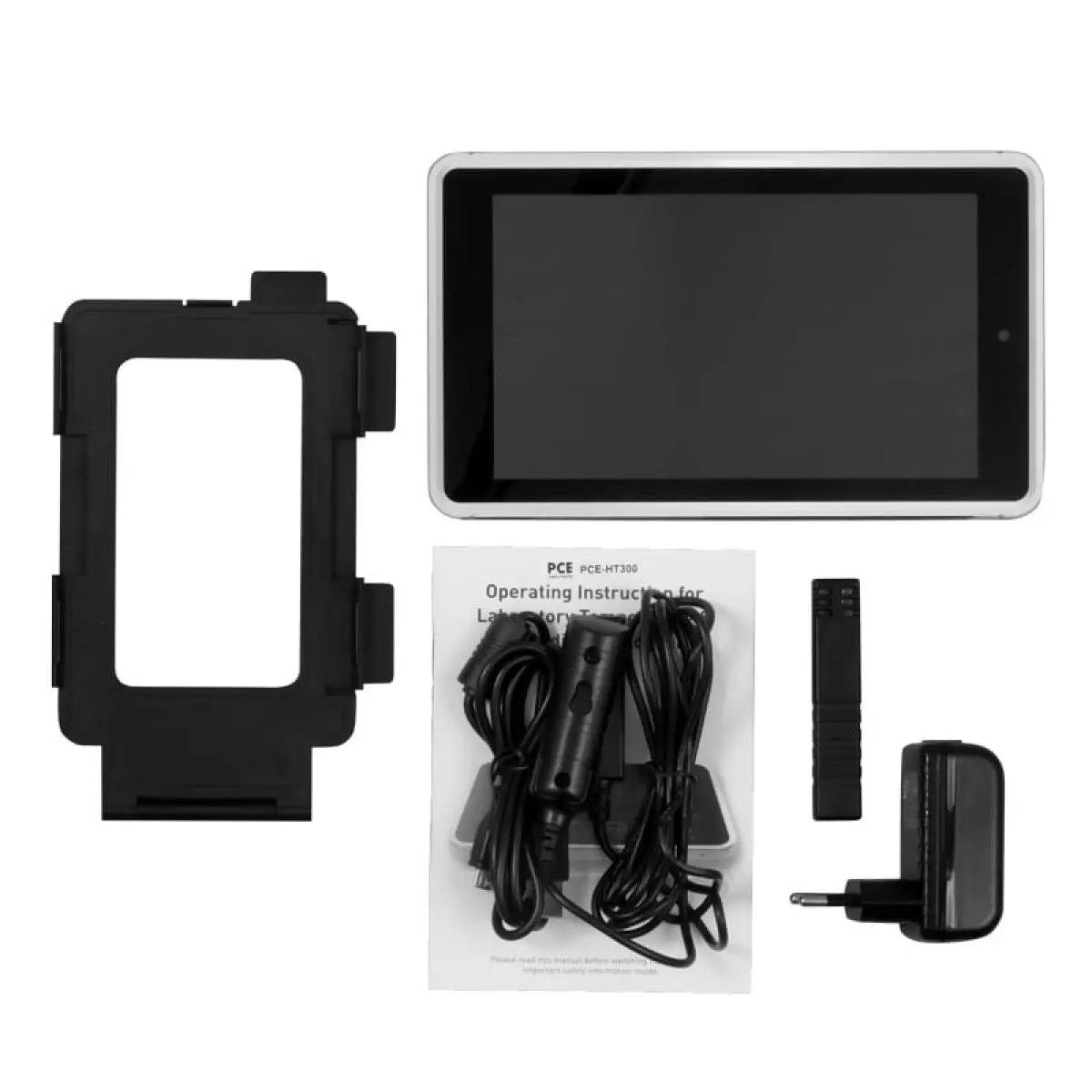

Delivery scope
- 1 x Hygrometer PCE-HT 300
- 1 x Sensor element
- 1 x 200 cm sensor cable
- 1 x Wall bracket
- 1 x USB cable
- 1 x Power adapter (5V / 2 A)
- 1 x User manual
