Multi-parameterwater hardness meter with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 5 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

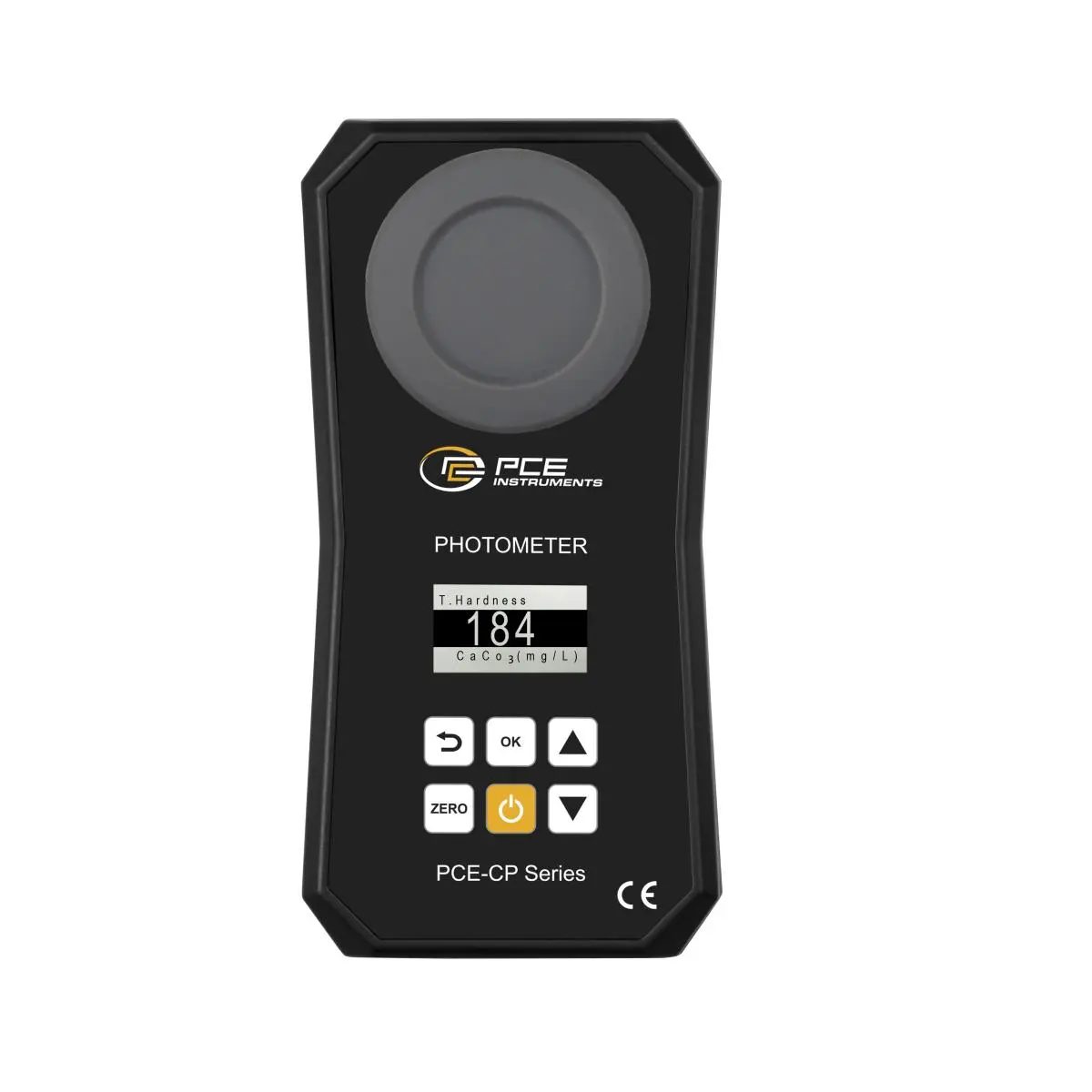

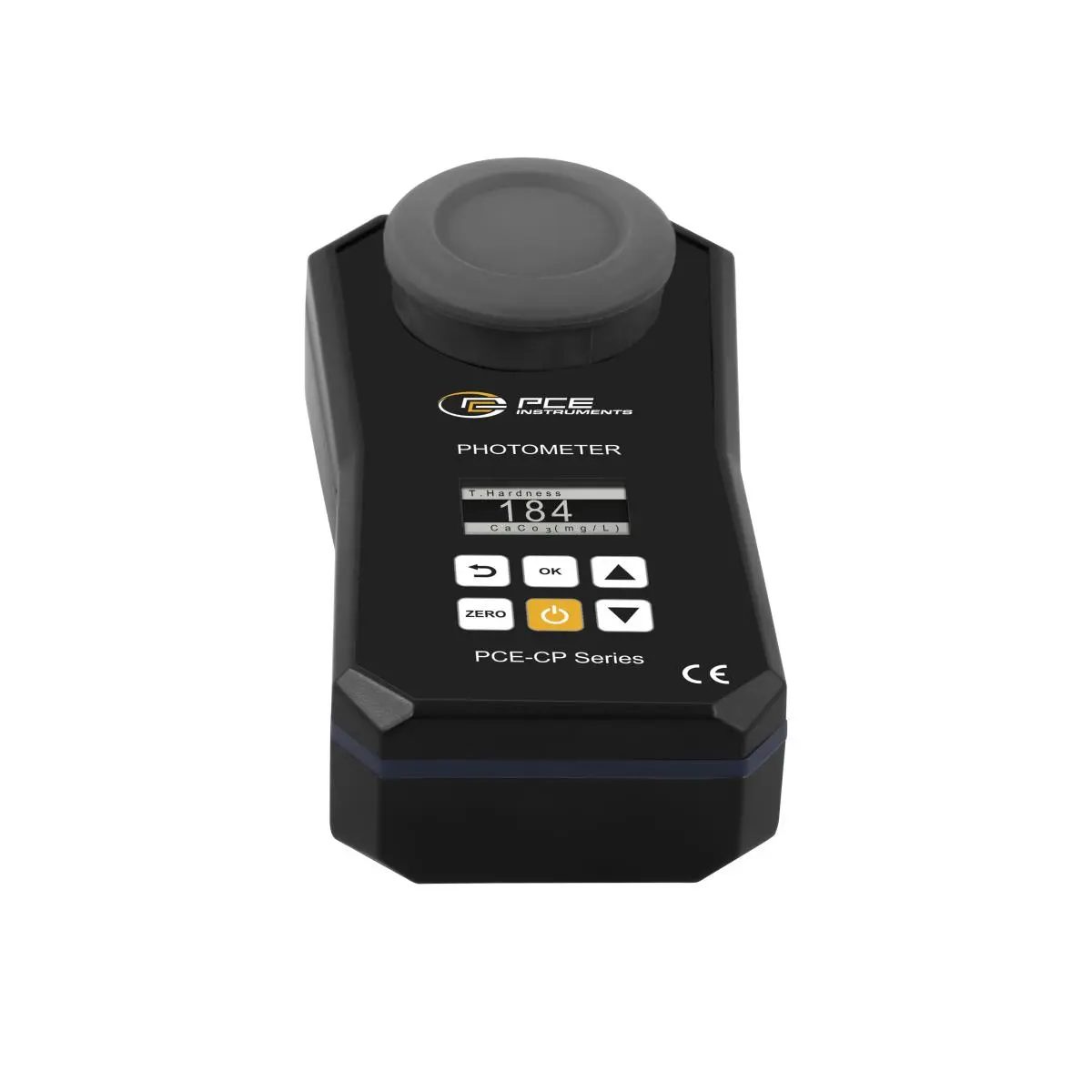

The multi-parameter water hardness meter is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter water hardness meter. With this multi-parameter water hardness meter, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter water hardness meter, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter water hardness meter generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.
Each measurement is automatically saved by the multi-parameter water hardness meter . The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter water hardness meter. A free app is available to analyze the measured values from the multi-parameter water hardness meter. It is also possible to establish a Bluetooth connection between the multi-parameter water hardness meter and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter water hardness meter, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter water hardness meter is also free of charge.
Highlights
- Up to 5 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Technical specifications
Alkalinity Measuring range 0 … 30 mg/L Resolution 1 mg/L Accuracy 3 mg/l Alkalinity Measuring range 30 … 60 mg/L Resolution 1 mg/L Accuracy 7 mg/l Alkalinity Measuring range 60 … 100 mg/L Resolution 1 mg/L Accuracy 12 mg/l Alkalinity Measuring range 100 … 200 mg/L Resolution 1 mg/L Accuracy 18 mg/l Total hardness Measuring range 0 … 30 mg/L Resolution 1 mg/L Accuracy 3 mg/l Total hardness Measuring range 30 … 60 mg/L Resolution 1 mg/L Accuracy 5 mg/l Total hardness Measuring range 60 … 100 mg/L Resolution 1 mg/L Accuracy 10 mg/l Total hardness Measuring range 100 … 200 mg/L Resolution 1 mg/L Accuracy 17 mg/l Total hardness Measuring range 200 … 300 mg/L Resolution 1 mg/L Accuracy 22 mg/l Total hardness Measuring range 300 … 500 mg/L Resolution 1 mg/L Accuracy 58 mg/l Calcium hardness Measuring range 0 … 25 mg/L Resolution 1 mg/L Accuracy 8 mg/l Calcium hardness Measuring range 25 … 100 mg/L Resolution 1 mg/L Accuracy 22 mg/l Calcium hardness Measuring range 100 … 300 mg/L Resolution 1 mg/L Accuracy 34 mg/l Calcium hardness Measuring range 300 … 500 mg/L Resolution 1 mg/L Accuracy 45 mg/l pH Measuring range 6,5 … 8,4 pH Resolution 0,01 pH Accuracy 0.11 pH General technical data Units mg/l, ppm, mg/l CaCO³, mmol/l KS 4.3, °dH (degree of German hardness), °e (degree of English hardness / Clark degree), °f (degree of French hardness) Display type LED Storage medium Internal memory Storage capacity 255 Values Interface Bluetooth Sensor Photodiode Automatic power-off 300 s Light source 530nm/570nm/620nm LED Number of calibration points 0 Menu language English, Spanish, German, French, Italian Protection class (device)IP21 (Rechargeable) battery 3 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Performance 1,8 Wh Operating conditions 5 … 45 °C , 20 … 90 % RH Storage conditions 5 … 45 °C , 20 … 90 % RH Dimensions ( L x W x H )150 x 75 x 50 mm Other dimensions Cuvette: 36 x ø 21 mm (10 ml) Weight 196,5 g
Delivery scope
1 x Multi-parameter Water Hardness Meter / Water Hardness Tester PCE-CP 04 incl. Cuvette 1 x Replacement cuvette 1 x Light protection cover 1 x Microfiber cloth 1 x Plunger 1 x 10 ml dosing pipette 3 x AAA batteries 1 x Quick start guide 1 x Service bag 1 x Free app 1 x Free PC software 1 x Free cloud service
