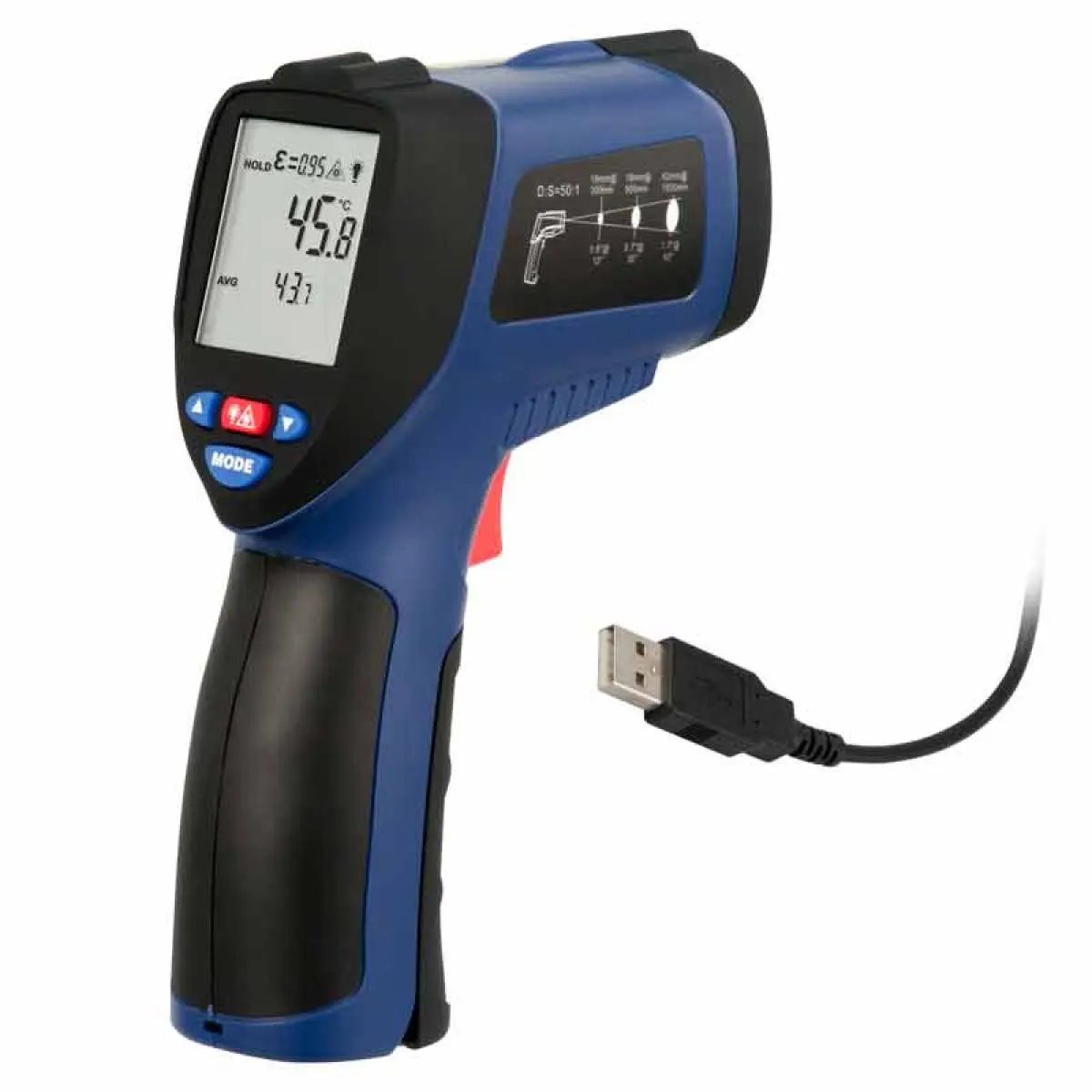

Surface Testing – Temperature Meter PCE-890U
**IR Thermometer PCE-890U up to 1150 ° C / 250 ms response time /
LC display / Real-time mode via the software / High accuracy**
The IR thermometer ensures easy handling, as well as fast and accurate measurements. The "non-contact" (contact) technology used in this IR thermometer makes it possible to measure the surface temperatures of hard to reach objects. The instrument can, inter alia, be used in order to measure the electrical appliances, extremely hot surfaces or moving objects. Typical applications of the USB IR thermometer are fire protection, road construction, marine and oil industry and many others.
If you have further questions about the temperature test instrument PCE-890U, please check the following technical data or use our contact form or call us. Our technicians and engineers will gladly give any kind of assistance concerning the field “USB IR thermometer” or any other products in the field of control technology, laboratory technology, instrumentation or the scales of PCE Instruments.
Highlights
- Up to 1150°C / 2102°F
- IR Thermometer with LCD Display
- Included Software
- High accuracy
- Real-time mode possible
- Alarm function
Technical specifications
Infrared temperature Measuring range-50 … +1150 °C Accuracy-50 … 0 °C: ±4 °C / 0 … +500 °C: ±1.5 % ±2 °C / >500 °C: ±2 % ±2 °C Temperature Measuring range-50 … 0 °C Resolution 0,1 °C Accuracy±4 °C Temperature Measuring range 0 … 500 °C Resolution 0,1 °C Accuracy±1.5 % ±2 °C Temperature Measuring range 500 … 1000 °C Resolution 0,1 °C Accuracy±2 % ±2 °C Temperature Measuring range 1000 … 1150 °C Resolution 1 °C Accuracy±2 % ±2 °C General technical data Measuring functions HOLD, MAX, MIN, Difference, Average value Units°C, °F Display type LCD Memory capacity (additional information)Data recording: via PC in real-time mode Interface USB Response time 250 mS Automatic power-off 20 s Measurement spot 50:1 Laser Class 2 <1mW Emissivity from/to 0.1 … 1 Spectral range 8 … 14 µm Menu language English, English (GB) Protection class (device)IP20 (Rechargeable) battery 1 x 9 V 9V block , Zinc carbon Capacity 220 mAh Operating conditions 0 … 50 °C , 10 … 95 % RH Storage conditions-20 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )192 x 126 x 60 mm Weight 290 g
Delivery scope
1 x IR thermometer PCE-890U 1 x USB cable 1 x Software 1 x User manual
