UCI hardness tester PCE-3500 for non-destructive hardness measurement / large colour LC display / including software / HV, HRC, HRB, HB and MPa scale /with memory function / probes interchangeable / 136 ° Vickers diamond
The UCI hardness tester PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. The UCI hardness tester works on the basis of the Ultrasonic Contact Impedance test procedure. This UCI procedure works as follows: a Vickers diamond at the probe is stimulated with its self-resonance. By pushing the probe, the vibration frequency is reduced depending on the hardness of the surface and on the e module of the material and of the contact surface. The hardness of the surface can be determined on the basis of the frequency shift, taking the characteristic curve of the material into consideration.

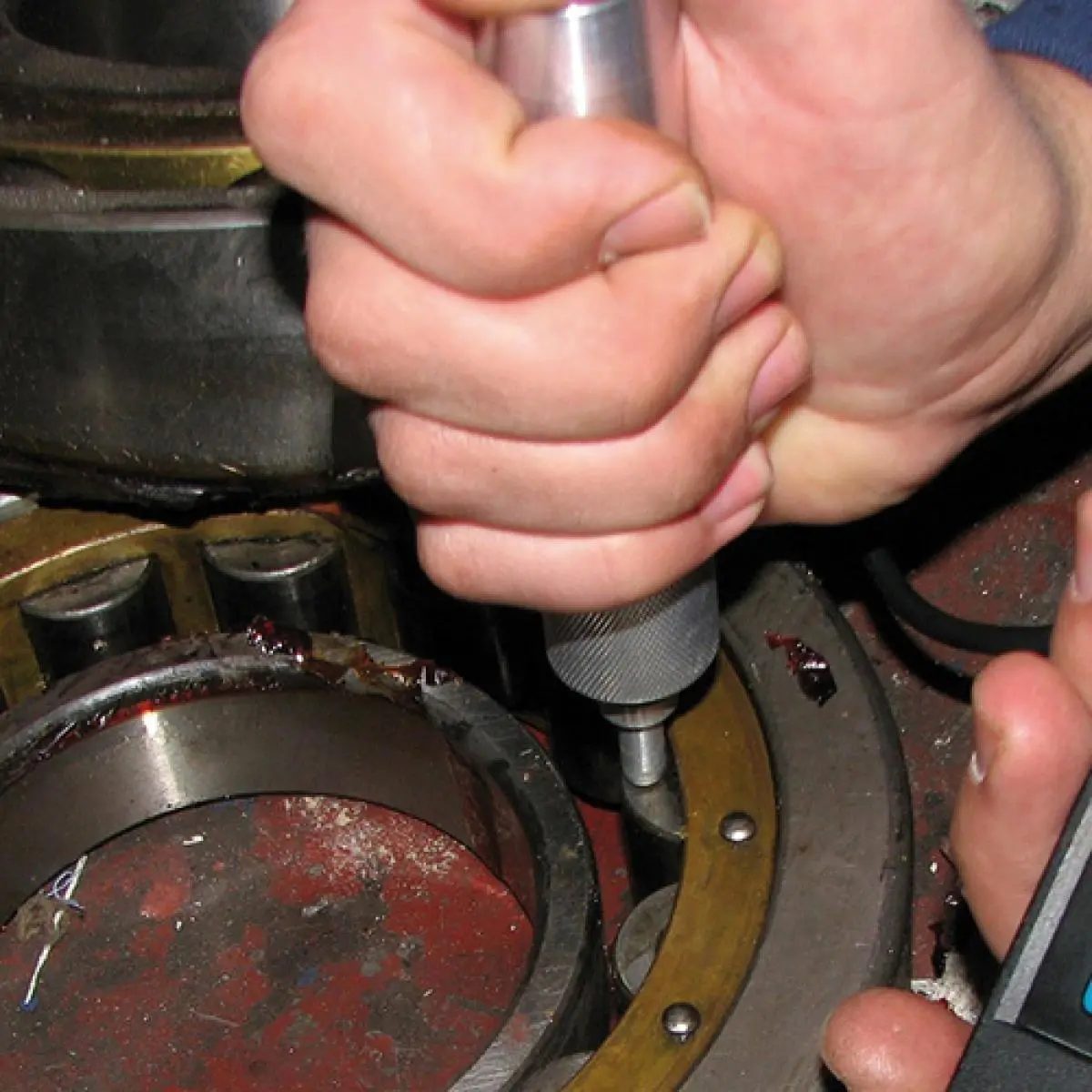

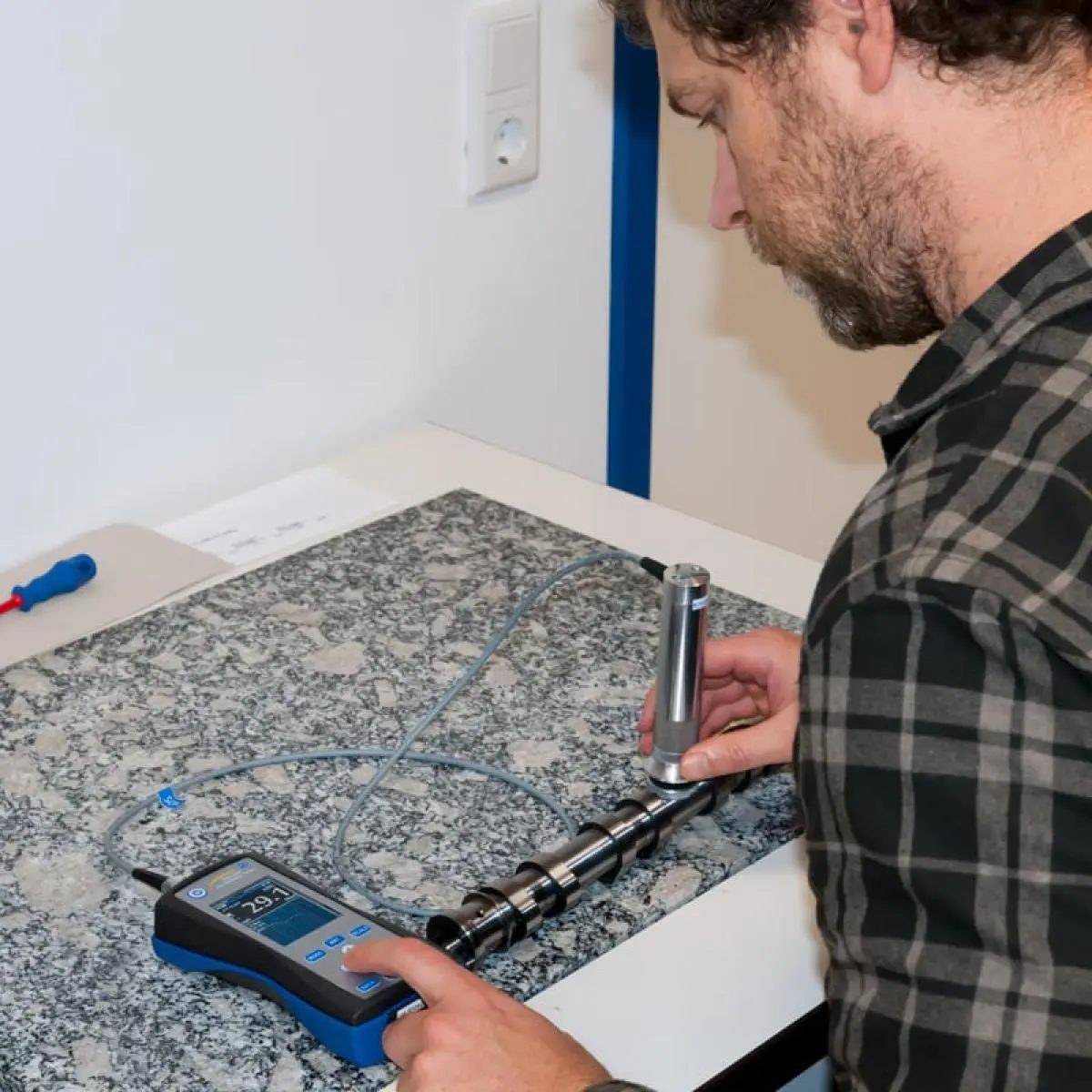

The UCI hardness tester works non-destructively. There is a microscopically slight pressure against the surface, however, this is normally not visible. Due to the low penetration depth of the Vickers diamond, this UCI hardness tester is especially suitable for edge layer hardened components such as, for example, those that emerge when nitriding or induction hardening. It is typically used for punching tools, presses, thin-walled components, cog wheels, turbine blades, camshafts or weld seams. The UCI hardness tester is also suitable for many other hardness testing applications. It has exchangeable probes with different pressure forces and can therefore cover diverse applications.

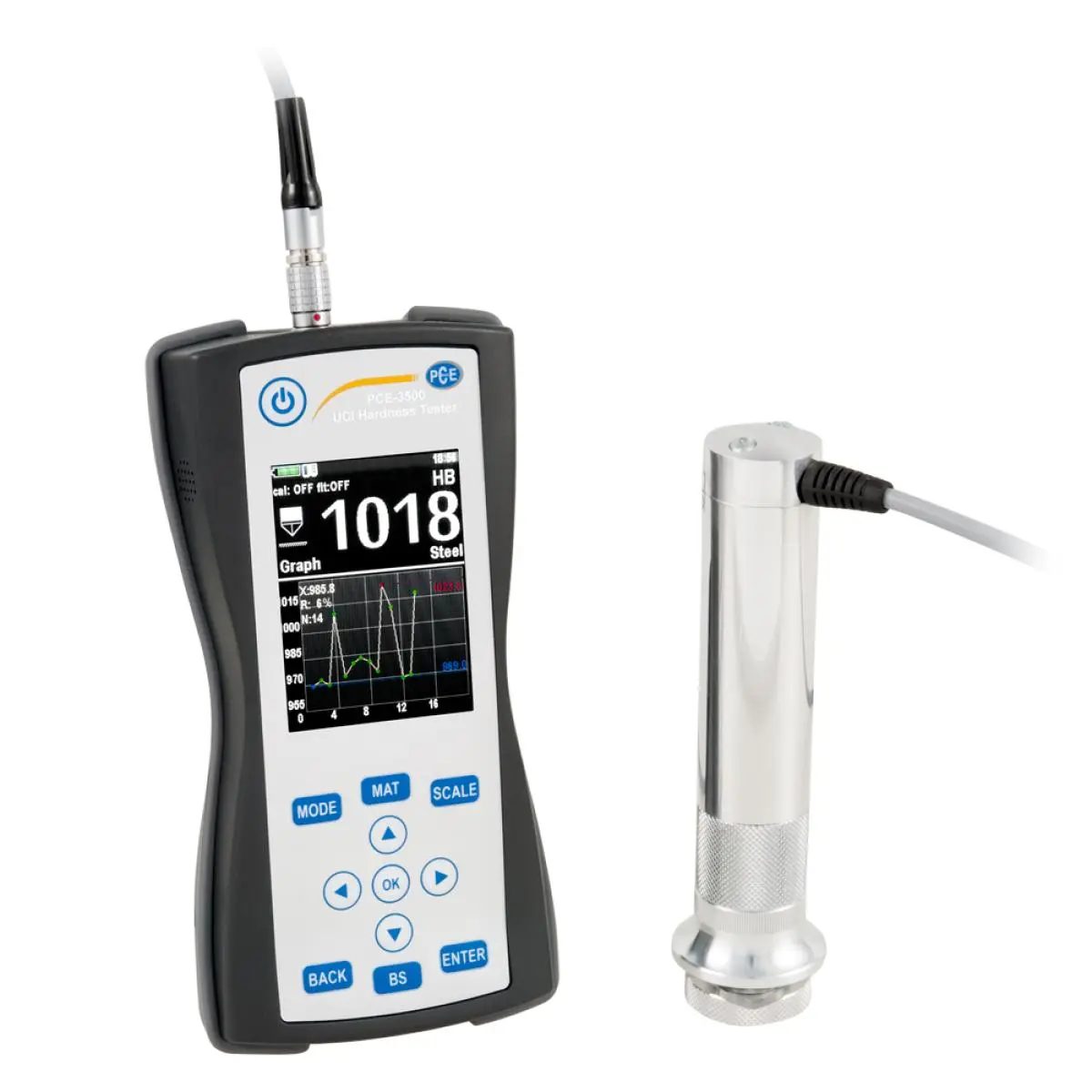

After measuring the hardness of a component, the UCI hardness tester PCE-3500 shows different statistical values such as the MAX / MIN values and average values. Moreover, the standard deviation and further coefficients can be determined. A bar chart can be indicated. Since the UCI hardness tester is equipped with an internal memory, the measured data can be evaluated by means of a software.
Highlights
- measurement in line with UCI procedure
- tests HRC, HRB, HV, HB, MPa
- measurement direction 360 °
- large colour LC display
- memory function via SD card
- different probes can be attached
- characteristic curve of material pre-calibrated
- evaluation via software possible
Technical specifications
Hardness Measuring range 230 … 940 HV Resolution 1 HV Accuracy±3% HV Hardness Measuring range 20 … 70 HRC Resolution 0,1 HRC Accuracy±1.5 HRC Hardness Measuring range 90 … 650 HB Resolution 1 HB Accuracy±3 % HB General technical data Measuring functions MIN, MAX, Average value Measuring functions (additional information)Single measurement, number of measurements, averaging, standard deviation, coefficient of variation, bar chart, smart mode (filters outliers) Measuring principle Ultrasonic contact impedance method Display type LCD graphic display with backlight Display size 2,8 Inch Storage medium SD card Storage capacity 2 GB Interface SD card, Mini-USB Standard(s)ASTM A1038 Measuring surface minimum 1 mm Measuring surface additional information Minimum material thickness: 1 mm (UCI probe only) Materials Steel, Cast iron, Stainless steel, Aluminium, Bronze Camera resolution 320 x 240 640 x 480 Operating time 10 h Automatic power-off from…to 1 … 30 min. Measuring angle 360 ° Impact device D-type Hardness scales HRC, HB, HV, HRB, MPa Tensile strength 370 … 1740 MPa Menu language English, Russian, English (GB), French, Portuguese, Polish, Ukrainian Protection class (device)IP54 Power supply Primary: 100 … 240V AC | 50/60 Hz Secondary: 5V DC / 2 A Connector type Device-europlug (Rechargeable) battery 3 x 1,2 V AA – rechargeable battery , Nickel-metal hydride battery Capacity 2600 mAh Operating conditions-20 … 40 °C , 30 … 80 % RH Storage conditions-20 … 40 °C , 30 … 80 % RH Dimensions ( L x W x H )168 x 85 x 40 mm Weight 223 g
Delivery scope

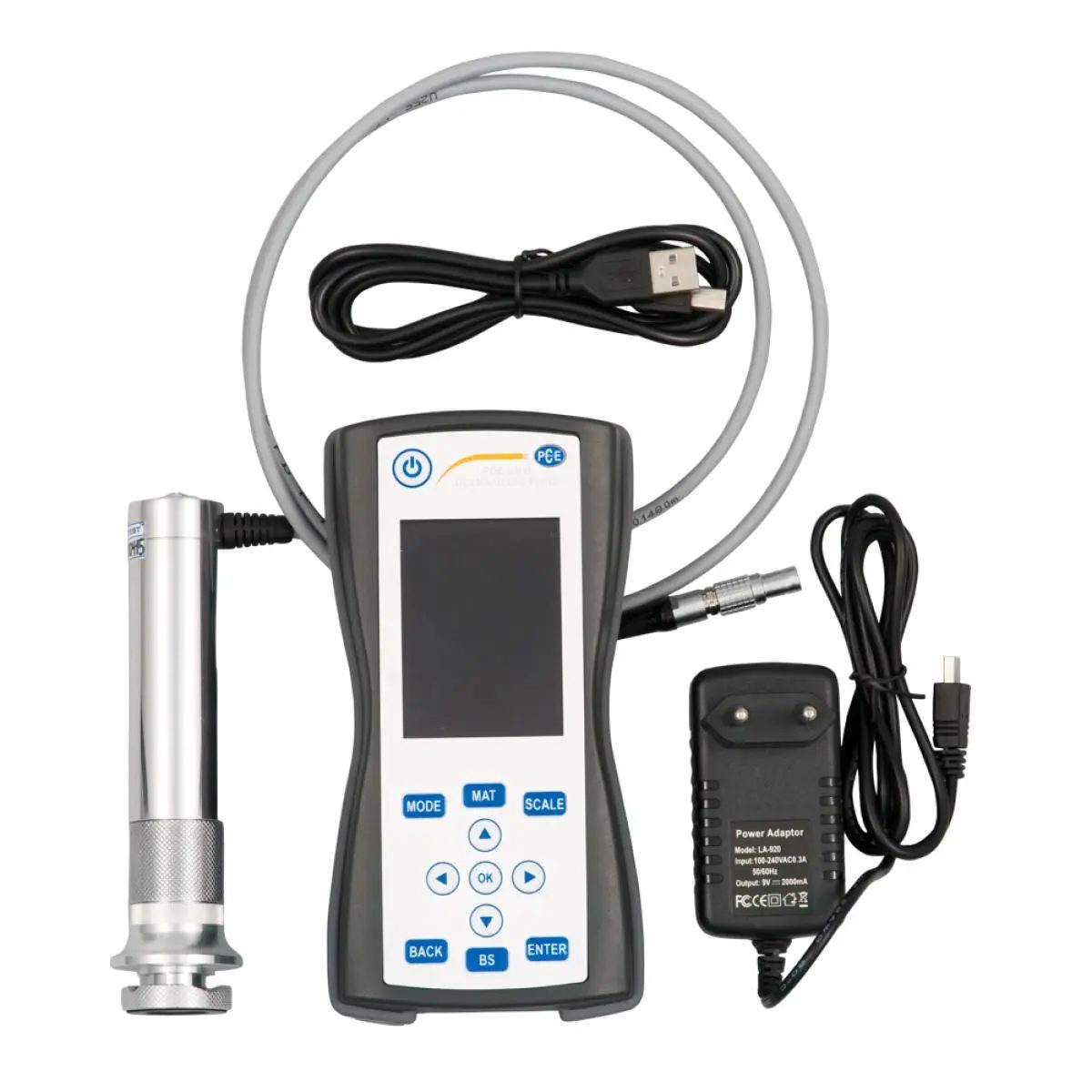

Delivery content of the UCI hardness tester PCE-3500 1 x UCI hardness tester PCE-3500, 1 x 10 N UCI probe, 1 x 2 GB SD card, 1 x USB cable, 1 x PC software, 1 x instruction manual
