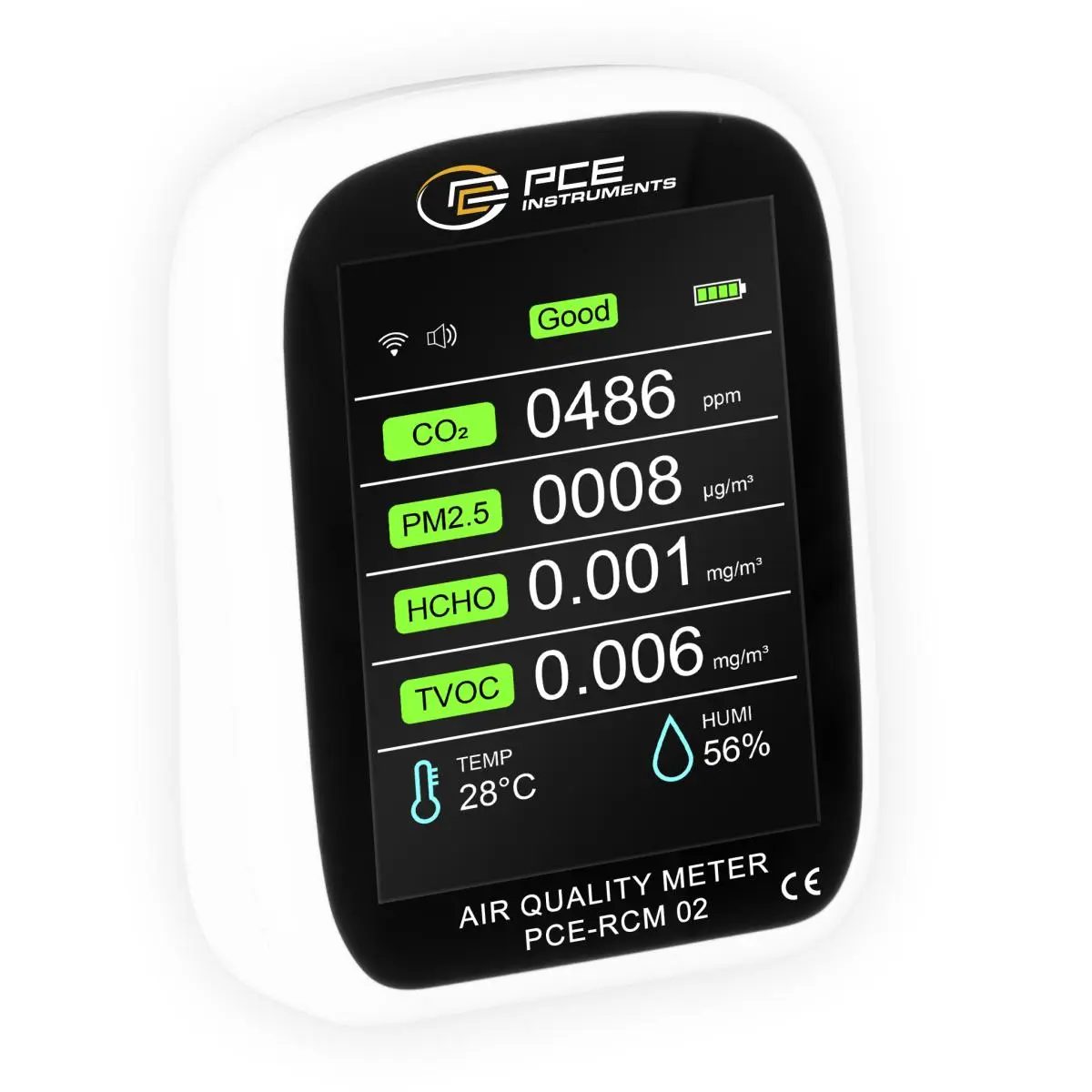

CO2, Temp, RH%, Particulate Matter Monitor PCE-RCM 02
Aerosol Monitor / PM1, PM2.5, PM10 / Measures CO2, formaldehyde, TVOC, temperature, and indoor humidity / Wi-Fi connectivity / Data accessible via the app / USB-C port / battery status indicator

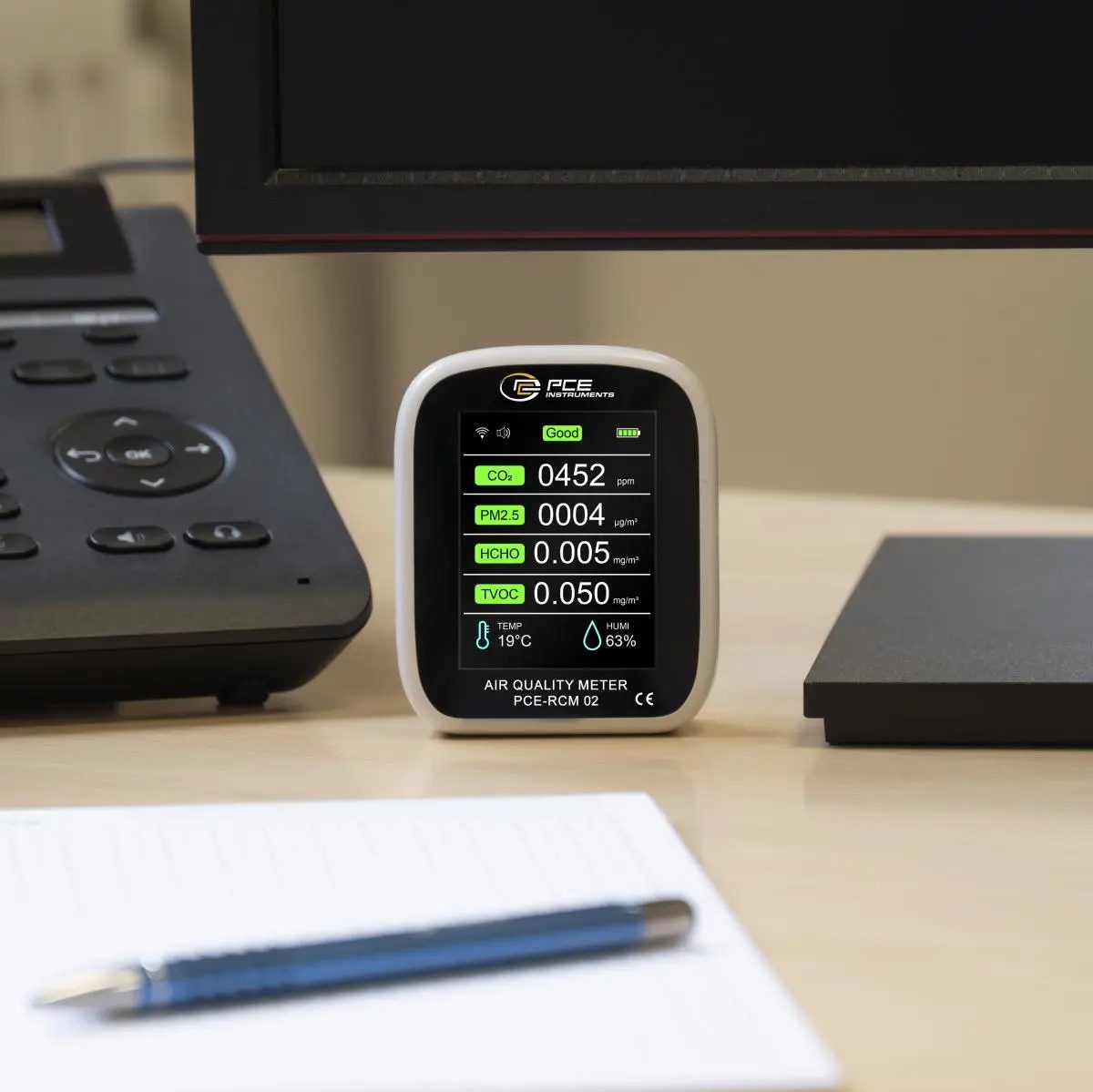

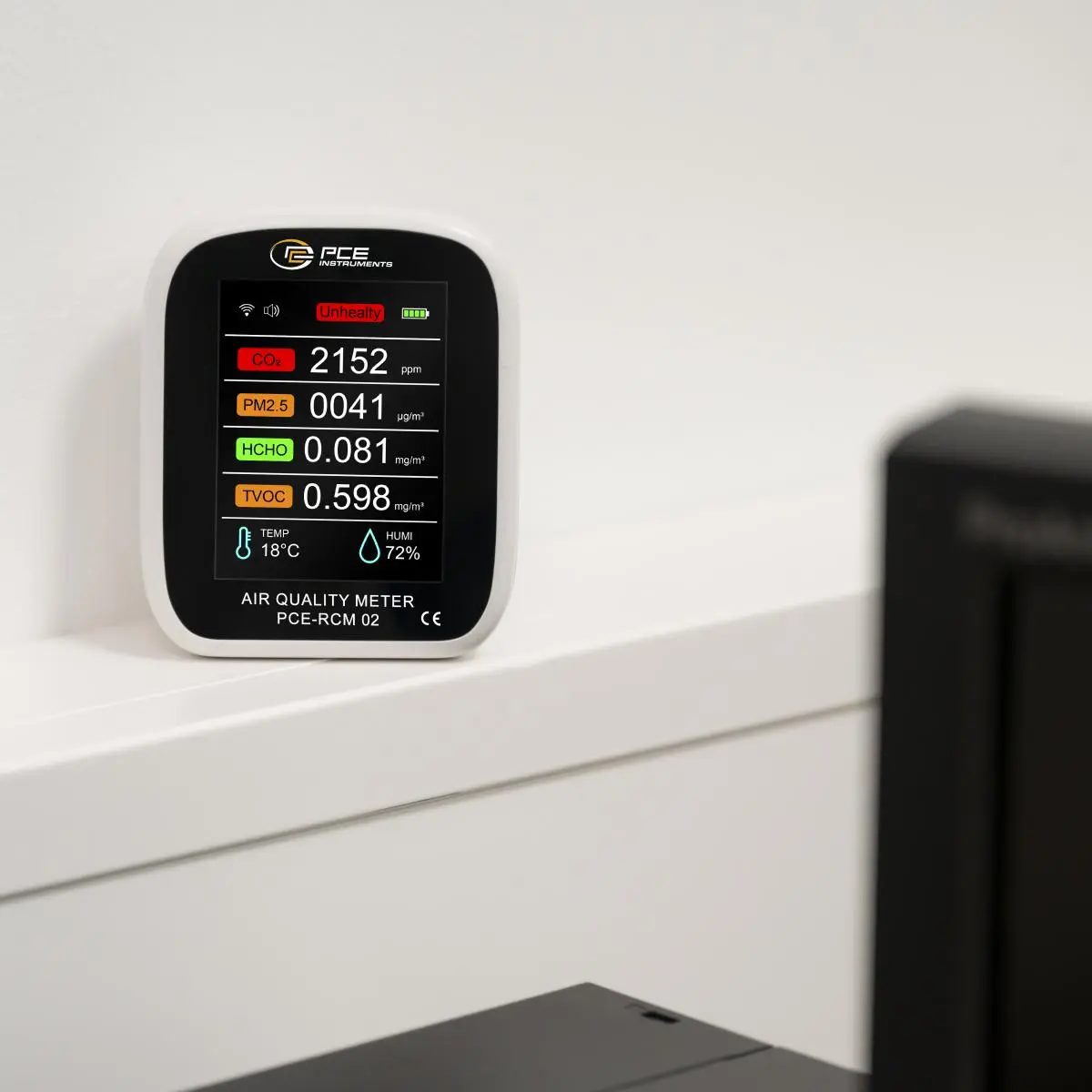

Our aerosol monitor is the ideal solution for monitoring air quality in homes, businesses, or public buildings. The aerosol monitor impresses with its modern design and compact size. This makes it versatile and easy to use.

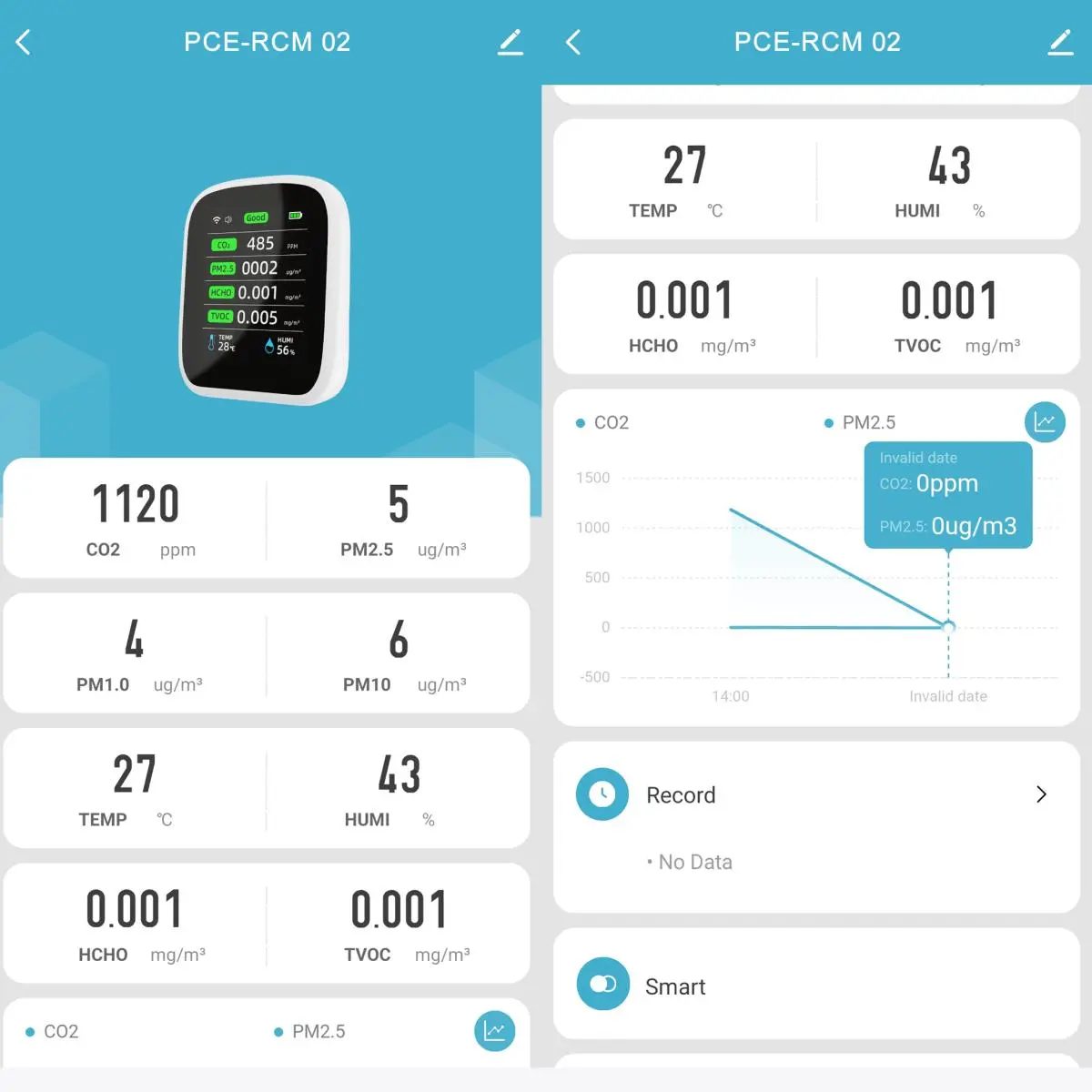

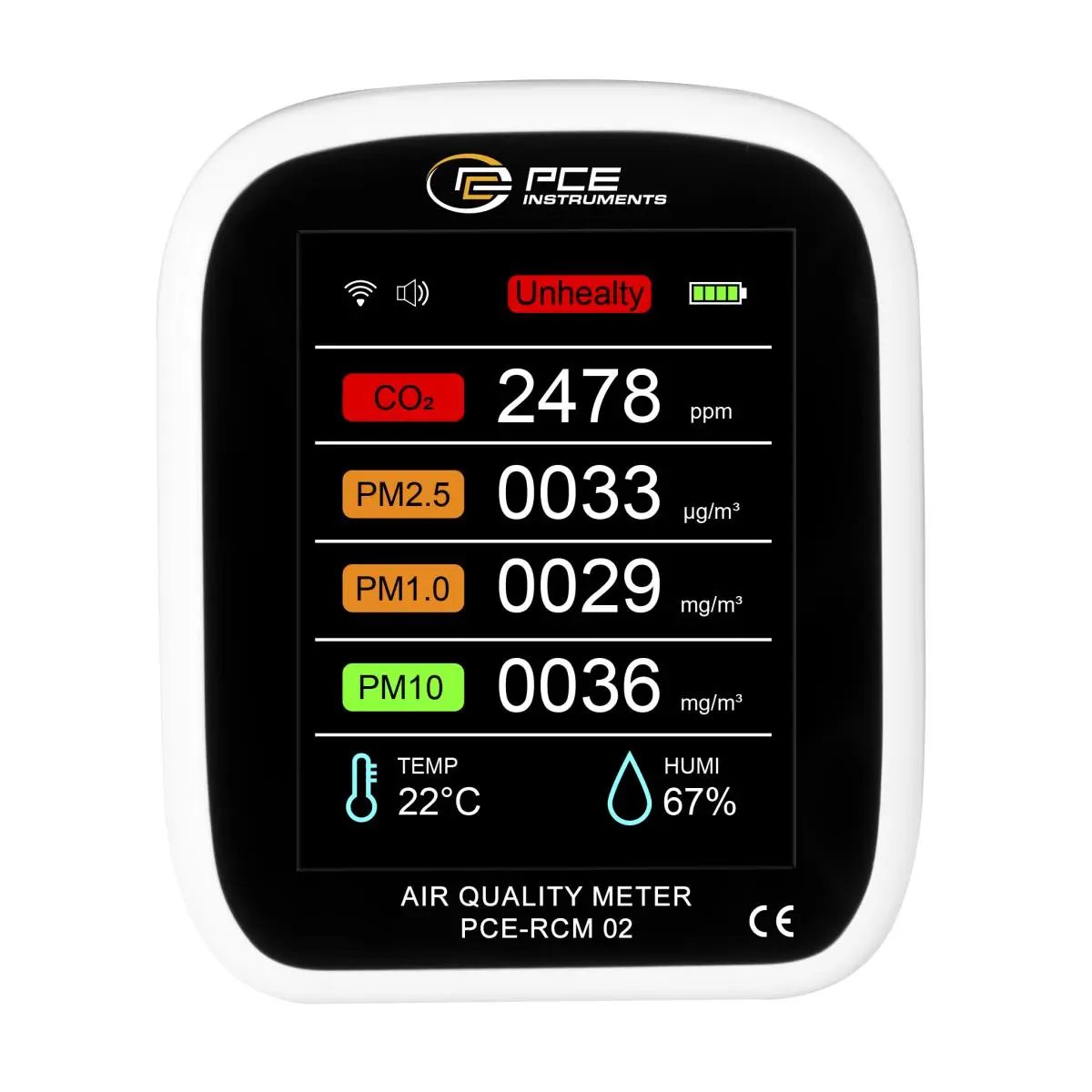

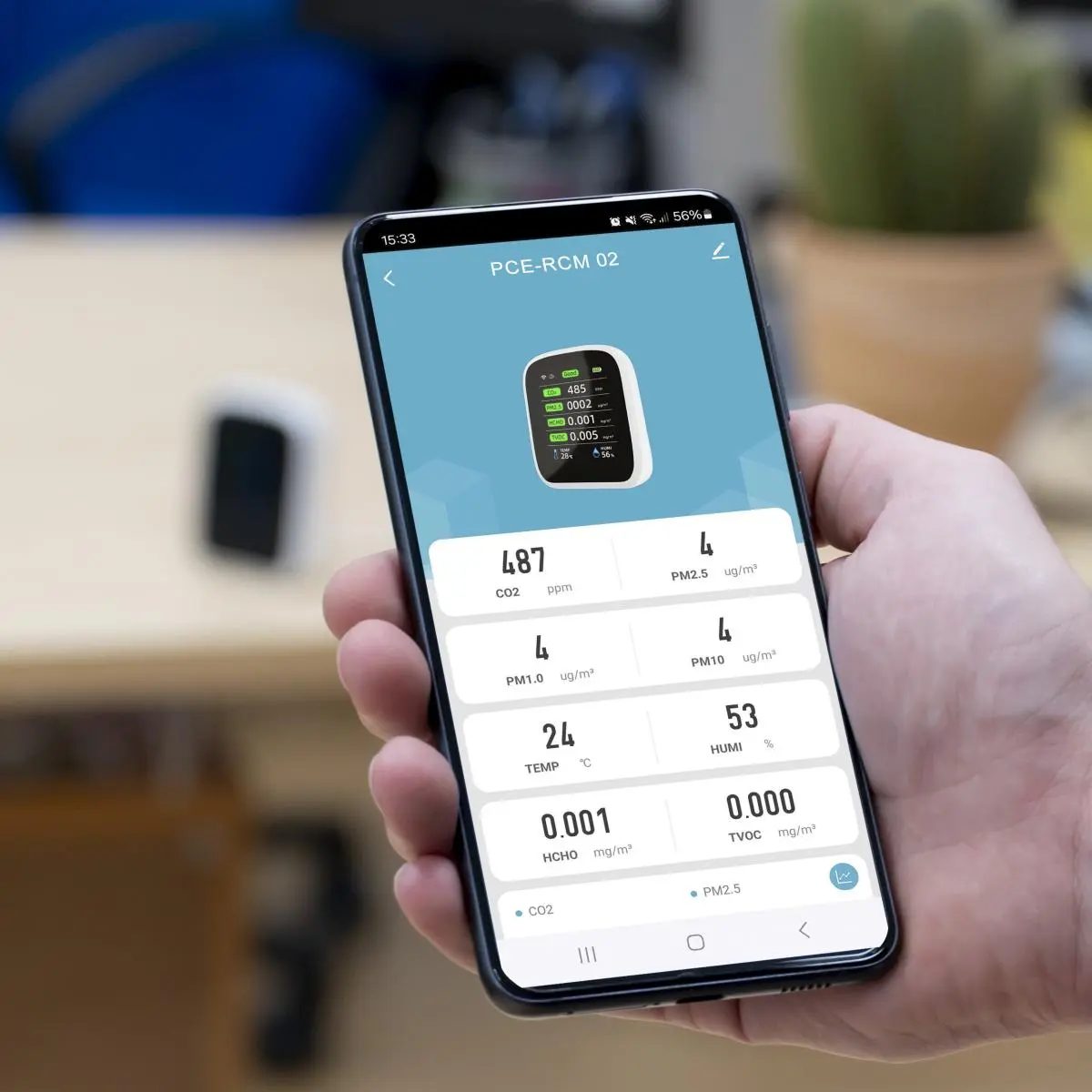

Various measurement parameters, such as CO2, formaldehyde, and TVOC, can be read on the 3.5-inch LCD screen. In addition, the aerosol monitor displays room temperature and humidity and measures the concentration of particulate matter (PM 1 / PM 2.5 / PM 10). The screen uses three colors—green, orange, and red—to immediately alert the user when values reach critical levels. The aerosol monitor supports Wi-Fi connectivity with other devices and allows the user to customize settings via the Smart Life app. Thanks to the Smart Life app, the aerosol monitor can be accessed from anywhere. In addition, data can be displayed as values or as a graph. This data shows the progression of measurements and can be viewed by day, week, or month. This allows the user to track changes in air quality over a specific period of time.
The aerosol meter is also equipped with a wake-up sensor. It wakes the screen from sleep mode when you approach it or wave at it. This feature can be disabled in the app. The screen brightness cannot be adjusted to extend battery life. The same data is sent to the smartphone for evaluation. With a fully charged battery, the operating time is approximately 4 hours.
– 3.5-inch LCD screen
– Wi-Fi connection
– The data is available through the app
– wake-up sensor

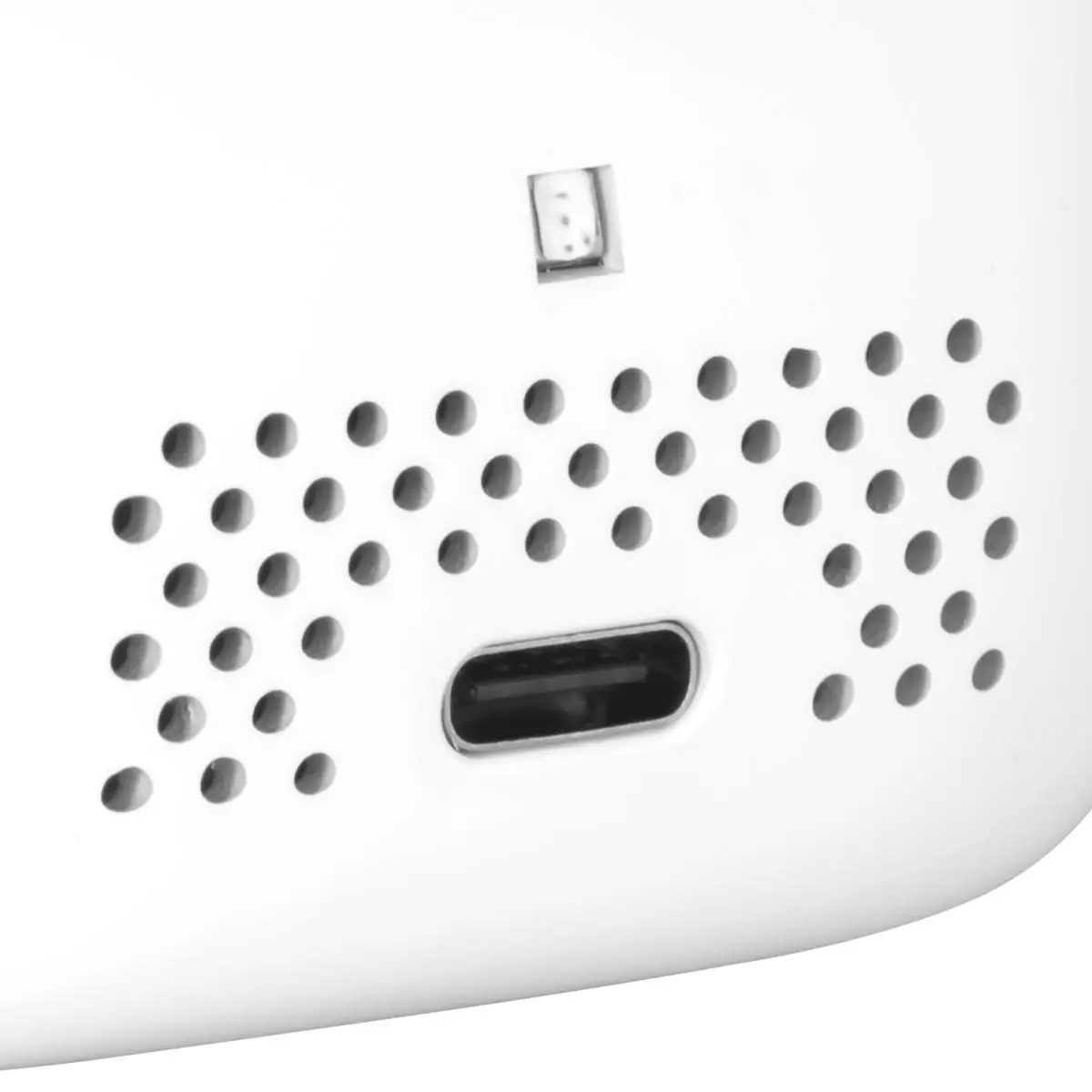

– Battery rechargeable via USB-C
– compact size
– modern design
– measurement of fine particulate matter (PM1 / PM2.5 / PM10)
– Measurement of CO2, formaldehyde, and TVOC
– adjustable CO2 and PM2.5 alarm
Specifications
CO²
Measurement range up to 400 … 5000 ppm
Resolution 1 ppm
Accuracy ±(50 ppm + 5% of Rd)
Relative humidity
Measurement range up to 0 … 99% relative humidity
Resolution 1% relative humidity
Accuracy ±5% relative humidity
Formaldehyde
Measurement range up to 0 … 1999 mg/m³
Resolution 0.001 mg/m³
Accuracy ±15% of Rd
Particles
Measurement range up to 0 … 1000 µg/m³
Resolution 1 µg/m³
Accuracy ±10 μg/m³ (0 … 100 μg/m³)
±10% of Rd (0 … 500 μg/m³)
Measurement of particle sizes 1.0, PM2.5, PM10
TVOC
Measurement range up to 0 … 9999 mg/m³
Resolution 0.001 mg/m³
Accuracy ±15% of Rd
Temperature
Measurement range up to 0 … 50 °C
Resolution 1 °C
Accuracy ±1 °C
General Technical Specifications
Display Type LCD display
Display Size 3.5 inches
Interface USB-C
Alarms Optical, Acoustic
Sensors NDIR, Semiconductor TVOC, Laser Scattered Light
Menu Language German, English
Protection Class (device) IP20
Power supply 5 V DC, 2 A
Capacity 350 mAh
Operating conditions 0 … 50 °C, 0 … 99% relative humidity
Storage conditions 0 … 50 °C, 0 … 99% relative humidity
Dimensions (L x W x H) 85 x 70 x 35 mm
Weight 107 g

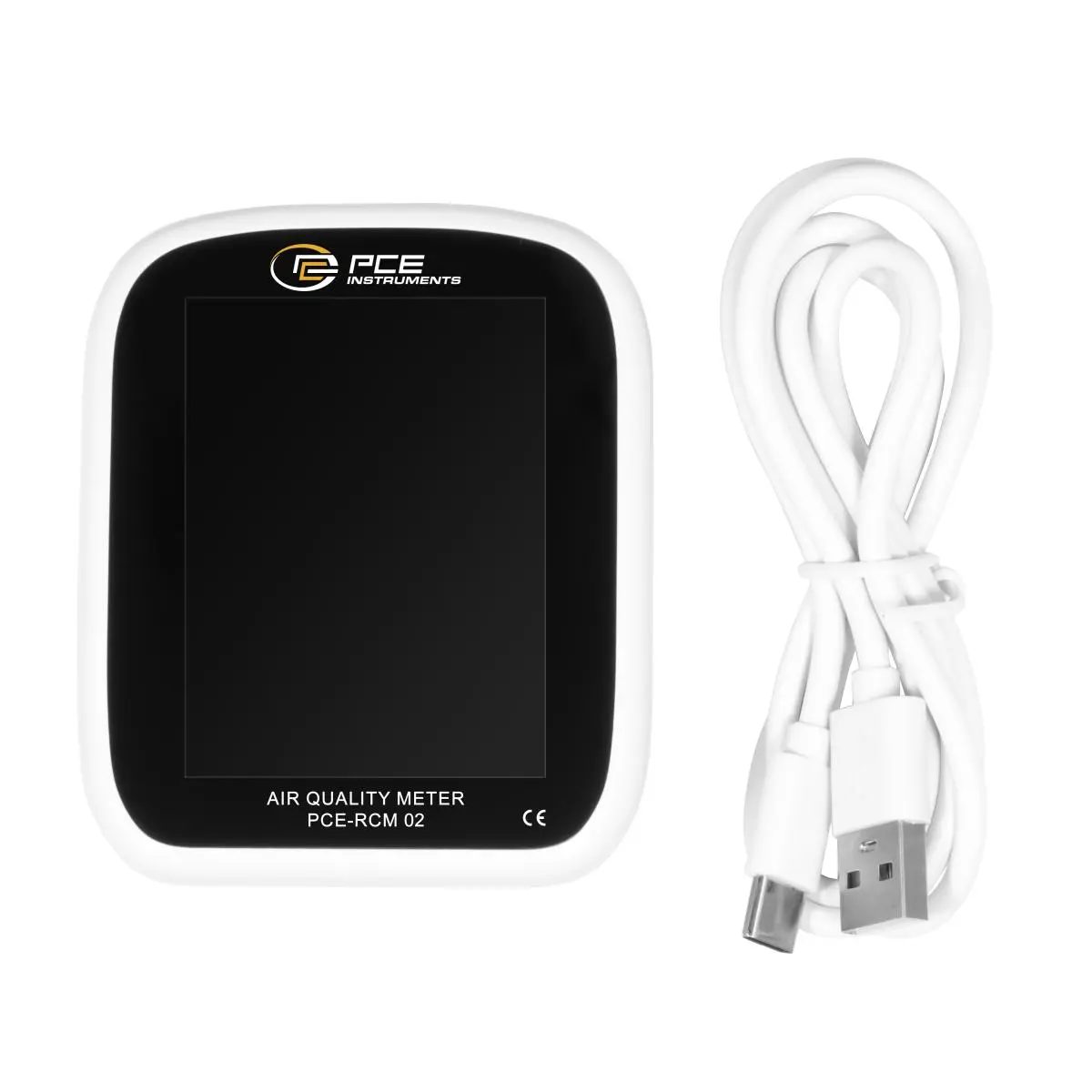

Package Contents
1 x PCE-RCM 02 aerosol measuring device
1 x USB-C cable
1 user manual
The Smart Life app is available for download from the app store.
