PCE-P01 Differential Pressure MeterPortable handheld meter measures differential pressure from/ Features real-time data-logging capabilities using the included PC software and USB cable
-0.137 to 0.137 bar (-2.000 to 2.000 psi)

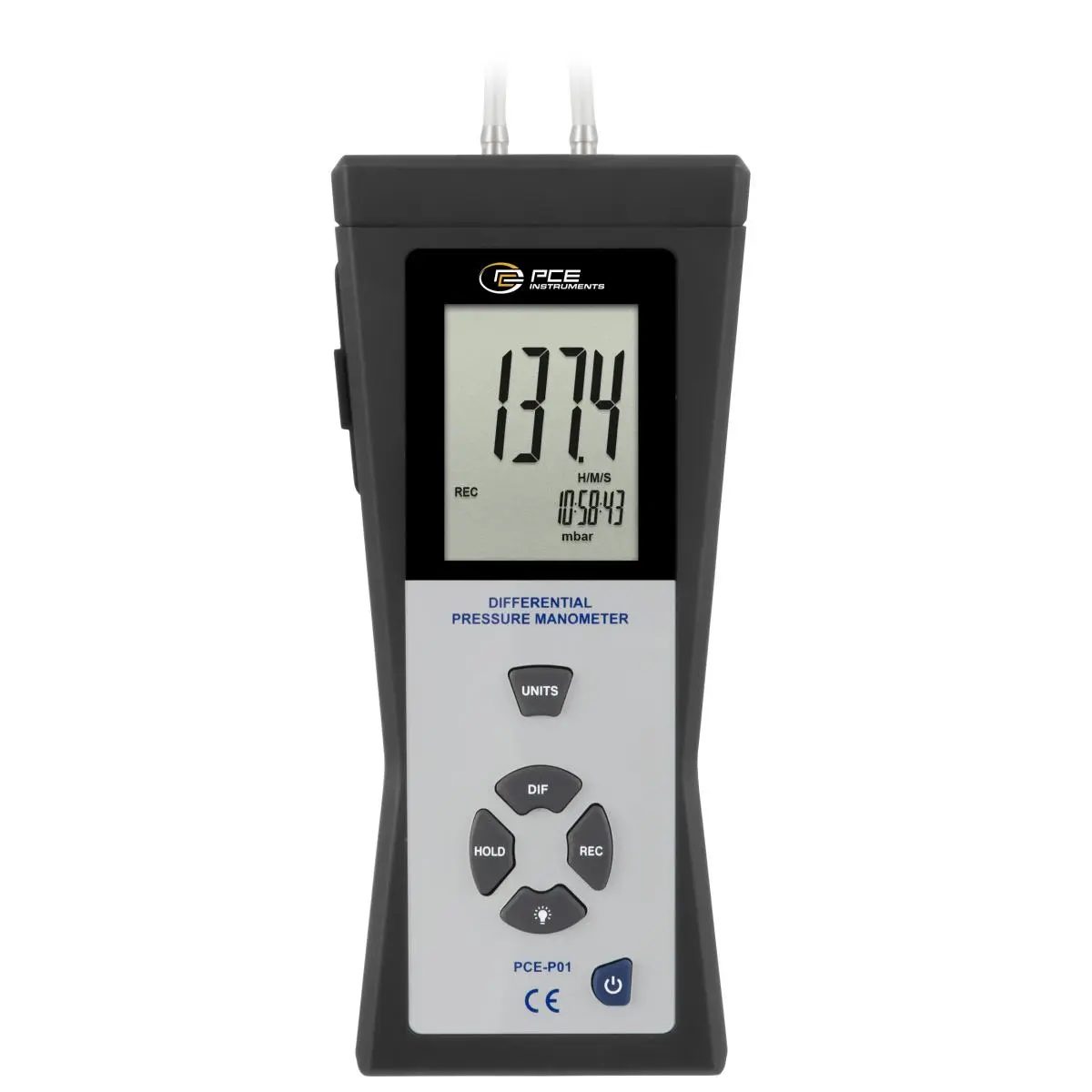

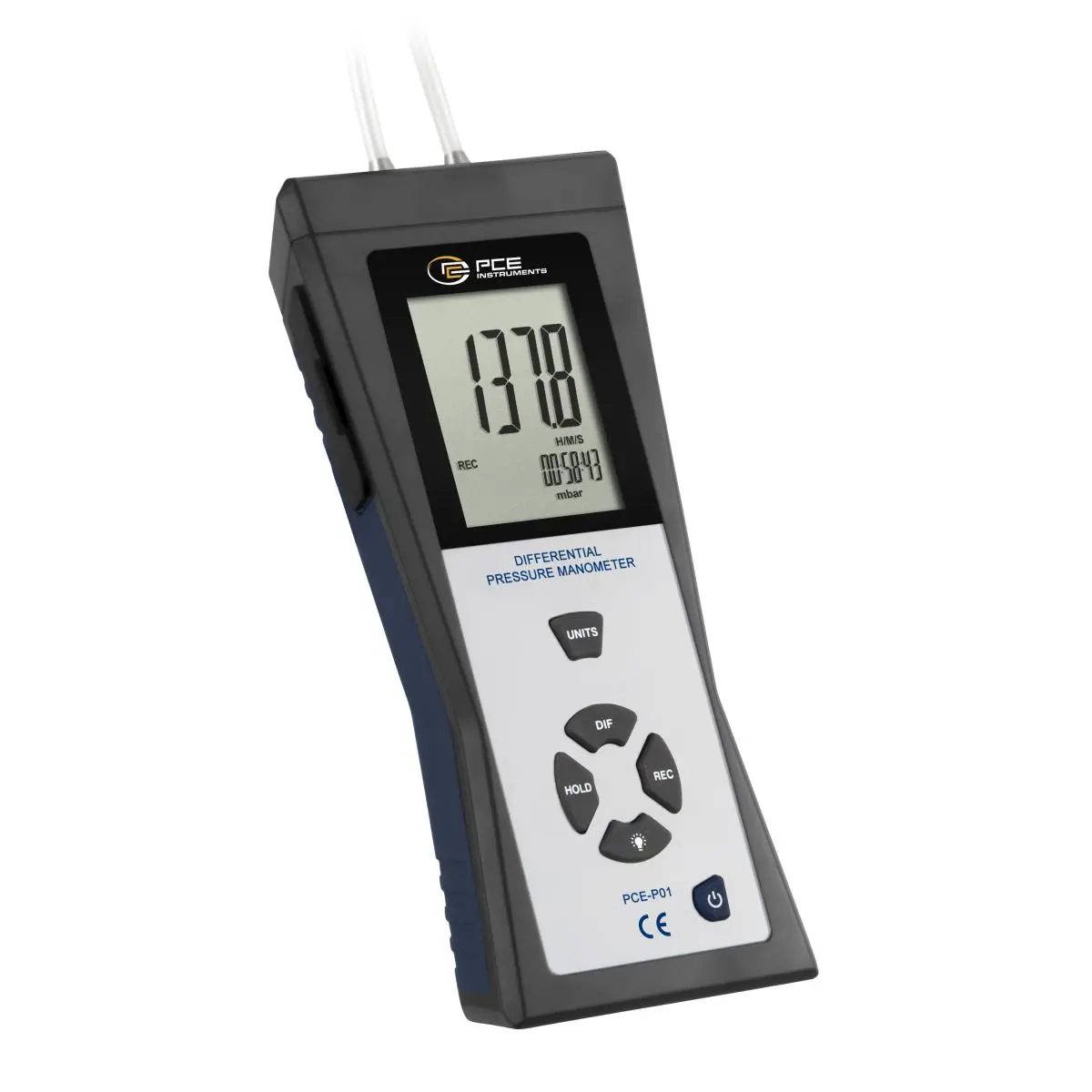

PCE-P01 is a portable handheld digital Differential Pressure Meter used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P01 displays min / max / average values right on the meter's screen for comparison against current measurement values.
In addition, the PCE-P01 Differential Pressure Meter features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9 V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values according to your selected time interval. You can then calculate average values directly in the software or export the saved data to Microsoft Excel.
Highlights
- Easiest operation
- Measurement of differential pressure and static pressure in 11 selectable
- units: mbar, bar, psi, kPa, …
- Measuring range from -140 to +140 mbar

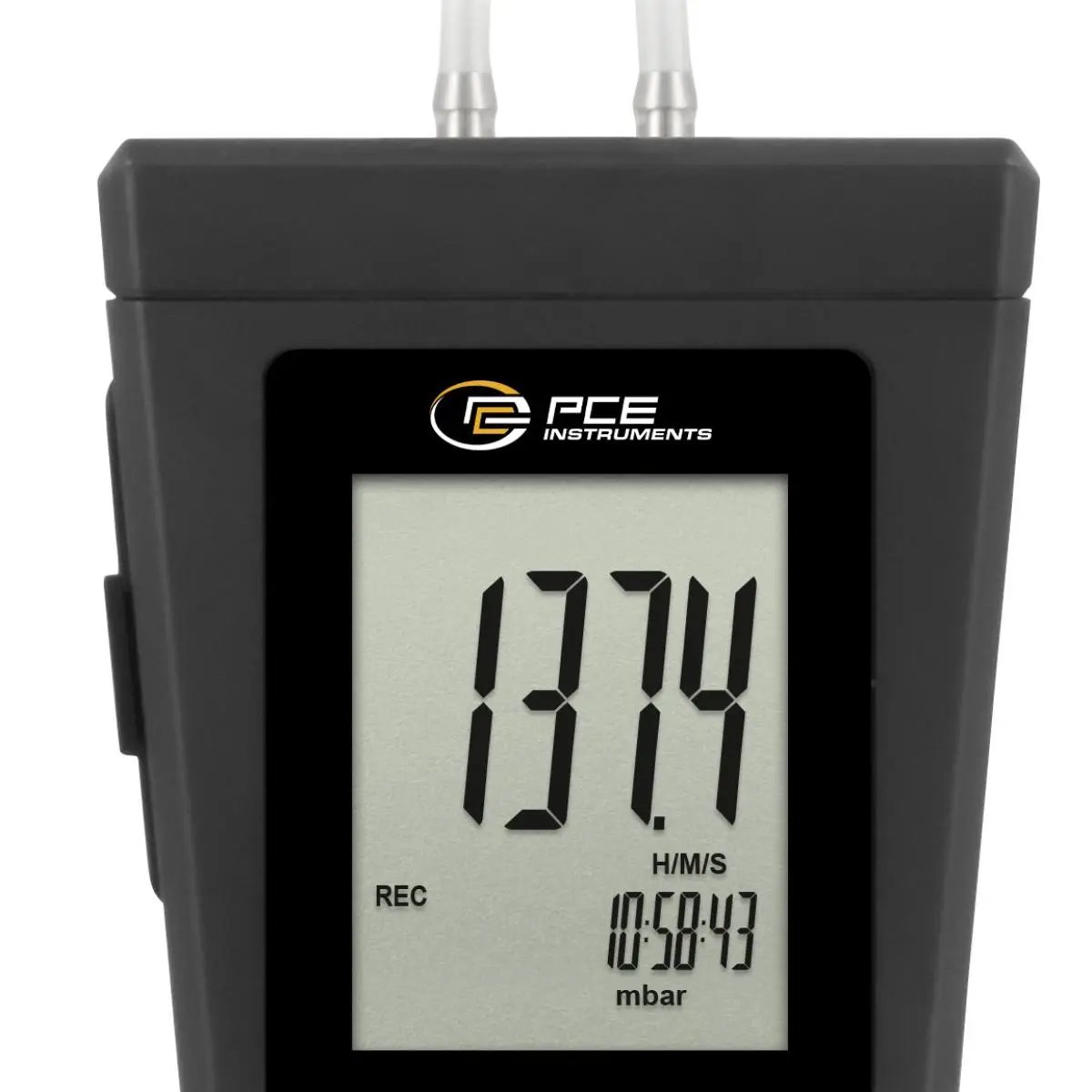

- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply

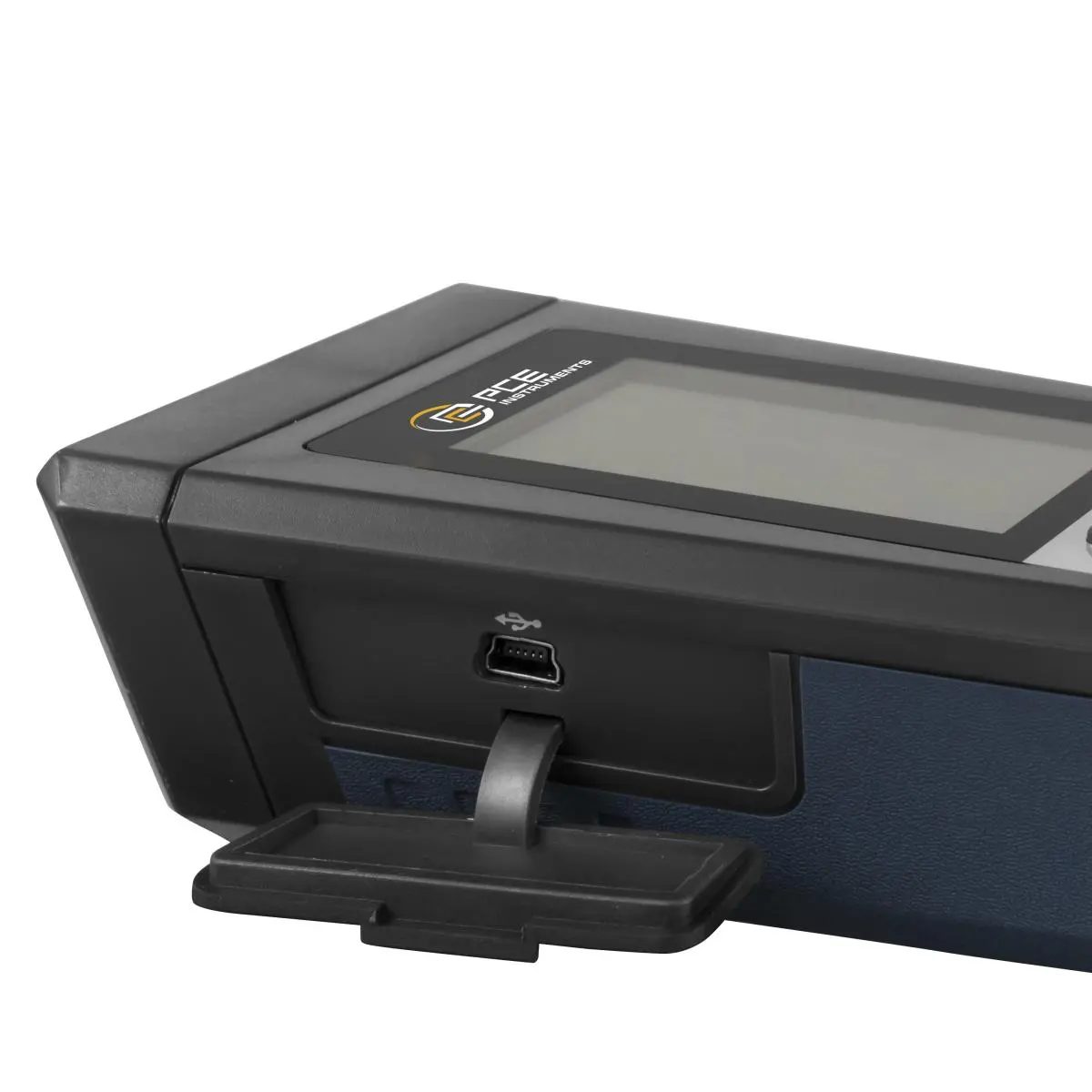

- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time
Technical specifications
Differential pressure Measuring range-137 … +137,8 mbar Resolution 0,1 mbar Accuracy±0.3% FS at 25°C Differential pressure Measuring range-0,137 … +0,137 bar Resolution 0,001 bar Accuracy±0.3% FS at 25°C Differential pressure Measuring range-2 … +2 psi Resolution 0,001 psi Accuracy±0.3% FS at 25°C Differential pressure Measuring range-55,4 … +55,4 inH₂O Resolution 0,01 inH₂O Accuracy±0.3% FS at 25°C Differential pressure Measuring range-13,79 … +13,79 kPa Resolution 0,01 kPa Accuracy±0.3% FS at 25°C Differential pressure Measuring range-4,072 … +4,072 inHg Resolution 0,001 inHg Accuracy±0.3% FS at 25°C Differential pressure Measuring range-103,4 … +103,4 mmHg Resolution 0,1 mmHg Accuracy±0.3% FS at 25°C Differential pressure Measuring range-32 … +32 ozin² Resolution 0,01 ozin² Accuracy±0.3% FS at 25°C Differential pressure Measuring range-4,612 … +4,612 ftH₂O Resolution 0,001 ftH₂O Accuracy±0.3% FS at 25°C Differential pressure Measuring range-140,6 … +140,6 cmH₂O Resolution 0,1 cmH₂O Accuracy±0.3% FS at 25°C Differential pressure Measuring range-0,14 … +0,14 kg/cm² Resolution 0,001 kg/cm² Accuracy±0.3% FS at 25°C General technical data Measuring functions MIN, MAX, HOLD, AVG Display type LCD with backlight Storage interval from 1 s Storage interval to 24 h Interface Mini-USB Response time 0,5 s Measured medium non-explosive gases, Air Automatic power-off 20 s Linearity 0,2 % Menu language English, English (GB) Protection class (device)IP20 Power supply 9V DC, 500 mA Connector type Device-europlug (Rechargeable) battery 1 x 9 V 9V block , Alkali-manganese Capacity 640 mAh Operating conditions 0 … 50 °C , 0 … 80 % RH Storage conditions-10 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )206 x 95 x 45 mm Weight 289 g

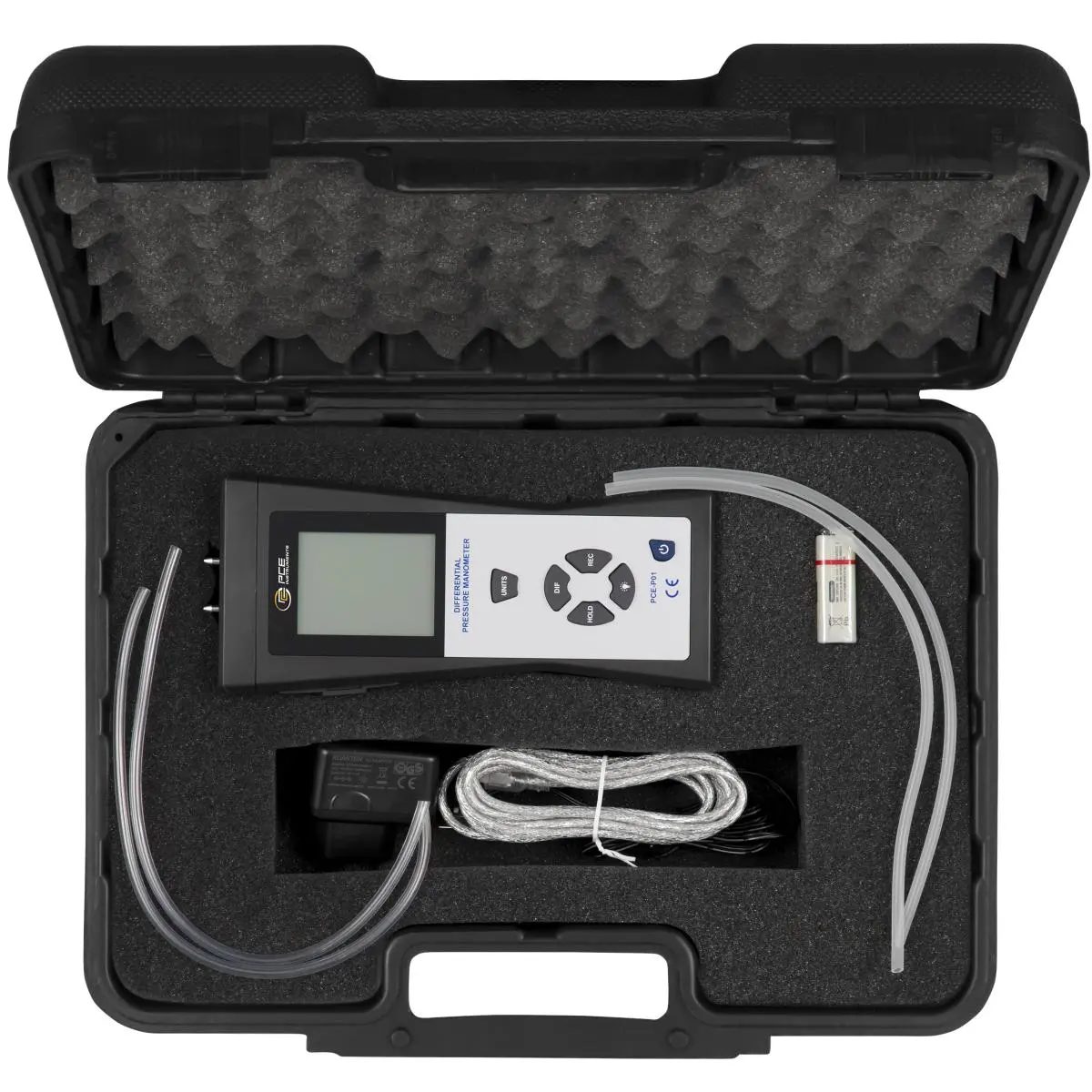

Delivery scope

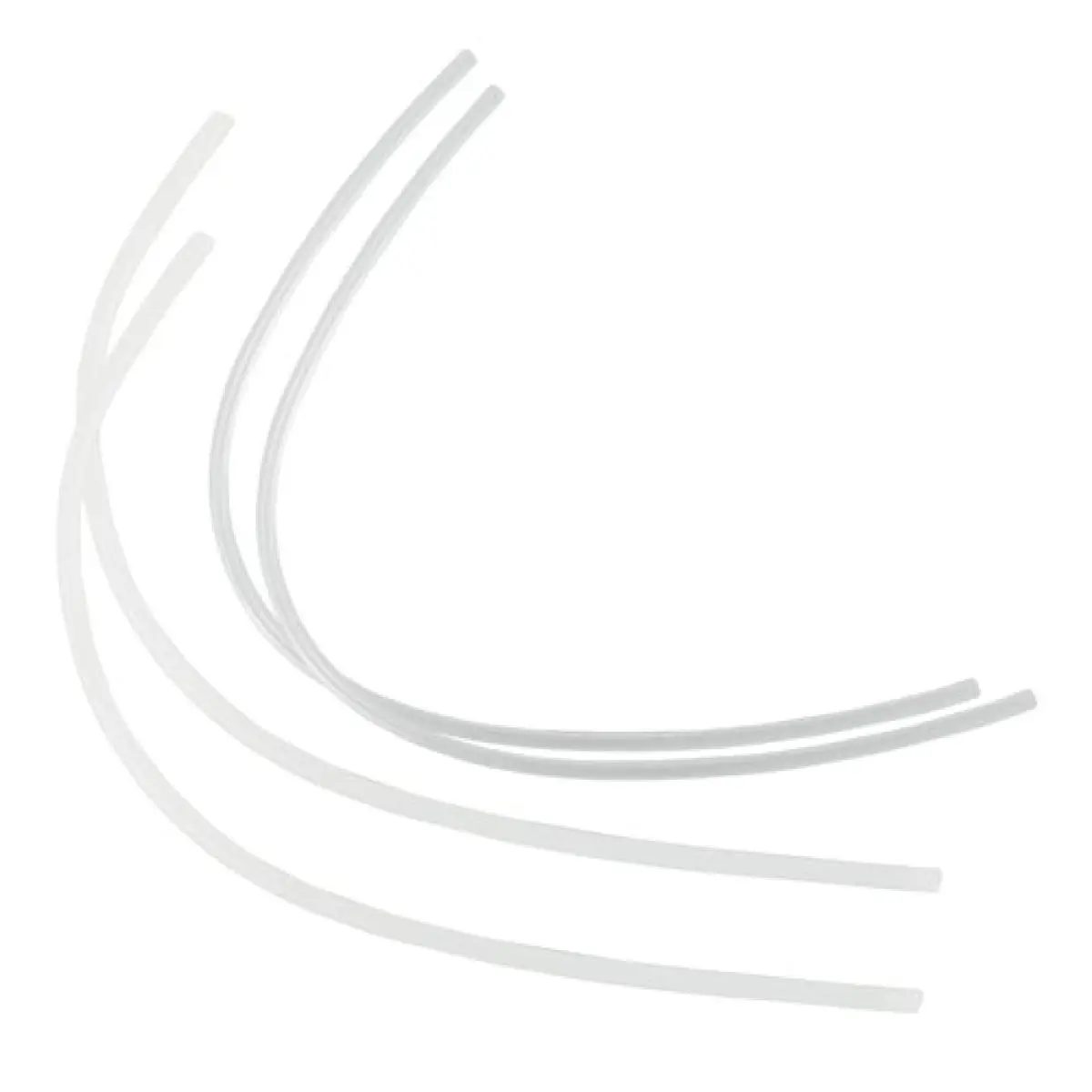

1 x Manometer PCE-P01 4 x 30cm / 11.8" silicone hose 1 x Software including USB cable 1 x 9V block battery 1 x 9V DC power supply 1 x Plastic case 1 x User manual
