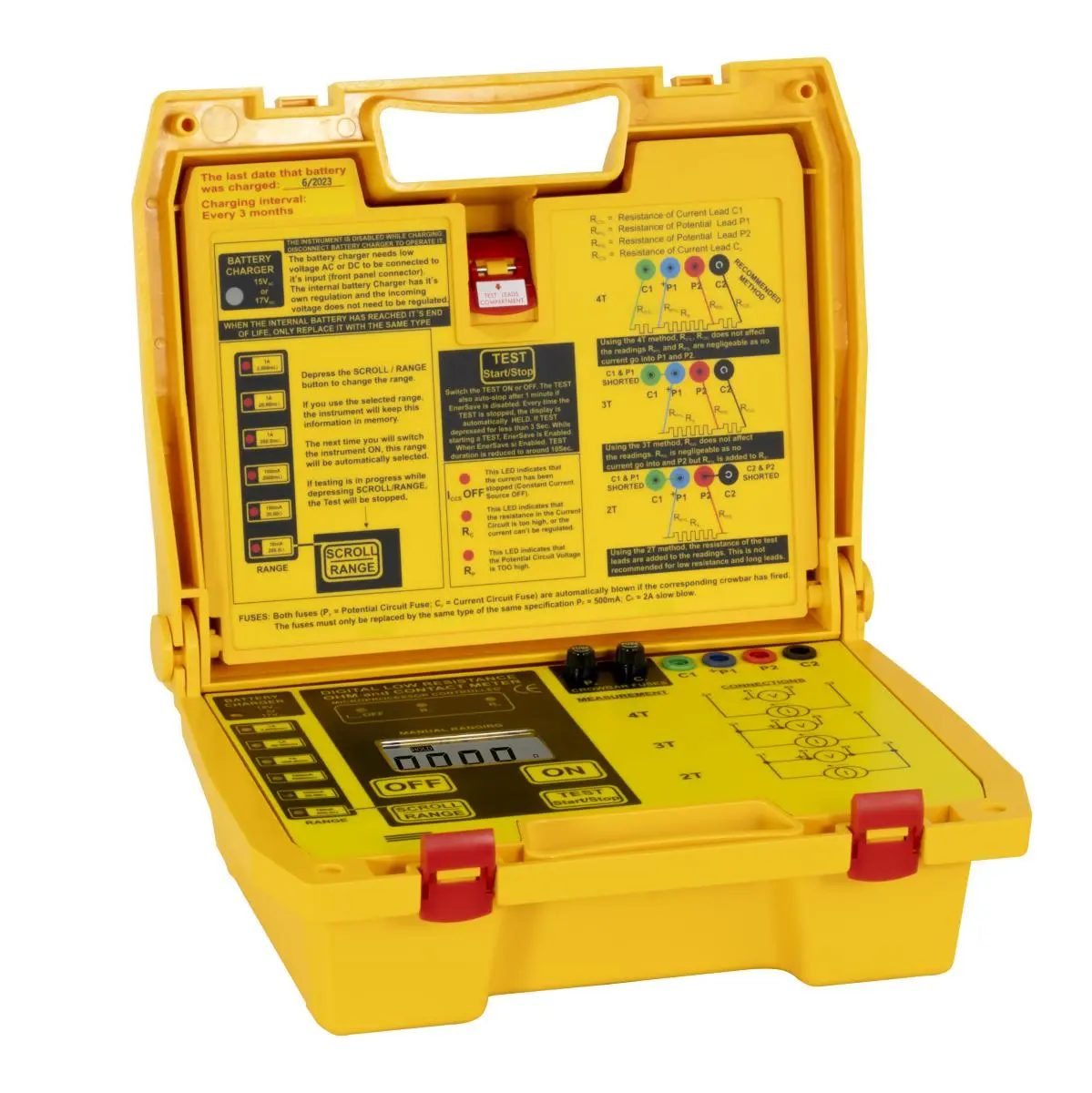

MicroohmMeter
meter for the smallest resistances / 0.1μΩ resolution /accumulator operated /
extensive LCD/ polycarbonate ABS casing /
**EN 61010-1**

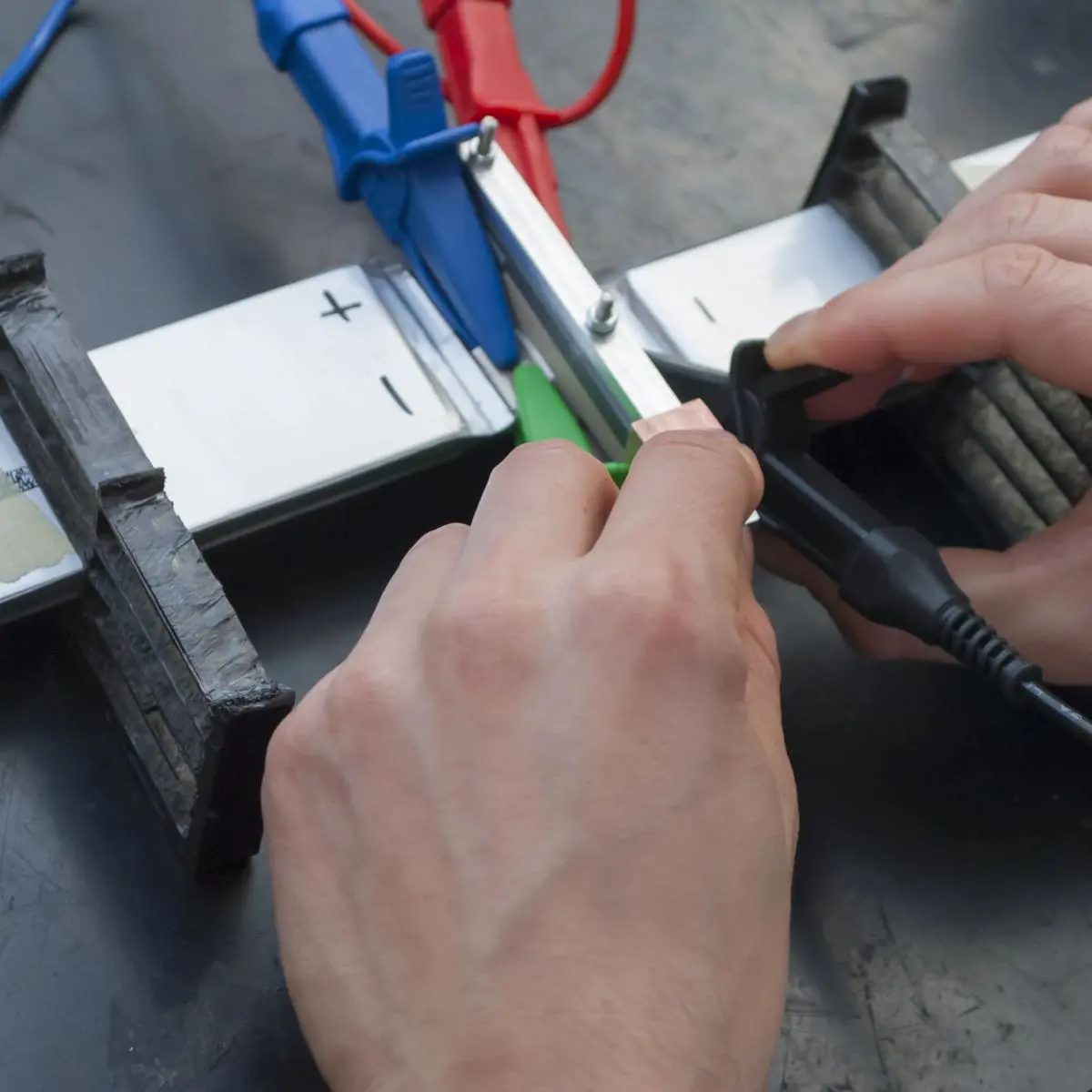

The microohm meter PCE-MO 3001 is made to measure smallest electrical resistances. It uses four test cables that can be connected to the microohm meter. The microohm meter uses two test cables and a constant current source to allow stable current to flow within the measured device. The other two test cables measure the voltage drop. Due to the fact that this microohm meter is able to measure six different measurement ranges with three different measured currents, the user has the chance to observe a wide range of current.

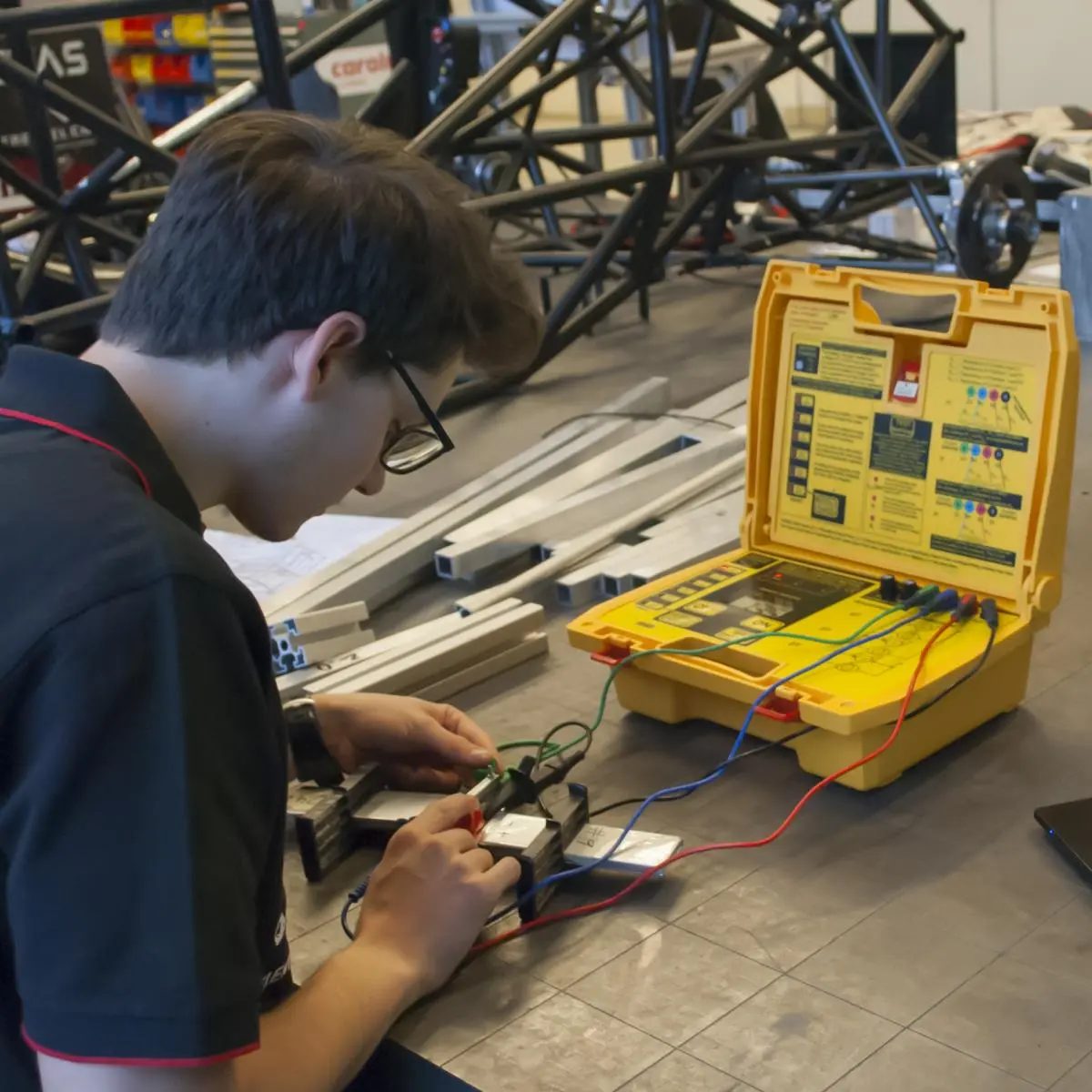

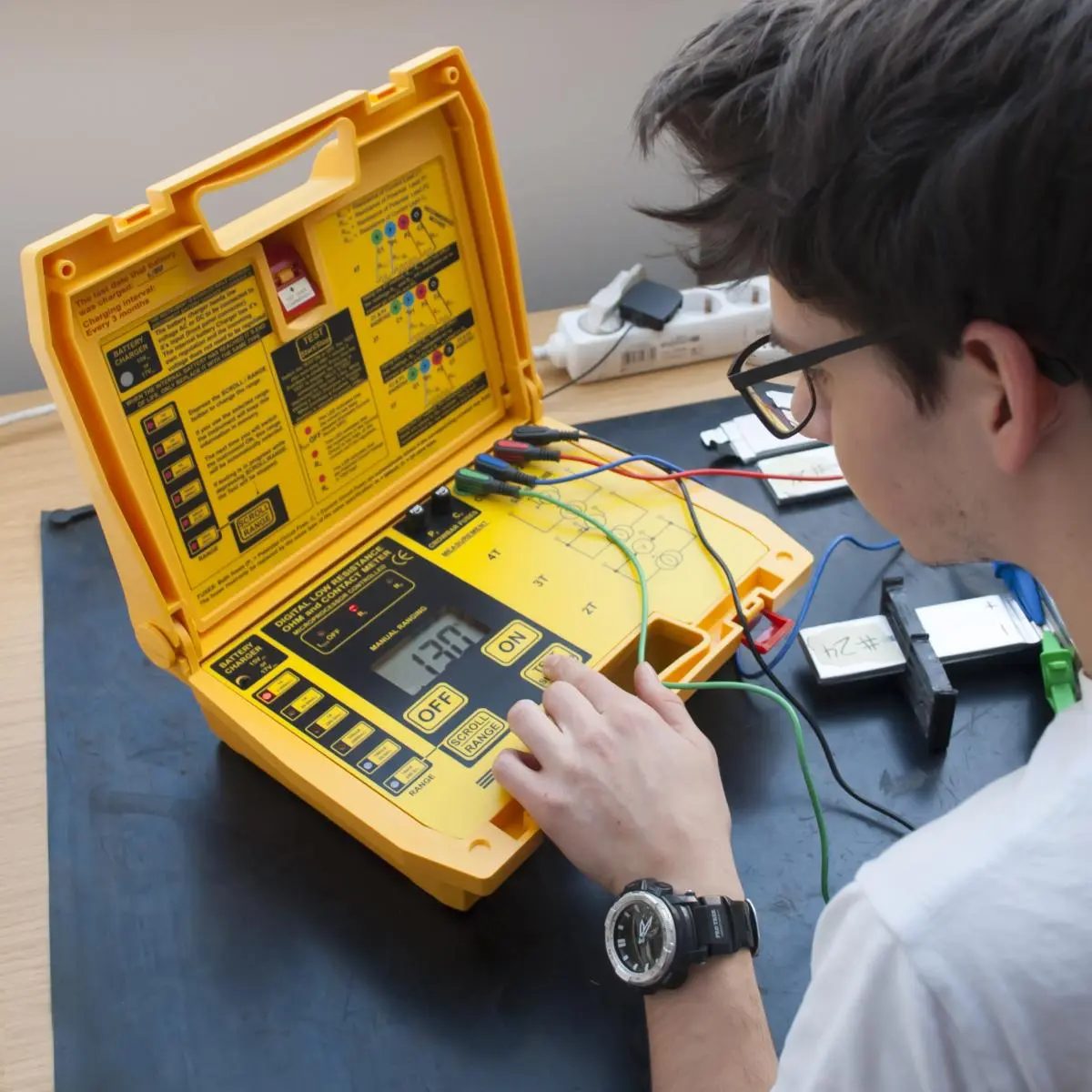

The microohm meter is mostly used in those fields where resistance need to be estimated. Because of the measured current which can be set up to 1 A, also the smallest resistances can be measured. The wide LCD and large buttons of this microohm meter allow a comfortable use.
Highlights
- Resolution of up to 1µΩ
- Internal temperature surveillance

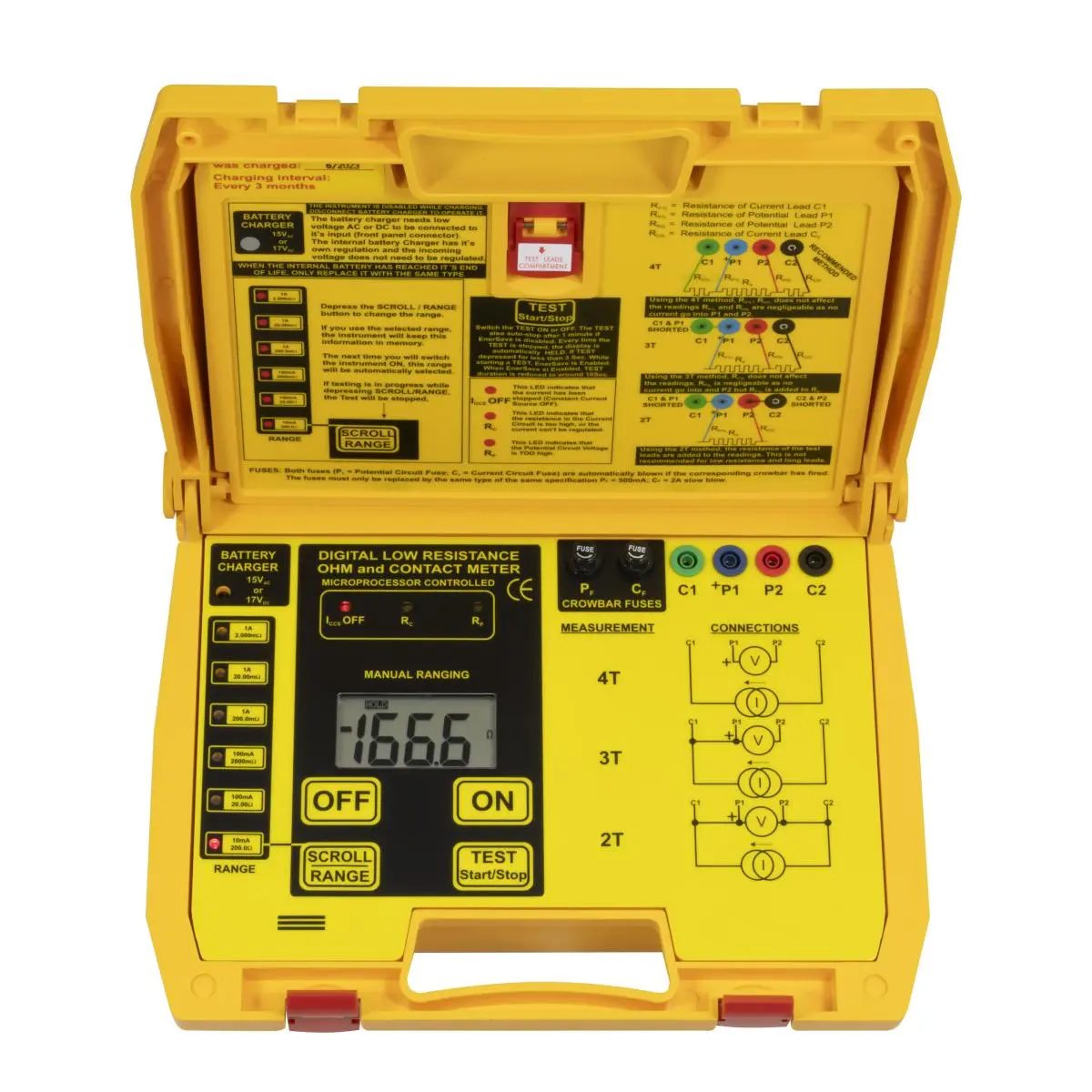

- Large LCD
- USB-interface
- Robust plastic case
- Internal accumulator
Technical specifications
Resistance Measuring range 0 … 2 mΩ Resolution 1 µΩ Accuracy±(5 % of Rd +5 digits) Resistance Measuring range 0 … 20 mΩ Resolution 10 µΩ Accuracy±(4% v.Mw. +4 Digits) Resistance Measuring range 0 … 200 mΩ Resolution 100 µΩ Accuracy±(4% v.Mw. +4 Digits) Resistance Measuring range 0 … 2000 mΩ Resolution 1 mΩ Accuracy±(3% v-Mw. +4 Digits) Resistance Measuring range 0 Ω … 20000 mΩ Resolution 10 mΩ Accuracy±(2% v.Mw. +4 Digits) Resistance Measuring range 0 Ω … 200 mΩ Resolution 100 mΩ Accuracy±(2% v.Mw. +4 Digits) General technical data Display type LCD Standard(s)EN 61010-1 Response time 1 s Housing ABS (acrylonitrile-butadiene-styrene copolymers) Measuring method 4-wire method for mΩ measurement, 3- Ladder method, 2- Ladder method Test current 10 mA: 200 Ω 100 mA: 20 Ω / 2 Ω 1 A: 200 mΩ / 20 mΩ / 2 mΩ Accuracy: 10 mA: ± 1.5% 100 mA: ± 2.0% 1 A: ± 3.0 % Fuse(s)Current: 2A / 250V, voltage: 500mA / 250V Menu language English, English (GB) Protection class (device)IP20 Power supply 12 V 2.3 Ah Connector type Schuko plug Operating conditions-15 … 55 °C , 0 … 80 % RH Storage conditions-20 … 70 °C , 0 … 80 % RH Dimensions ( L x W x H )330 x 260 x 160 mm Weight 3800 g
Delivery scope

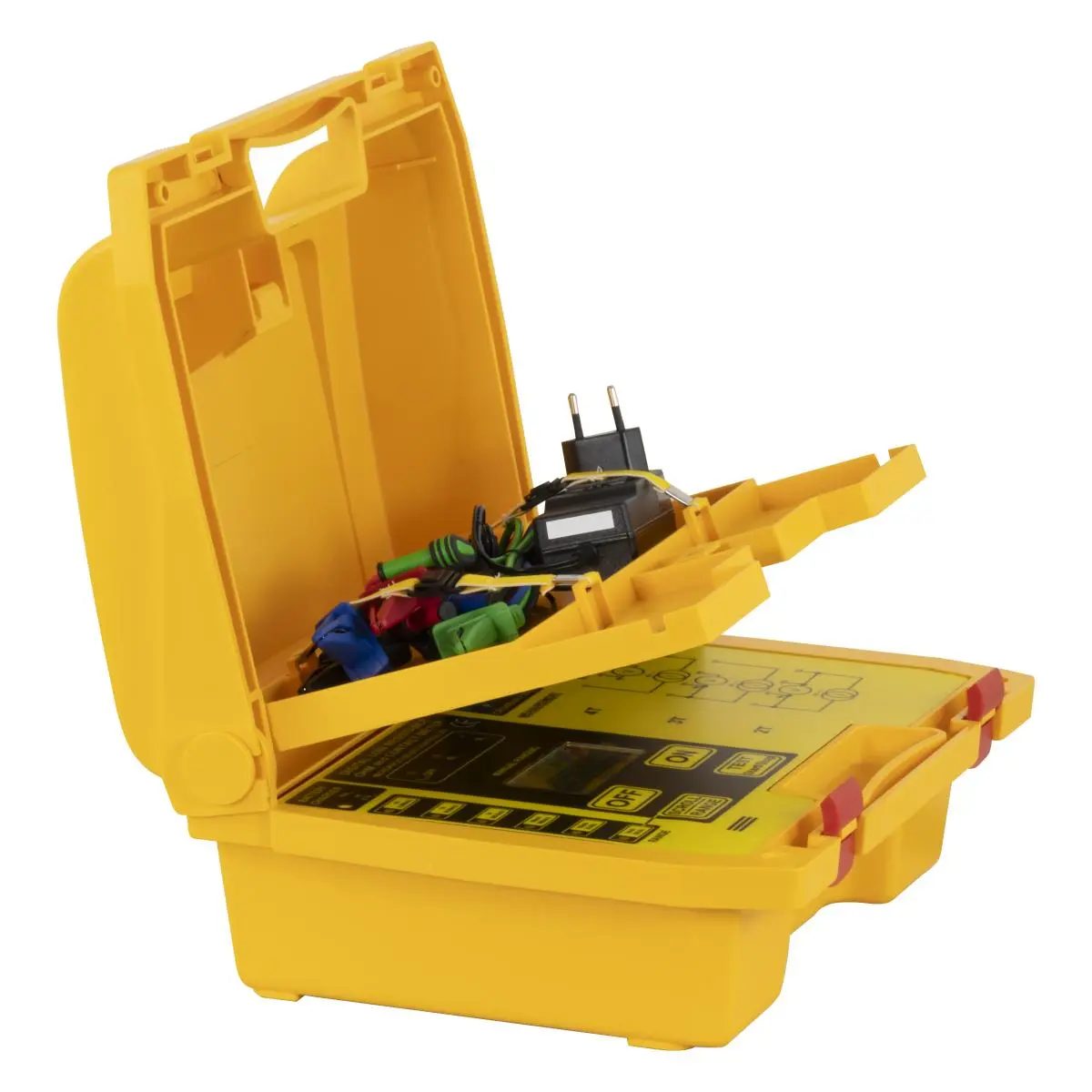

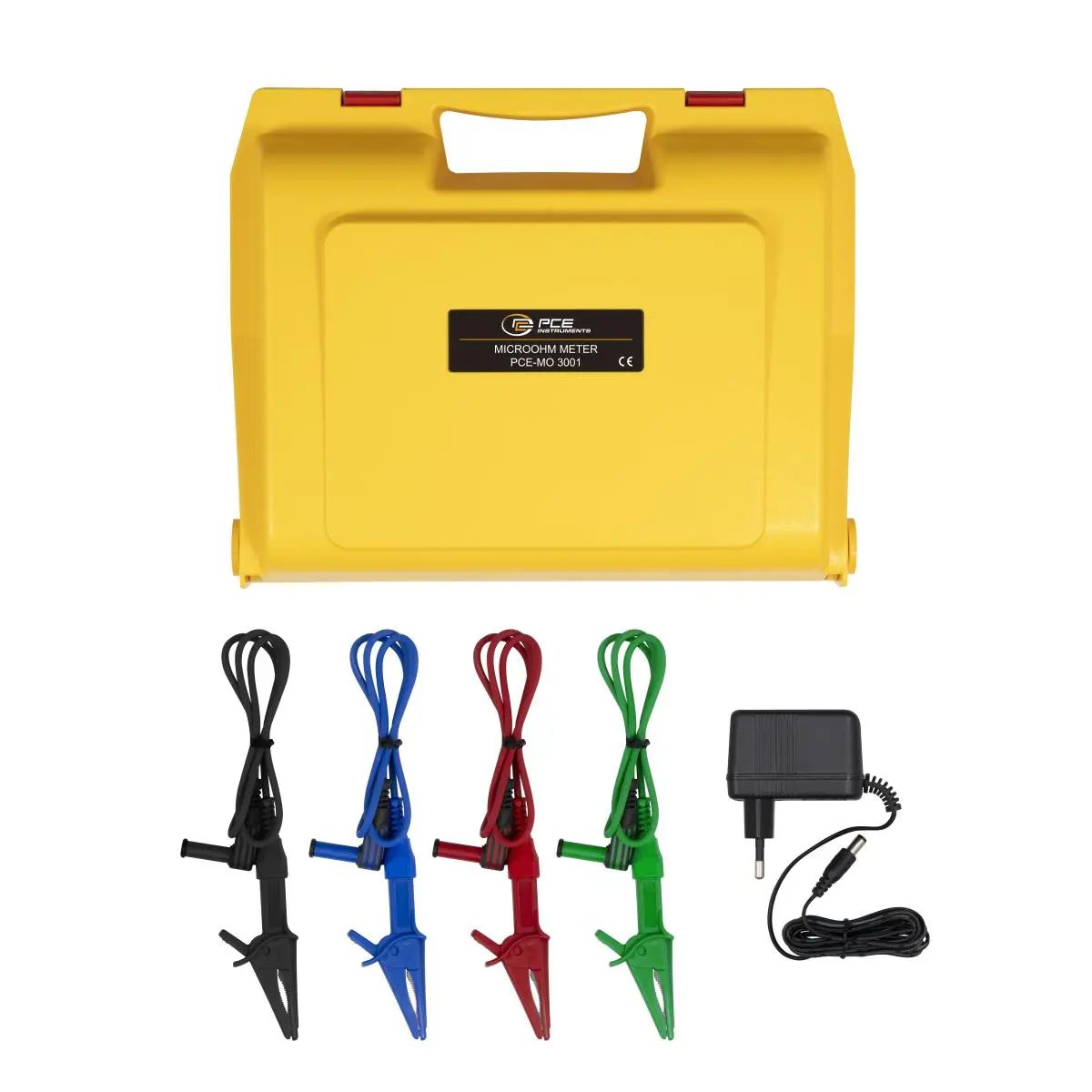

Delivery content of the ohm meter 1 x Ohm Meter PCE-MO 3001, 1 x test cable set, 1 x power cable, 1 x user manual, 1 x carrier bag
