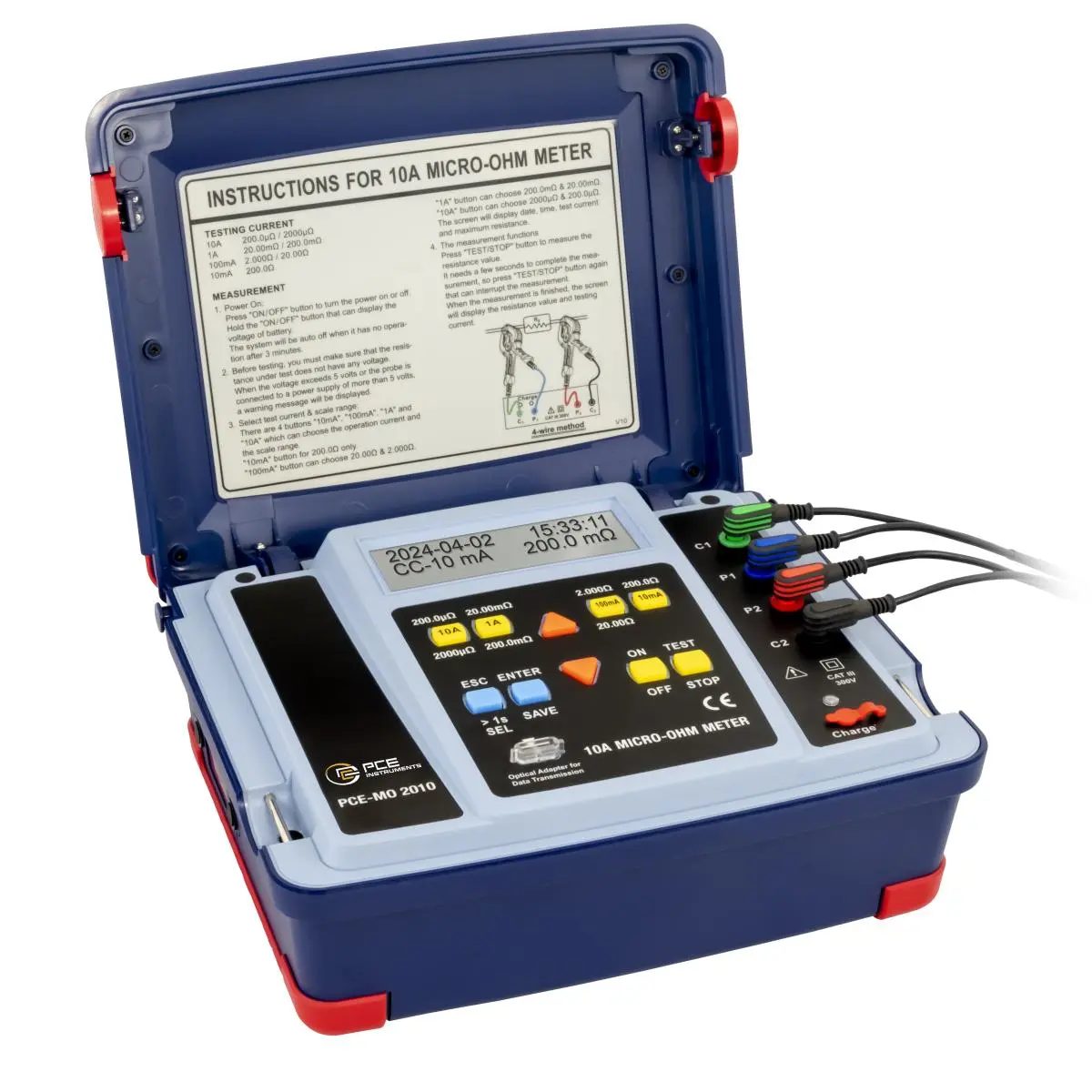

Milliohmmeter in robust housing / 4-wire measuring method / maximum test current of 10 A / LC display with illumination / incl. software
The milliohmmeter with seven selectable measuring ranges from 0 µΩ to 200 Ω, a maximum resolution of 0.1 µΩ and a maximum test current of 10 A offers a wide range of applications. Thanks to the 4-wire measuring method, the micro-ohmmeter guarantees accurate measurements at the smallest resistances without the influence of the lead resistance. It can therefore be used for a wide range of applications, e.g. to detect poor contact between two measuring points, measurements on switches, continuity of earth connections or for testing metal coatings.

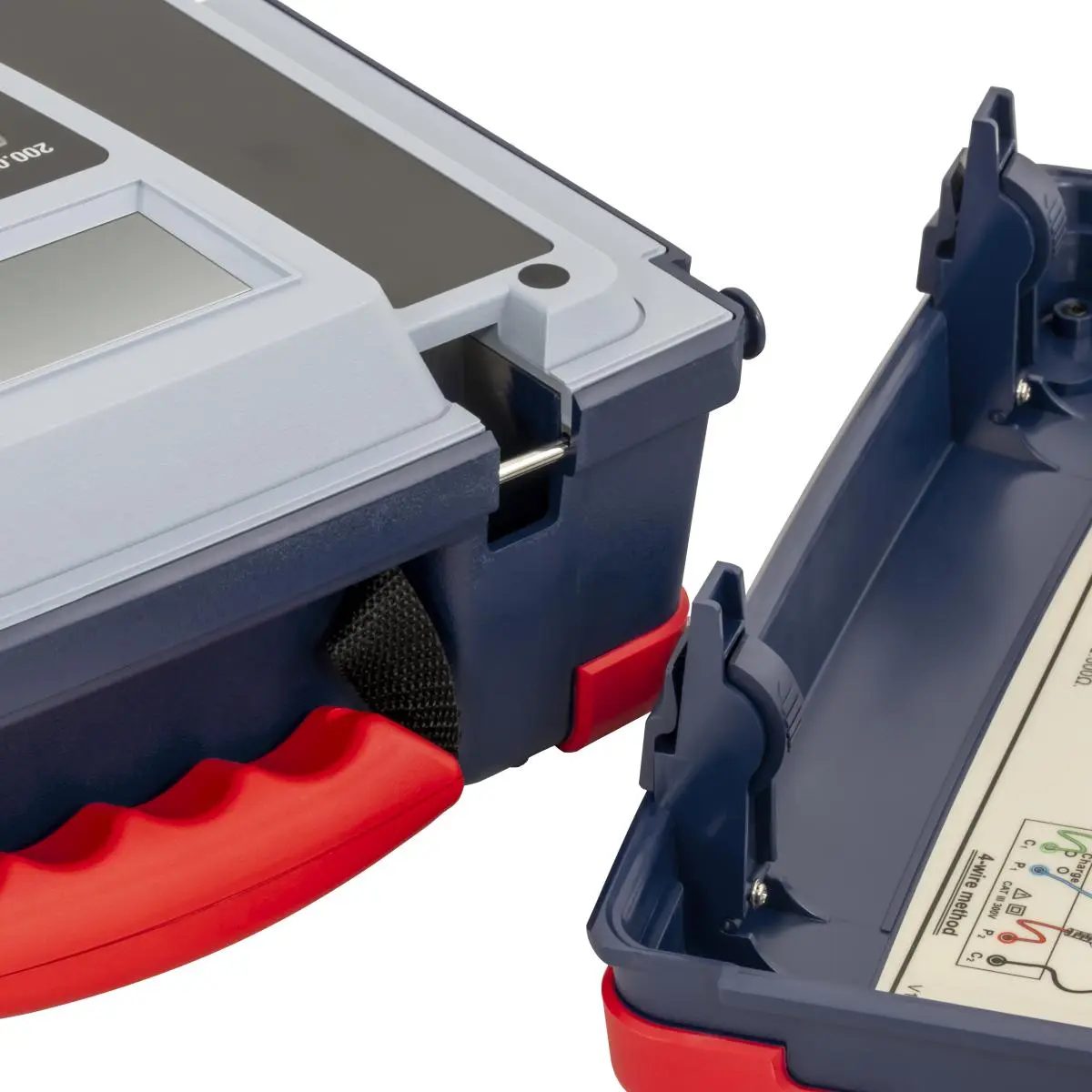

The illuminated LC display of the milliohmmeter makes it easy to read the measurement results, even in unfavourable lighting conditions. With an internal memory for up to 200 measured values and a low battery indicator, the device offers additional user-friendliness and makes the milliohmmeter an indispensable tool for preventive maintenance. The data can be transferred to the software via the optical RS232 interface and a text document with the measurement data can also be exported. The practical case and a bag for the test leads make it easy to transport the measuring device.
Highlights
- 7 selectable measuring ranges

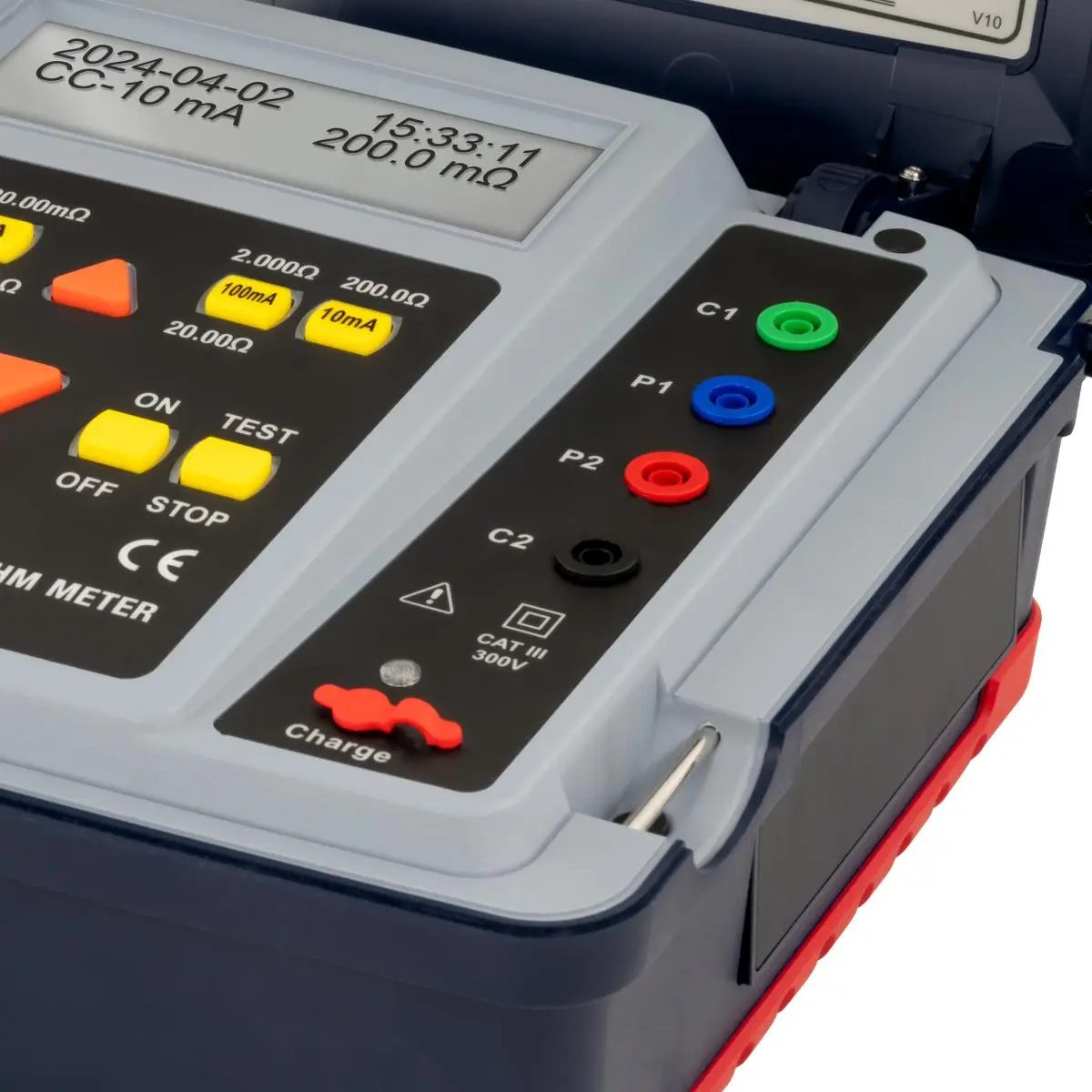

- 4-wire measuring method
- LC display 5.1 inch with illumination
- Internal memory
- Automatic switch-off
- Date and time display
Technical specifications
Resistance Measuring range 0 … 200 µΩ Resolution 0,1 µΩ Accuracy±(2 % +8 digits) Resistance Measuring range 0 … 2000 µΩ Resolution 1 µΩ Accuracy±(2 % +8 digits) Resistance Measuring range 0 … 20 mΩ Resolution 0,01 mΩ Accuracy±(1 % +4 digits) Resistance Measuring range 0 … 200 mΩ Resolution 0,1 mΩ Accuracy±(1 % +4 digits) Resistance Measuring range 0 … 2 Ω Resolution 1 mΩ Accuracy±(1 % +4 digits) Resistance Measuring range 0 … 20 Ω Resolution 0,01 Ω Accuracy±(1 % +4 digits) Resistance Measuring range 0 … 200 Ω Resolution 0,1 Ω Accuracy±(1 % +4 digits) General technical data Display type LCD with backlight Display size 5,1 Inch Storage medium Internal memory Storage capacity 200 Values Interface RS232 Standard(s)IEC61010-1, EN 61326-1 Automatic power-off 3 min Safety standard CAT III 300V Measuring method 4-wire method for mΩ measurement Test current 10 A: 200.0 μΩ / 2000 μΩ 1 A: 20.00 mΩ / 200.0 mΩ 100 mA: 2.000 Ω / 20.00 Ω 10 mA: 200.0 Ω Menu language English Protection class (device)IP30 Power supply 24 VDC / 0.625 A Connector type Device-europlug Capacity 5200 mAh Operating conditions 0 … 40 °C , 0 … 80 % RH Storage conditions 0 … 40 °C , 0 … 40 % RH Dimensions ( L x W x H )322 x 260 x 135 mm Weight 3126 g

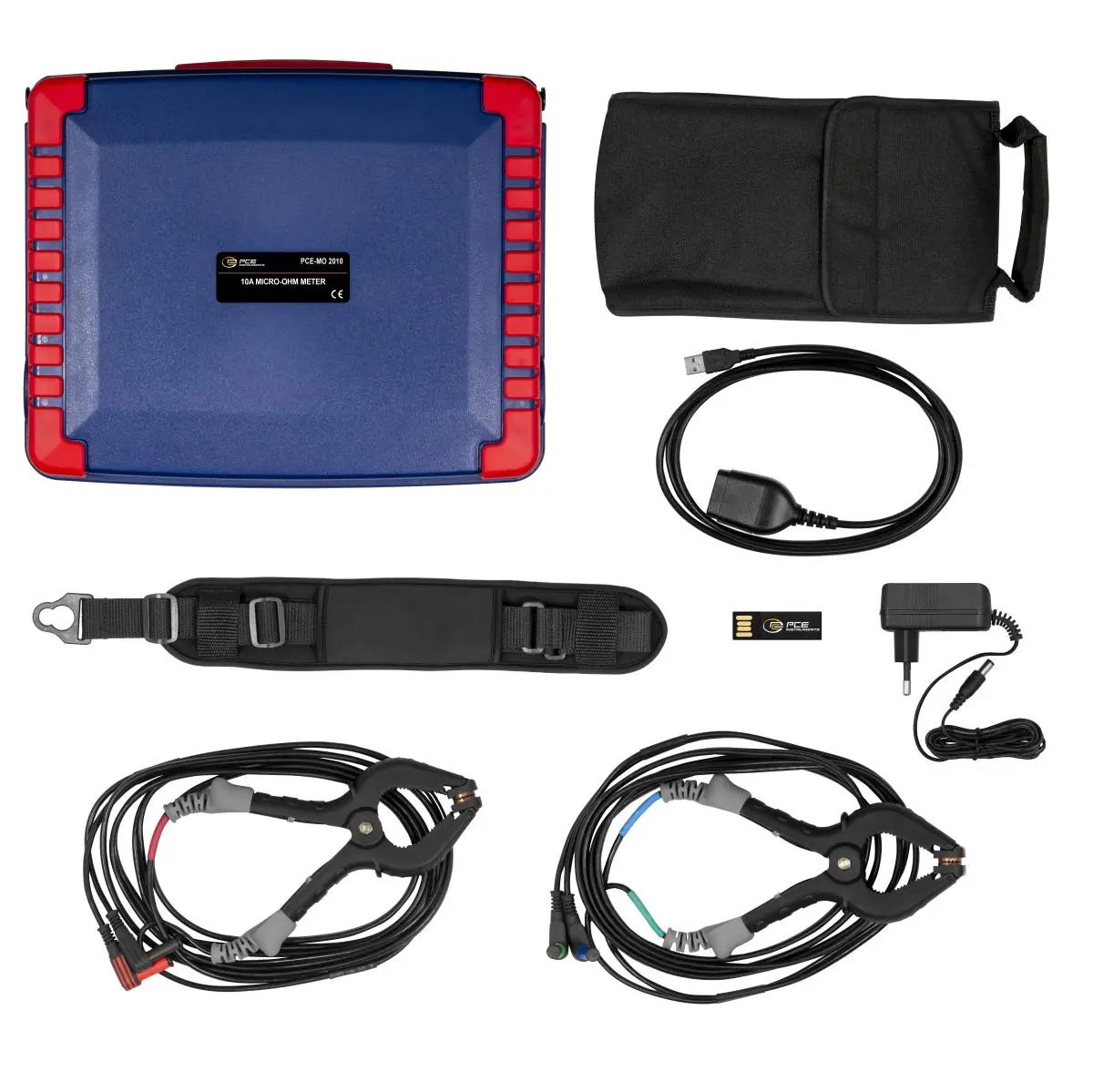

Delivery scope

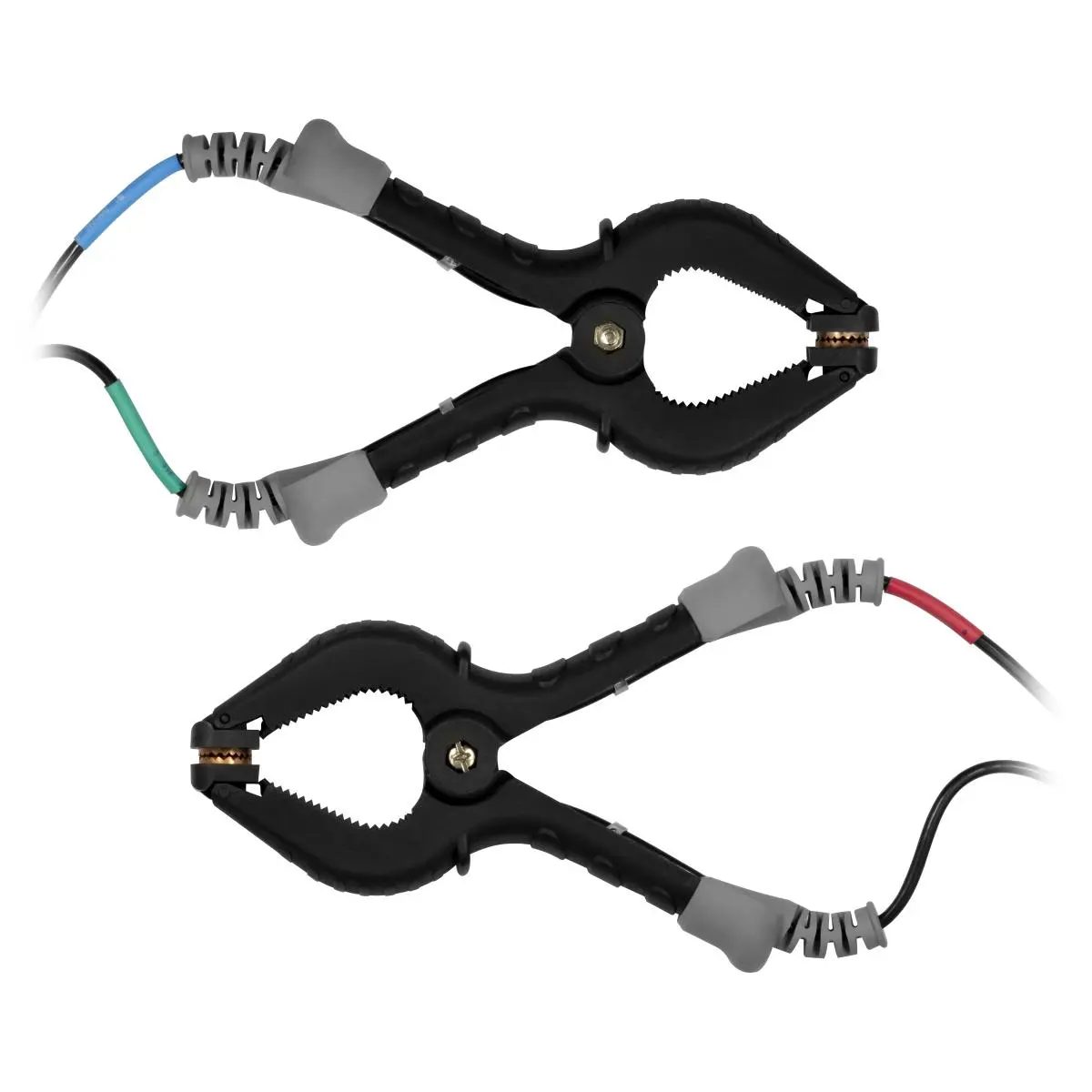

1 x Micro-, milli-, megohmmeter PCE-MO 2010 2 x 2.5 m test leads with Kelvin clamps 1 x data transmission cable 1 x PC software on USB stick 1 x power supply 24 VDC / 0.625 A 1 x shoulder strap 1 x bag for test leads 1 x operating instructions
