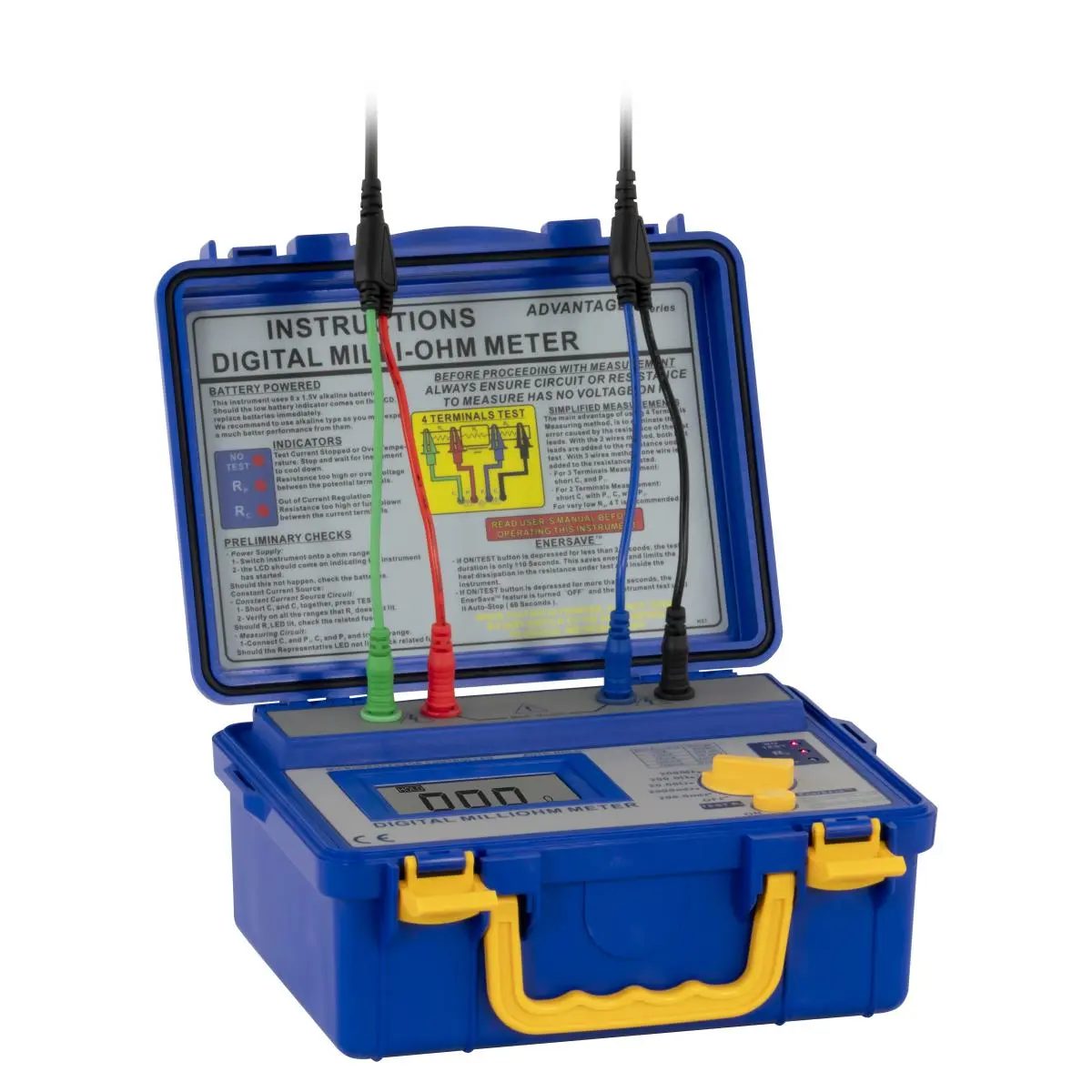

Milliohm Meter PCE-MO 2002
**(Milliohm Meter with ruggedized and waterproof carrying case.
With highly accurate measurement range)**
This Milliohm Meter comes with a housing protected against water intrusion. With the Milliohm Meter PCE-MO 2002 Series you can measure from 100 μΩ up to 2000 Ω. With this Milliohm Meter measurement values are displayed by means of a LCD display with 3.5 digits and a good readability. Milliohm Meter detect the measurement value, a constant current is mated on the object is going to be measured and then the voltage drop is tested. It allows to measure resistance in coils, generators, transformers, parallel and secondary circuits, commutators and relays.
It measures binding energy in planes, rail systems, boats and electrical installations in both industry and home. It allows continuity tests in circularly systems (ring network) in industry and home. To test compression elements in airlines, testing works and maintenance of electric cupboards and elements such as fuses, connectors, and contacts. It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.
Highlights
- Measurement system with four conductors with alligator clips
- Selection of 5 measurement ranges
- 3 test currents with overheat fuse
- Surge fuse in measurement inputs.
- Big LCD display
- Elimination of the measurement resistance in conducts.
- Auto-Hold and Auto-Off function
- LED indication when the Rp, Rc and temperature permitted values are exceeded.
- Light weight, solid and compact
- Waterproof housing with ring seal
- Security: IEC-1010-1; CAT IV 20 V
Technical specifications
Resistance Measuring range 100 … 200 mΩ Resolution 100 mΩ Accuracy±0.5% of Rd, ±2 digits throughout the entire operating temperature range from -15 … 55°C / Resistance Measuring range 100 … 2000 mΩ Resolution 1 mΩ Accuracy±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 … +55 °C Resistance Measuring range 100 … 20 Ω Resolution 10 mΩ Accuracy±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 … +55 °C Resistance Measuring range 100 … 200 Ω Resolution 100 mΩ Accuracy±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 … +55 °C Resistance Measuring range 100 … 2000 Ω Resolution 1 Ω Accuracy±0.5 % of Rd, ±2 digits throughout the entire operating temperature range from -15 … +55 °C General technical data Measuring functions HOLD Display type LCD Standard(s)IEC 1010-1 Safety standard CAT IV 20V Measuring method 4-wire method for mΩ measurement Test current 1 mA: 2000 Ω 10 mA: 200 Ω / 20 Ω 100 mA: 2000 mΩ / 200 mΩ Accuracy: ±0.1 % Menu language English, English (GB) Protection class (device)IP65 Protection class (additional information)Only with the lid closed Power supply batteries (Rechargeable) battery 8 x 1,5 V AA battery , Alkali-manganese Capacity 3000 mAh Operating conditions-15 … 55 °C , 20 … 93 % RH Storage conditions-20 … 65 °C , 20 … 93 % RH Dimensions ( L x W x H )245 x 190 x 115 mm Weight 1578 g
Delivery scope
Delivery contents 1x Milliohmmeter PCE-MO 2002, 1x testing cable set, 1x supporting strap, 8x batteries 1x user's manual.
