PCE-DDD 10 Shore D Material Tester
**Measures Shore D hardness in hard rubber and thermoplastic / Features a USB port and downloadable PC software for data transfer**

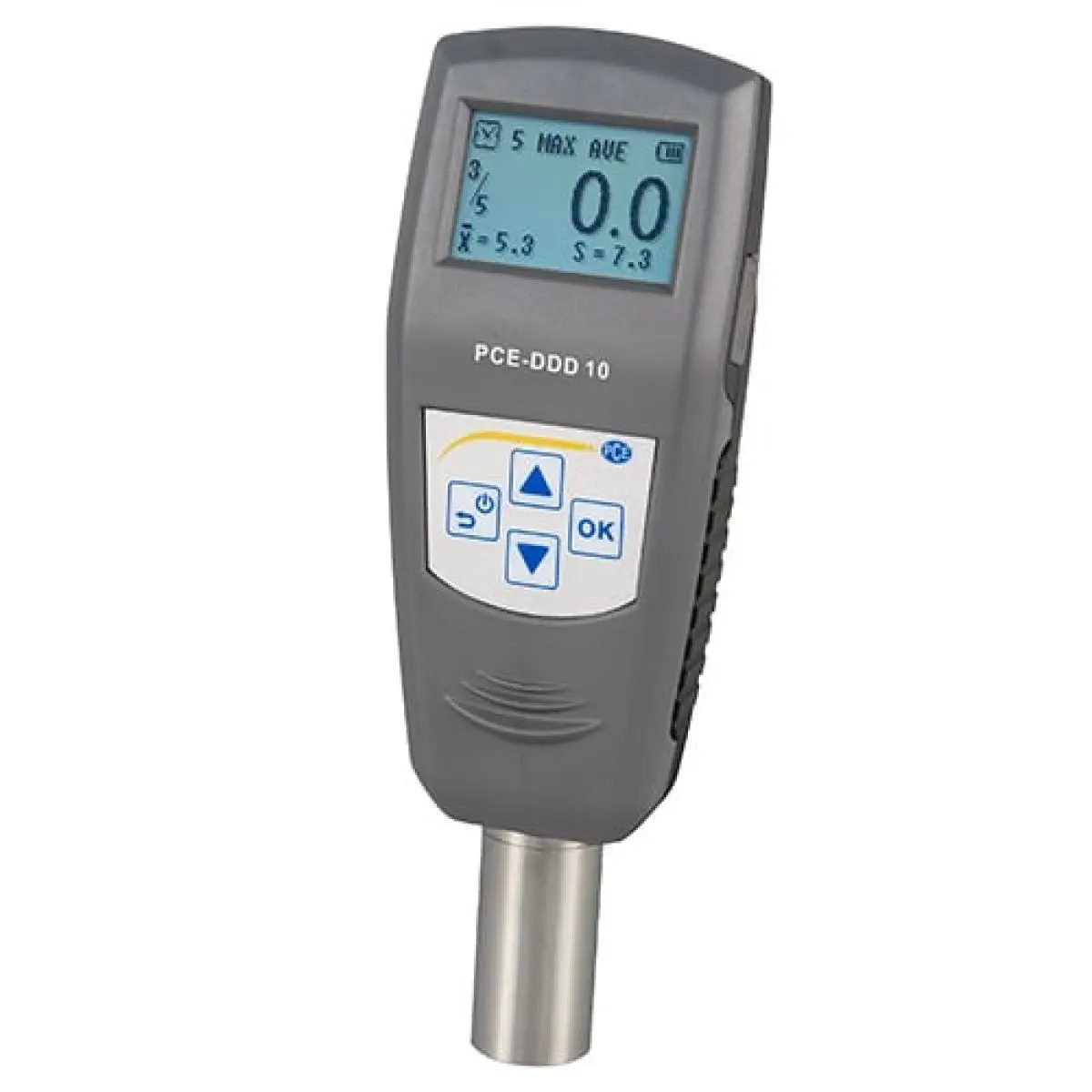

The PCE-DDD 10 Shore D Material Tester is a portable handheld device used to check Shore D hardness in hard rubber and thermoplastic. This digital Material Tester has a reading accuracy of 0.1 hardness units. The Material Tester comes manufacturer calibrated and can be optionally certified to ISO standards for an additional fee (see accessories for details).
Highlights
- Portable handheld digital hardness testing device
- Measures Shore D hardness in hard rubber and thermoplastic

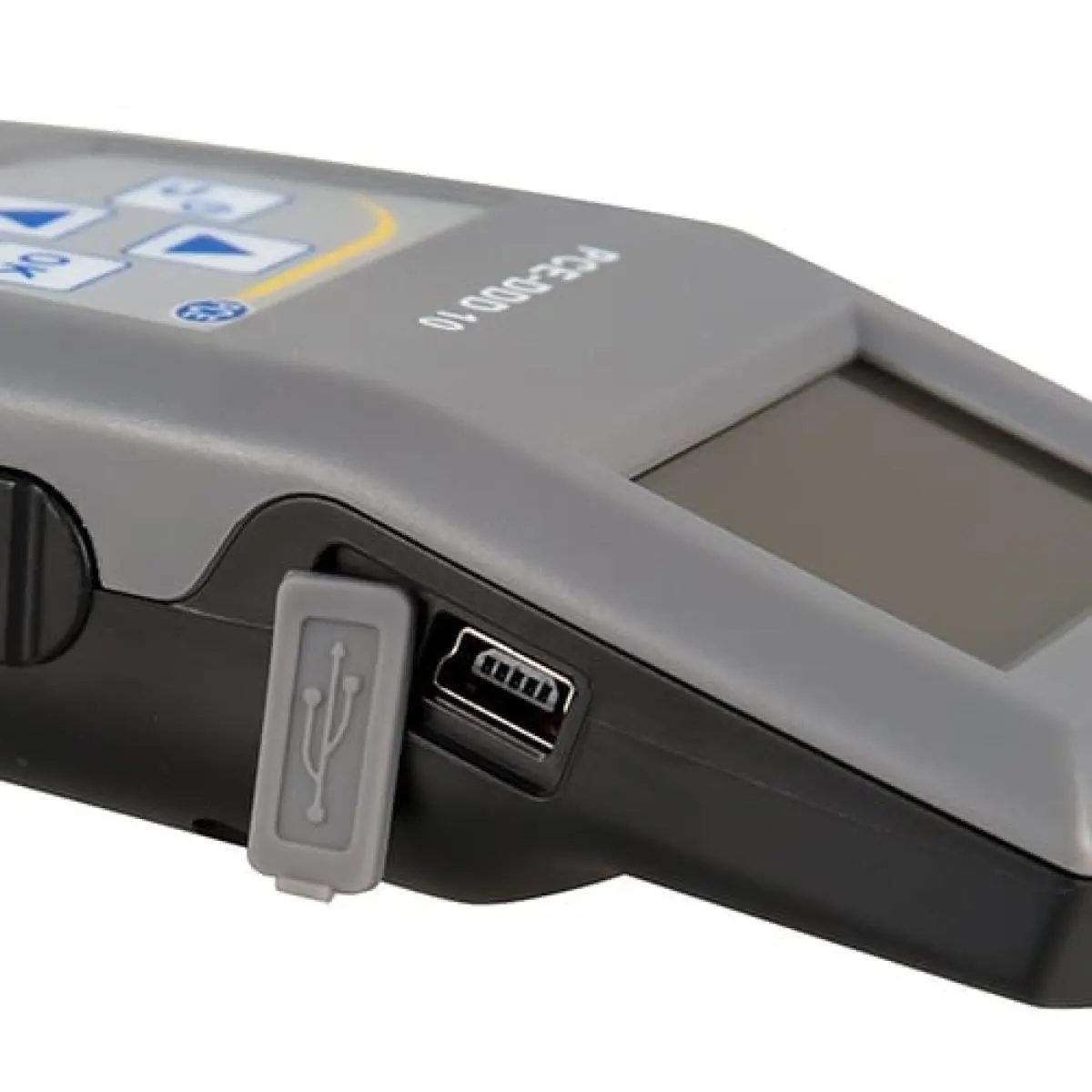

- Features a USB port and downloadable PC software for data transfer

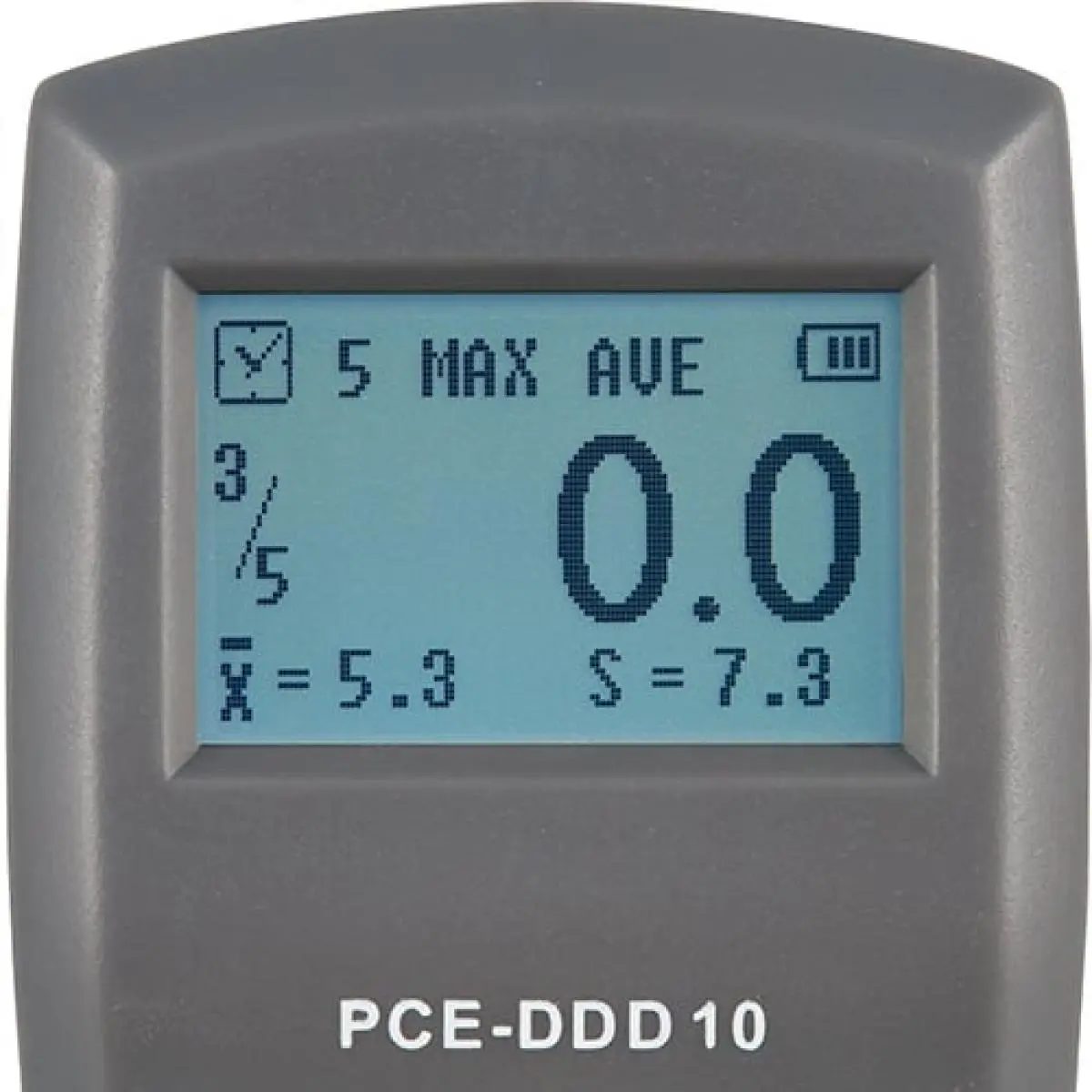

- Large, easy-to-read display
- For single and serial measurements
Technical specifications

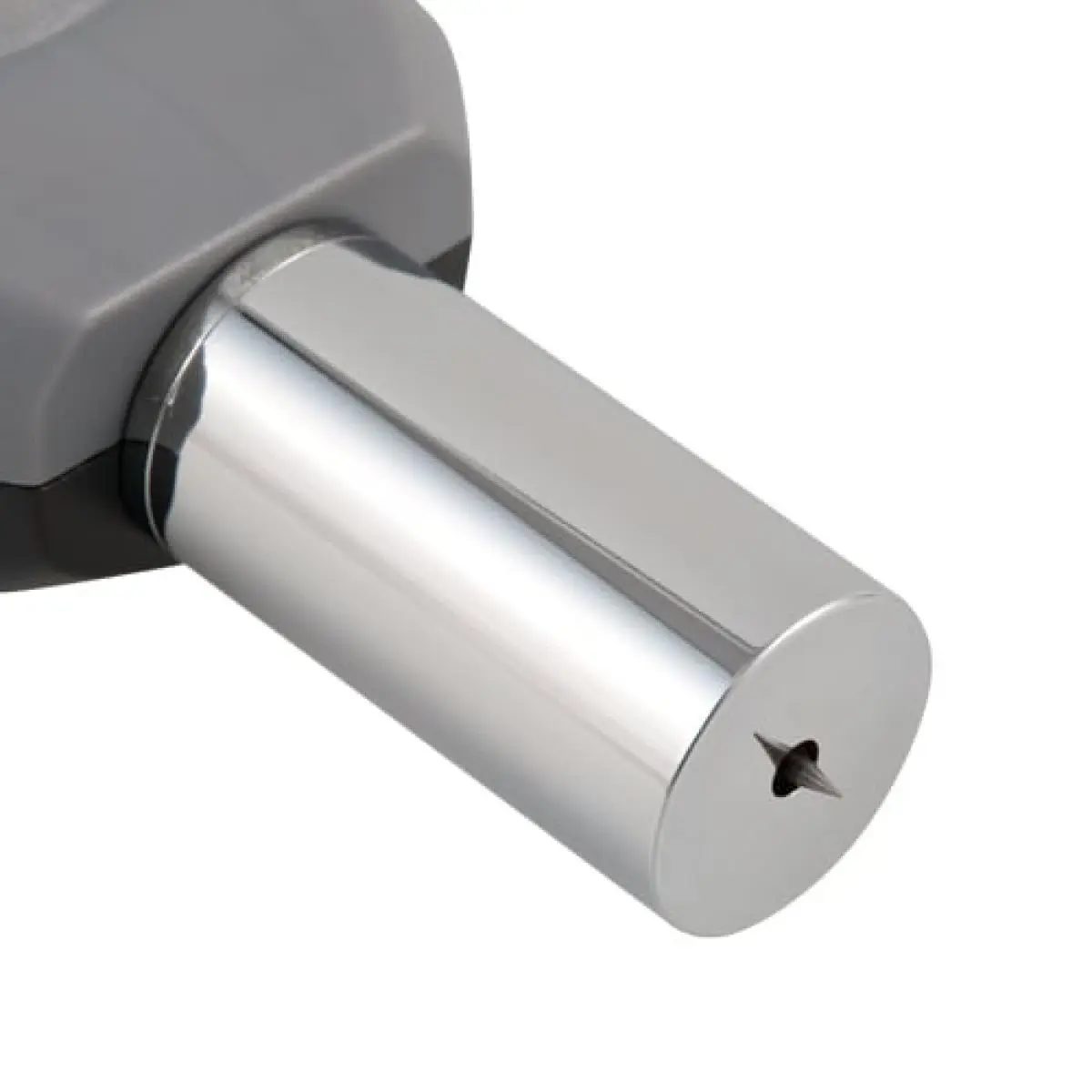

Hardness Measuring range 0 … 100 Shore D Resolution 0,1 Shore D Accuracy<±1 Shore D General technical data Measuring functions MAX, Average value Measuring principle Spring load Storage medium Internal memory Storage capacity 500 Measurements Interface Mini-USB Standard(s)GB/T 531.1, ISO7619-1, ASTM D 2240 Operating time 20 h Charging time 3 h Impact device D-type Dimensions Indentor / geometry: Spring pin diameter: 1.25 ± 0.1 mm Ball diameter: 0.1 mm ± 0.01 Cone angle (tip angle): 30 ± 0.5° Menu language English, English (GB) Protection class (device)IP20 Power supply 3.6V Connector type Device-europlug (Rechargeable) battery 3 x 1,2 V AAA rechargeable battery , Nickel-metal hydride battery Capacity 1200 mAh Operating conditions 0 … 50 °C , 20 … 85 % RH Storage conditions 0 … 50 °C , 20 … 85 % RH Dimensions ( L x W x H )153 x 50 x 29 mm Weight 170 g
Delivery scope

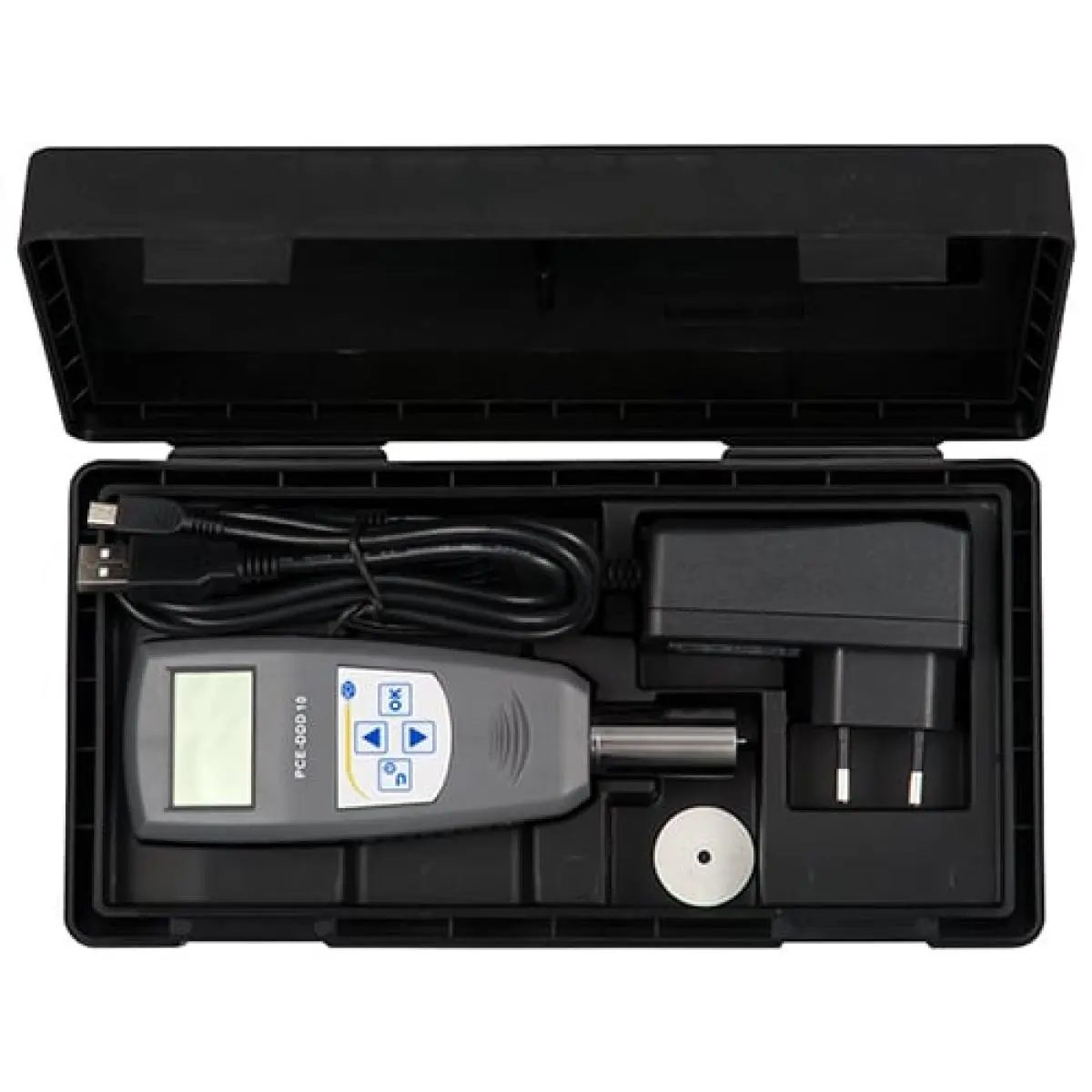

1 x PCE-DDD 10 Shore D durometer 1 x Calibration plate 1 x Charger / AC power adapter 1 x Mini USB cable 1 x User manual 1 x Carrying case Note: Software is available for download from this website.
