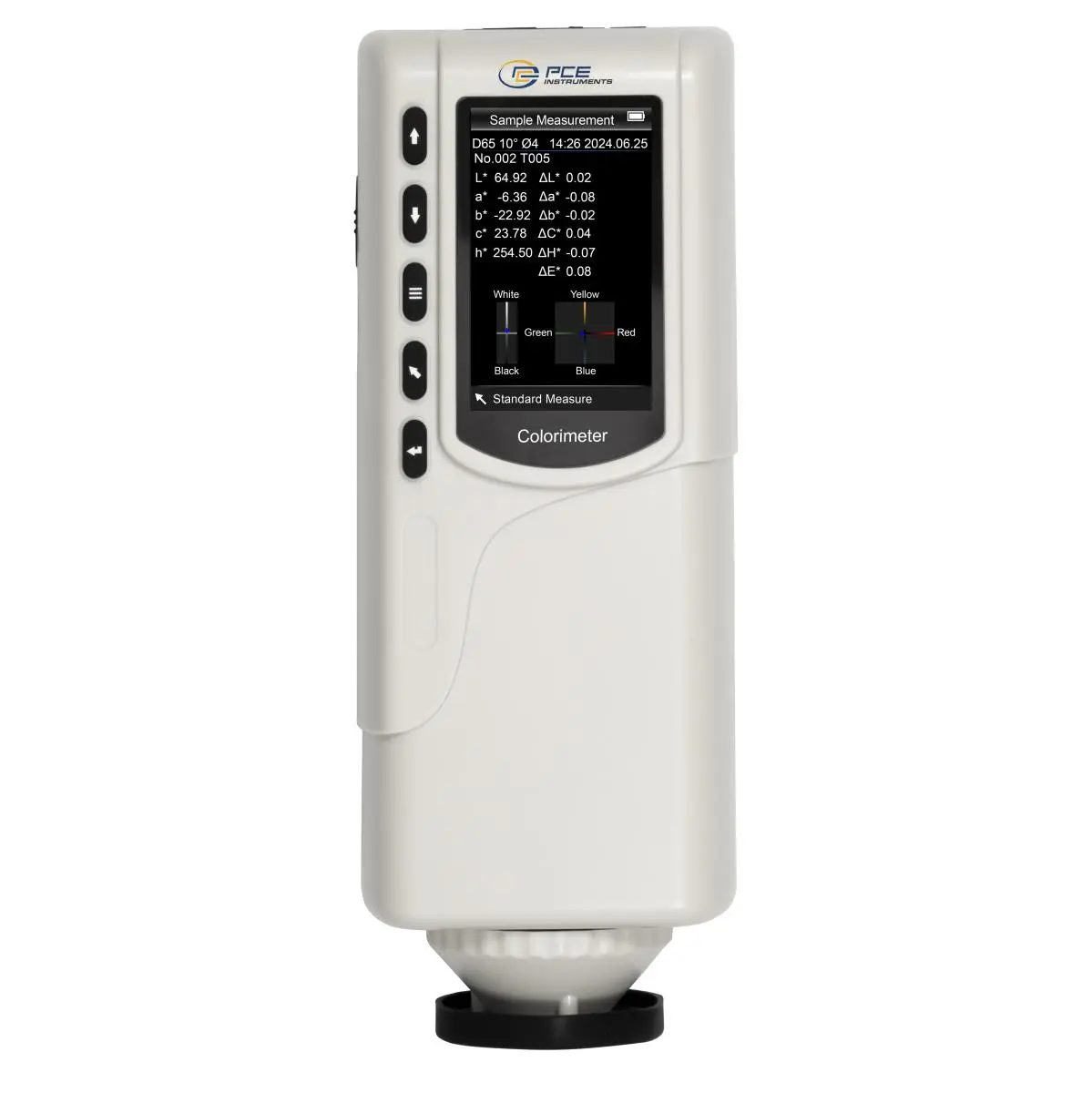

Spectrophotometer PCE-CSM 5 for quality control
**PC software included / Li-ion battery / different colour spaces /
determination of reference values and samples / white calibration**
The Spectrophotometer PCE-CSM 5 was developed for quality control and offers a high accuracy. When using the Spectrophotometer, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the Spectrophotometer PCE-CSM 5 comes with two different measuring apertures (Ø6 mm and Ø10 mm). After a measurement with the Spectrophotometer, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

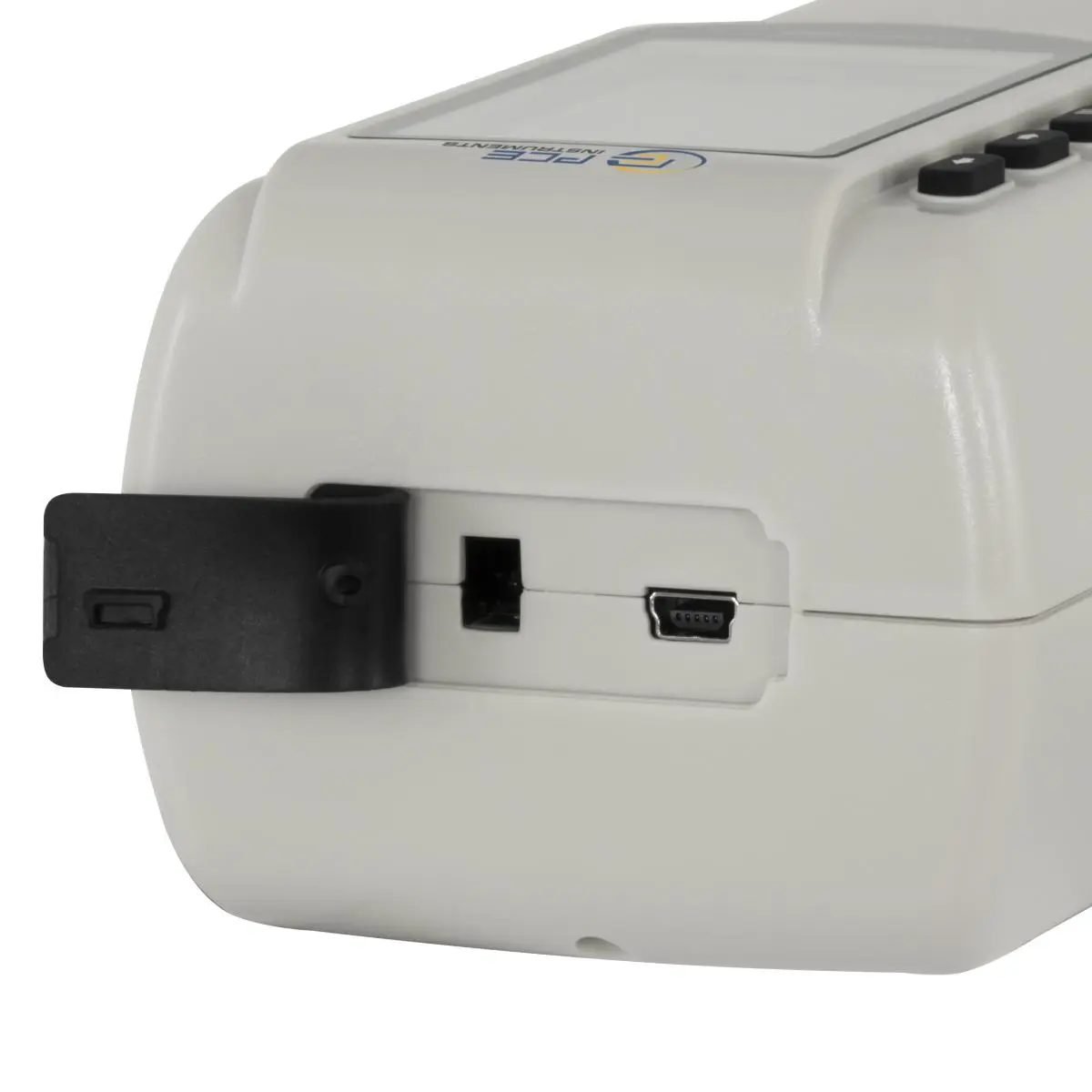

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the Spectrophotometer, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
Highlights
- CIE LAB, XYZ, LCh, RGB, LUV
- white calibration
- determination of reference values and samples
- exchangeable measuring apertures
- rechargeable lithium-ion battery
- suitable for many different surfaces
- easy to use
- incl. PC software
Technical specifications
General technical data Display type TFT colour display Display size 2,8 Inch Storage medium Internal memory Storage capacity 20000 Values Memory capacity (additional information)100 reference values, 20000 samples Interface Mini-USB, RS232 Sensor Silicon photodiode Repeatability 0,03 ΔE*ab Light source D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 Measurement time 0,4 s Colour spaces XYZ, LCh, CIE RGB, CIEL u* v*, CIEL a* b*, WI (whiteness), YI (yellowness) Colour difference ΔE* ab ΔE( h) ΔE* uv ΔE* 94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE* 00 Measuring aperature Ø 4 mm, Ø 8 mm (interchangeable) Measuring geometry 8°/d Observer 10° Calibration White or black calibration selectable Menu language English, Chinese Protection class (device)IP20 Power supply 5 V DC, 2 A Connector type Device-europlug (Rechargeable) battery 1 x 3,7 V internal , Lithium-ion battery Capacity 3200 mAh Operating conditions 0 … 40 °C , 0 … 85 % RH Storage conditions-20 … 50 °C , 0 … 85 % RH Dimensions ( L x W x H )205 x 67 x 80 mm Weight 500 g
Delivery scope
1 x Spectrophotometer PCE-CSM 5 1 x Lithium-ion battery 1 x Mains adapter 1 x Calibration plate (white) 1 x PC software 1 x Instruction manual 1 x aluminum carry case
