water hardness tester with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

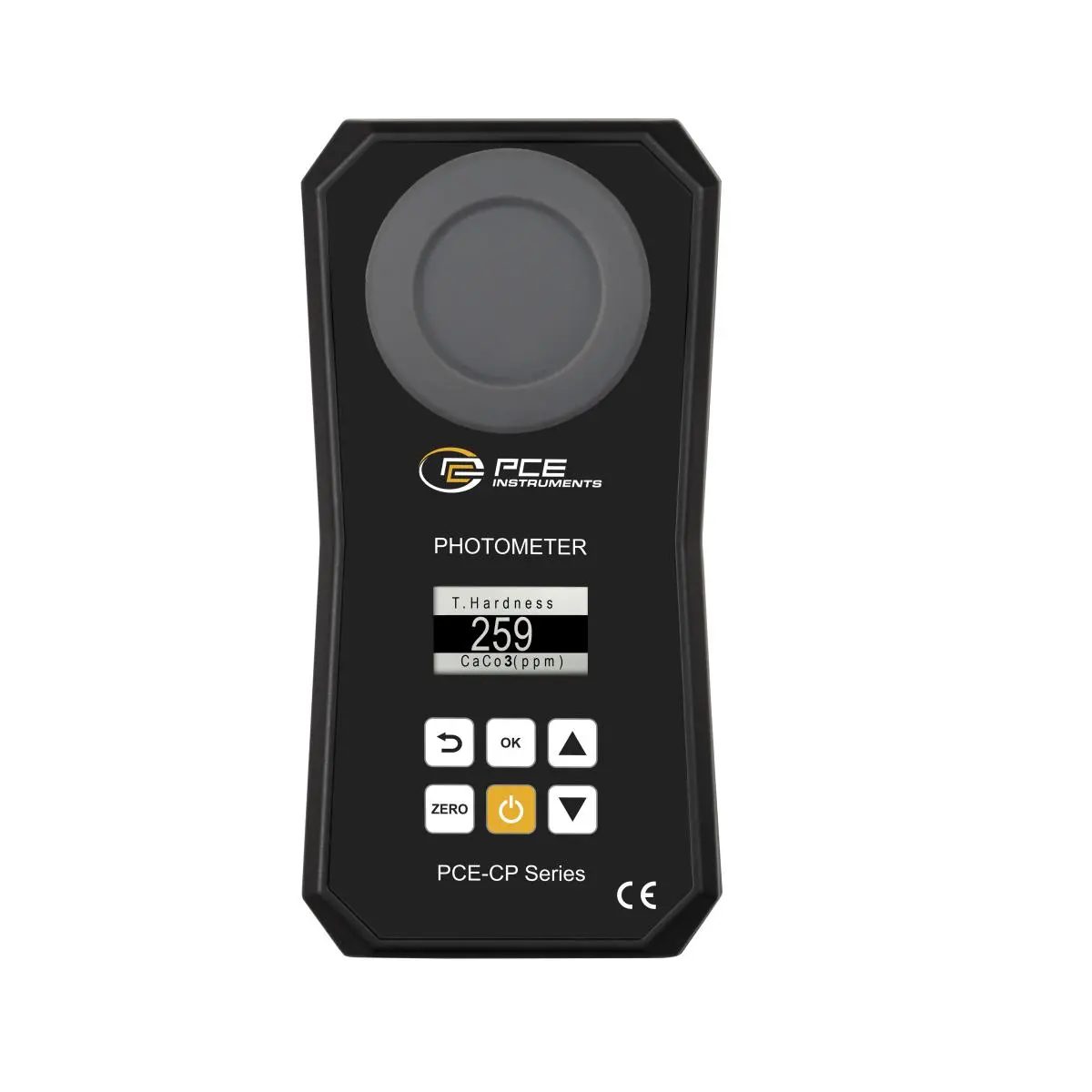

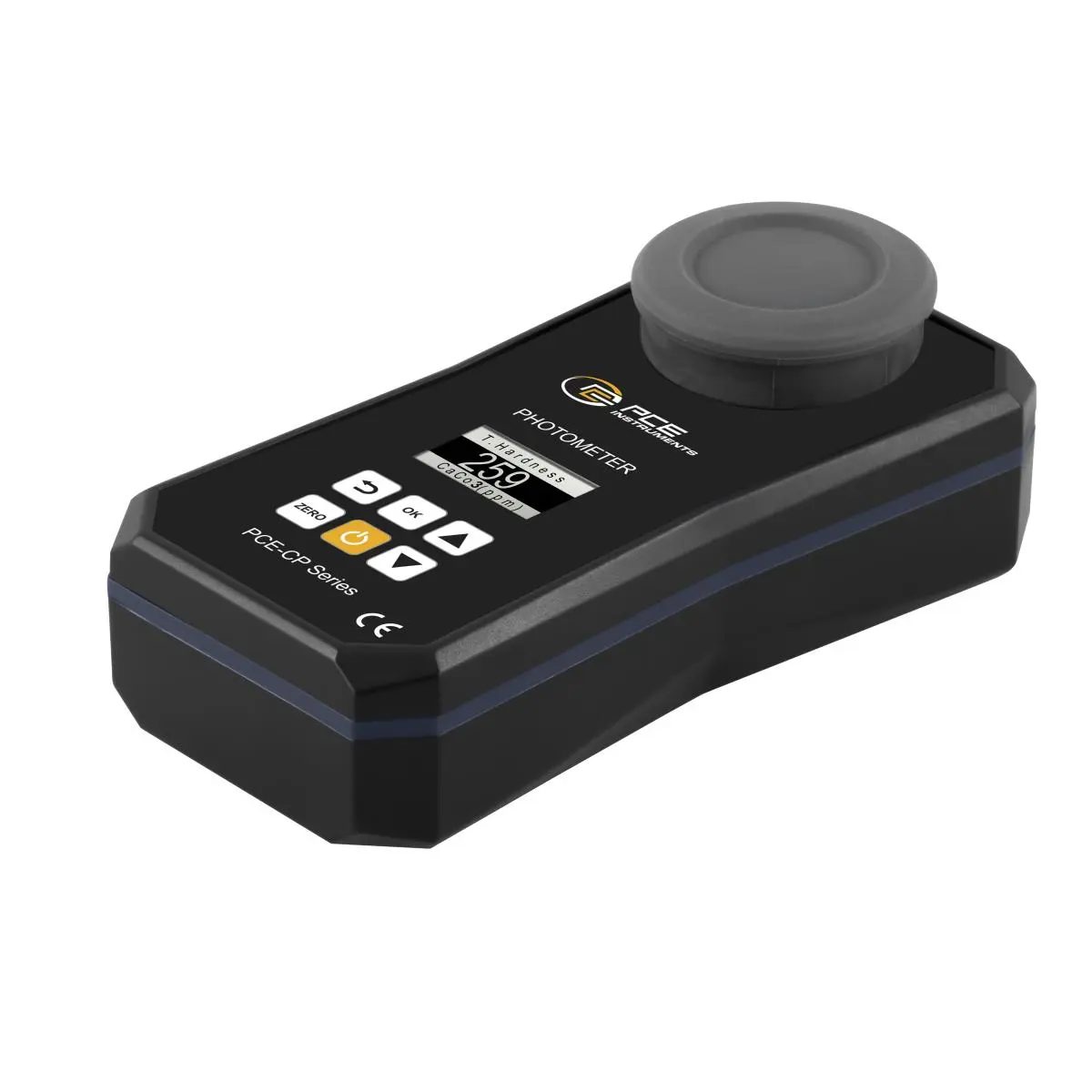

The water hardness tester is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the water hardness tester. With this water hardness tester, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the water hardness tester, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the water hardness tester generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.
Each measurement is automatically saved by the water hardness tester. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the water hardness tester. A free app is available to analyze the measured values from the water hardness tester. It is also possible to establish a Bluetooth connection between the water hardness tester and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the water hardness tester, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the water hardness tester is also free of charge.
Highlights
- Up to 7 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Technical specifications
Alkalinity Measuring range 0 … 30 mg/L Resolution 1 mg/L Accuracy 3 mg/l Alkalinity Measuring range 30 … 60 mg/L Resolution 1 mg/L Accuracy 7 mg/l Alkalinity Measuring range 60 … 100 mg/L Resolution 1 mg/L Accuracy 12 mg/l Alkalinity Measuring range 100 … 200 mg/L Resolution 1 mg/L Accuracy 18 mg/l Chlorine Measuring range 0 … 2 mg/L Resolution 0,01 mg/L Accuracy 0.10 mg/l Chlorine Measuring range 2 … 3 mg/L Resolution 0,01 mg/L Accuracy 0.23 mg/l Chlorine Measuring range 3 … 4 mg/L Resolution 0,01 mg/L Accuracy 0.75 mg/l Chlorine Measuring range 4 … 8 mg/L Resolution 0,01 mg/L Accuracy 1.00 mg/l Cyanuric acid Measuring range 0 … 15 mg/L Resolution 1 mg/L Accuracy 1 mg/l Cyanuric acid Measuring range 15 … 50 mg/L Resolution 1 mg/L Accuracy 5 mg/l Cyanuric acid Measuring range 50 … 120 mg/L Resolution 1 mg/L Accuracy 13 mg/l Cyanuric acid Measuring range 120 … 160 mg/L Resolution 1 mg/L Accuracy 19 mg/l Total hardness Measuring range 0 … 30 mg/L Resolution 1 mg/L Accuracy 3 mg/l Total hardness Measuring range 30 … 60 mg/L Resolution 1 mg/L Accuracy 5 mg/l Total hardness Measuring range 60 … 100 mg/L Resolution 1 mg/L Accuracy 10 mg/l Total hardness Measuring range 100 … 200 mg/L Resolution 1 mg/L Accuracy 17 mg/l Total hardness Measuring range 200 … 300 mg/L Resolution 1 mg/L Accuracy 22 mg/l Total hardness Measuring range 300 … 500 mg/L Resolution 1 mg/L Accuracy 58 mg/l Calcium hardness Measuring range 0 … 25 mg/L Resolution 1 mg/L Accuracy 8 mg/l Calcium hardness Measuring range 25 … 100 mg/L Resolution 1 mg/L Accuracy 22 mg/l Calcium hardness Measuring range 100 … 300 mg/L Resolution 1 mg/L Accuracy 34 mg/l Calcium hardness Measuring range 300 … 500 mg/L Resolution 1 mg/L Accuracy 45 mg/l pH Measuring range 6,5 … 8,4 pH Resolution 0,01 pH Accuracy 0.11 pH General technical data Units mg/l, ppm, mg/l CaCO³, mmol/l KS 4.3, °dH (degree of German hardness), °e (degree of English hardness / Clark degree), °f (degree of French hardness) Display type LED Storage medium Internal memory Storage capacity 255 Values Interface Bluetooth Sensor Photodiode Automatic power-off 300 s Light source 530nm/570nm/620nm LED Number of calibration points 0 Menu language English, Spanish, German, French, Italian Protection class (device)IP21 (Rechargeable) battery 3 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Performance 1,8 Wh Operating conditions 5 … 45 °C , 20 … 90 % RH Storage conditions 5 … 45 °C , 20 … 90 % RH Dimensions ( L x W x H )150 x 75 x 52 mm Other dimensions Cuvette: 36 x ø 21 mm (10 ml) Weight 196,5 g
Delivery scope
1 x Multi-parameter Water Hardness Meter / Water Hardness Tester PCE-CP 20 incl. Cuvette 1 x Replacement cuvette 1 x Light protection cover 1 x Microfiber cloth 1 x Plunger 1 x 10 ml dosing pipette 3 x AAA batteries 1 x Quick start guide 1 x Service bag 1 x Free app 1 x Free PC software 1 x Free cloud service 1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
