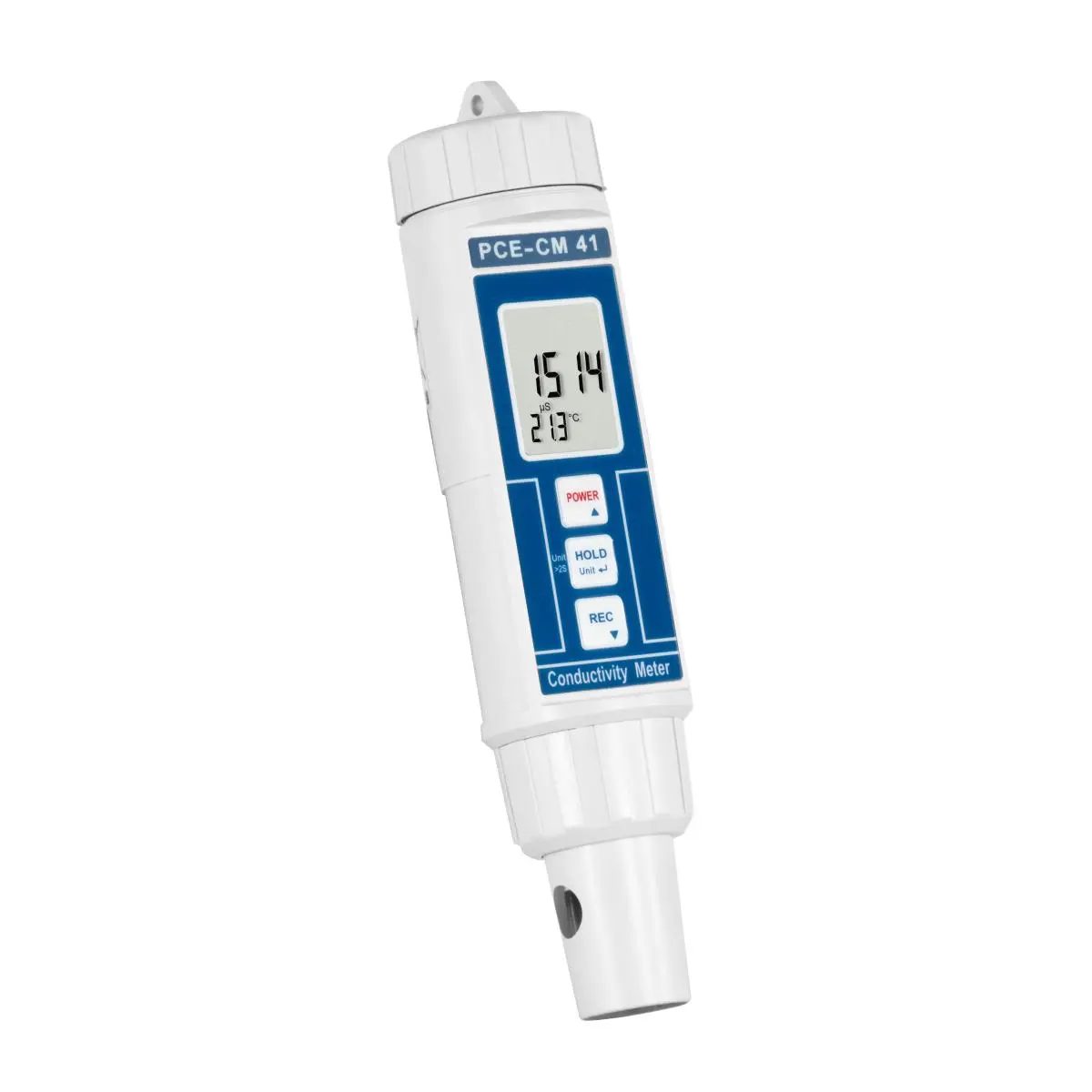

Conductivity meter for EC and TDS (amount of salts and dissolved solid materials)
****
With the conductivity meter PCE-CM 41 it is possible to measure conductivity value, the amount of all the solid material or dissolved salts (TDS – Total Dissolved Solids) and the temperature. The conductivity meter PCE-CM 41 is very easy to carry everywhere thanks to its small size. The water resistant enclosure protects properly the electronics (it also protects against dust). The measurement of EC and TDS conductivity has an automatic temperature compensation. The conductivity meter PCE-CM 41 has a wide field of application and can be used in the industry, fish farming, horticulture and others.
Highlights
- Two measurement ranges for a high accuracy.
- Measures conductivity, TDS value and temperature (3 devices in one)
- TDS factor can be selected
- Auto shut-off: to protect battery life.
- Temperature in ºC of °F
- Water resistant (IP 67)
Technical specifications
Conductivity Measuring range 0 … 2000 µS Resolution 1 µS Accuracy±(3% FS +1 Digit) Conductivity Measuring range 2 … 20 mS Resolution 0,01 mS Accuracy±(3% FS +1 Digit) TDS Measuring range 0 … 1320 ppm Resolution 1 ppm Accuracy±(3% FS +1 Digit) TDS Measuring range 1320 … 13200 ppm Resolution 10 ppm Accuracy±(3% FS +1 Digit) Temperature Measuring range 0 … 60 °C Resolution 0,1 °C Accuracy±0.8 °C Temperature Measuring range 32 … 140 °F Resolution 0,1 °F Accuracy 1.5°F General technical data Measuring functions MIN, MAX, HOLD Temperature compensation Automatic temperature compensation from 0-60°C ( 32-140°F) Display type LCD Display size 1,3 Inch Automatic power-off 10 min Menu language English, English (GB) Protection class (device)IP67 (Rechargeable) battery 4 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions 0 … 60 °C , 0 … 80 % RH Storage conditions 0 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )200 x 40 x 40 mm Weight 124 g

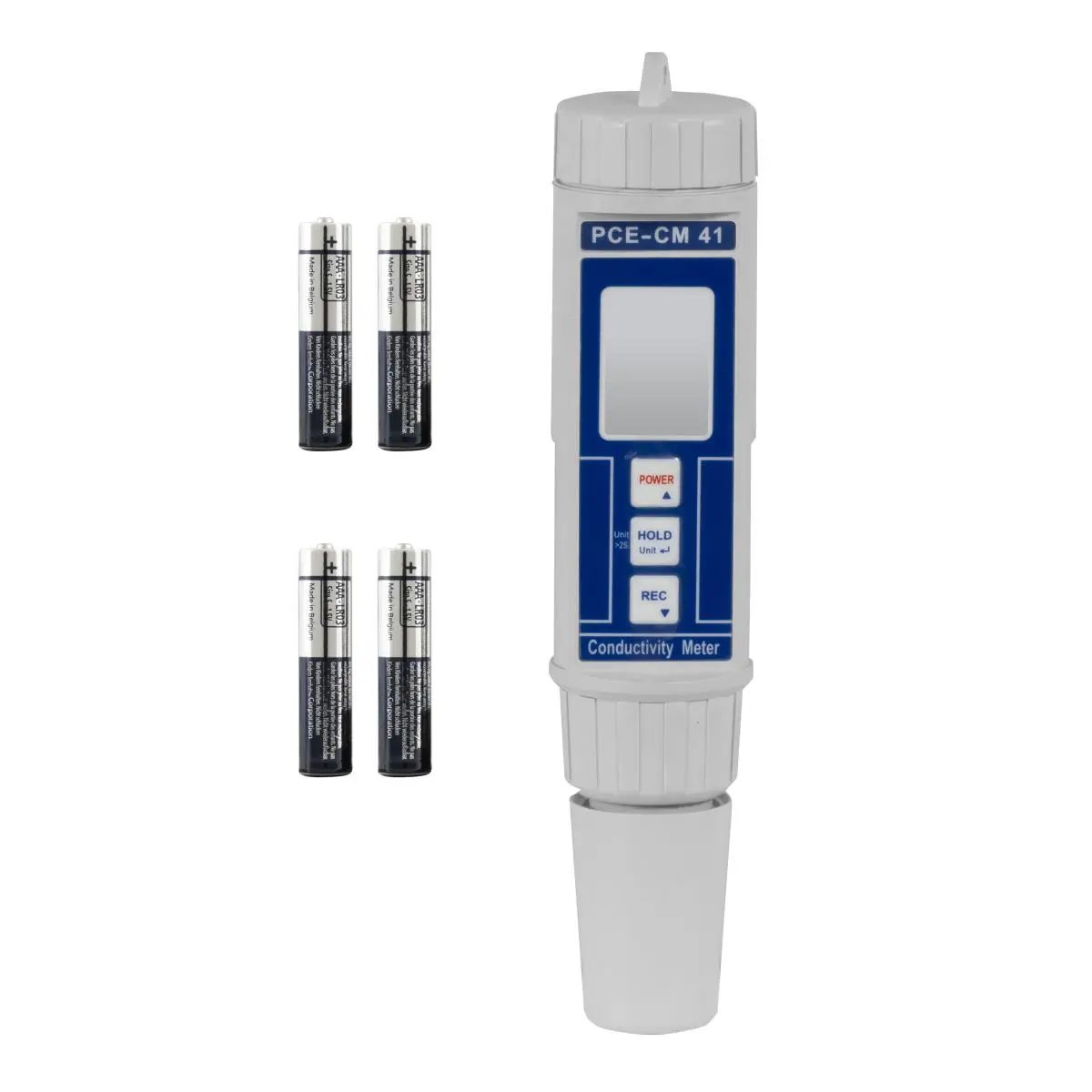

Delivery scope
1 x Conductivity Meter / Conductivity Tester PCE-CM 41 4 x batteries 1 x user's manual
