Cable Tracker PCE-CL 20

Cable Tracker PCE-CL 20

Categories:
Measuring InstrumentsWall Scanner

Cable Tracker PCE-CL 20

The PCE-CL 20 is a wire tracer used to detect live and de-energized electrical wires. This wire tracer can also be used to locate metal and non-metal gas or water pipes, detect short circuits, and trace lines under walls or floors.

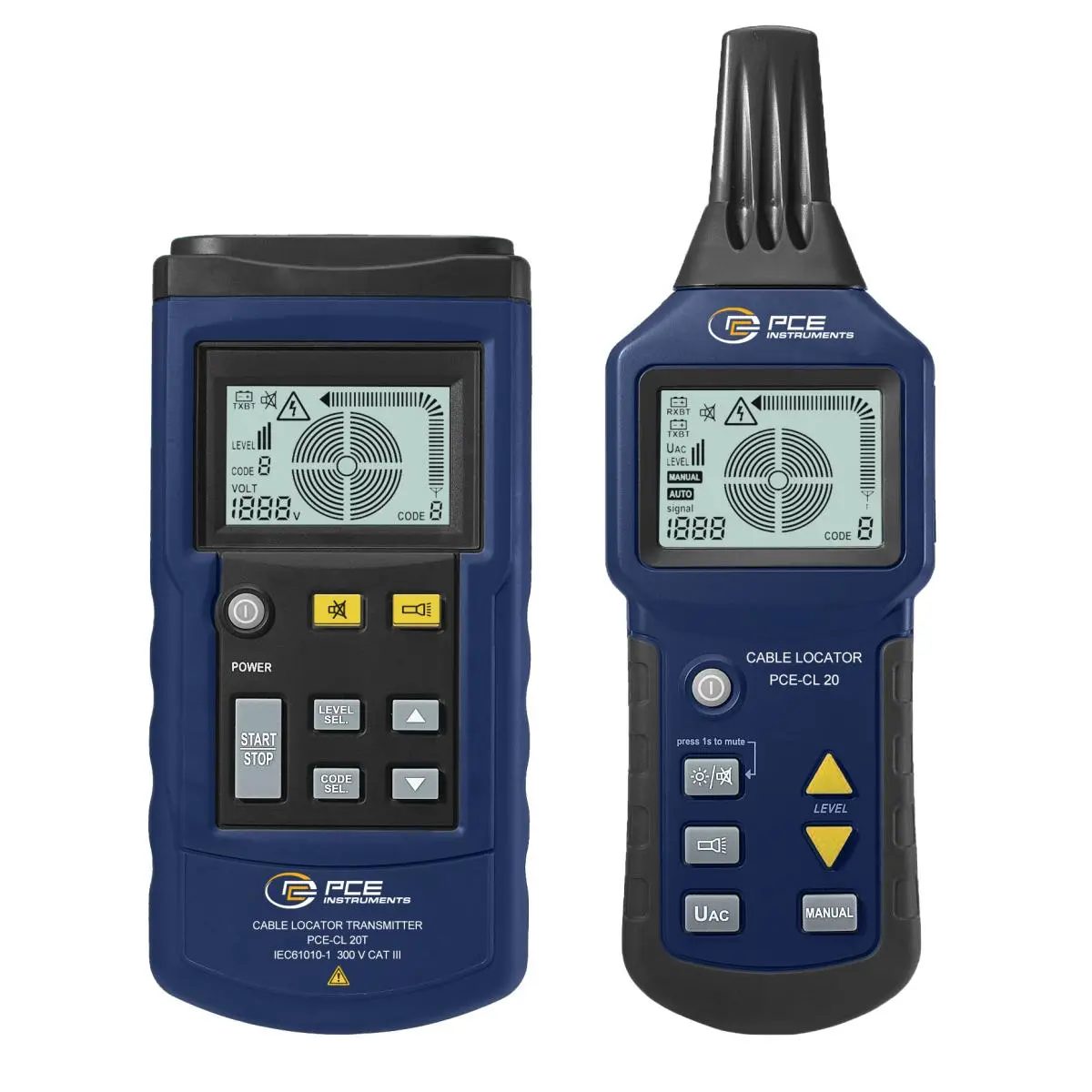

The cable tracer consists of two separate units: a signal generator (or transmitter) and a receiver. Both devices are equipped with bright LED lights for use in dark and dimly lit rooms. In addition, the receiver has a backlit LCD screen.



  • In stock
428 €price including km
Free shipping For orders over €250
14-Day Return Policy Worry-Free Right to Purchase
Safe Payment

Cable Tracker PCE-CL 20

The PCE-CL 20 is a wire tracer used to detect live and de-energized electrical wires. This wire tracer can also be used to locate metal and non-metal gas or water pipes, detect short circuits, and trace lines hidden in walls or under floors.
The cable tracer consists of two separate units: a signal generator (or transmitter) and a receiver. Both devices are equipped with bright LED lights for use in dark and dimly lit rooms. In addition, the receiver has a backlit LCD screen.

Highlights

– Output signal: 125 kHz
– Compatible with single- or two-pole circuits
– Automatic, manual, and UAC measurement modes
– Detects hidden cables, wires, or pipes
– Helps identify short circuits and circuit breakers
– Includes alligator clips, test probes, test leads, and a grounding rod

Specifications

Technical Specifications
Output 125 kHz
External voltage detection range DC 12 … 400 V ± 2.5%; AC 12 … 400 V (50 … 60 Hz) ± 2.5%
Screen LCD
Maximum voltage Max 400 V AC / DC
Overvoltage Category CAT III 300 V
Degree of pollution 2
Power Source 9 V battery
Power consumption (minimum voltage) approximately 31 mA
Power consumption (maximum voltage) approximately 115 mA
Backing Up F 0.5 A 500 V, 6.3 mm x 32 mm / 0.24 x 1.25 inches
Terms of Use 0 … +40 °C/+32 … +72 °F
Relative humidity <80%
Storage Conditions -20 … +60 °C / +12 … +92 °F
, relative humidity <80%
Dimensions 190 mm x 89 mm x 42.5 mm
7.48 x 3.50 x 1.67 inches
Weight 420 g / 0.92 pounds (with battery)

Technical Specifications for the Cable Detector (Receiver)
Detection depth depends on the material and the specific application
Pole Application approximately 0 … 2 m / 0 … 6.56 feet
Bipolar application approximately 0 … 0.5 m / 0 … 1.64 feet
Simple Stitch Up to 2.5 m / 8.2021 feet
Mains Voltage Detection approximately 0 … 0.4 m / 0 … 1.31 feet
Screen LCD
Power Source 6 x 1.5 V AAA batteries
Power consumption (minimum voltage) approximately 32 mA
Power consumption (maximum voltage) approximately 89 mA
Environmental Conditions 0 … +40 °C / +32 … +72 °F
, relative humidity <80%
Storage Conditions -20 … +60 °C / +12 … +92 °F
, relative humidity <80%
Dimensions 241.5 mm x 78 mm x 38.5 mm
9.5 x 3.07 x 1.51 inches
Weight 350 g / 0.77 pounds (with batteries)

Scope of Delivery

1 x PCE-CL 20 cable tracer (1 x transmitter and 1 x receiver)
2 x alligator clips
2 x test probes
2 x test leads
1 x grounding rod
1 x carrying strap
1 x carrying case
1 x 9 V battery
6 x 1.5 V AAA batteries
1 x user manual
