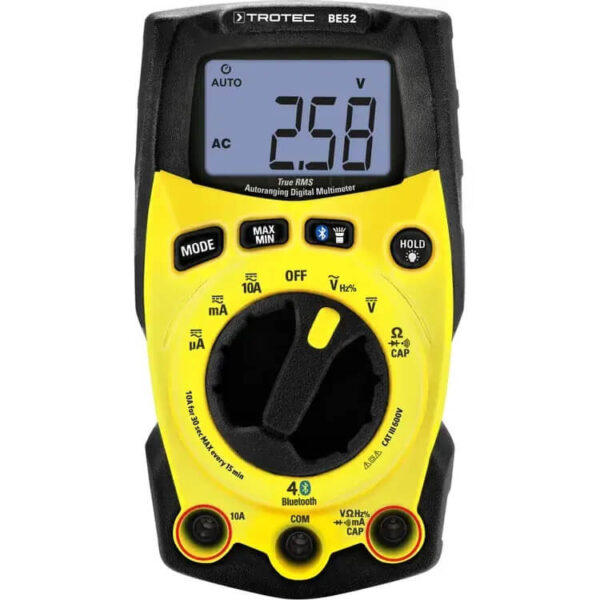

BE52 Digital True RMS Multimeter
A measuring device designed for the most demanding operating environments and all relevant parameters
The BE52, a true RMS battery-powered multimeter with an integrated flashlight, was developed specifically for safe use in harsh environments. With ten different functions for the most common measurable quantities, this particularly durable multimeter covers a wide range of possible applications in retail, hobbies, and the automotive industry. Whether it’s measurements for home and construction equipment, professional electrical work, occasional repairs of homeand electronic devices, or vehicle electronics issues—the BE52 impresses even under the most adverse outdoor conditions with its wide range of functions and features. Wherever electricity flows, this multifunctional device provides valuable assistance during installation and troubleshooting.
Well-equipped to measure almost any current, voltage, capacitance, and continuity
The BE52 can be used to measure DC and AC voltage, DC and AC current, capacitance, measuring frequency and duty cycle, measuring resistance, and performing diode tests and acoustic continuity tests.
A truly durable and powerful RMS multimeter
The measured values are clearly displayed on a large, backlit LCD screen. Thanks to the convenient hold function, the measured values can still be read on the screen even after the measurement is complete. During a continuity test, an audible signal alerts you to a short circuit or a closed circuit, allowing you to work more quickly since you don’t have to keep your eyes on the screen while measuring. To keep both hands free for measurement tasks, a fold-out stand is integrated into the back of the device. This allows the meter to be placed on a flat surface in an easily readable position. The device’s automatic shut-off (Auto-Power-Off) after 15 minutes of inactivity is battery-friendly and practical.
Assessment and Logging, Including the MultiMeasure Mobile App
As a latest-generation true RMS digital multimeter, the BE52 is 100 percent “MultiMeasure Mobile-ready” and is therefore equipped to meet all requirements for the professional evaluation and documentation of measurement data. Stored measurement data can be easily and conveniently transferred via the integrated Bluetooth® interface to a smartphone or tablet, where it can be professionally evaluated and logged using the free MultiMeasure mobile app (Android and iOS).
The combination of the affordable BE52 and the professional MultiMeasure Mobile evaluation software enables fast and reliable reports on electrical measurements at any time —including a wide range of analysis options, such as a logging function for long-term measurements, graphical evaluations, a reporting function, and data synchronization with us. Professional software MultiMeasure Professional via the cloud.
Equipment, Scope of Delivery, and Technical Specifications
The BE52 digital multimeter complies with the CAT III 600 V measurement category for safe operation in building installations (i.e., stationary loads with non-connectable connections, distribution connections, and equipment permanently installed in distribution equipment). Double insulation of the measuring instrument and test leads in accordance with Insulation Protection Class II. Optimal conditions for safe and reliable measurements, even in harsh environments.
LC screen: backlit
LCD display: 4 digits (maximum display: 3999)
Dimensions: 121 x 67 x 45 mm
Weight: 205 g
DC Voltage (V/DC)
Measurement Range: 0.4 to 600 V
Accuracy at 400 mV: ±(1.0% + 8 digits)
Accuracy at 4 V/40 V/400 V: ±(1.0% + 3 digits)
Accuracy at 600 V: ±(1.2% + 3 digits)
AC Voltage (V/AC, 50 / 60 Hz)
Measurement Range: 4 to 600 V
Accuracy at 4 V/40 V/400 V: ±(1.0% + 5 digits)
Accuracy at 600 V: ±(1.2% + 5 digits)
Direct current (A/DC)
Measurement range: 400 μA to 10 A
Accuracy at 400 μA: ±(1.0% + 3 digits)
Accuracy at 4000 μA/40 mA/400 mA: ± (1.5% + 3 digits)
Accuracy at 10 A: ± (2.5% + 5 digits)
Alternating current (A/AC)
Measurement range: 400 μA to 10 A
Accuracy at 400 μA: ±(2.0% + 5 digits)
Accuracy at 4000 μA/40 mA/400 mA: ±(2.5% + 5 digits)
Accuracy at 10 A: (3.0% + 7 digits)
Capacitance
. Measurement range: 40 nF to 4000 μF
. Accuracy at 40 nF: ±(5.0% + 35 digits)
Accuracy at 400 nF/4 μF/40 μF: ±(3.0% +5 digits) Accuracy at 40 nF, ±4 μF
: 0% (+35 digits) 5 digits)
Accuracy 4000 μF: ±(5.0% +5 digits)
Resistance (ohms)
Measurement range: 400 Ω to 40 MΩ
Accuracy at 400 Ω: ±(1.0% + 4 digits)
Accuracy at 4 kΩ/40 kΩ/400 kΩ/4 MΩ: ±(1.5% + 5 digits)
Accuracy: 4±0 MΩ (3.5% + 5 digits)
Frequency measurement range
: 10 Hz – 10 kHz
. Accuracy: ±(1.0% + 5 digits)
Duty Cycle Measurement Range
: 1% to 99%
Accuracy: ±(1.2% + 5 digits)
Built-in flashlight function
Scope of delivery:
- BE52 Digital Multimeter
- AAA batteries (2)
- Safety lines with test probes (2x)
- user manual
The Difference Between Standard Measuring Instruments and Those with True RMS Capability
A digital measuring instrument without an actual RMS function assumes that the measured AC signal is sinusoidal and uses this assumption to convert the measured raw signal for display. In reality, however, the current waveform is never purely sinusoidal; devices such as switching power supplies, speed or power controllers, etc., cause disturbances that in turn result in distorted current waveforms. Since these are no longer purely sinusoidal, they cannot be measured accurately without the True RMS function.
True RMS measuring instruments can accurately measure even non-sinusoidal signal waveforms and are therefore capable of directly determining the true effective value of any variable. “Root Mean Square” (RMS) refers to the accurate determination and output of the true effective value.
MultiMeasure mobile app – smart measurement data collection and analysis
With the free MultiMeasure mobile app, stored measurement data becomes even more transparent. Just like the MultiMeasure Studio Professional 2.0 analysis software developed by Trotec for cross-device management, analysis, and reporting of measurement data on a computer, the MultiMeasure mobile app—available for free on Android and iOSenables professional measurement data management with a wide range of useful features. The app automatically detects the BE52 handheld measuring device and many other measuring devices with a Bluetooth® interface, and they can be quickly and easily connected wirelessly to a mobile device.
The functionality of the MultiMeasure mobile app goes beyond simply displaying stored measurement values. All stored data can be displayed either numerically or as a graphical chart, and can also be saved as a series of measurements using the logging feature for long-term analysis. Even assigning measurement data to different projects (e.g., departments, rooms, buildings, etc.) is a breeze with the customer-supported app—including text and report templates for professional measurement data reports.
Advantages:
- A digital multifunctional measuring device with a wide range of measurement functions
- 4-digit LCD display (maximum display: 3999)
- Extremely durable and effective
- Automatic Range Selection
- CAT III 600V
- Measurement of direct and alternating current up to 10 A
- Measurement of DC and AC voltage up to 600 V
- True RMS function: accurate measurement by directly determining the true effective value
- resistance measurement
- Continuity Test and Diode Test
- Measurement of Frequency, Capacitance, and Duty Cycle
- storage function
- Impact-resistant housing
- Dust-proof – protection class IP40
- Class II insulation protection for the meter and measuring leads
- Compatible with the MultiMeasure mobile app (Bluetooth)
- Backlit screen
- Battery-Saving Automatic Shut-Off
- battery status indicator
MultiMeasure Mobile – all the app’s benefits at a glance:
- Automatic detection of the BE52 and other measuring devices via the Bluetooth ® interface
- Fast and intuitive navigation
- Displaying the measured value numerically or as a chart/matrix
- Integrated reporting feature for on-site documentation
- Function of the Measurement Data and Documentation Manager
- Customer management is already integrated
- Various analysis options available directly within the app
- Storage space for measurements related to photos
- Matrix measurements, including those using a photoliner
- Full data synchronization with MultiMeasure Professional via the cloud
