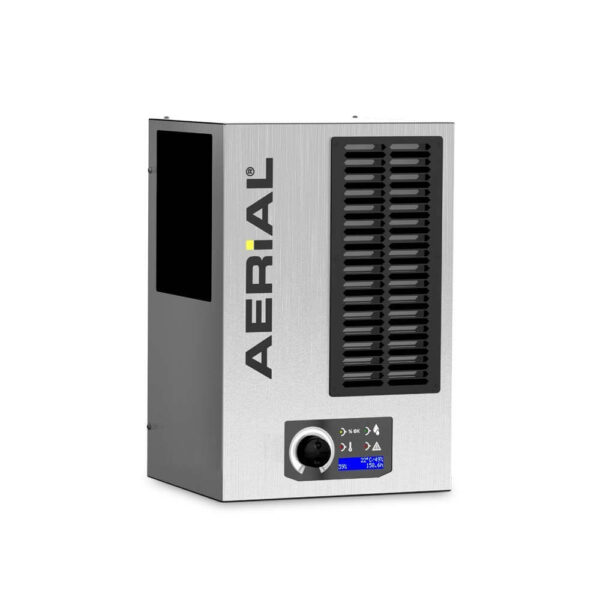

Aerial AD 110 – Condensation Dryer
A versatile solution for a variety of drying problems. The AD 110 is compact, lightweight, durable, and quiet—truly powerful and highly efficient.
Equipped with a wall mount for quick and easy installation, it is ideal for use in water treatment facilities, garages, canneries, museums, archives, basements, spas, and at home.
Key Features
- Stainless steel housing
- Filtered air is drawn into the unit from the side, and warm, dry air is vented through the diffuser on the front
- Compact and space-saving
- Wall-mounted
- Hermetically Sealed Piston Compressor
- Energy-efficient axial fan
- A maintenance-friendly refrigerant circuit with a service plug
- Copper-tube condenser and evaporator with aluminum fins
- On-demand hot gas melting system
- Hygrostat for regulating variable humidity
- Automatic drainage with overflow protection
- Built-in hour counter
Included
Built-in condensate pump (pump head: 3 m)
Replacement Filter
Condensate drain hose, 12 x 2 mm
Hose clamp drain hose 12 x 2/15 x 2 mm
Wall mount included as standard equipment
Advantages
- Aerial AD 110 air dryers are available with your logo and in your color—minimum order quantity: 15 units
- Energy consumption is displayed via a calibrated, non-resettable, MID-compliant energy meter
- Complies with the F-Gas Directive (2020), which reduces the use of HFCs to mitigate the effects of global warming
- The Principle of Condensation (Heat Pump Technology with Energy Recovery)
- Suitable for heated rooms up to 140 m³ and unheated rooms up to 70 m³
| Technical Specifications | Units | AD 110 |
|---|---|---|
| Capacity (30°C/80% relative humidity)/energy consumption |
l/24h/W
|
15/330
|
| Capacity (20°C/60% relative humidity)/energy consumption |
l/24h/W
|
8,5/236
|
| Capacity (15°C/70% relative humidity)/energy consumption) |
l/24h/W
|
8/215
|
| Airflow |
m ³ /h
|
225
|
| Operating temperature range |
°C
|
5-30
|
| Operating humidity range |
% relative humidity
|
35-95
|
| Power Source |
V/Hz
|
230/1-phase/50
|
| Volume Level |
dB(A)
|
46
|
| Condensate Drain |
mm
|
12 × 2
|
| Power cord |
m
|
3-prong
|
| Refrigerant |
R1234yf
|
|
| Protection Class |
IP54
|
|
| Product dimensions (H x W x D) |
mm
|
490 x 330 x 280
|
| Weight |
kg
|
18.5
|
