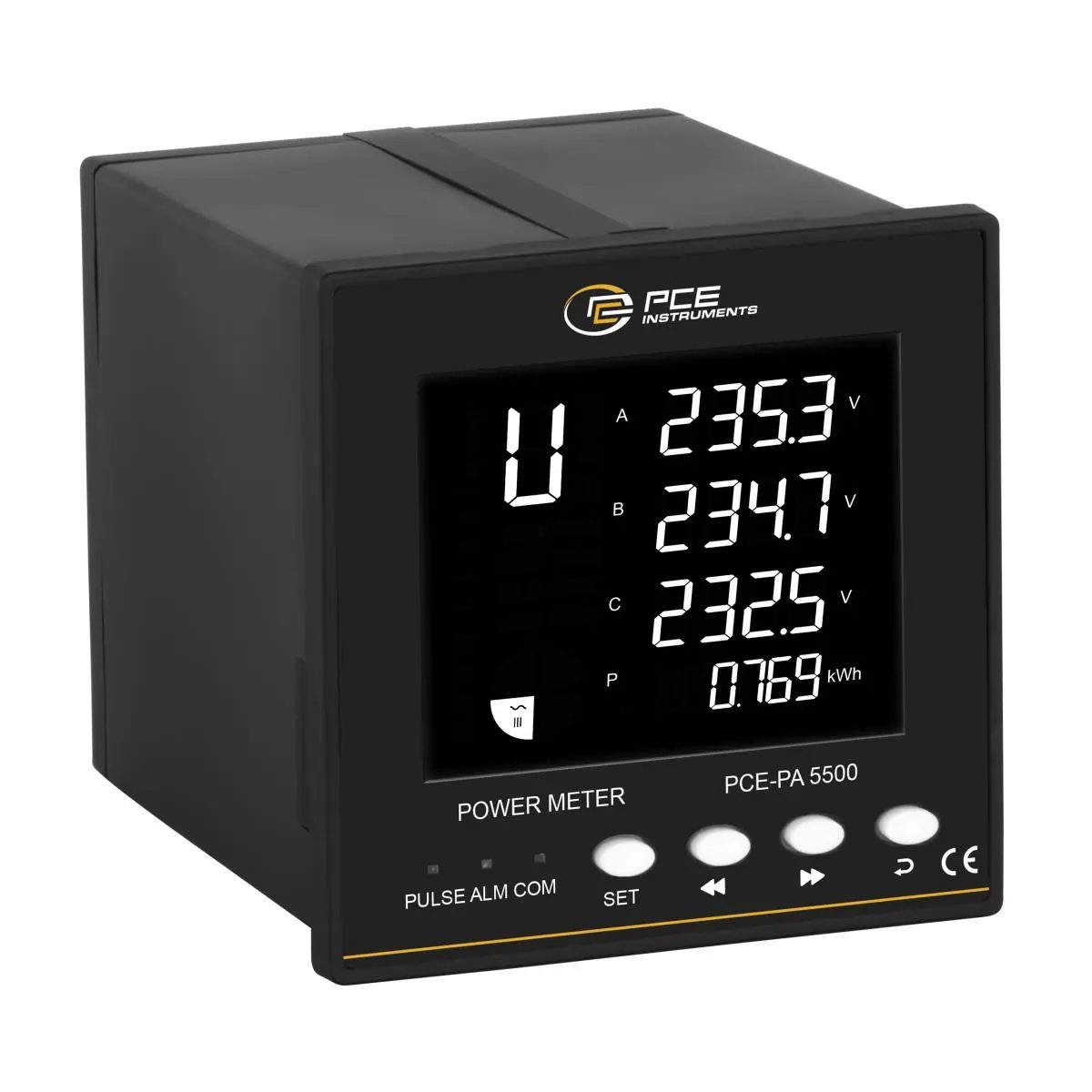

Power Quality Analyzer with RS485 interface / simple button operation / class 0.5 for basic power parameters / high-resolution black and white LCD display
The power quality analyzer is a compact instrument for measuring and displaying various network parameters in three-phase networks. This power quality analyzer can record the energy values of individual consumers or electrical feeders. In addition to the voltages and currents, the apparent, reactive and active power as well as the active and reactive energy are measured and shown on the 68 x 55 mm display. Furthermore, an RS485 interface is integrated into this power quality analyzer, which enables integration into existing systems. The RS485 interface communicates using the Modbus RTU protocol. This makes it possible to read out measured values from the power quality analyzer or to read and change device settings.

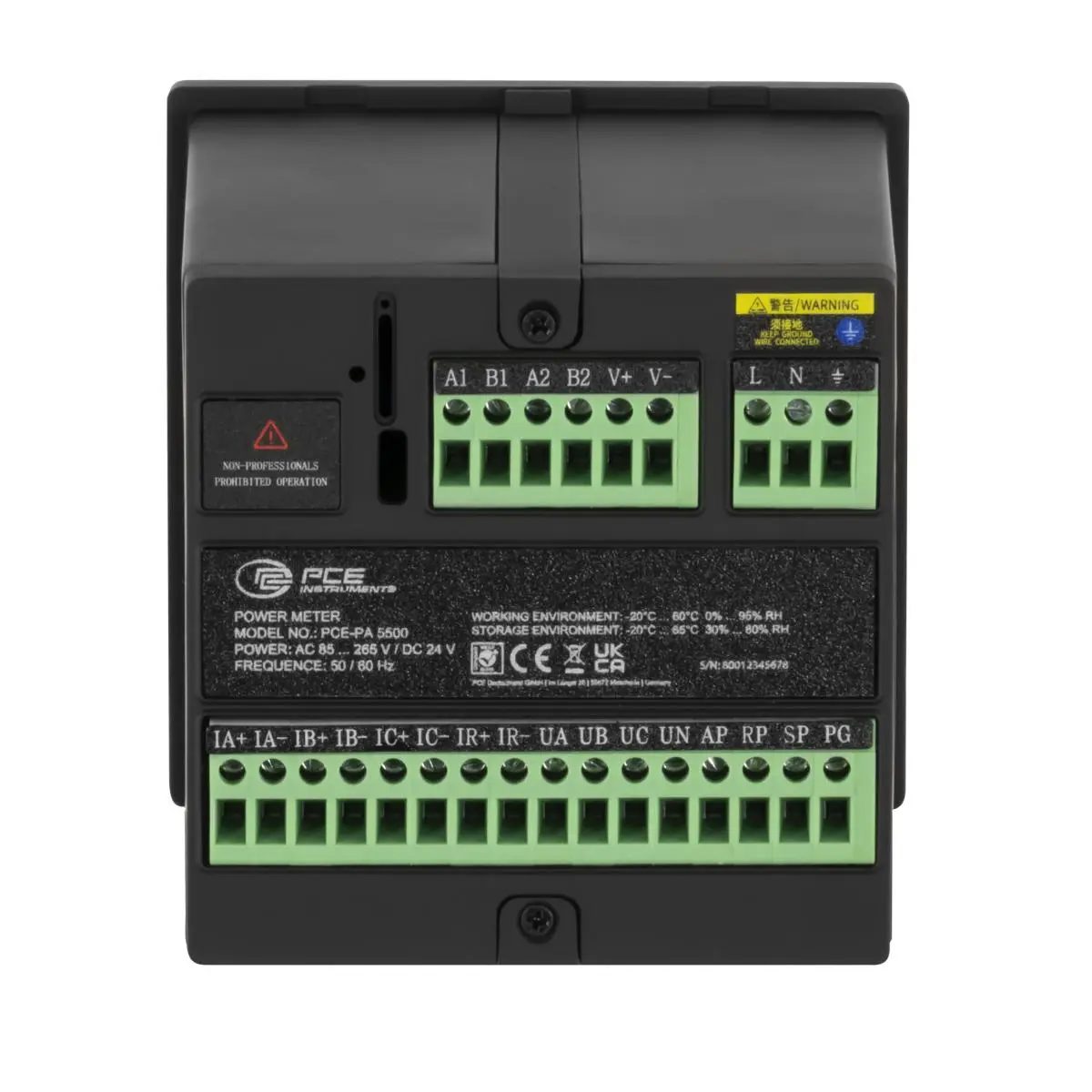

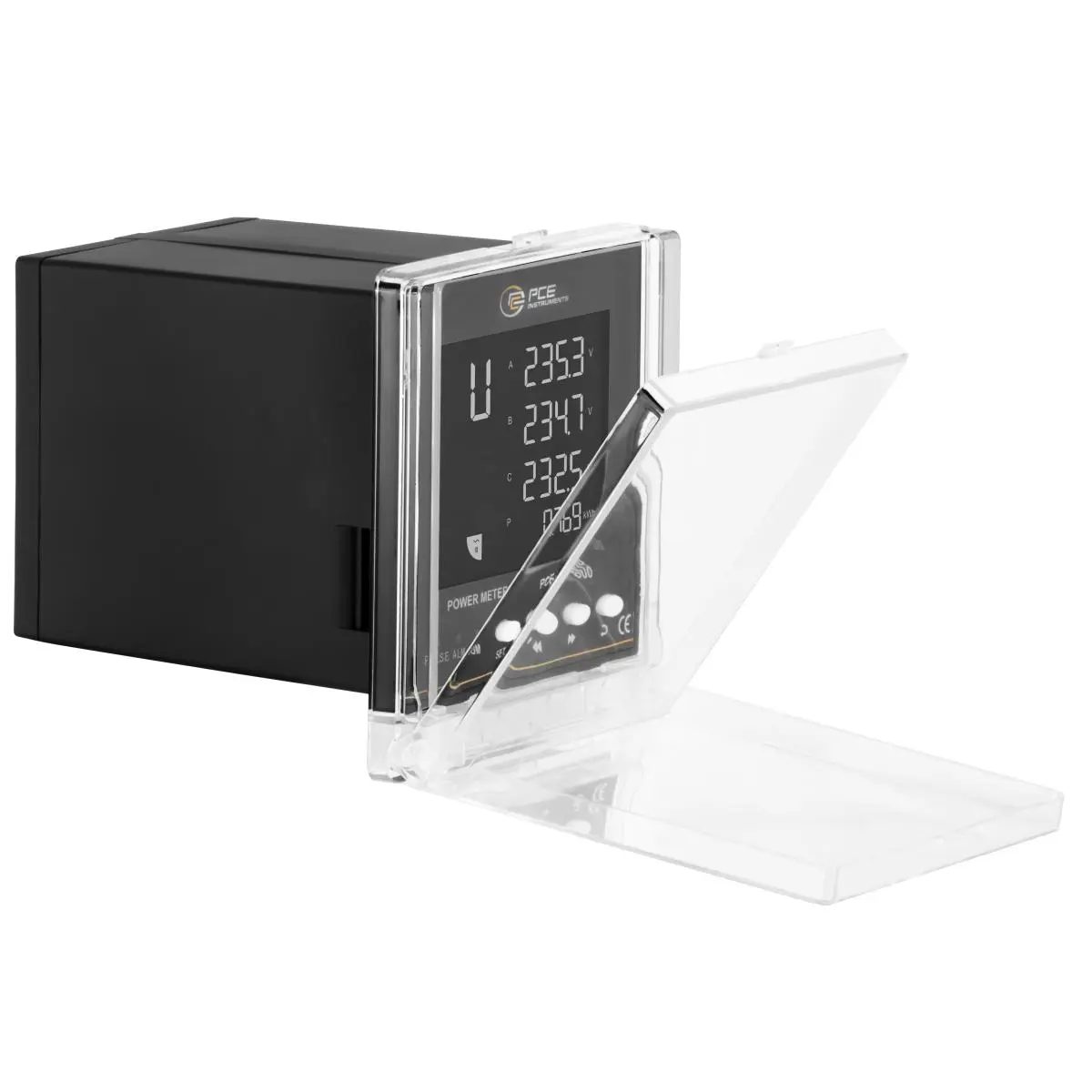

The power quality analyzer is designed for panel mounting with a cut-out of 96×96 mm. The scope of delivery includes a transparent door that can be attached to the front to protect the device against dust and moisture. In addition to the many measuring functions, the power quality analyzer offers alarm functions. A stable power supply is a top priority for every network operator. To avoid fluctuations in power quality and faults, grid monitoring, control and automation must be adapted and optimised.
Highlights
- Alternating voltage: 30 … 264 V
- Alternating current direct: 0.025 mA … 5 A
- Energy meter
- RS485 Modbus interface
- Accuracy class: 0.5
Technical specifications
- AC voltage — Measuring range: 30 … 264 V
- AC voltage — Resolution: 0,1 V
- AC voltage — Accuracy: 0.5 %
- AC voltage: Overload 1500 VAC continuous
- AC voltage: 2500 VAC, 50 … 60 Hz for one minute
- Alternating current AC — Measuring range: 0,025 … 5 A
- Alternating current AC — Resolution: 0,01 A
- Alternating current AC — Accuracy: 0.5 %
- Alternating current AC: Overload 10x RMS for 1s.
- Active power — Measuring range: 0,75 … 1320 W
- Active power — Resolution: 0,01 W
- Active power — Accuracy: 0.5 %
- Power factor — Measuring range: -1 … +1
- Power factor — Resolution: 0.001
- Power factor — Accuracy: 0.5 %
- Frequency — Measuring range: 45 … 65 Hz
- Frequency — Resolution: 0,01 Hz
- Frequency — Accuracy: 0.5 %
- Harmonic measurement (harmonics) — Measuring range: 1 … 50 (ordinal number)
- Harmonic measurement (harmonics): Current range 20 … 100 %
- Harmonic measurement (harmonics): Voltage range 0.1 … 100 %
- General technical data — Display type: LCD with backlight
- General technical data — Display size: 3,4 Inch
- General technical data — Interface: RS485
- General technical data: Standard(s)IEC 62053-22, GB/T18215.322-2008, IEC61010-1
- General technical data: Phase shift 0 … 359.9 °
- General technical data: Panel cut-out 96×96 mm
- General technical data — Menu language: English
- General technical data — Protection class (device): IP20
- General technical data — Power supply: 100 … 260 VAC, approx. 5 W
- General technical data — (Rechargeable) battery: 1 x 3 V CR1225 , lithium
- General technical data — Capacity: 50 mAh
- General technical data — Operating conditions: -20 … 60 °C , 0 … 95 % RH
- General technical data — Storage conditions: -20 … 65 °C , 30 … 80 % RH
- General technical data — Dimensions: ( L x W x D )96 x 96 x 110 mm
- General technical data — Weight: 474 g

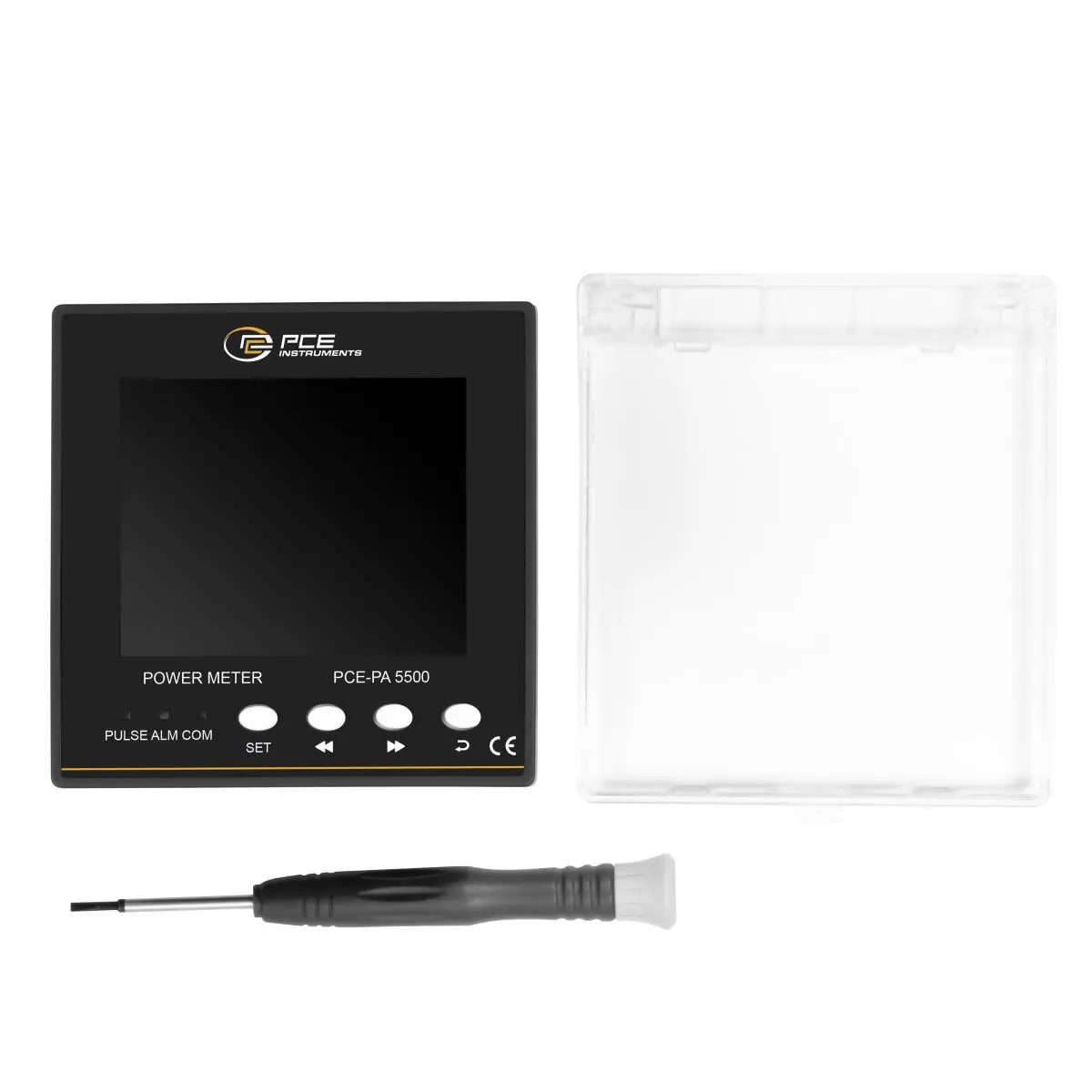

Delivery scope
- 1 x PCE-PA 5500 Power Quality Analyser / Power Analyzer
- 1 x transparent front door
- 1 x slotted screwdriver
- 1 x operating instructions
