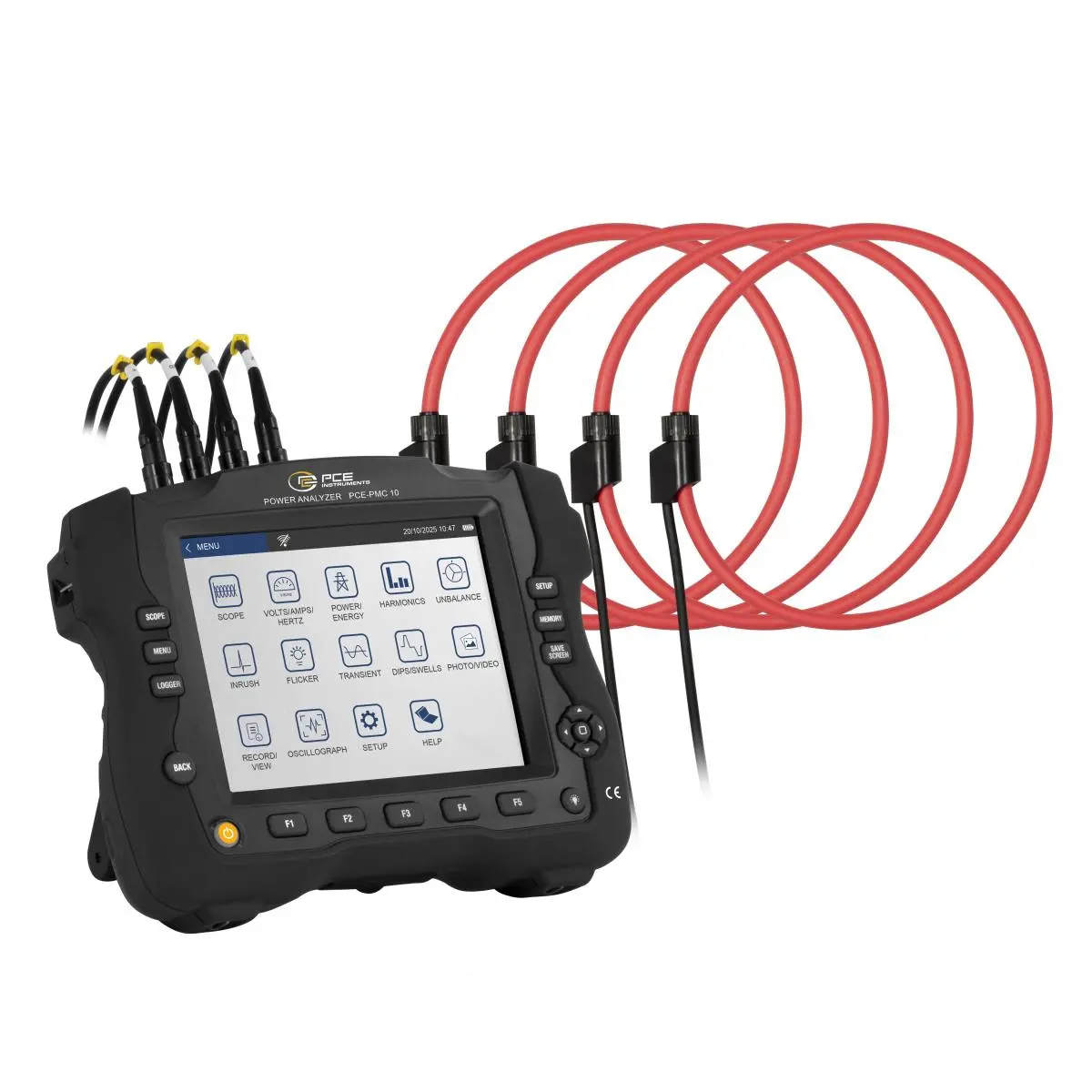

Power Quality Analyser / Power Analyzer with Rogowski coils / Grid monitoring / Data logger / Wifi / Mobile / Incl. Rogowski coils and measuring cables
The state-of-the-art Power Quality Analyser / Power Analyzer enables precise and comprehensive measurements in the areas of current, voltage, frequency, power, energy flicker and harmonics. It has been specially developed to provide reliable data both in industrial applications and when analyzing photovoltaic or inverter systems.
Simultaneous monitoring of all three phases and the neutral conductor provides a complete picture of the electrical system. The efficiency measurement of inverters allows a detailed analysis of the energy conversion, while the grid signal monitoring continuously detects deviations and faults. This Power Quality Analyser / Power Analyzer is therefore an indispensable tool for professional energy analyses.
Thanks to modern communication interfaces such as Wifi, the Power Quality Analyser / Power Analyzer can be easily integrated into existing systems and enables wireless analysis of measurement data. The integrated logger function and the memory reliably save all relevant data for later analysis.
An integrated oscilloscope function allows the visual display of signal curves, including inrush currents, and thus supports the analysis of transient phenomena. The 7.8-inch touch display ensures intuitive operation and a clear presentation of all measured values, diagrams and analysis functions. The Power Quality Analyser / Power Analyzer fulfils the requirements of IEC 61000-4-30 Class A and thus guarantees standard-compliant analysis of the power quality parameters.
This Power Quality Analyser / Power Analyzer combines precision, versatility and modern user-friendliness and is ideal for energy analyses, fault diagnostics and efficiency tests in complex electrical systems.
Highlights
- Measurement of all three phases and the neutral conductor
- Efficiency measurement of inverters
- Mains signal monitoring
- IEC 61000-4-30 Class A
- Wifi
- Logger function and memory
- Oscilloscope function
- Inrush current
- 7.8-inch touch display
- PC software
Technical specifications
- Direct voltage DC — Measuring range: 1 … 1000 V
- Direct voltage DC — Resolution: 0,1 V
- Direct voltage DC — Accuracy: ±0.5 % of Rd
- Direct current DC — Measuring range: 0,5 … 6000 A
- Direct current DC — Resolution: 0,1 A
- Direct current DC — Accuracy: ±5% ±5 Counts
- AC voltage — Measuring range: 1 … 1000 V
- AC voltage — Resolution: 0,1 V
- AC voltage — Accuracy: ±0.5 % of Rd
- AC voltage — Frequency: range 42.5 … 69 Hz
- Alternating current AC — Measuring range: 0,5 … 6000 A
- Alternating current AC — Resolution: 0,1 A
- Alternating current AC — Accuracy: ±0.5 % of Rd
- Phase angle — Measuring range: -360 … 0 °
- Phase angle — Resolution: 1 °
- Phase angle — Accuracy: 1 °
- Inrush current — Measuring range: 0,5 … 6000 A
- Inrush current — Resolution: 0.1 A
- Inrush current — Accuracy: 0.5 % ofRd
- Power factor — Measuring range: 0 … 1
- Power factor — Resolution: 0.001
- Power factor — Accuracy: ±0.1 %
- Flicker — Measuring range: 0 … 20
- Flicker — Resolution: 0,01
- Flicker — Accuracy: ±5%
- Measured variable Tension — Measuring range: 0 … 20 %
- Measured variable Tension — Resolution: 0,1 %
- Measured variable Tension — Accuracy: ±0.1%
- Measured variable Electricity — Measuring range: 0 … 20 %
- Measured variable Electricity — Resolution: 0,1 %
- Measured variable Electricity — Accuracy: ±1%
- Frequency — Measuring range: 42,5 … 460 Hz
- Frequency — Resolution: 0,001 Hz
- Frequency — Accuracy: ±0.01 Hz
- Harmonic measurement (harmonics) — Measuring range: 1 … 50 (ordinal number)
- Harmonic measurement (harmonics): Current range 0 … 100 %
- Harmonic measurement (harmonics): Voltage range 0 … 100 %
- General technical data — Display type: Touch screen
- General technical data — Display size: 7,8 Inch
- Storage medium SD card — Storage capacity: 64 GB
- Storage medium SD card — Storage interval from: 1 s
- Storage medium SD card — Storage interval to: 60 min.
- Storage medium SD card — Interface: USB-C, WiFi
- Storage medium SD card: Standard(s)IEC 61000-4-30, IEC 61000-4-15, IEC 61000-4-7
- Storage medium SD card: Maximum cable diameter 150 mm
- Storage medium SD card: Safety standard CAT III 1000V, CAT IV 600V
- Storage medium SD card — Menu language: English (GB), English, Chinese
- Storage medium SD card — Protection class (device): IP42
- Storage medium SD card — Power supply: 12 … 15V DC (power supply unit included)
- Connector type Euro plug — (Rechargeable) battery: 2 x 7,4 V internal , Lithium-ion battery
- Connector type Euro plug — Capacity: 5200 mAh
- Connector type Euro plug — Operating conditions: -10 … 40 °C , 10 … 95 % RH
- Connector type Euro plug — Storage conditions: -20 … 60 °C , 10 … 95 % RH
- Connector type Euro plug — Dimensions: ( L x W x H )280 x 75 x 215 mm
- Connector type Euro plug — Weight: 1834 g
Delivery scope
- 1 x Power Quality Analyser / Power Analyzer PCE-PMC 10
- 4 x Rogowski coil 150 mm / 5.9 in
- 5 x Angled magnetic measuring adapter
- 5 x Crocodile clip
- 5 x Test probes
- 1 x Test lead set
- 1 x USB-C cable
- 1 x SD card 64 GB
- 1 x Shoulder strap
- 1 x Power supply unit 15V / 2.4 A
- 1 x Country adapter for power supply unit
- 2 x Rechargeable battery 7.4V / 5200 mAh
- 1 x Instruction manual
- 1 x Carrying case
- 1 x PC software
