Force Gauge / Digital Force Gauge / 2-way ratchet head / Adjustable alarm / Internal memory / Battery status display / Peak value

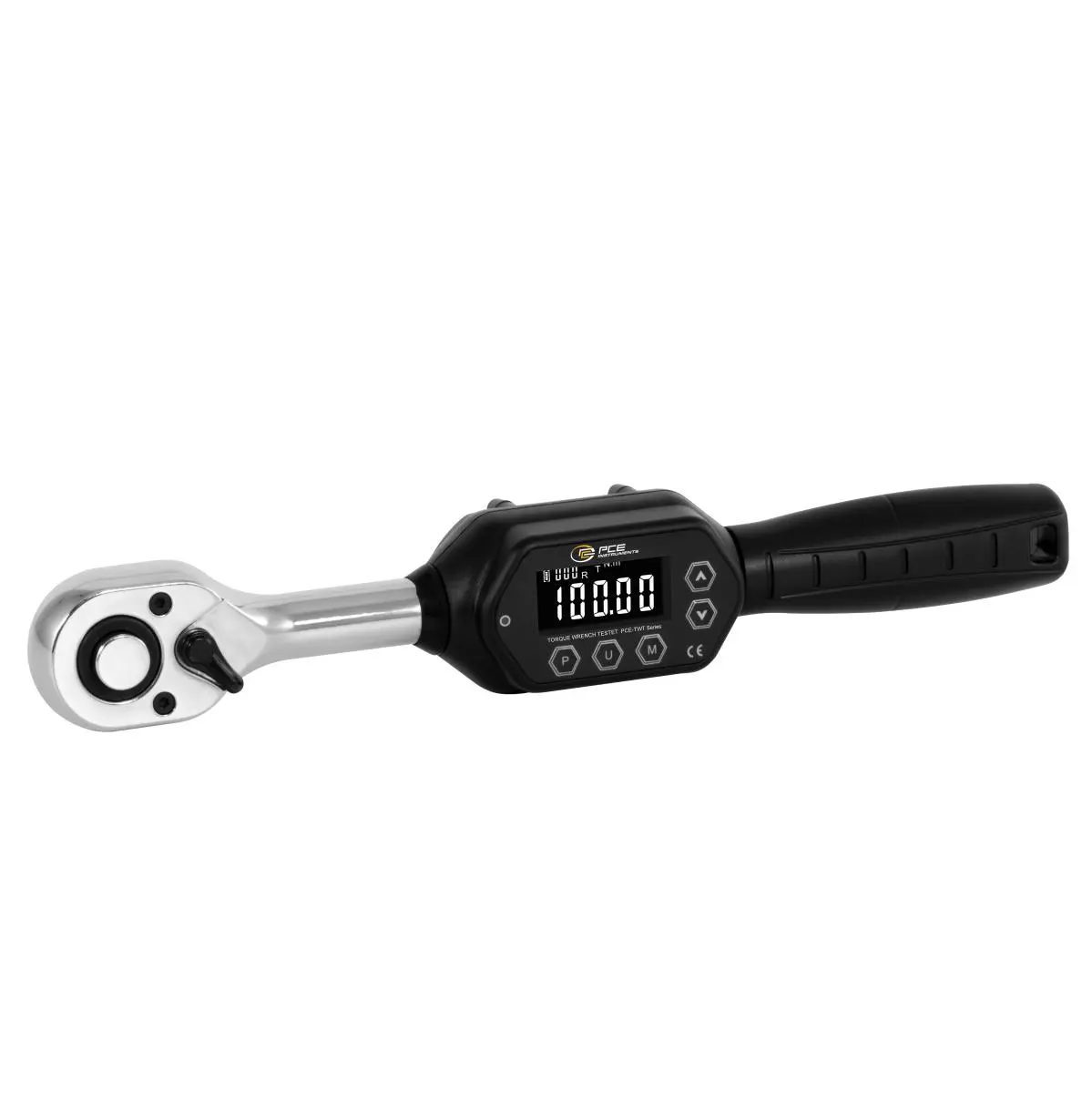

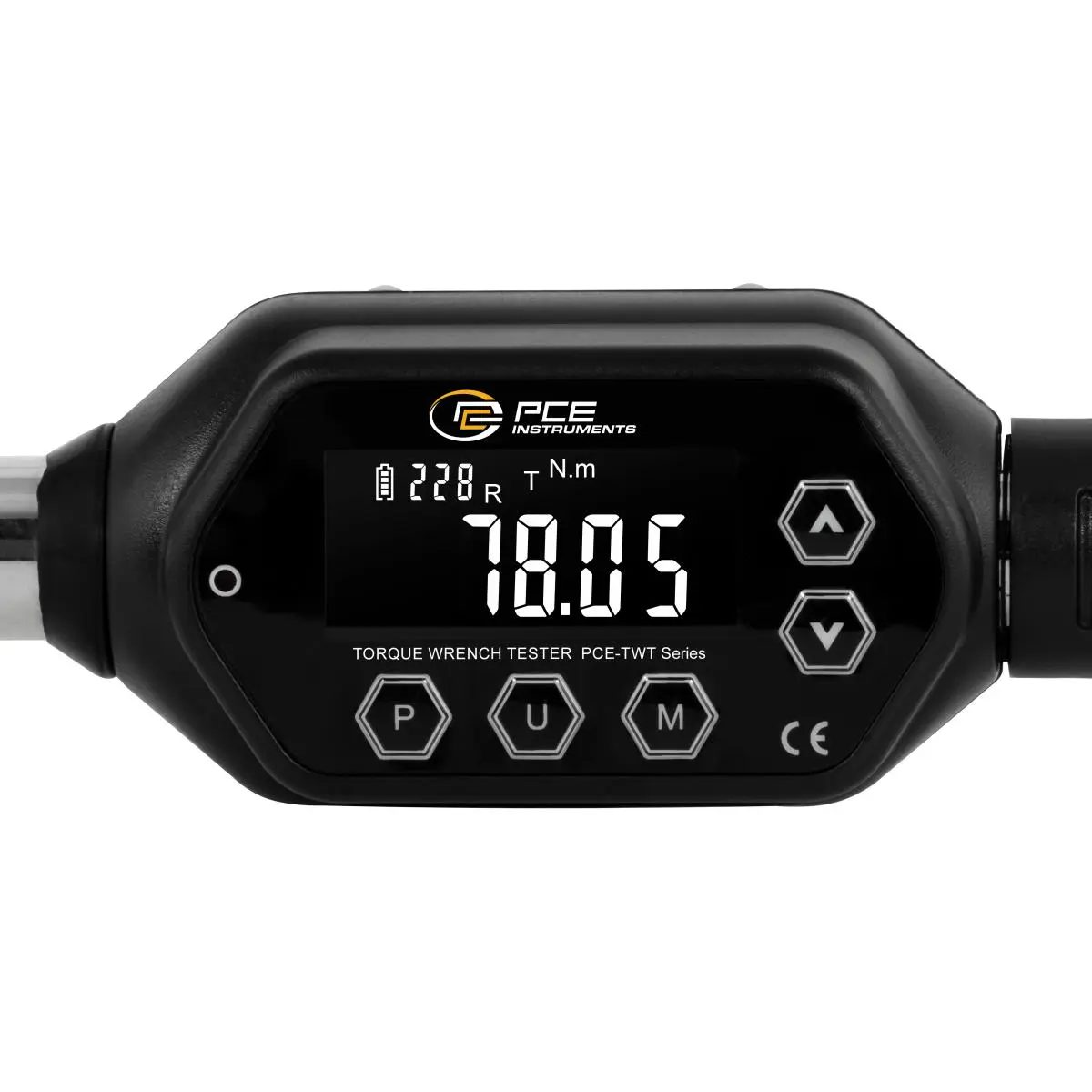

The Force Gauge / Digital Force Gauge is a compact, portable precision tool for applications where exact torque values are crucial. It has an easy-to-read backlit display that provides clear values even in poor lighting conditions.
To assist the user, the Force Gauge / Digital Force Gauge emits both an acoustic signal and an LED display as soon as the preset torque value is reached. Four different units of measurement (Nm, kgf-cm, lbf-ft, lbf-in) and three measuring modes – real time, peak value and preset – make it flexible to use. Automatic switch-off after a few minutes saves the batteries, and up to 999 measured values can be stored in the internal memory. The stored values can only be called up on the device.

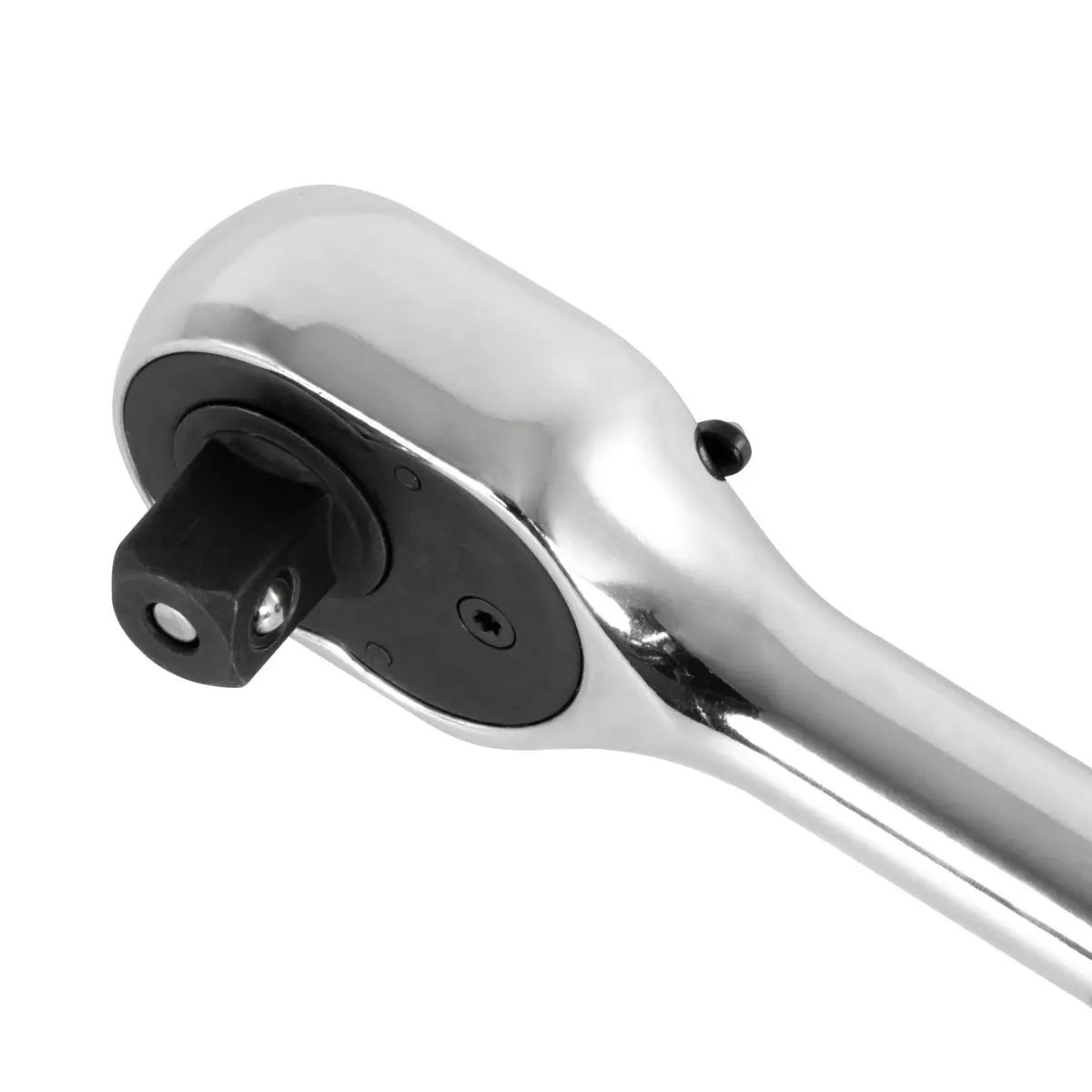

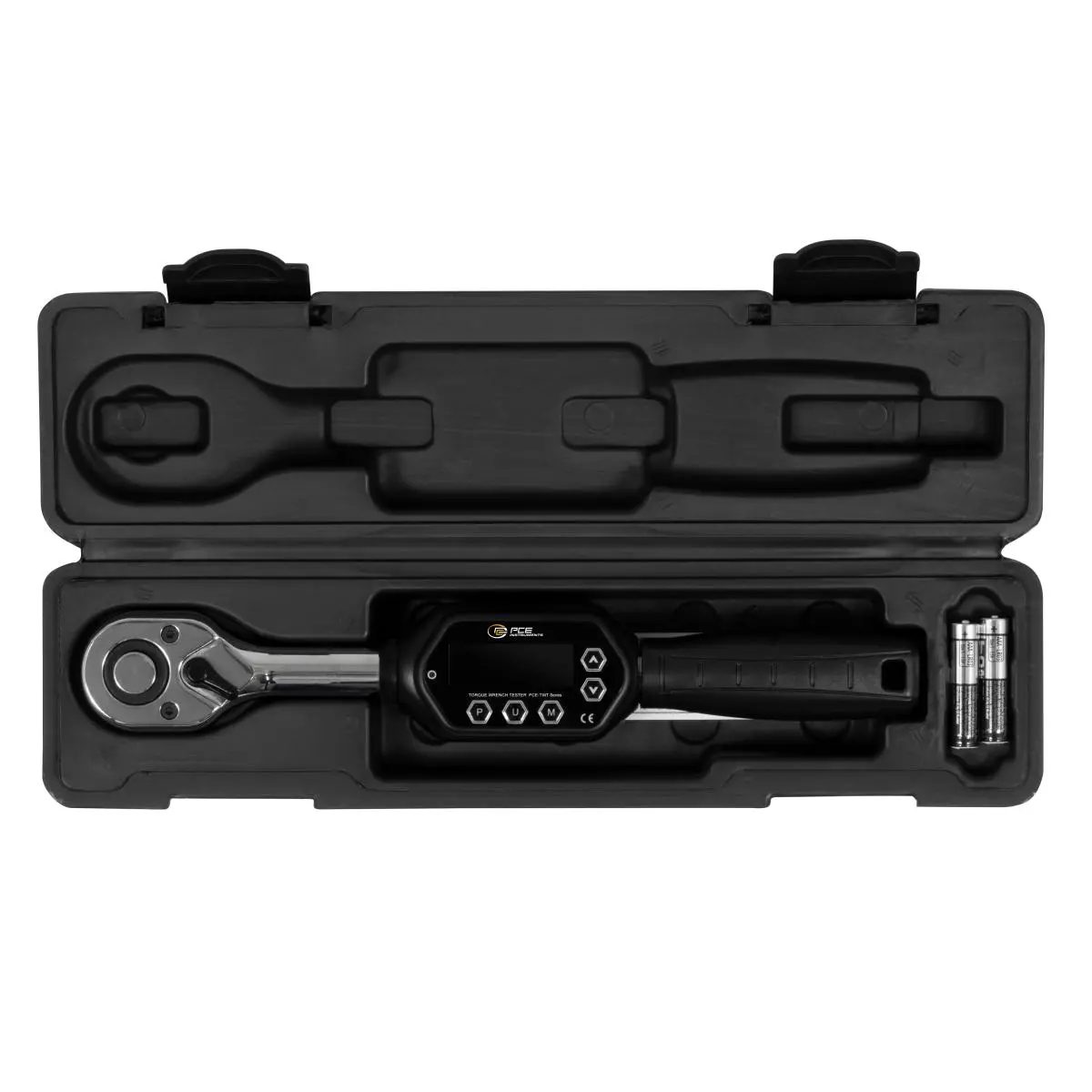

The Force Gauge / Digital Force Gauge is equipped with a fine-toothed ratchet head, which enables precise work even with a small radius of movement. Thanks to its robust construction made of metal and resistant plastic, it is durable and suitable for regular use. Our Force Gauge / Digital Force Gauges are primarily used in vehicle construction, mechanical engineering, bicycle assembly and in the electrical and electronics industry. They are used to tighten bolts and nuts to a precisely defined torque in order to connect components securely and function properly without damaging them. The Force Gauge / Digital Force Gauge is supplied in a plastic case with 2 AAA batteries.
Highlights
- 3 Measuring modes
- 4 Measuring units
- Large display
- Internal memory
- Adjustable alarm
Technical specifications
Torque Measuring range 3 … 100 Nm Resolution 0,01 Nm Accuracy clockwise: ±2% FS, anti-clockwise: ±2.5% FS Torque Measuring range 2,21 … 73,8 lbf ft Resolution 0,01 lbf ft Accuracy clockwise: ±2% FS, anti-clockwise: ±2.5% FS Torque Measuring range 26,55 … 885 lbf-in Resolution 0,01 lbf-in Accuracy clockwise: ±2% FS, anti-clockwise: ±2.5% FS Torque Measuring range 30,59 … 1020 kgfcm Resolution 0,01 kgfcm Accuracy clockwise: ±2% FS, anti-clockwise: ±2.5% FS General technical data Measuring functions peak, Real-time value, Default value Units Nm, kgfcm, lbfft, lbf in Connections 1/2 inch Storage medium Internal memory Storage capacity 999 Values Automatic power-off 3 min Alarm Acoustic, optical Alarm settings 3 … 100 Nm Protection class (device)IP52 Power supply 2x AAA batteries (Rechargeable) battery 2 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions-10 … 60 °C , 10 … 90 % RH Storage conditions-20 … 70 °C , 10 … 90 % RH Dimensions ( L x W x H )290 x 48 x 43 mm Weight 701 g
Delivery scope

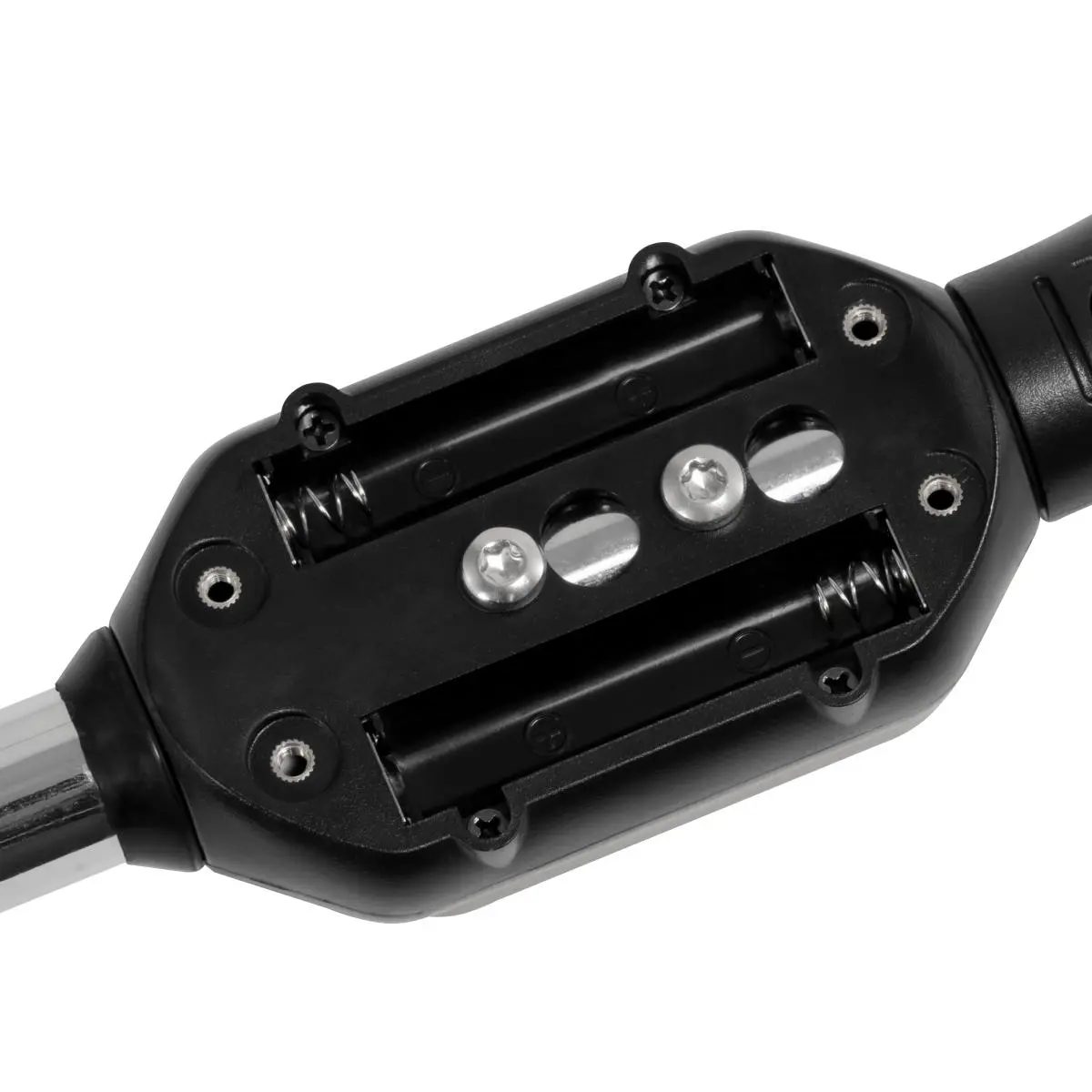

1 x PCE-TWT 100N Force Gauge / Digital Force Gauge 2 x 1.5V AAA batteries 1 x Instruction manual 1 x Plastic case
