Health & Safety / One-button operation / Battery operation / Incl. carrying case
The portable Health & Safety on the principle of a two-point pin probe and enables simple and reliable measurement of the surface resistivity of materials – without the need for a megohmmeter, electrometer or other high-voltage measuring devices.
Thanks to its slim and handy design, the device can be conveniently operated with one hand and is ideal for on-site testing or mobile use in production and laboratories. Despite its compact size, it delivers precise results for quickly assessing whether a material is insulating, dissipative or conductive.

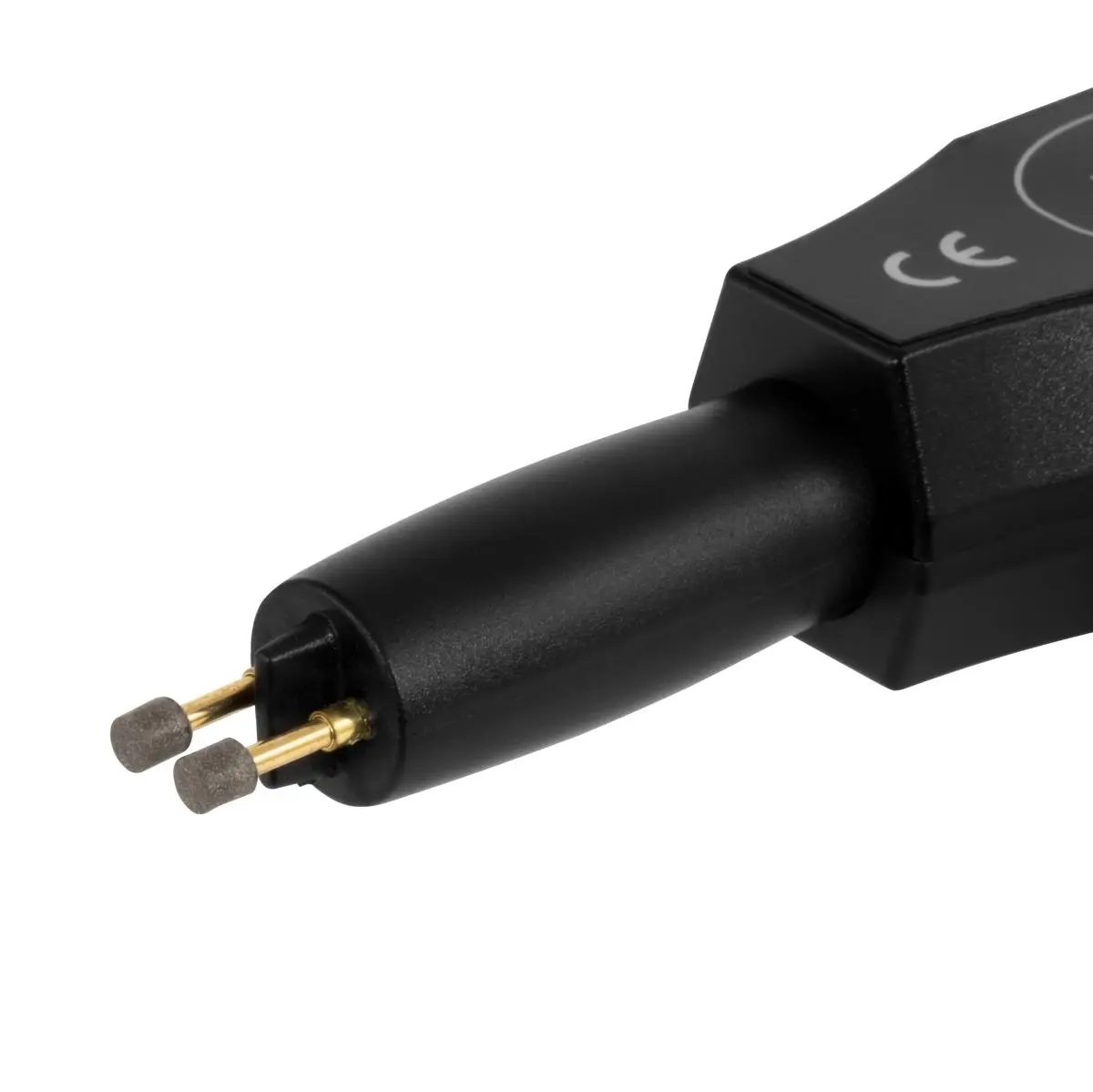

The Health & Safety uses gold-plated, spring-loaded electrodes that ensure excellent contact with a wide variety of surfaces and minimize contact resistance. All electrodes are replaceable ATE quality pogo pin probes, made from beryllium copper with a hard gold plating of at least 60 microinches – robust, durable and precise.

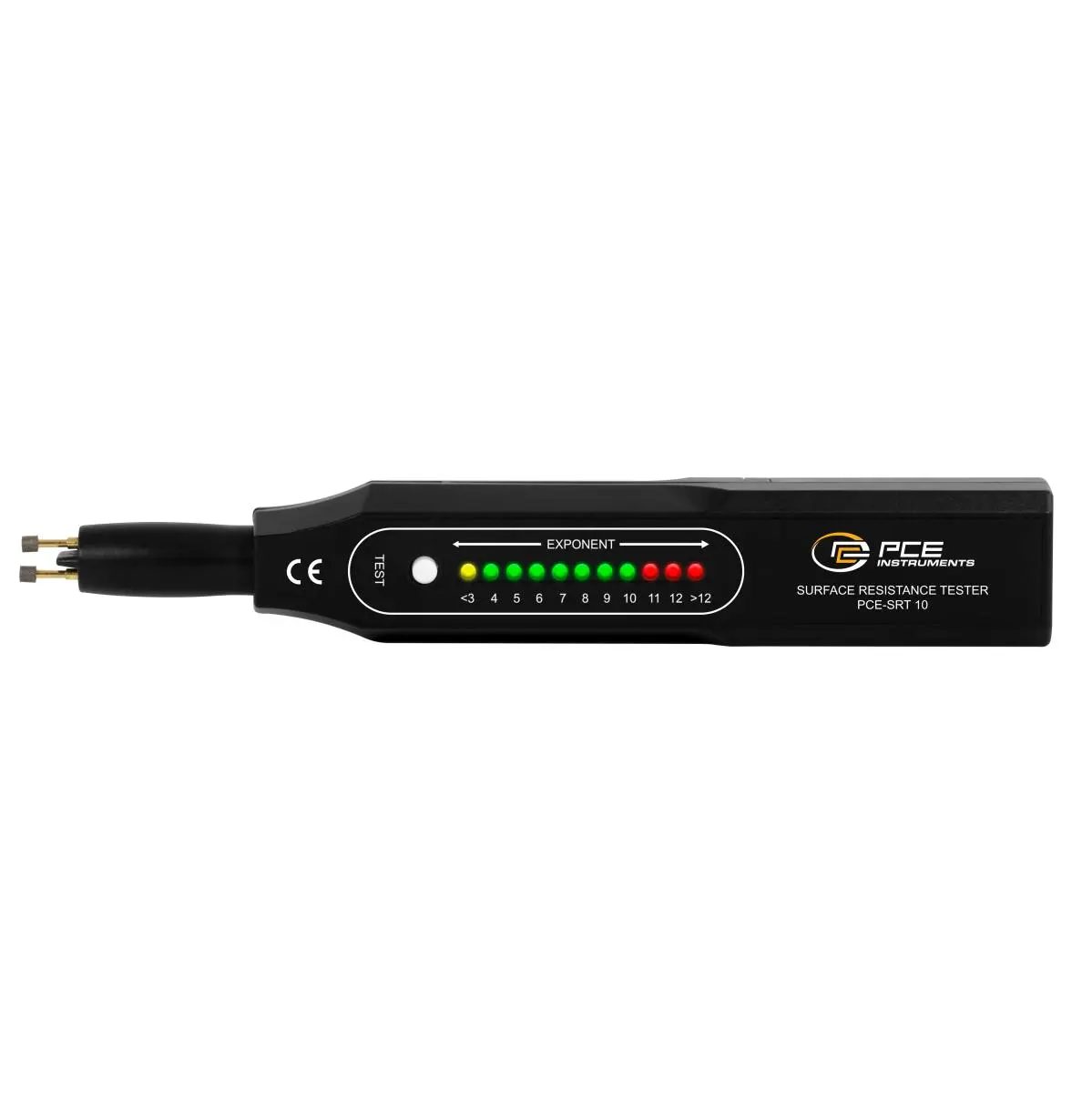

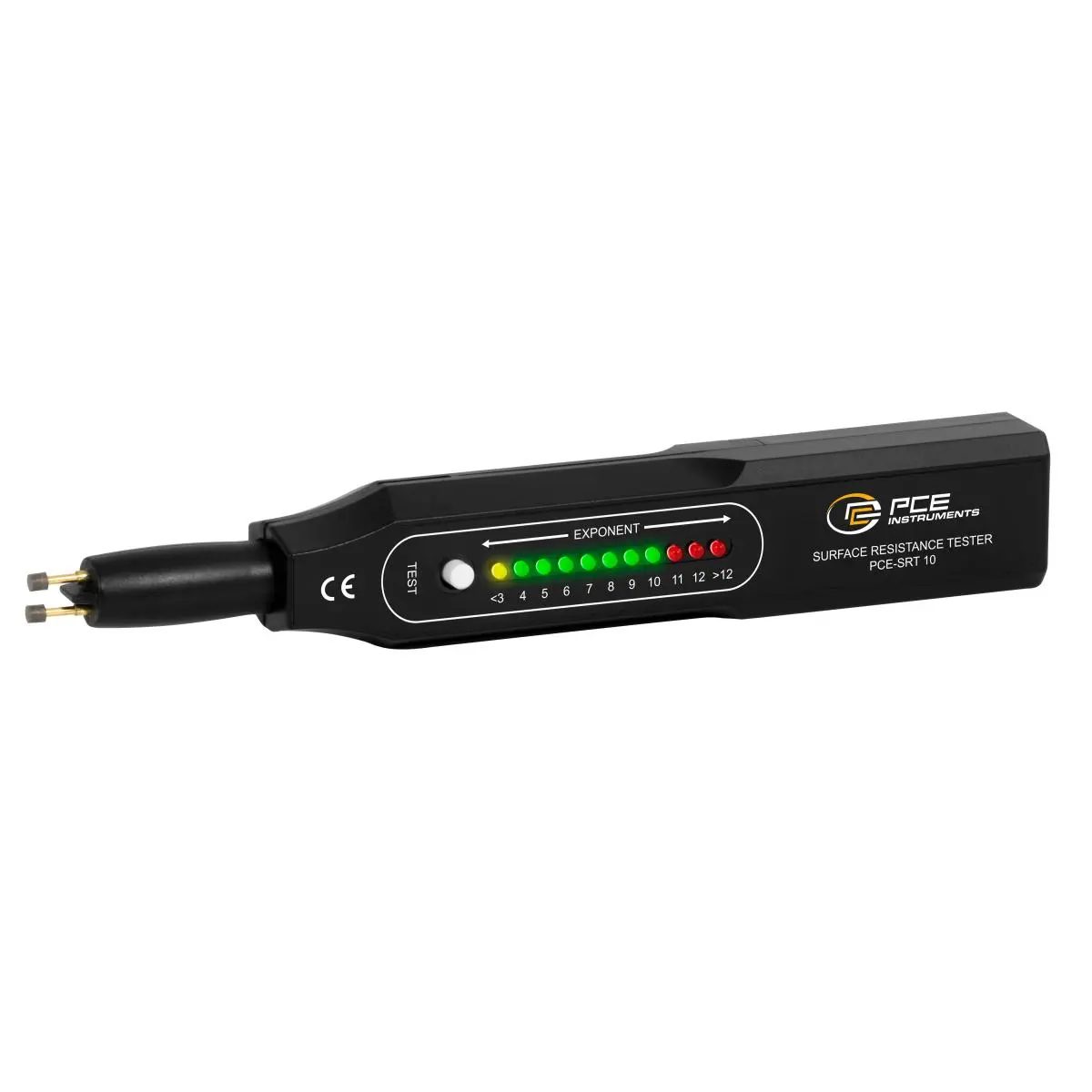

The two-point probe head is directly connected to an integrated surface resistance measuring device, which measures the surface resistance at a test voltage of approx. 9 volts. The measurement results are shown on a colored LED display. This allows the ESD properties of a material to be clearly recognized at a glance.
With its combination of precise technology, easy handling, compact design and clear LED display, this Health & Safety is the perfect solution for quick on-site testing, quality control and ESD compliance tests in production, laboratories and development.
Highlights
- Color-coded LED display
- Compact and handy
- Gold-plated electrode contacts
- Automatic resistance measurement
- Two-point pin probe technology
Technical specifications

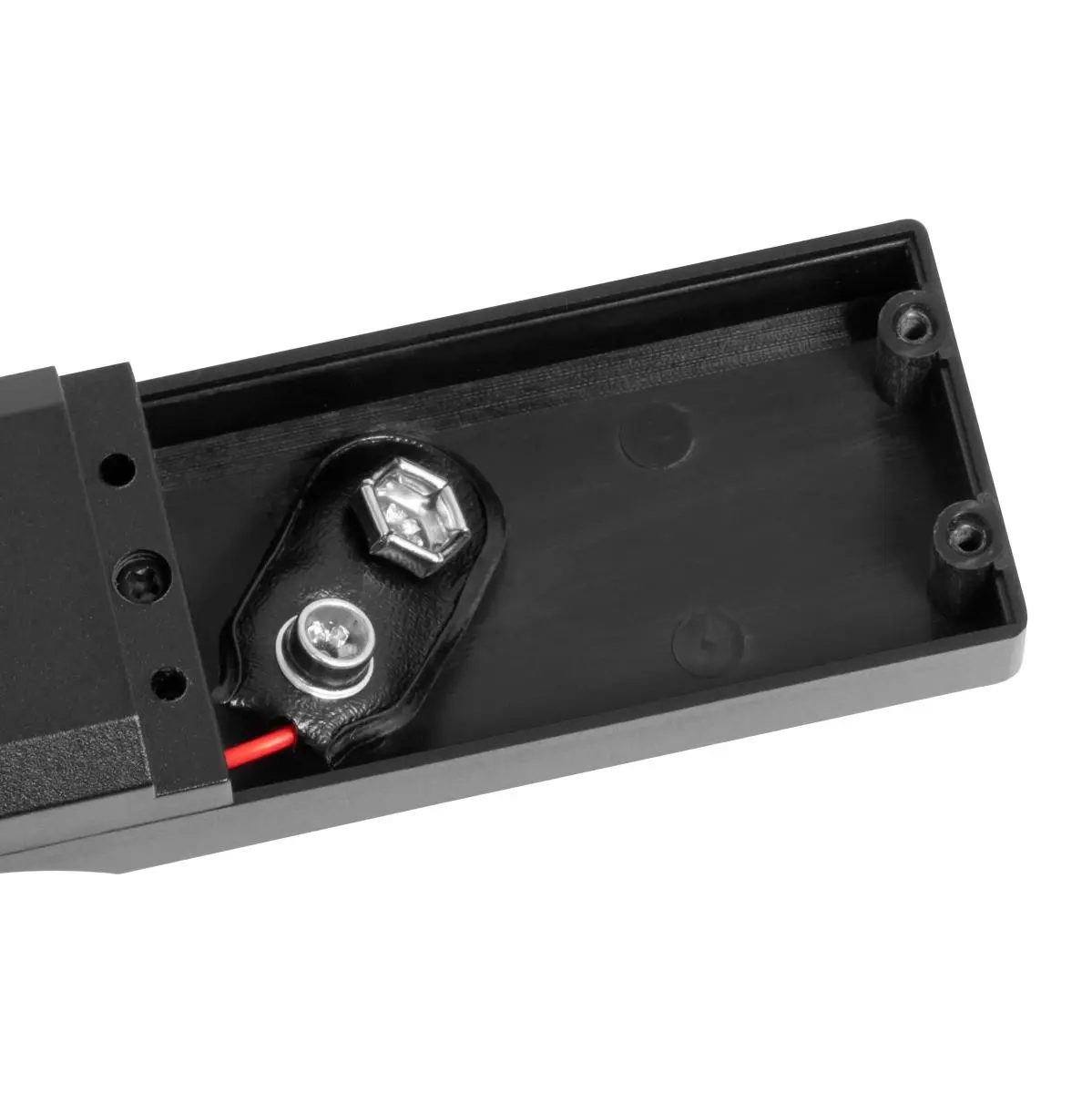

Resistance Measuring range 10 ³ Ω … 10 ¹² Ω Resolution 1 Decade Accuracy±10% FS Sensor Min. measuring surface 13 mm Housing ABS Additional description Nickel/silver, gold-plated Dimension Diameter: 4 mm General technical data Protection class (device)IP20 (Rechargeable) battery 1 x 9 V 9V block , Alkali-manganese Operating conditions 5 … 50 °C , 0 … 75 % RH Storage conditions-10 … 50 °C , 0 … 75 % RH Dimensions ( L x W x H )210 x 37 x 36 mm Weight 62 g
Delivery scope

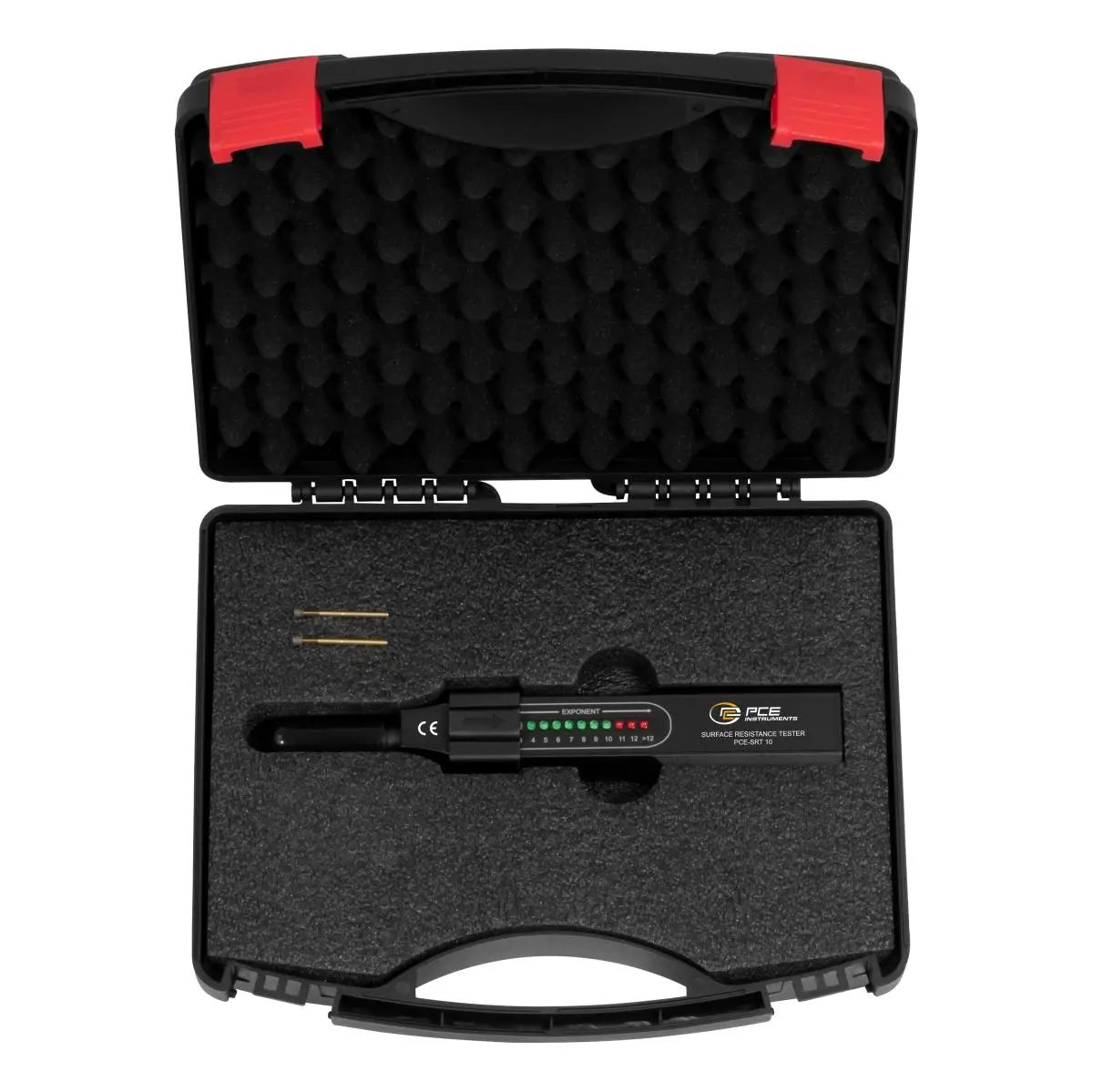

1 x PCE-SRT 10 Health & Safety 1 x Protective cap 1 x Transport case 1 x Instruction manual
