Refrigerant Gauges
in Robust Housing / Flow Rate of 340 l/min / Filter for Oil Mist Reduction / Connections: 1/4" and 3/8"

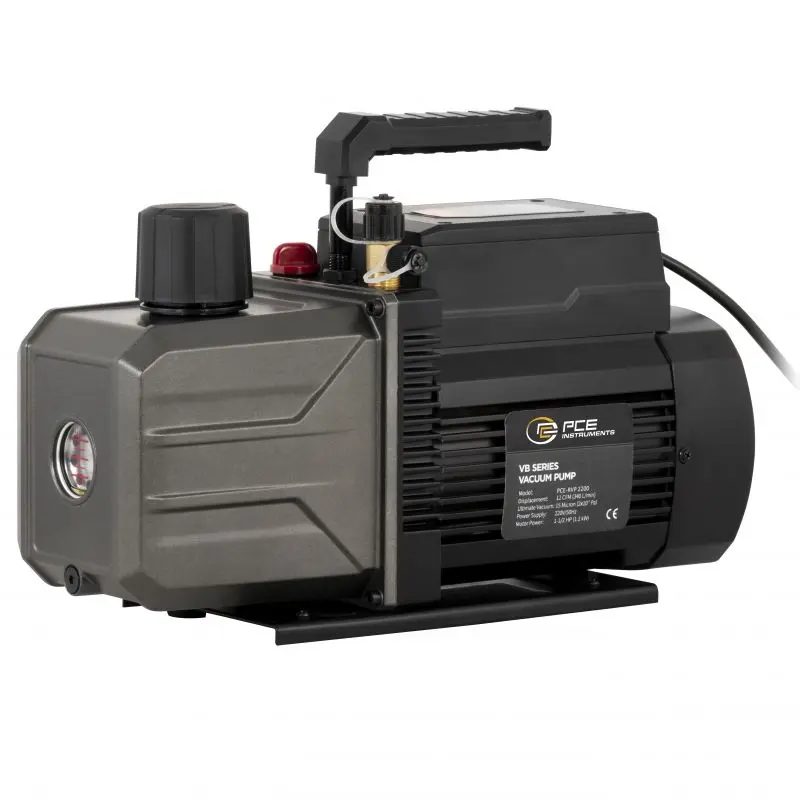

The Two-Stage Refrigerant Gauges from PCE Instruments is equipped with a powerful motor that provides high torque. The motor power is 1.5 HP (1.1 kW), ensuring reliable and efficient performance. With an impressive flow rate of 340 l/min, the Refrigerant Gauges is capable of efficiently evacuating large volumes of refrigerants. The vacuum pump is equipped with 1/4" and 3/8" connections, allowing for versatility and adaptability to various refrigerant hoses and applications, such as heat pumps.
Our Two-Stage Refrigerant Gauges is equipped with a state-of-the-art filter element that effectively contributes to reducing oil mist. This filter element not only enhances the pump's lifespan but also ensures a cleaner working environment and contributes to environmental preservation. The ergonomically designed rubber handle allows for secure transportation and ease of handling. The Refrigerant Gauges is used to evacuate heat pumps, air conditioning units, and refrigeration systems before filling them with refrigerant. This is essential for removing moisture and air from the system, thereby improving the efficiency of the air conditioning system.
Highlights
- For refrigerants (e.g., R12, R22, R134a)
- High torque and efficient motor
- Motor power: 1.5 HP (550 W)
- Flow rate: 340 l/min
- Connections: 1/4" and 3/8"
- Filter element for oil mist reduction

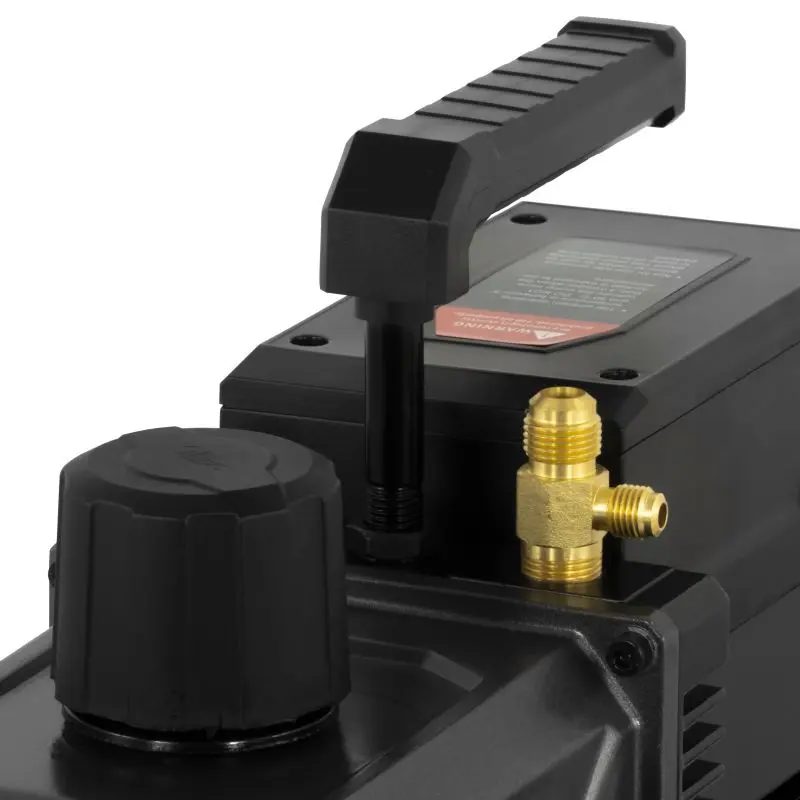

- Comfortable and sturdy rubber grip
Technical specifications
General Technical Data Connection Type 1/4" SAE, 3/8" SAE Motor Power 1.5 HP Flow Rate 340 l/min Oil Capacity 660 ml Ultimate Vacuum 0,02 mbar Protection Class IP20 Voltage Supply Schuko Plug (230V AC) Weight 15.13 kg Device Weight with Accessories 15.2 kg Device Weight with Accessories and Packaging 16.6 kg Dimensions (L x W x H)390 x 140 x 260 mm Operating Conditions 5 … 40 °C, 20 … 80 % r.F. Storage Conditions 5 … 40 °C, 20 … 80 % r.F.
Delivery scope

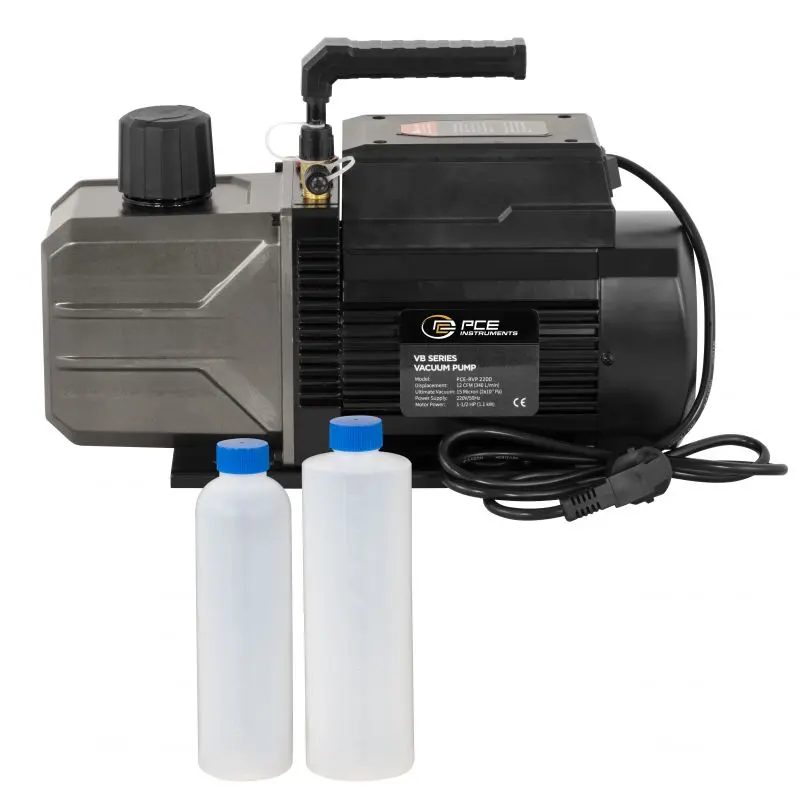

1 x Refrigerant Gauges PCE-RVP 2200 2 x Bottle 300 ml 1 x User Manual
