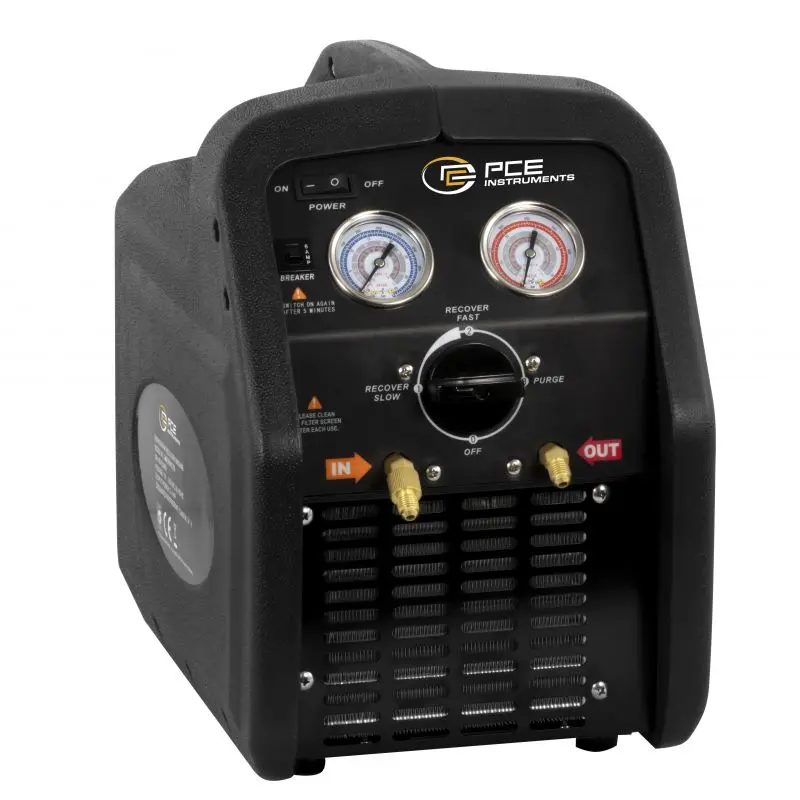

Refrigerant Gauges/ Motor output 0.75 hp / Compressor: Oil-free, air-cooled / Suction: Liquid, push/pull, steam / Overload protection 8 A / Cleaning function
With an inlet pressure of up to 38.5 bar, the Refrigerant Gauges is a reliable solution for a wide range of applications in air conditioning maintenance, refrigeration technology, the automotive industry, industrial processes and environmental technology. The filter dryer is suitable for a wide range of refrigerants such as R134A, R22, R12, R410A, R404A, R502 etc.
Equipped with an integrated overload protection circuit breaker, our refrigeration unit with ¾ HP brush motor offers reliable protection against damage caused by excessive current flow. With a flow rate of up to 2.2 kg/min for liquid refrigerant, it ensures efficient and fast recovery. A precise pressure gauge enables accurate monitoring of the pressure. If the pressure reaches or exceeds 38.5 bar, recovery is automatically stopped to ensure the safety and integrity of the system. Our device is equipped with a filter drier that removes particles and impurities from the refrigerant and absorbs moisture to protect the refrigeration meter from corrosion and wear damage.

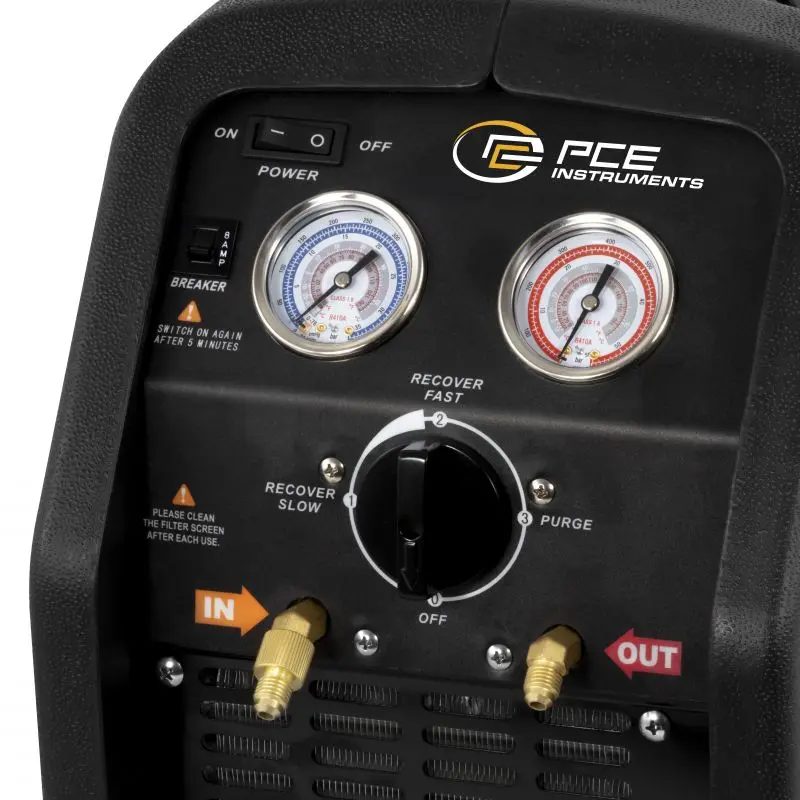

A clean refrigerant increases the service life and performance of the refrigeration system. The "purge"function activates the self-cleaning of the Freon refrigerant recovery unit, which safely channels the excess refrigerant into the recovery tank while reducing the risk of machine damage due to expansion. The refrigerant recovery unit is compact and lightweight (approx. 13 kg), yet extremely robust and durable. It is ideal for use in various refrigeration applications and is easy to transport and handle.
Highlights
- Incoming pressure up to 38.5 bar
- Outgoing pressure up to 55 bar
- For refrigerants (e.g. R12, R134a, R22, R401B, R402A)
- Overload protection: 8 A
- Motor power: 0.75 hp
- Compressor: Oil-free, air-cooled
- Connections: 1/4 inch SAE
- Speed: 1,450 RPM
Technical specifications
Print Measurement range 0 … 38.5 bar Resolution 0.5 Print Measurement range 0 … 558 psi Resolution 5 psi Suction rate liquid Category 3 1.6 kg/min Category 4 1.8 kg/min Category 5 2.2 kg/min Suction rate push/pull Category 3 4.6 kg/min Category 4 5.6 kg/min Category 5 6.3 kg/min Vapour extraction rate Category 3 0.2 kg/min Category 4 0.25 kg/min Category 5 0.25 kg/min General technical data Connections 1/4 inch SAE Current consumption measuring device 4 A Refrigerant R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R502, R509, R402A, R404A, R407A, R407B, R410A, R507, R411A, R411B, R412A Engine power 0.75 hp Compressor Oil-free, air-cooled, piston Flow rate 2.2 kg/m Overload protection 8 A Overpressure 38.5 bar Speed 1450 RPM Protection class (device)IP30 Power supply 110 … 220V AC | 50/60 Hz Plug type Protective contact plug Weight 12.9 kg Operating conditions 0 … 40 °C , 20 … 85 % r.H Storage conditions 0 … 40 °C , 20 … 85 % r.H Dimensions ( L x W x H )400 x 250 x 360 mm

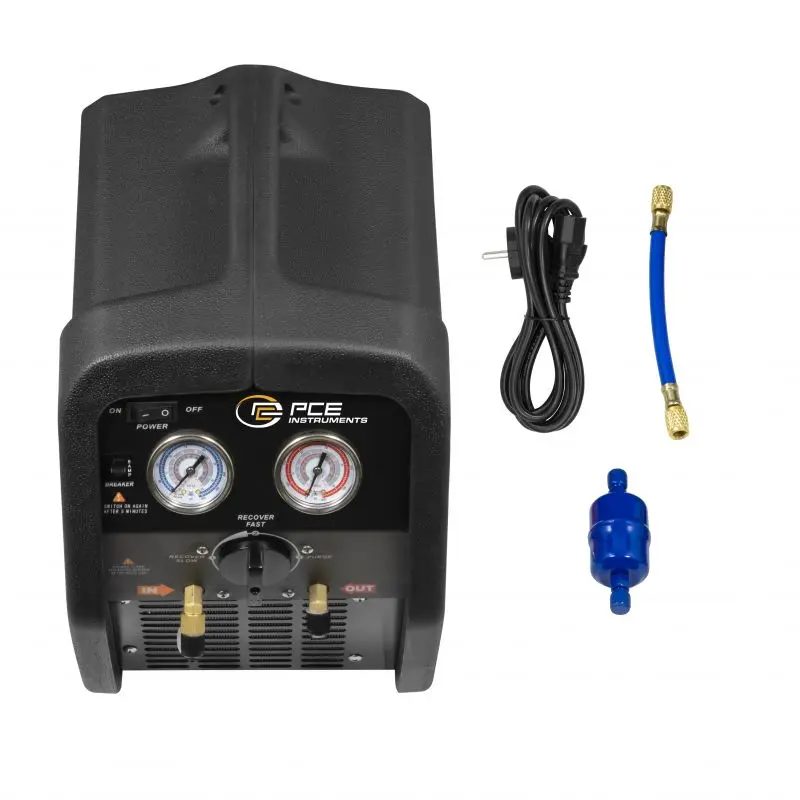

Delivery scope
1 x PCE-RRM 250 Refrigerant Gauges 1 x refrigerant filter 1 x filter connection hose 1 x power cable 1 x operating instructions
