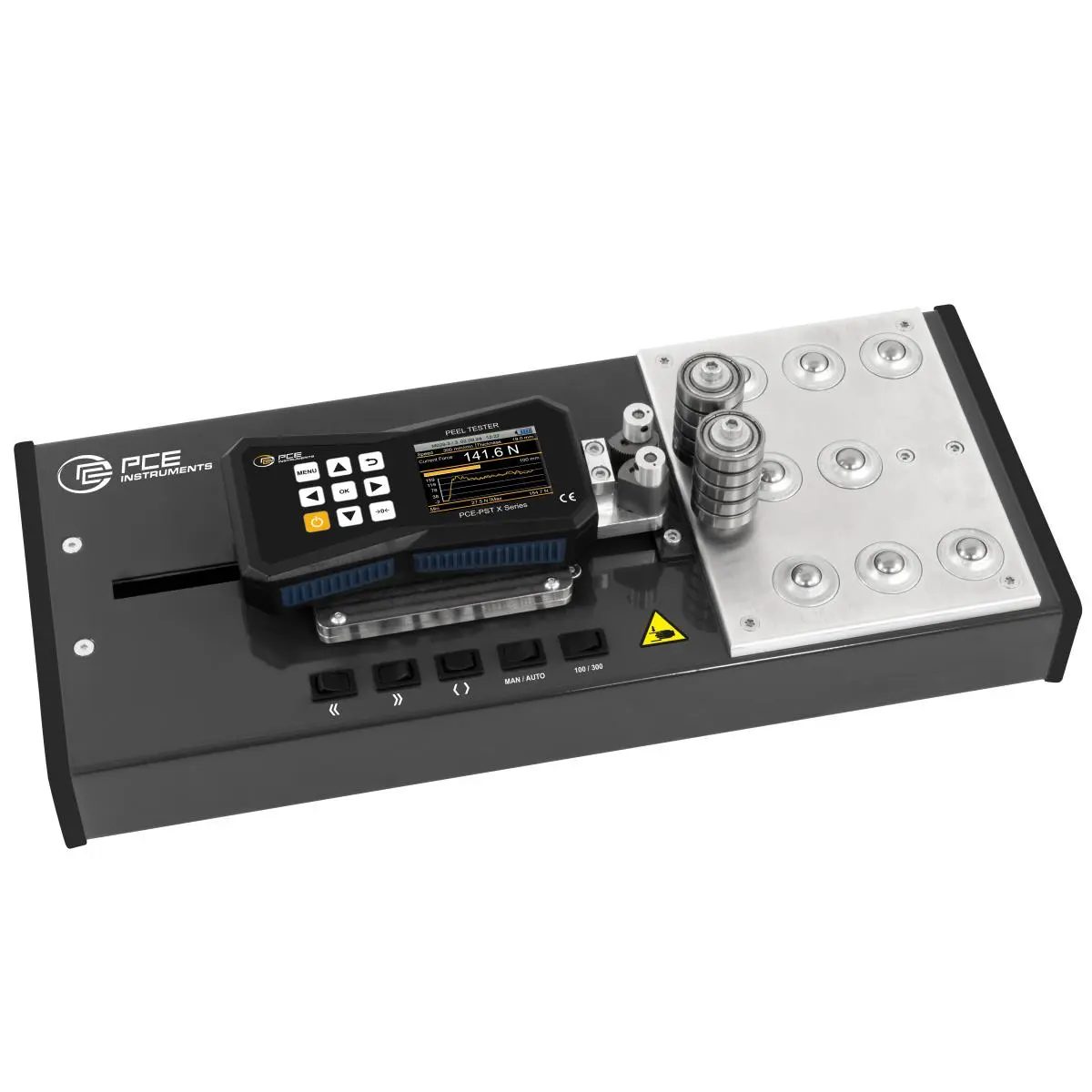

Adhesion Tester to measure the adhesive force on carrier materials / mobile, robust design / up to 500 N / high accuracy / internal memory

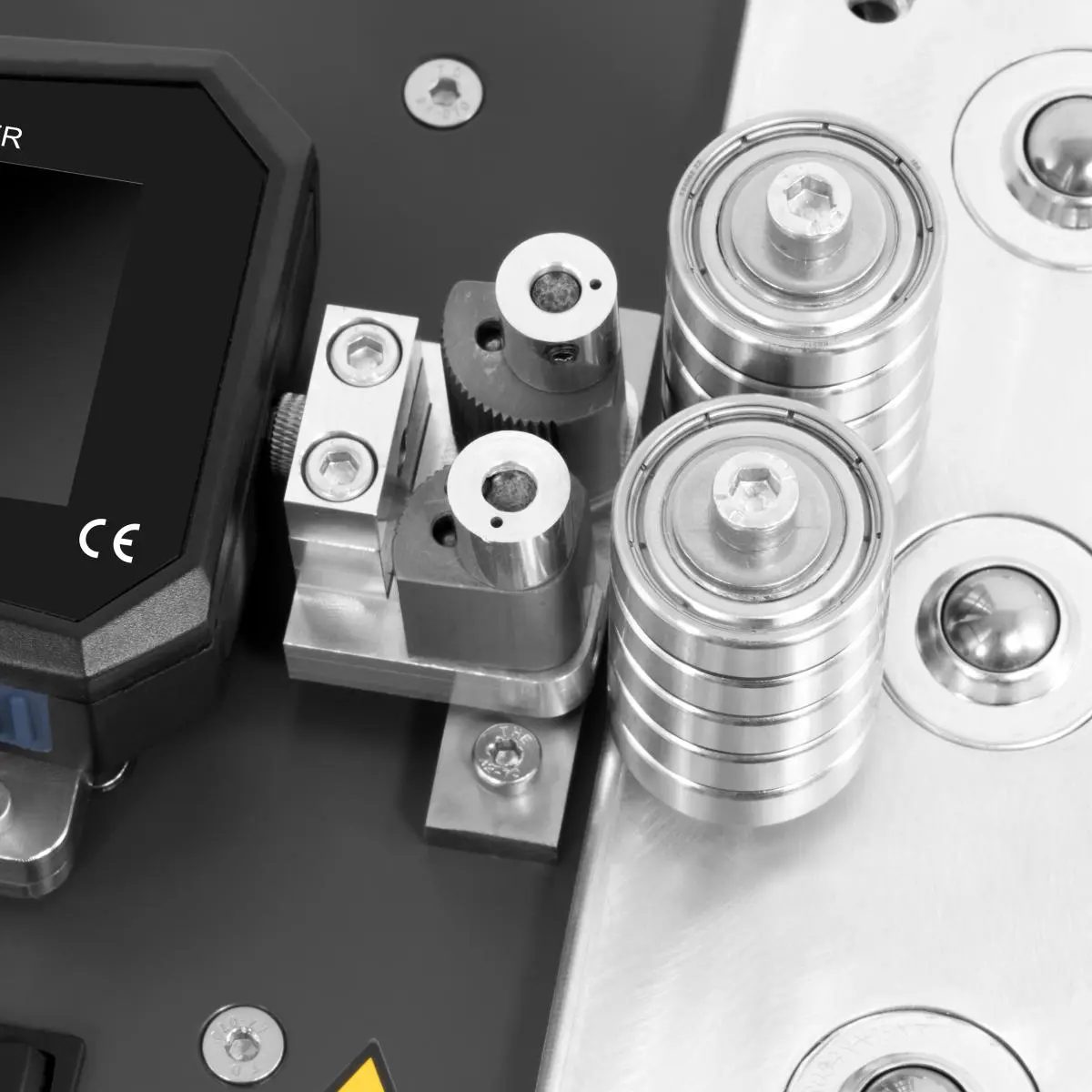

The Adhesion Tester is a compact hand-held meter with an integrated load cell for the precise measurement of forces within a range from 0 to 500 N. The Adhesion Tester has been specially developed for peel tests and enables a comprehensive assessment of the processing quality. Our Adhesion Tester offers a manual and automatic measuring mode, as well as ball rollers on the guide surface to reduce the coefficient of friction.

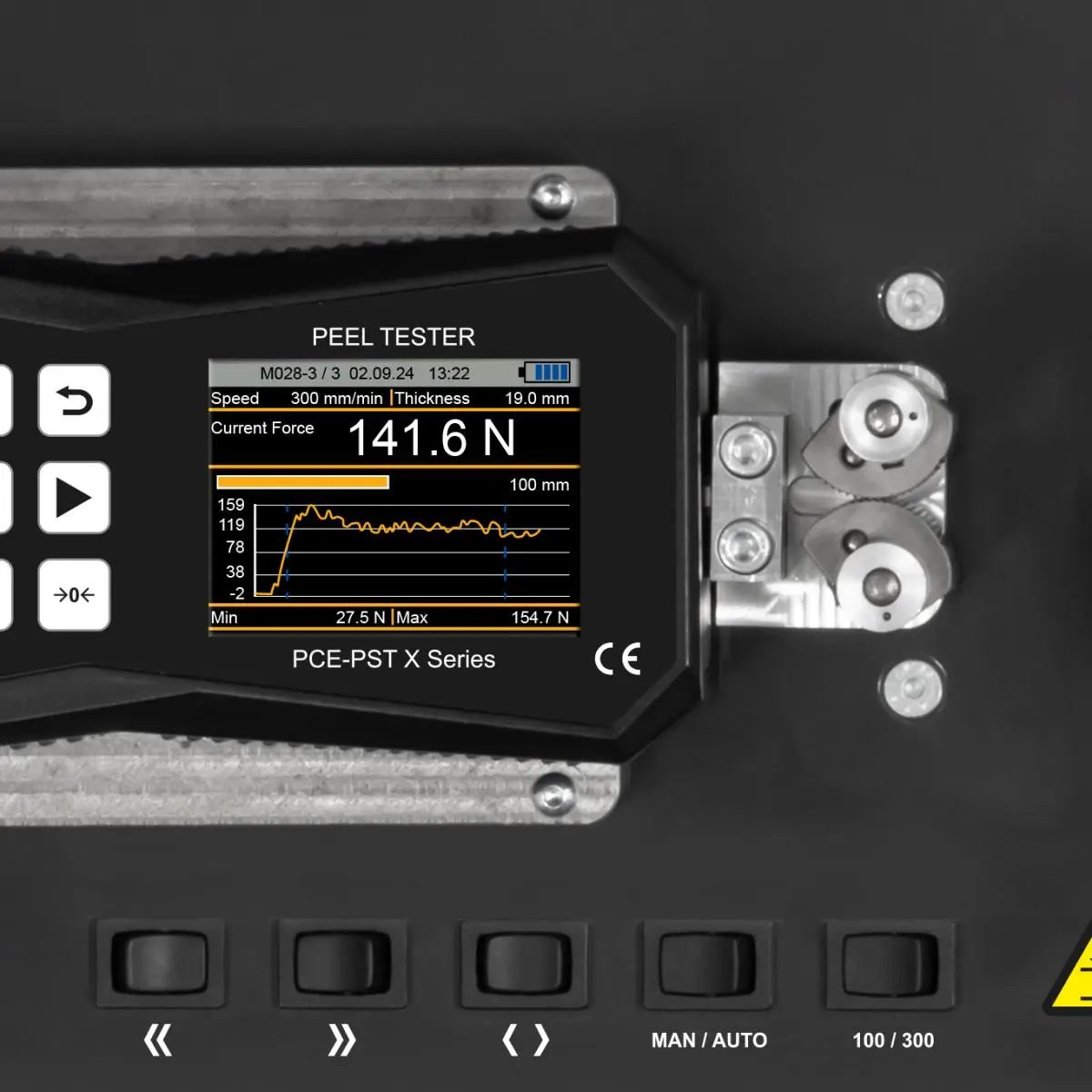

It has an adjustable sampling rate from 2 to 100 Hz and supports both metric and imperial units of measurement. The measurement duration consists of the pre-run time, measuring time and post-run time, which can be individually configured from 0 to 10 seconds. The integrated data logger saves measurement series as well as individual measurements and displays statistical values such as average, minimum and maximum values as well as graphical curves. With a maximum traverse distance of 150 mm and two traverse speeds (100 mm/min and 300 mm/min), the Adhesion Tester is highly adaptable to different test requirements.
It is used for testing composite materials such as coated wood-based materials, laminated surfaces or veneered panels as well as for measuring the adhesive strength in bonded joints of various components.
Highlights
- for adhesive forces up to 500 N
- high repeatability
- portable
- automatic and manual measurement mode
- average measurements
- adjustable pre-run and post-run
Technical specifications
Force Measuring range 0 … 500 N Resolution 0,1 N Accuracy±0.05% F.S. General technical data Units N, Ncm, Nmm Display type LCD Display size 2,8 Inch Adjustable measuring rate 2 … 100 Hz Storage medium Internal memory Storage capacity 32 GB Storage interval from 2 Hz Storage interval to 100 Hz Interface USB-C Operating time 13 h Automatic power-off from…to 1 … 15 min. Traverse speed 100 … 300 mm/min Maximum traverse distance 150 mm Measurable edge thickness 0.4 … 3.5 mm Measurable panel thickness 10 … 64 mm Menu language German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, English (GB) Protection class (device)IP52 Power supply Test stand: 110 … 240 V AC | 50/60 Hz Meter: USB 5 V, 500 mA Connector type Schuko plug (Rechargeable) battery 1 x 7,4 V DST604665 , Lithium polymer battery Capacity 2200 mAh Performance 16,28 Wh Operating conditions-20 … 65 °C , 10 … 95 % RH Storage conditions-20 … 65 °C , 10 … 95 % RH Dimensions ( L x W x H )480 x 240 x 135 mm Weight 9450 g
Delivery scope
1 x test stand for peel tests PCE-PST 1 X-STAND 1 x handheld Adhesion Tester PCE-PST 500 X 1 x USB-C cable 1 x desktop power pack 24 V / 5 A 1 x carrying case 1 x quick start guide
