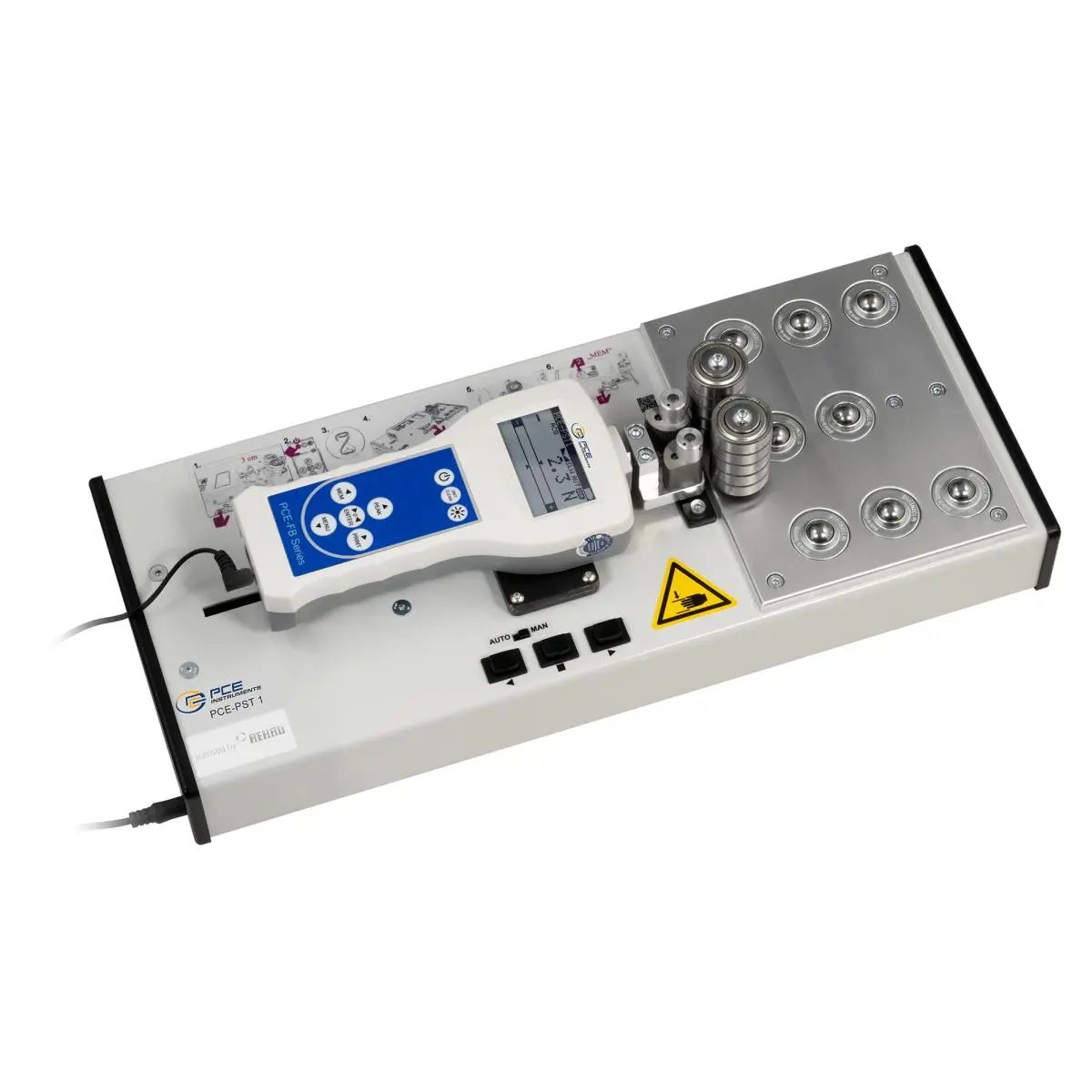

PCE-PST 1 Adhesion Tester measures the adhesion to substrates / mobile, rugged design / measures up to 500 N / high accuracy / PC evaluation possible

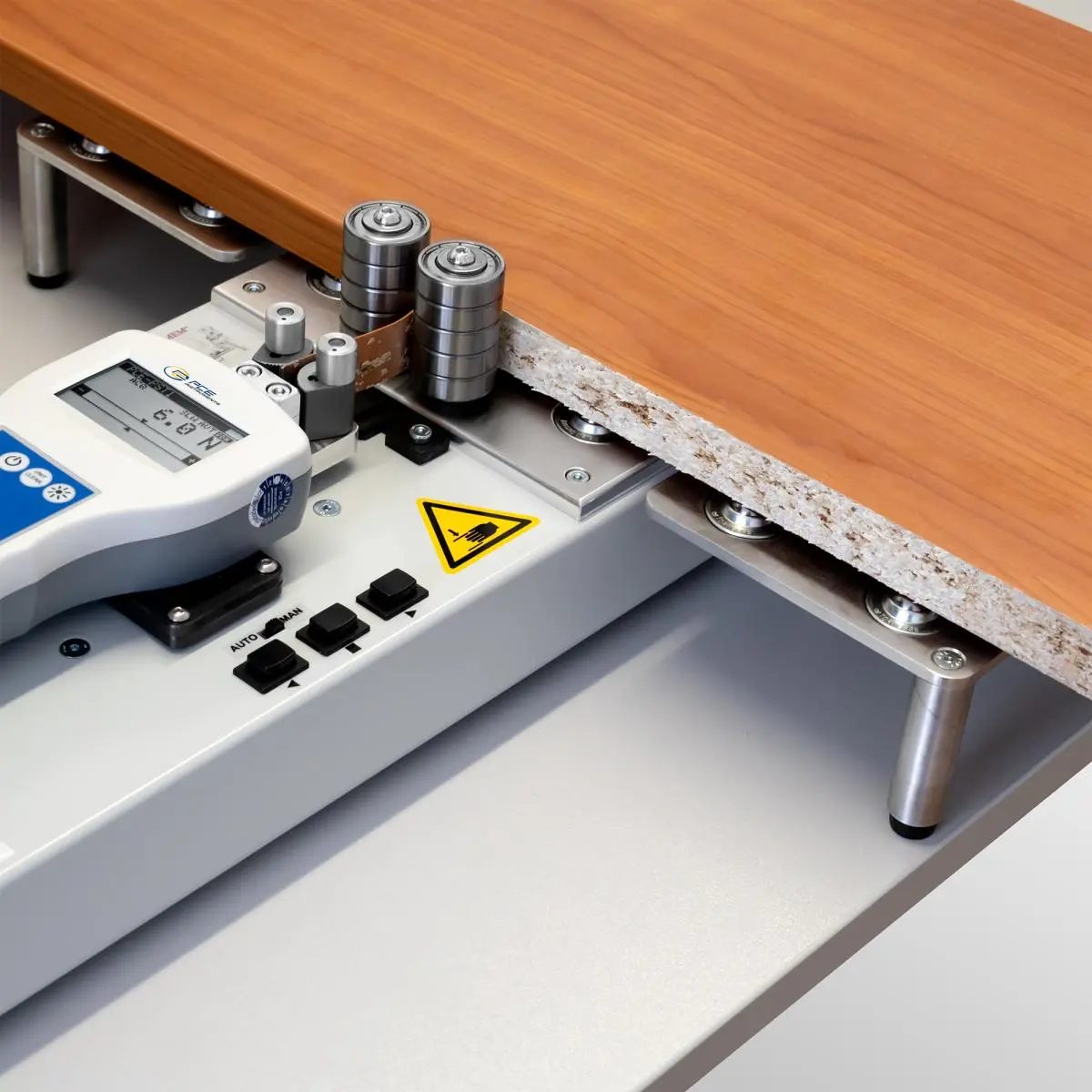

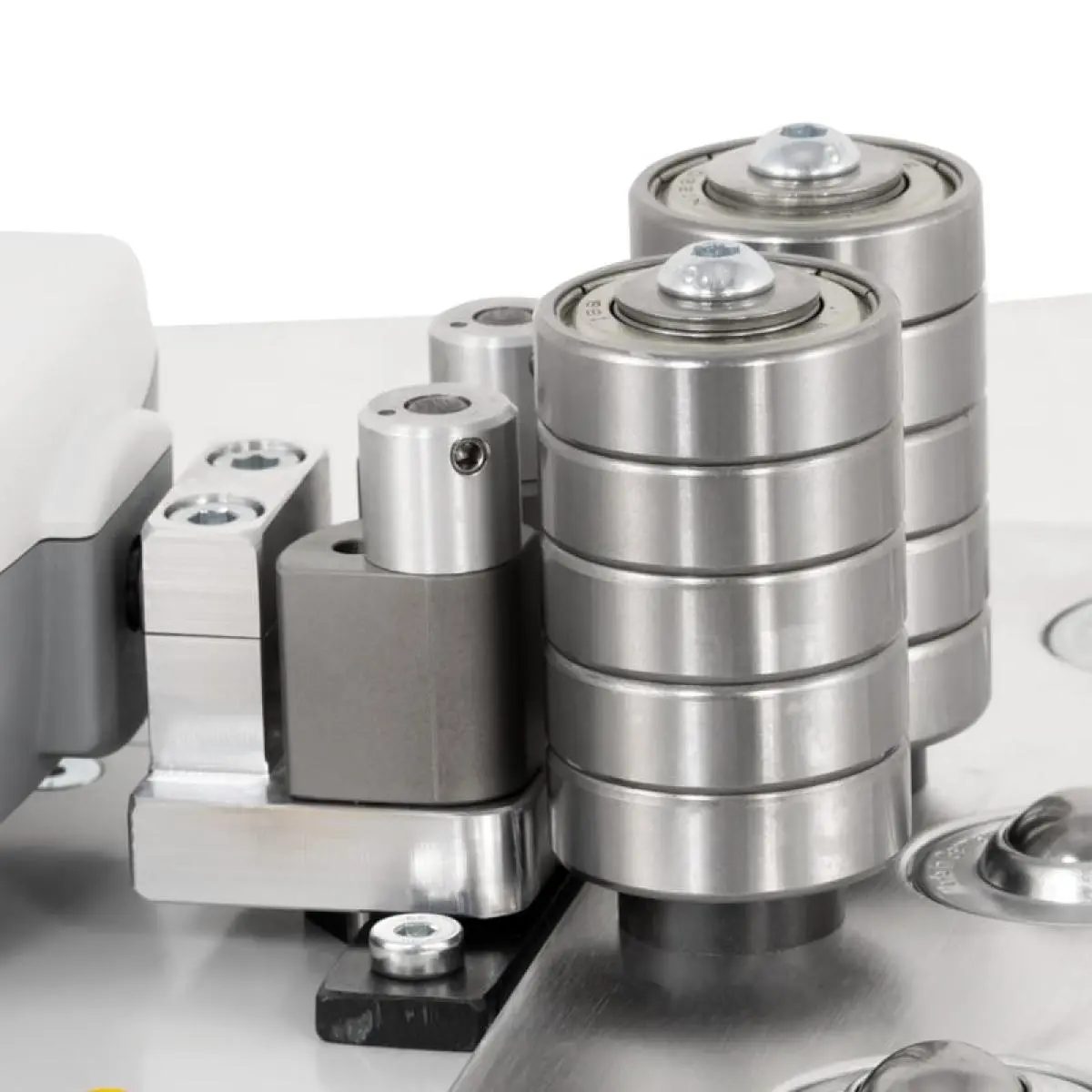

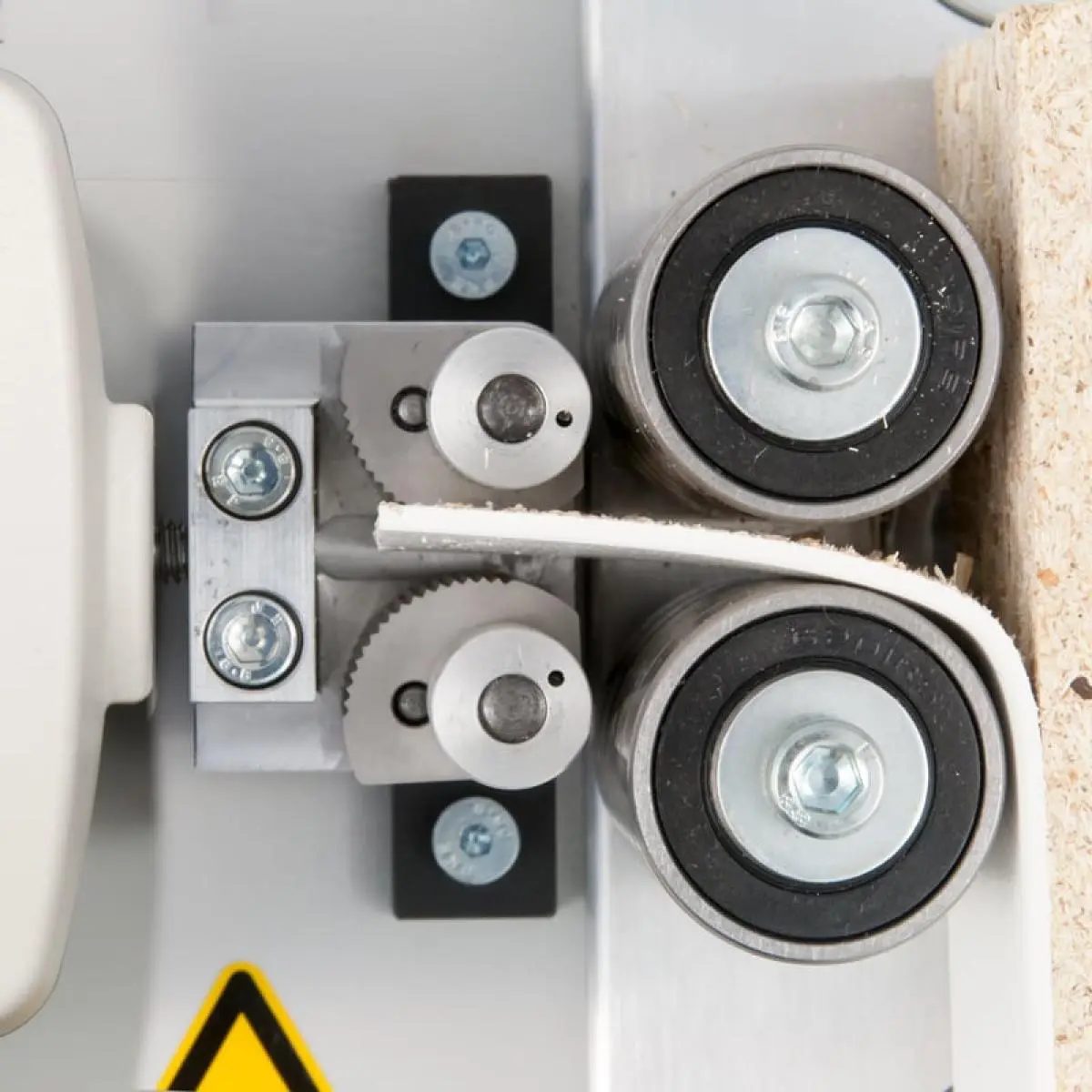

PCE-PST 1 Adhesion Tester is designed to check the adhesive force of edges on support materials. With the Adhesion Tester, checks can be made with respect to the quality of workmanship. Feed speed, travel distance, tension, and traction angle are fixed. Ball transfer units on the guide surface of the Test Stand reduce the coefficient of friction. Likewise the self-locking jaws and smooth guide rollers always guarantee reproducible and comparable results. Measurement errors caused by the "human factor" are reduced to a minimum.

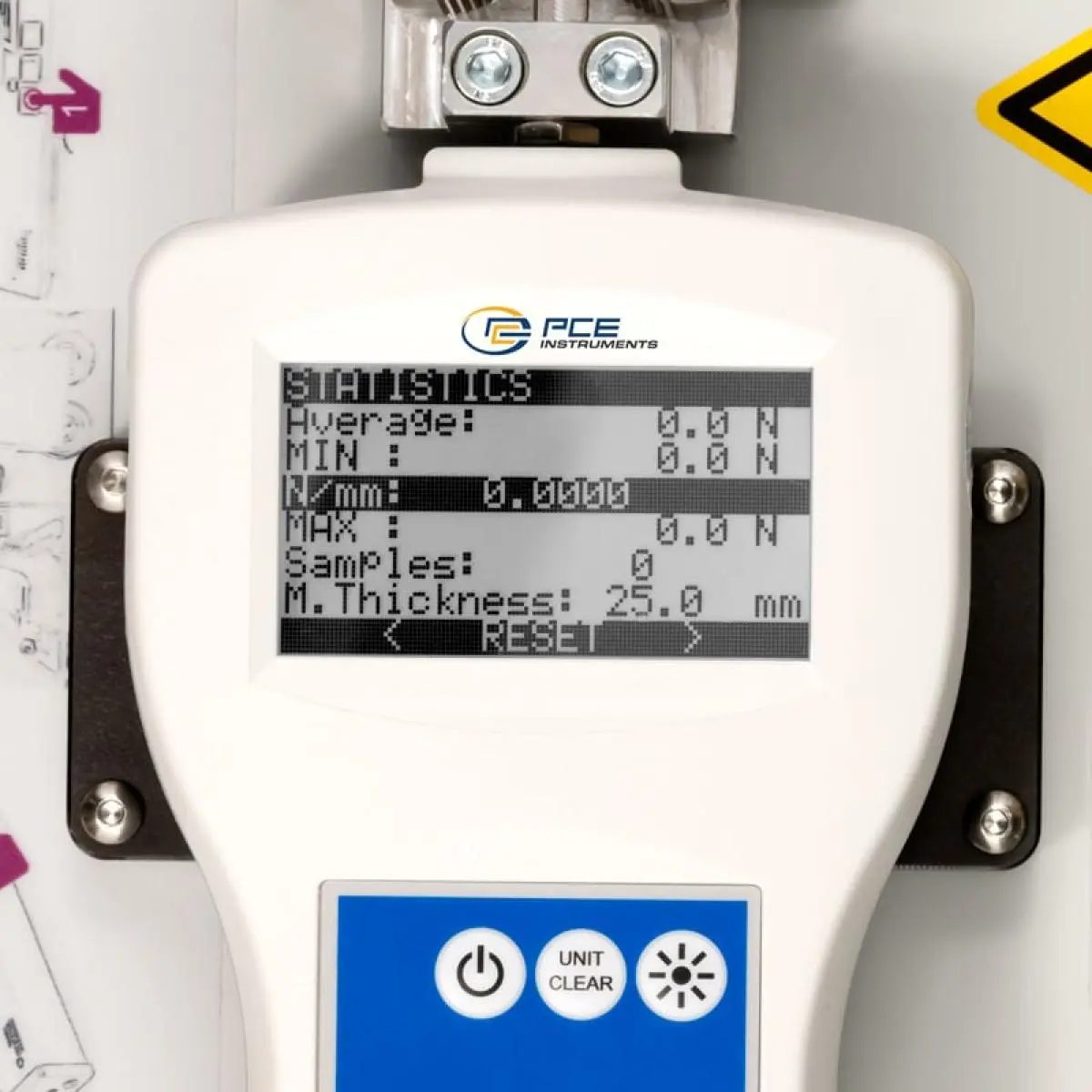

The PCE-PST 1 Adhesion Tester is designed for adhesive forces up to 500 N or 110 pounds. With a travel distance of 100 mm (3.9 in) and a feed rate of 0.3 m / min (11.8 in / min), testing an edge can be performed by trained personnel in less than a minute. After clamping the test edge, measurement takes place in automatic mode as soon as the triggering force of 20 N is reached. At the end of the measurement process, statistical data appears on the display, including Min. and Max. values, as well as an average value of peel strength. If necessary, the evaluation of the measurement can also be done via the included software which enables different statistical values and the display of a force-time diagram.
Highlights
- • For adhesive forces to 500 N or 110 pounds
- • High repeatability
- • Defined test parameters
- • Mobile implementation
- • Automatic and manual measurement mode
- • Evaluation via software
Technical specifications

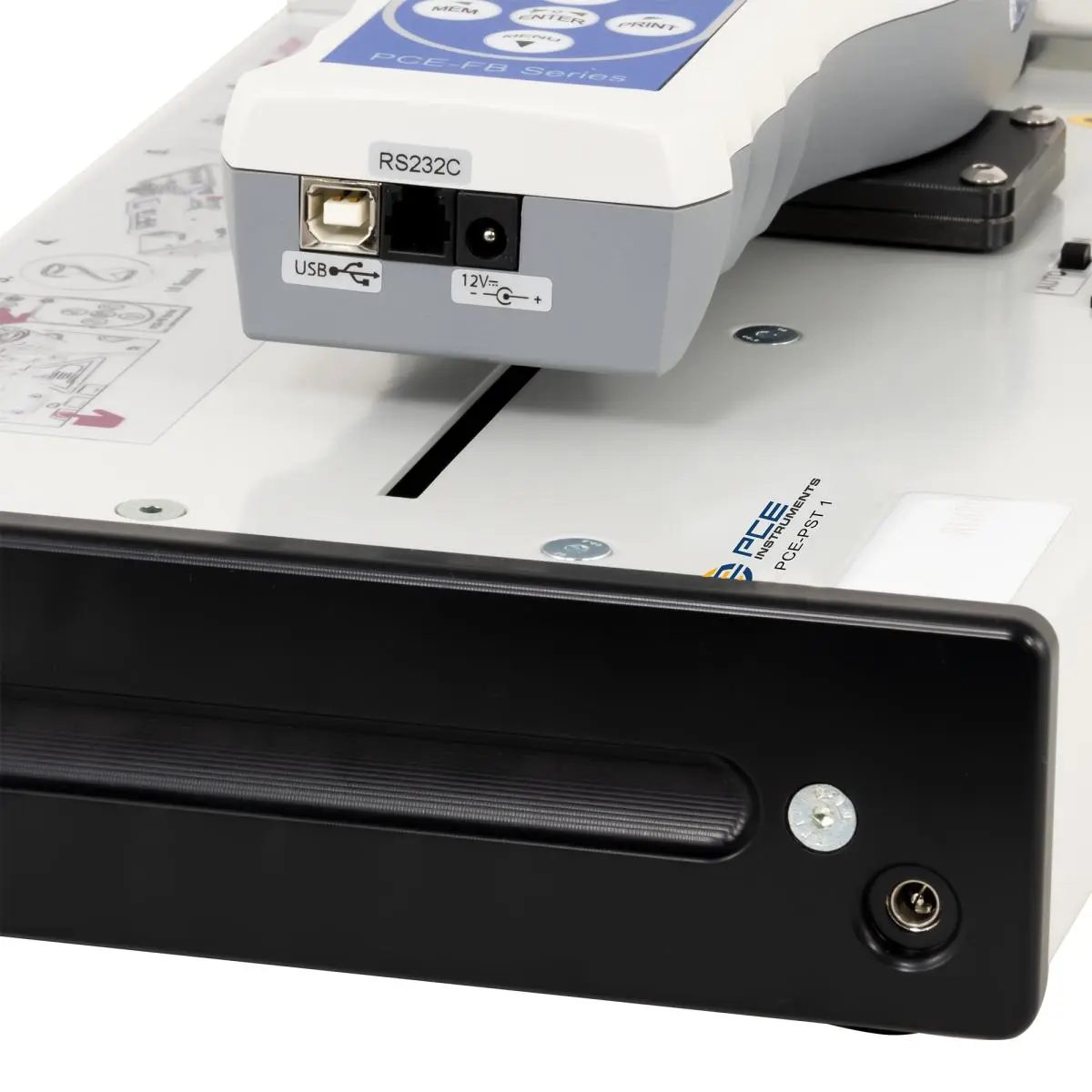

Force Measuring range 0 … 500 N Resolution 0,1 N Accuracy±0.1% of range General technical data Units N, g, lb, kg, lbf Display type LCD graphic display with backlight Display size 2,8 Inch Interface USB Traverse speed 100 … 300 mm/min Maximum traverse distance 100 mm Measurable edge thickness 0.4 … 3.5 mm Measurable panel thickness 10 … 64 mm Max. overload 20 % Menu language German, Spanish, English, Polish Protection class (device)IP20 Power supply Test stand: 230V/12V, 5.0 A Meter: ~230 V / 12V, 1.2 A Connector type Device-europlug Capacity 2700 mAh Operating conditions-10 … 40 °C , 10 … 95 % RH Storage conditions-10 … 40 °C , 10 … 95 % RH Dimensions ( L x W x H )490 x 210 x 150 mm Weight 9000 g
Delivery scope

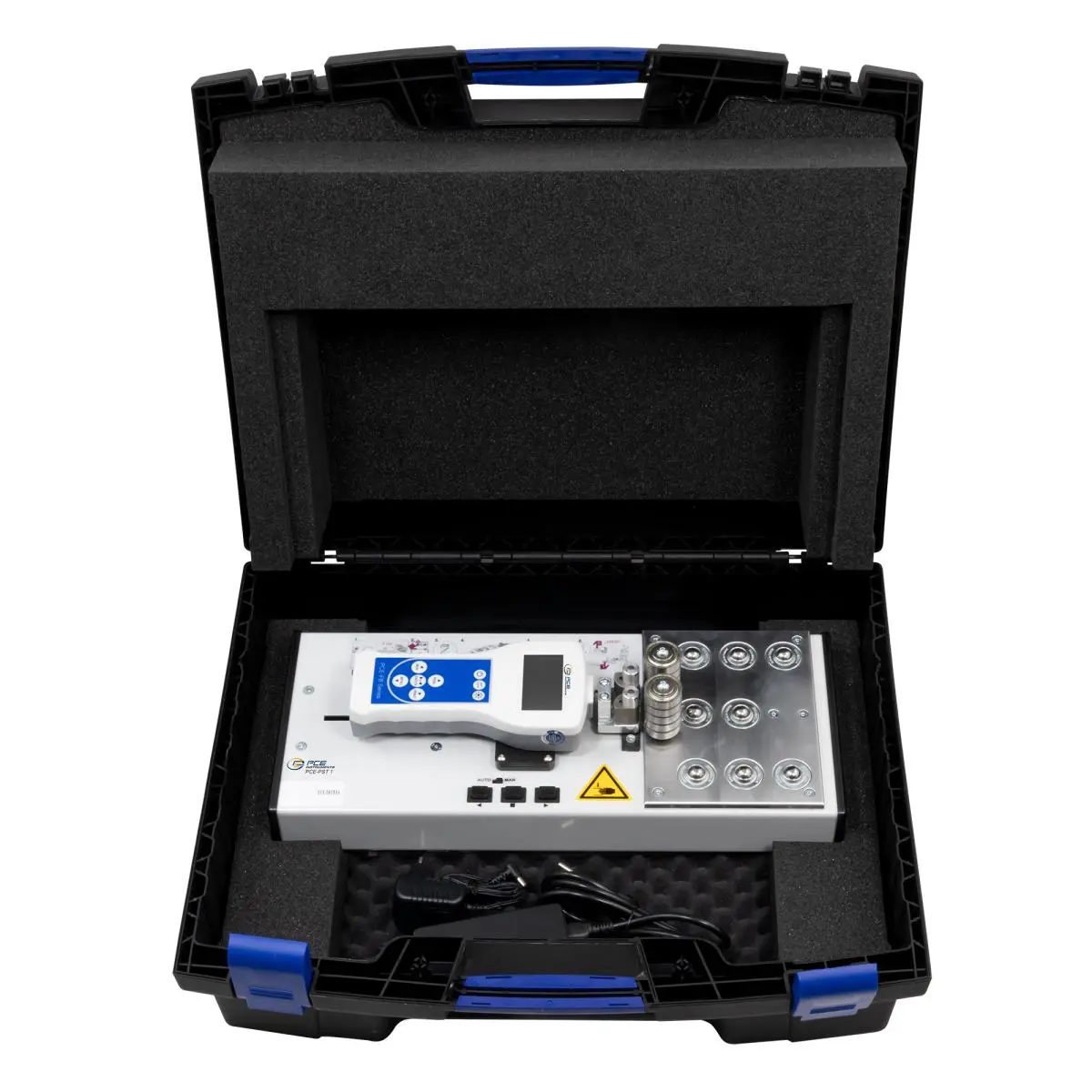

Delivery contents 1 x PCE-PST 1 Adhesion Tester 2 x power supply 1 x carrying case 1 x USB cable 1 x software 1 x user manual
