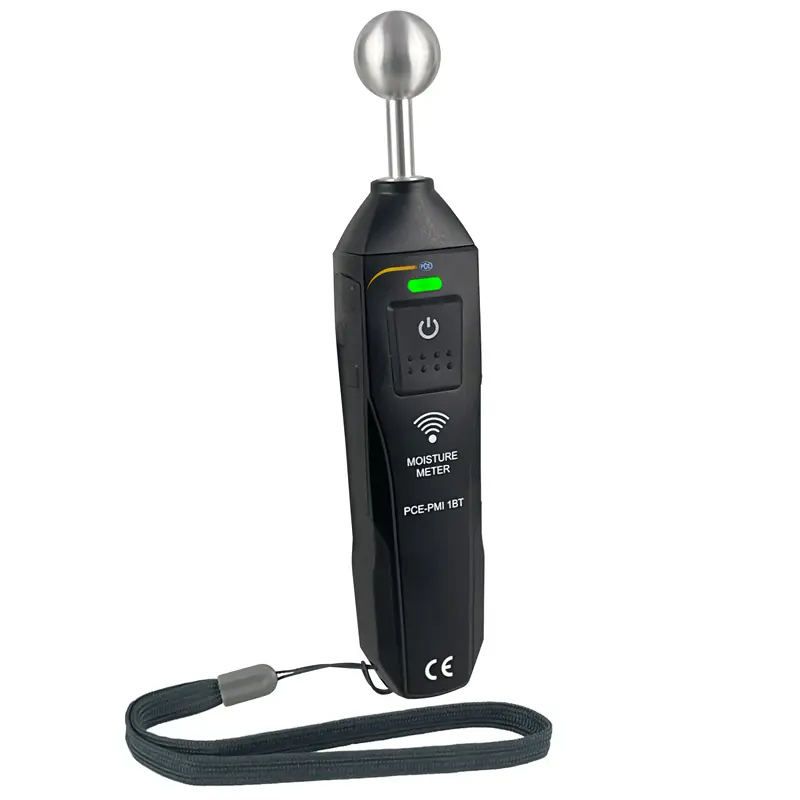

Moisturetester for wood with Bluetooth interface / Measuring range 0.0 … 100.0% / Small and compact design / Data export in .csv, .pdf, .jpg / Battery operation / For determining the moisture on various materials

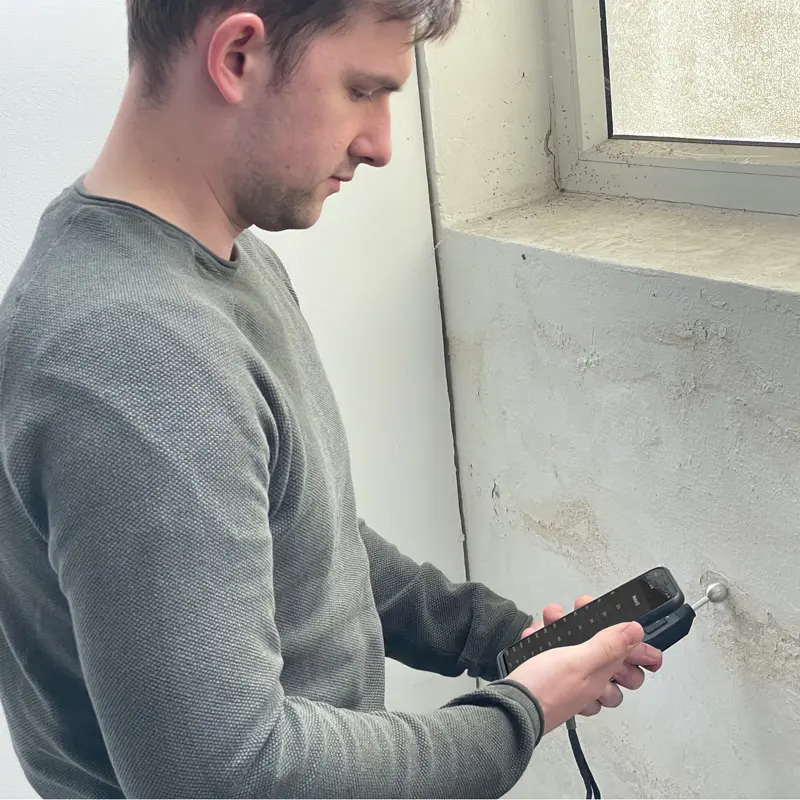

The moisture tester for wood has a measuring range of 0.0…. 100.0%. For a measurement, the ball head is positioned on the test object by the moisture meter. This guarantees a non-destructive measurement with the moisture meter. The moisture meter is therefore used, for example, for on-site inspections of buildings, wood and other surfaces.

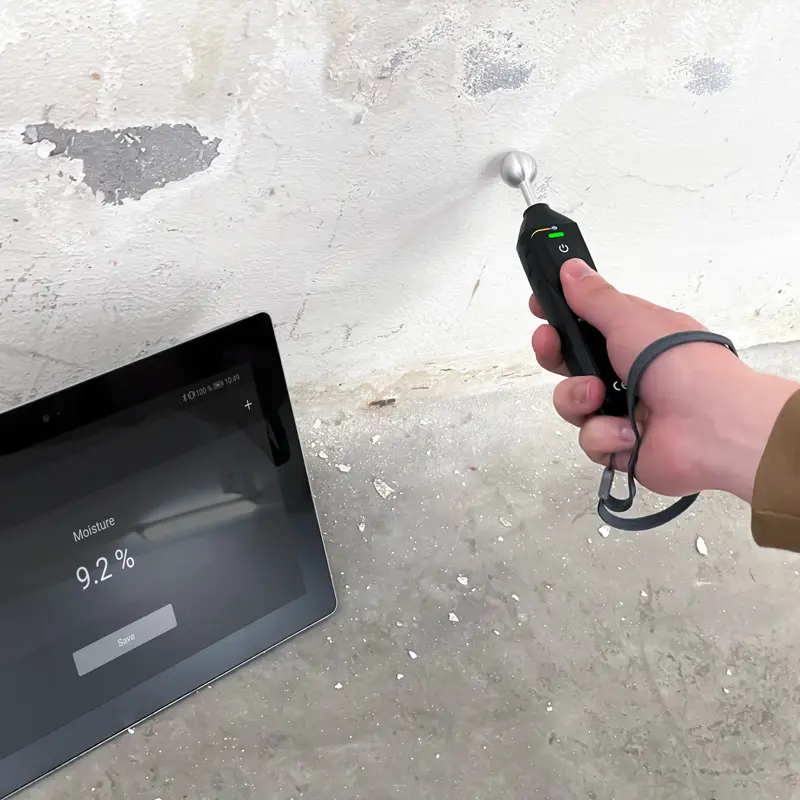

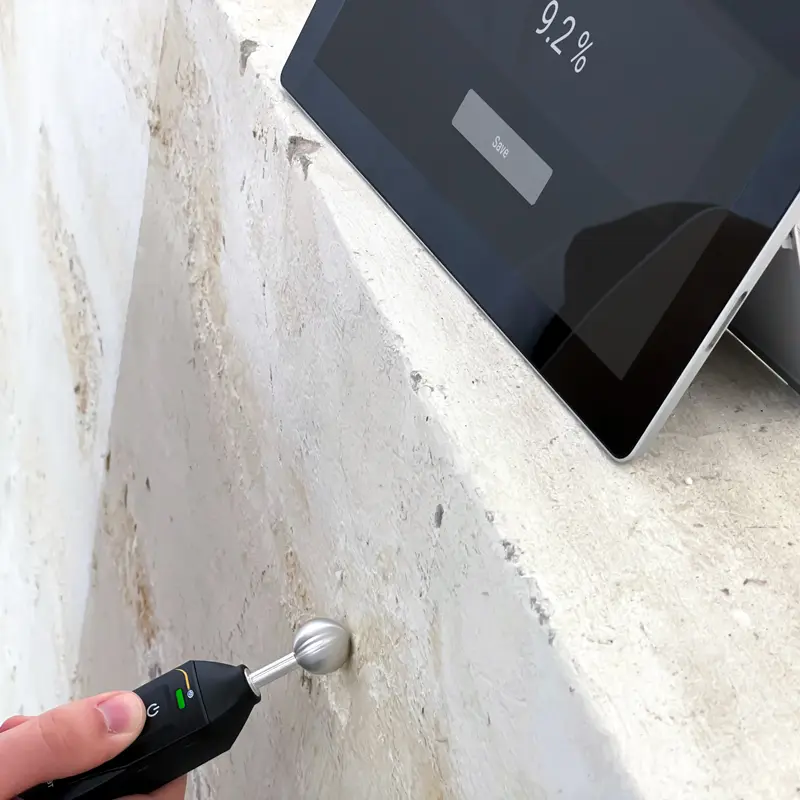

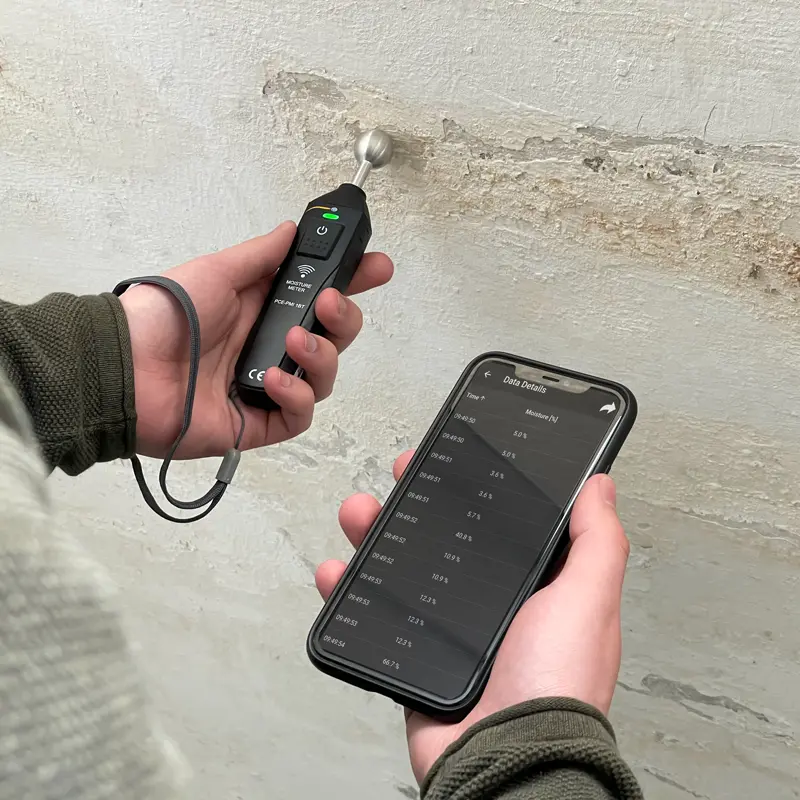

A connection can be established with the moisture tester for wood via the free app. As soon as a connection has been established, the current measured value is displayed by the moisture meter. The recorded data can be exported as .csv and .pdf after a measurement. This means that the data measured by the moisture meter can be processed further.
Highlights
- For moisture determination
- Measuring range 0.0 … 100.0%
- Free Android and iOS app
- Bluetooth interface
- Small and compact design
- Universally applicable
Technical specifications
- Measuring range: 0.0 … 100.0 %
- Resolution: 0.1 %
- Measuring rate 2 Hz
- Measuring depth 20 … 40 mm / 0.78 … 1.57″
- Interface: Bluetooth 4.0

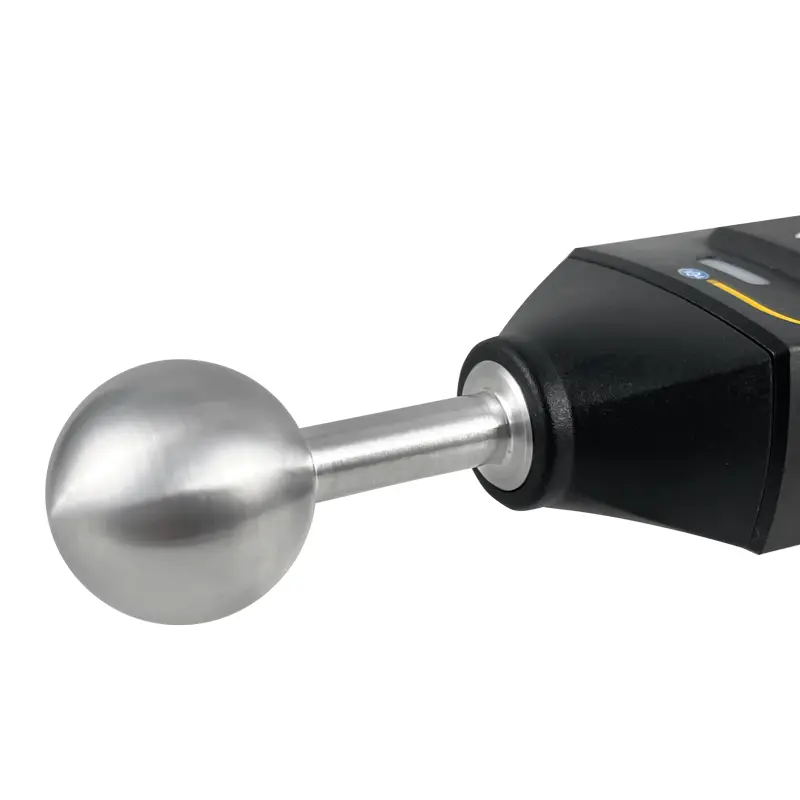

- Measuring principle capacitive (electrical resistance) — Sensor: type metal spheroid
- Measuring principle capacitive (electrical resistance) — Power supply: 2 x 1.5 V AAA batteries
- Measuring principle capacitive (electrical resistance) — Operating conditions: 0 … 50 °C / 32 … 122 °F, <90% RH, non-condensing
- Measuring principle capacitive (electrical resistance) — Dimensions: 160 x 33 x 20 mm / 6.3 x 1.3 x 0.7″
- Measuring principle capacitive (electrical resistance) — Weight: 93 g / 3.2 oz

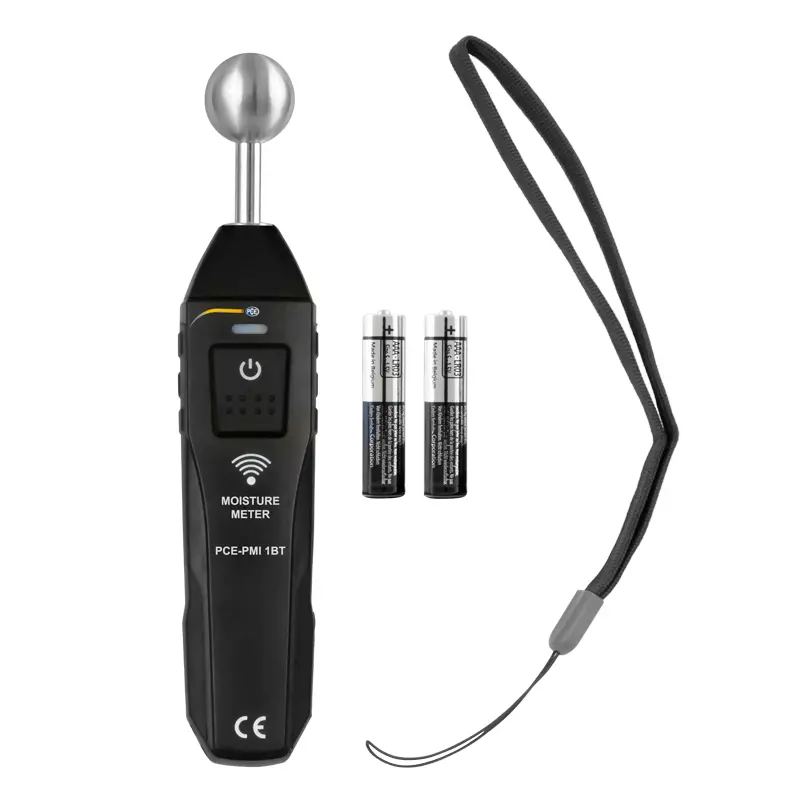

Delivery scope
- 1 x Moisture Tester for Wood PCE-PMI 1BT
- 2 x 1.5 V AAA batteries
- 1 x Instruction manual
