Differential Pressure Meter up to ±250 Pa / 13 selectable units / data logging and USB-C interface / PC software / export to xls file

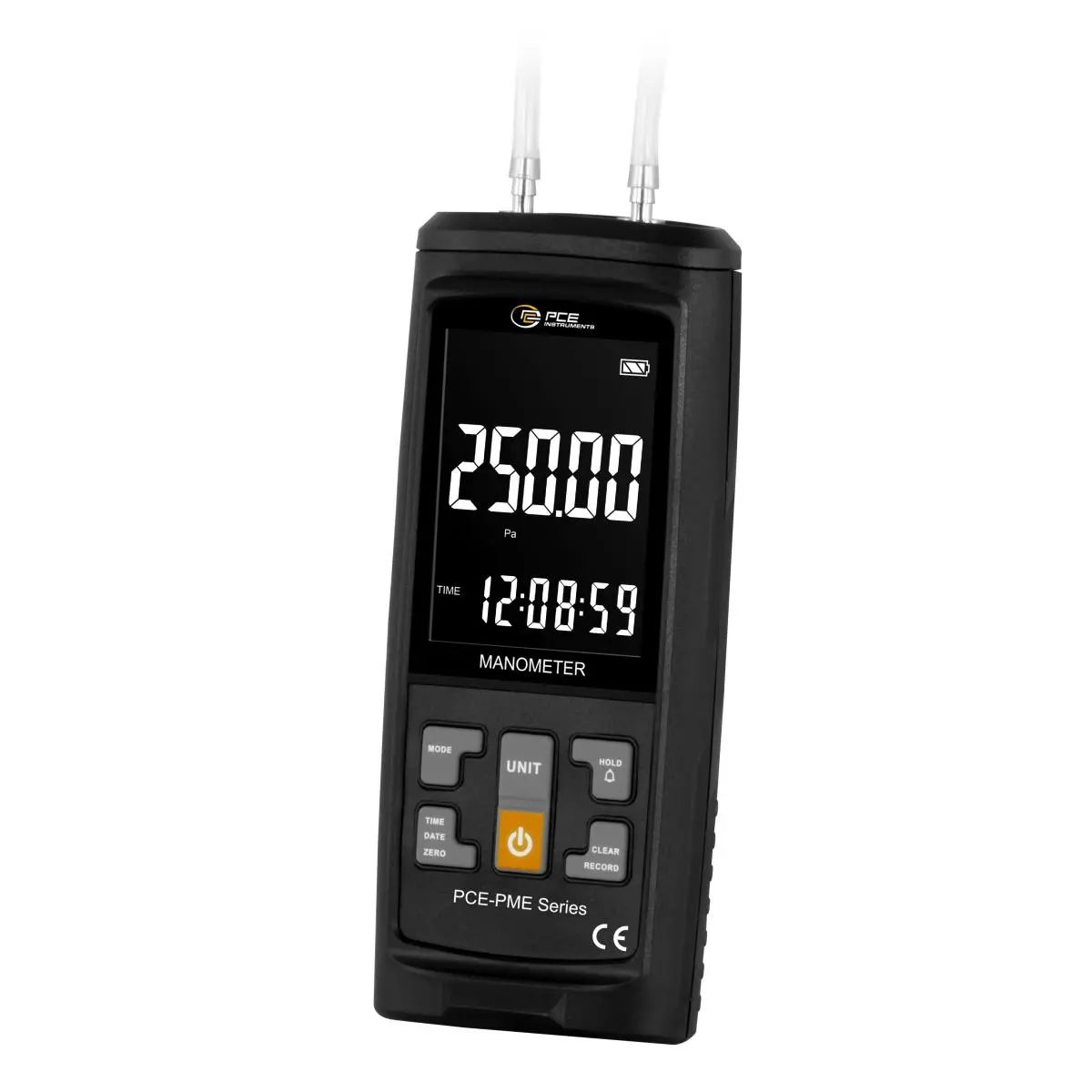

The digital Differential Pressure Meter is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Differential Pressure Meter is suitable for measuring non-aggressive and non-explosive gases.
The Differential Pressure Meter offers a variety of measuring functions such as maximum, minimum and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The Differential Pressure Meter has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.
Highlights
- MAX, MIN, AVG value, HOLD
- audible alarm
- 13 selectable pressure units
- data logging and software
- rechargeable lithium battery
- LC colour display
- date and time display
Technical specifications
Differential pressure Measuring range-250 … +250 Pa Resolution 1 Pa Accuracy±1 % FS Differential pressure Measuring range-2,5 … +2,5 mbar Resolution 0,01 mbar Accuracy±1 % FS General technical data Measuring functions MIN, MAX, HOLD, AVG Units inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O Display type LC colour display Storage medium Internal memory Storage capacity 15996 Measurements Storage interval from 1 s Storage interval to 9999 s Interface USB-C Operating time 13 h Automatic power-off from…to 1 … 99 min. Alarm Acoustic Alarm modes Above, below Overpressure 3 kPa Menu language English Protection class (device)IP20 Power supply 5 V Capacity 1000 mAh Operating conditions-10 … 60 °C , 0 … 95 % RH Storage conditions-10 … 60 °C , 0 … 95 % RH Dimensions ( W x H x D )63 x 162 x 32 mm Weight 180 g
Delivery scope
1 x Differential Pressure Meter PCE-PME 250 2 x hose approx. 25 cm 1 x USB-A – USB-C cable (mains adapter not included) 1 x carrying case 1 x PC software (in the download area) 1 x user manual
