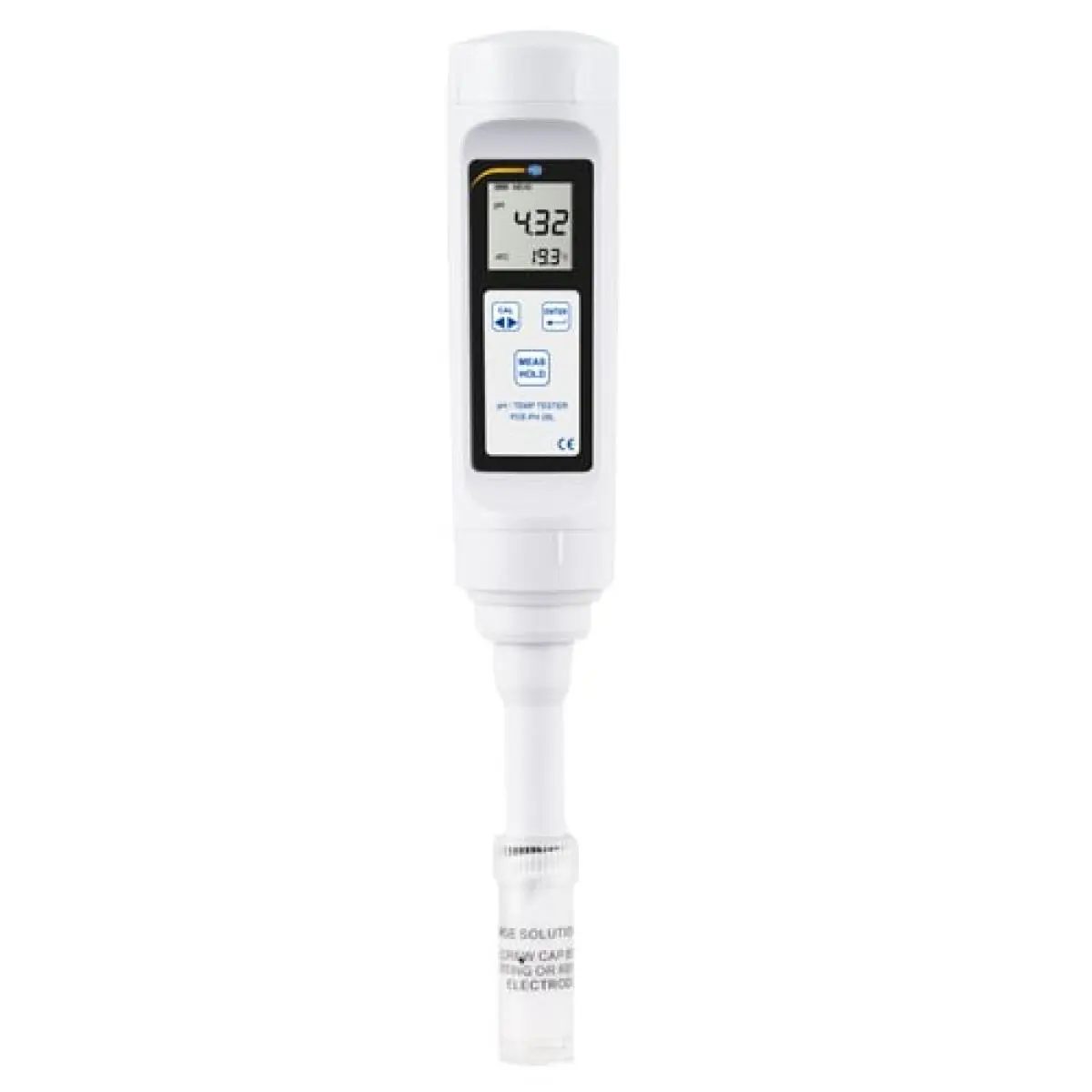

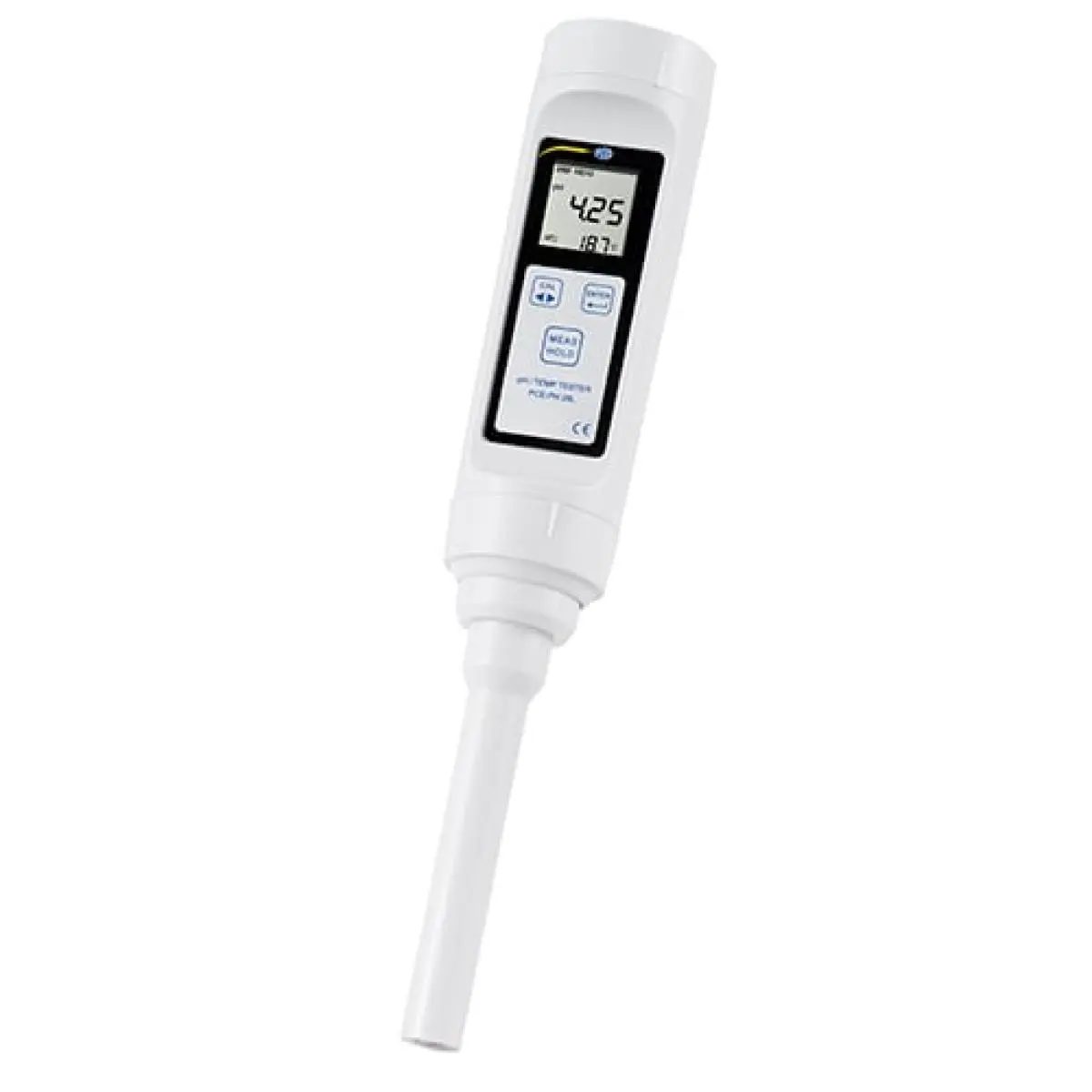

Water analysis meter PCE-PH 28L Simple pH digital meter for the measurement of viscous liquids / Flat pH electrode with long shaft / Automatic temperature compensation

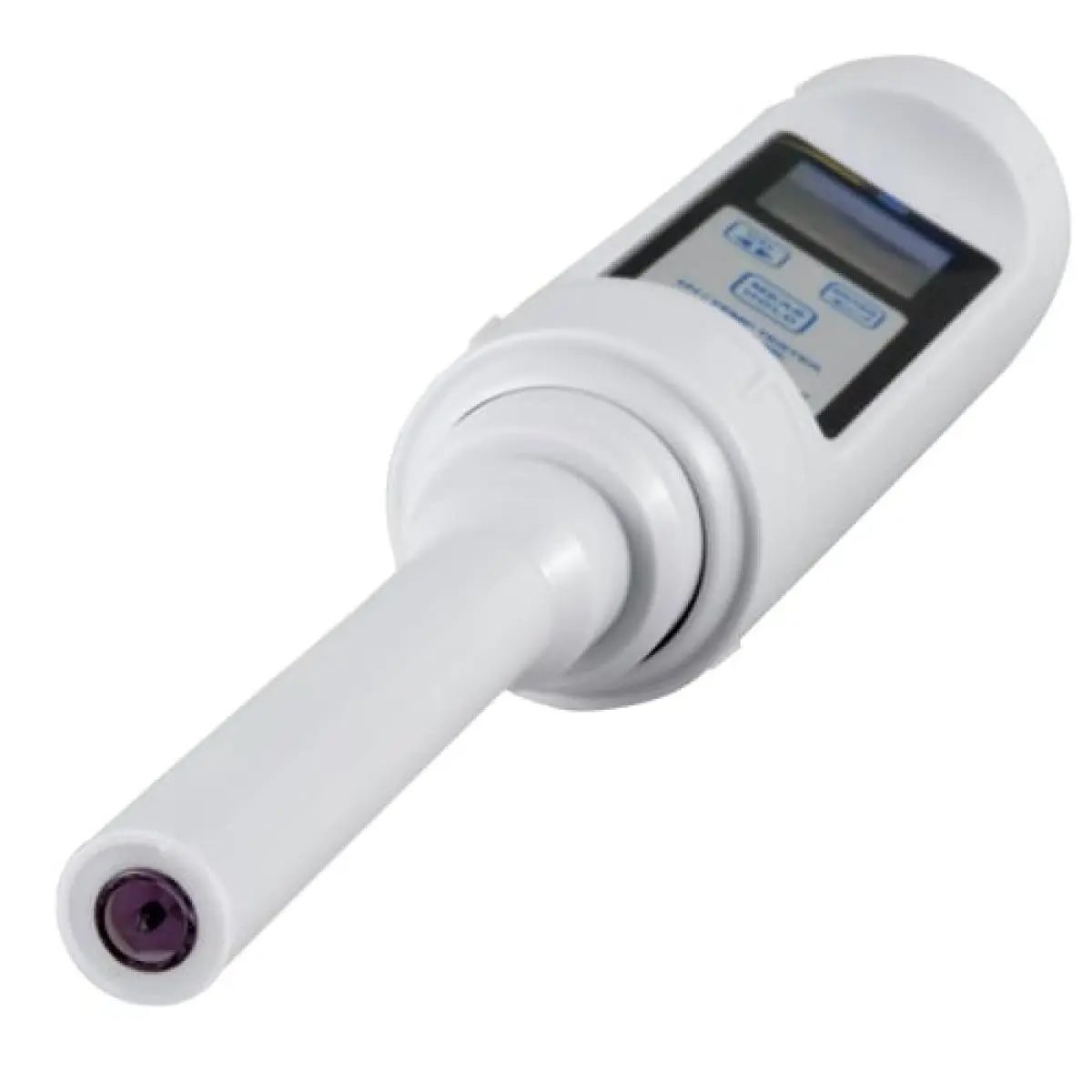

The water analysis meter is equipped with a flat electrode membrane. The pH electrode of the water analysis meter is installed in a shaft. So you can measure with the water analysis meter samples of viscous media in test tubes. This feature allows the water analysis meter to use very small amounts of liquids to determine the pH. The water analysis meter can be used in small batches in beakers or test tubes. As a result, the water analysis meter can be used not only in the field but also in the laboratory with very small sample volumes.
In addition to the pH value, the water analysis meter also measures the temperature of the measuring medium. With the temperature reading, the water analysis meter automatically performs the temperature compensation. Calibration of the water analysis meter is carried out using buffer solutions at pH 4, 7 or 10. The scope of delivery includes calibration powders which can be used for initial commissioning.
Highlights

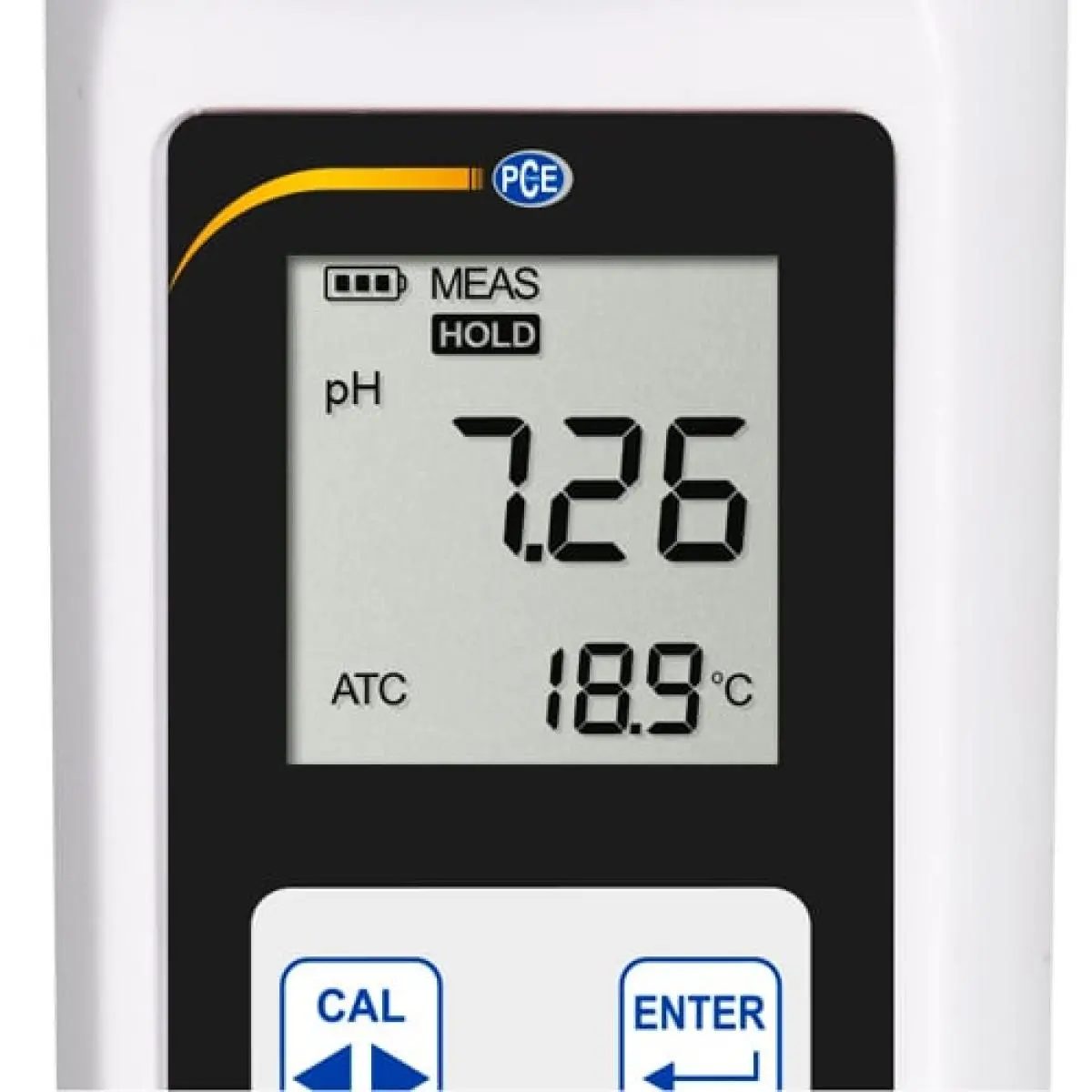

- LC display
- 1, 2 or 3-point calibration
- Long plastic electrode
- Exchangeable pH electrode
- Automatic temperature compensation
- For small sample volumes
Technical specifications
- pH — Measuring range: -1 … +15 pH
- pH — Resolution: 0,01 pH
- pH — Accuracy: ±0.01 pH
- Temperature — Measuring range: 0 … 60 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: 1
- Temperature — Measuring range: 32 … 140 °F
- Temperature — Resolution: 0,18 °F
- Temperature — Accuracy: ±1.8 °F
- Shank material Plastic: Shank length 75 mm
- Shank material Plastic: Shank diameter 14 mm
- General technical data — Measuring functions: HOLD
- General technical data: Temperature compensation 0 … 60°C / 32 … 140°F, automatic
- General technical data: Automatic power-off 8 min
- General technical data: Number of calibration points 3
- General technical data — Menu language: English, English (GB)
- General technical data — Protection class (device): IP20
- General technical data — (Rechargeable) battery: 2 x 1,5 V AAA battery , Alkali-manganese
- General technical data — Capacity: 1200 mAh
- General technical data — Operating conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Storage conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Dimensions: ( L x W x H )280 x 40 x 40 mm
- General technical data — Weight: 100 g
Delivery scope
- 1 x Water Analysis Meter PCE-PH 28L
- 1 x
- 2 x 1.5V AAA battery
- 1 x Transport case
- 3 x Calibration powder
- 3 x Sample tubes
- 1 x Operating manual
