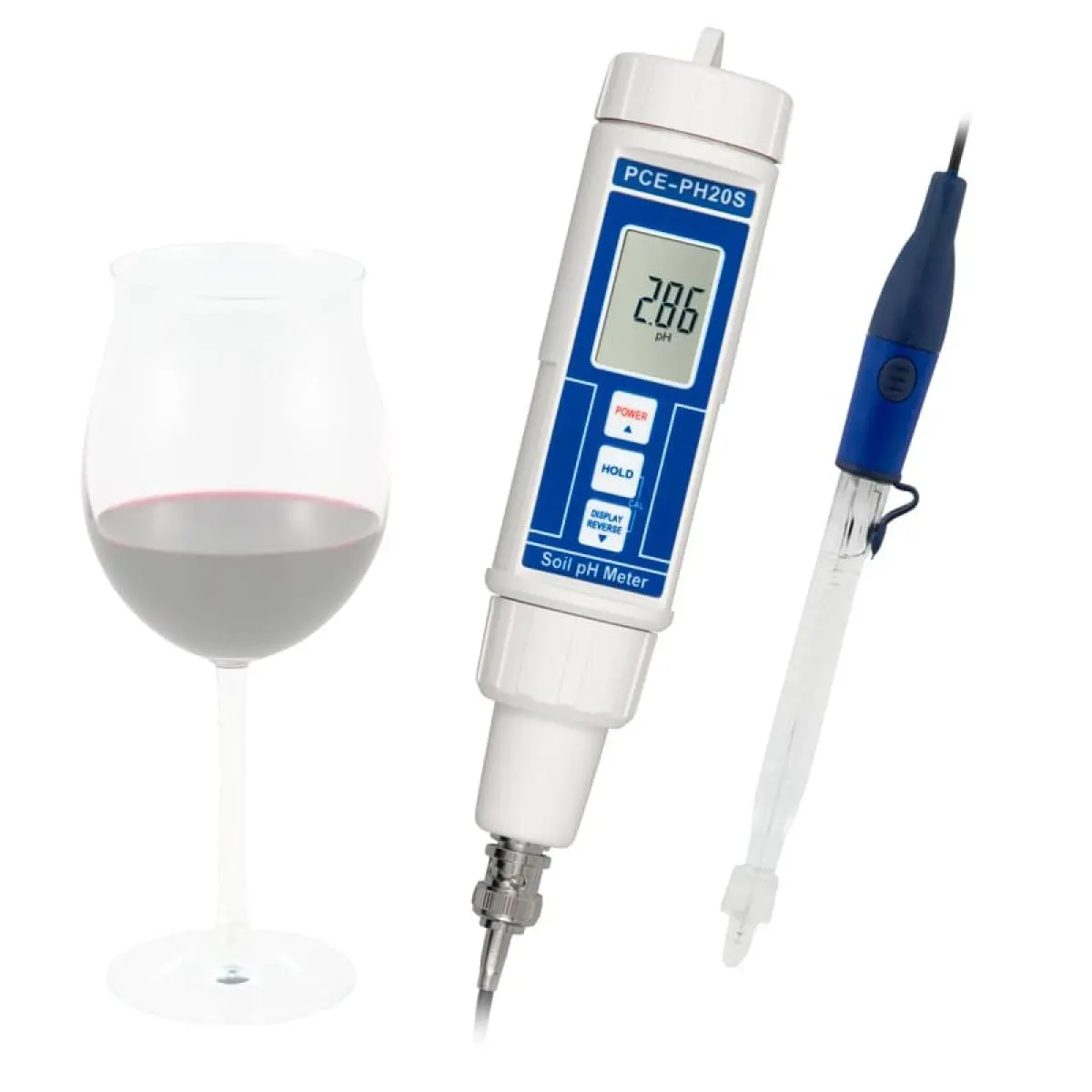

Water Analysis Meter for wine easy to use pH meter for the determination of the pH value / external pH electrode / can be recalibrated / waterproof (IP 67)
The water analysis meter was developed to directly determine the pH value in aqueous media such as wine or beer. Furthermore, the pH meter can also be used for other media with a low conductivity. The waterproof pH tester is used for the fast and accurate measurement of pH. The practical display makes the pH value on the pH meter easy to read. Due to the waterproof and robust housing (IP 67), the pH tester can also be used under difficult conditions. Recalibration always guarantees optimum accuracy and is very easy to perform using the optionally available calibration kits (automatic calibration function without calibration screws – only to be performed via the keyboard).
Highlights
- Waterproof (IP 67)
- Special external measuring electrode for wine and beer
- High accuracy
- Auto-power-off for battery saver
- Supplied with calibration solutions
- Data hold function
- Easy-to-read digital display
- Easy to use
Technical specifications
- pH — Measuring range: 0 … 14 pH
- pH — Resolution: 0,01 pH
- pH — Accuracy: ±0.07 pH (within range 5 … 9 pH) / ±0.1 pH (within ranges 4 … 4.9 and 9.1 … 10 pH) / ±0.2 pH (within ranges 1 … 3.9 and 10 … 13 pH)
- Designation PCE-PH-WINE — Measuring range: 0 … 14 pH
- Designation PCE-PH-WINE: Temperature range 0 … 100 °C
- Designation PCE-PH-WINE: Application pH electrode especially for wine, beer and other liquids with low conductivity
- Shank material Glass: Shank length 120 mm
- Shank material Glass: Shank diameter 12 mm
- Shank material Glass: Cable length 1 m
- General technical data — Measuring functions: HOLD
- General technical data — Display type: LCD
- General technical data — Display size: 1,35 Inch
- General technical data: Automatic power-off 10 min
- General technical data: Number of calibration points 3
- General technical data — Calibration: Automatically, at pH 4, pH 7, pH 10 using calibration solutions
- General technical data — Protection class (device): IP67
- General technical data — (Rechargeable) battery: 4 x 1,5 V AAA battery , Alkali-manganese
- General technical data — Capacity: 1200 mAh
- General technical data — Operating conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Storage conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Dimensions: ( L x W x H )180 x 40 x 32 mm
- General technical data — Weight: 220 g
Delivery scope
- 1 x pH Meter / pH Tester PCE-PH20WINE

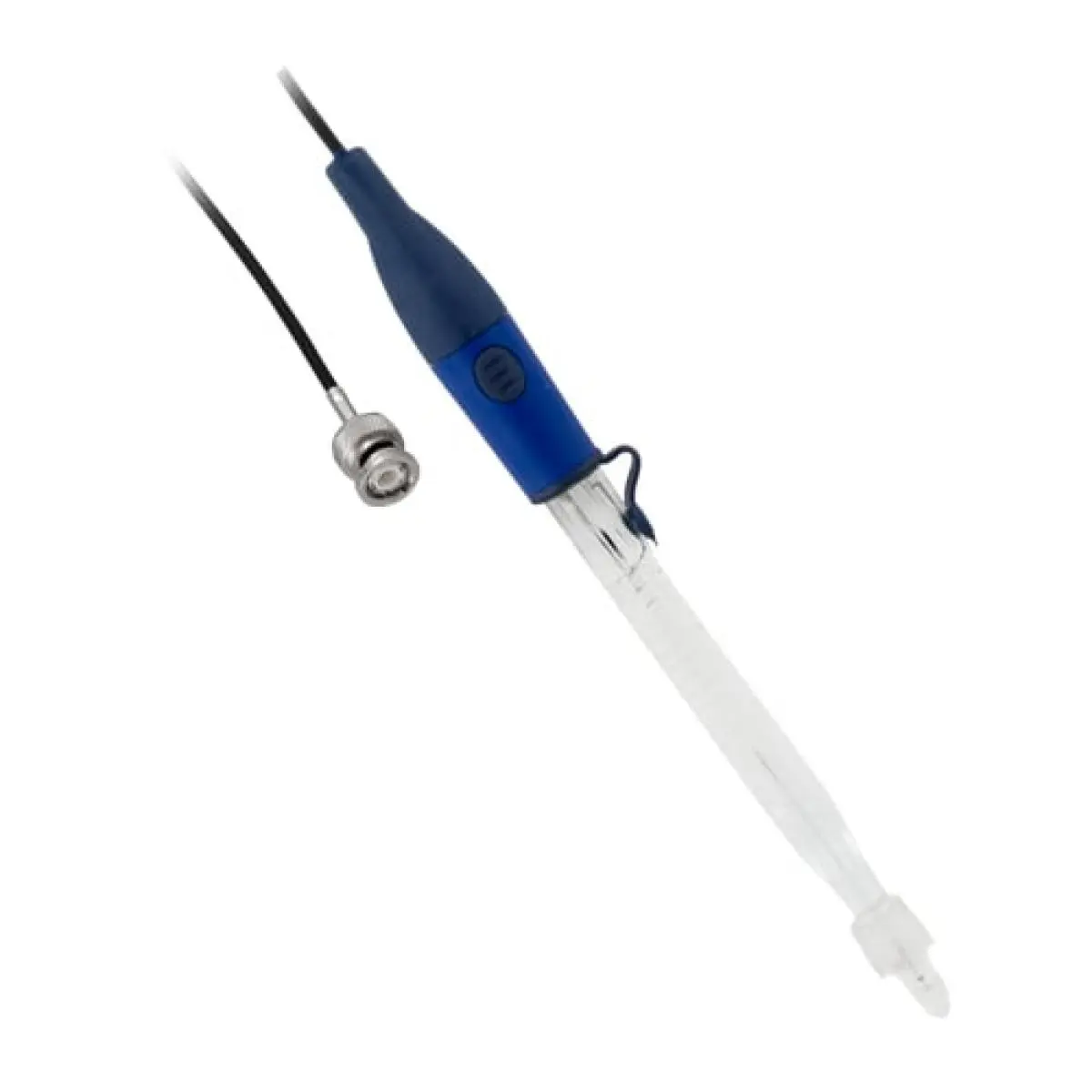

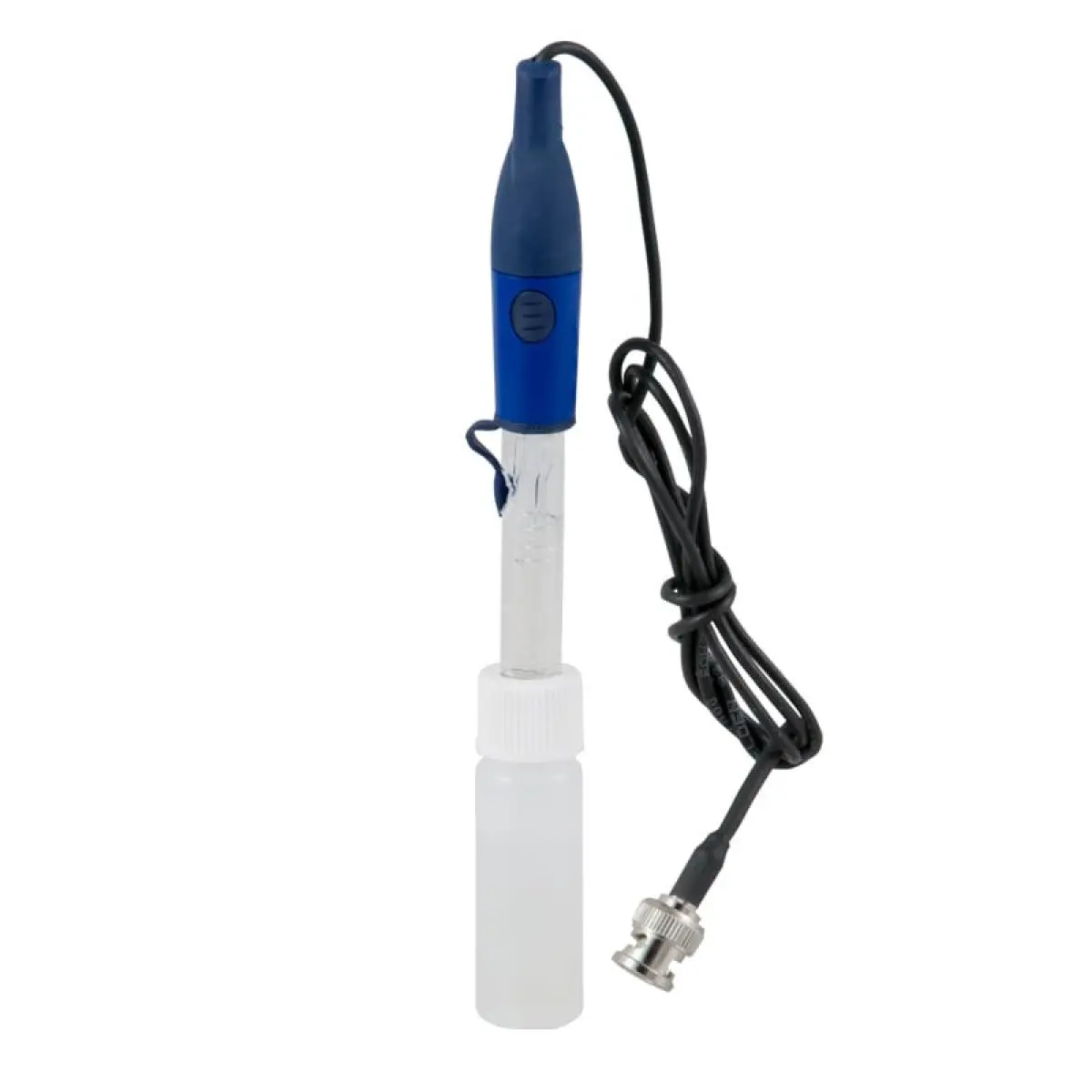

- 1 x pH electrode PCE-PH-WINE
- 4 x Batteries
- 1 x Calibration kit with solutions pH4 + 7 (75 ml bottle each)
- 1 x Operating instructions
