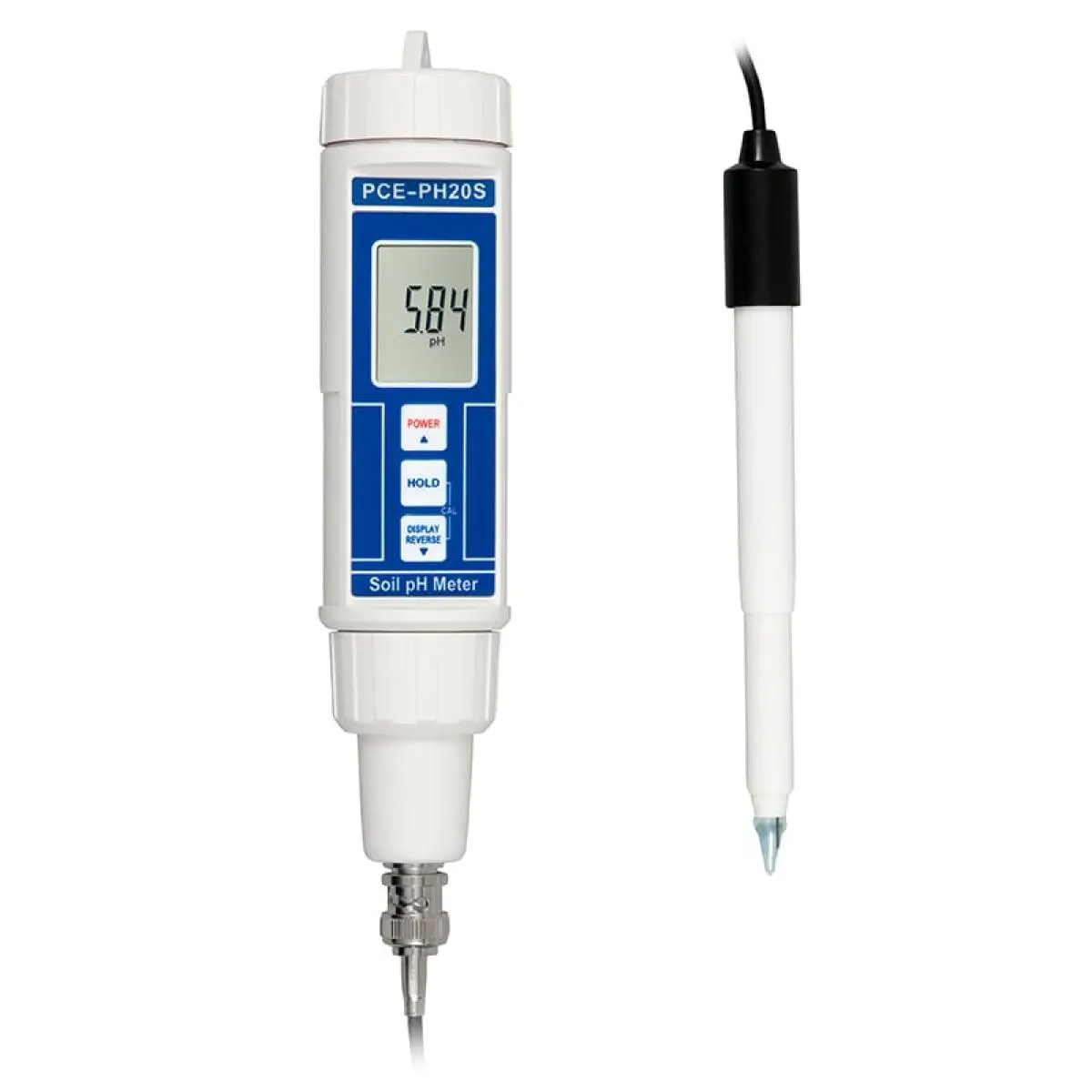

Agricultural measuring device for soil
**Easy to use, for determining the pH value of soil, with external pH electrode, can be recalibrated and is water resistant (IP 67)**

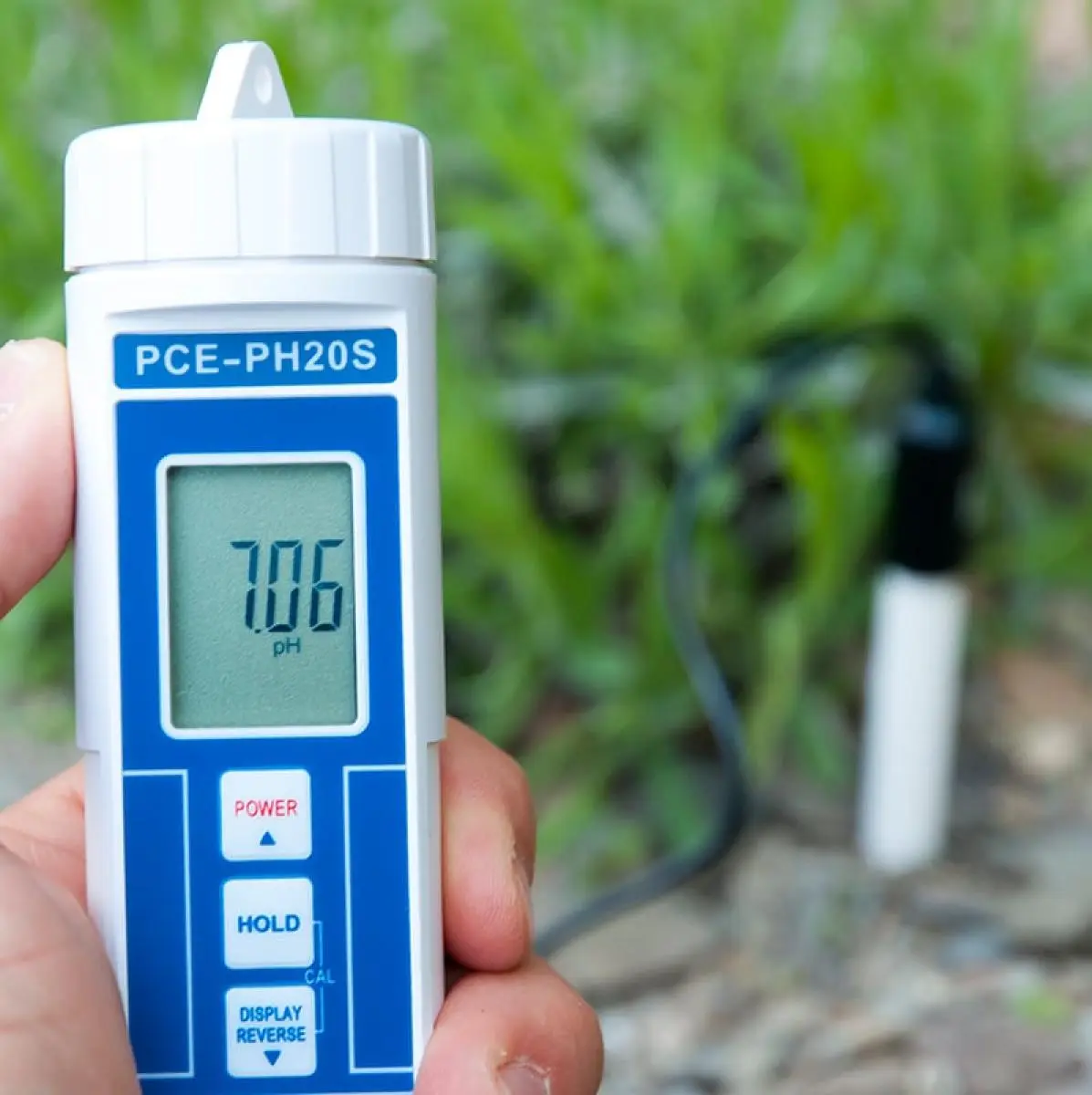

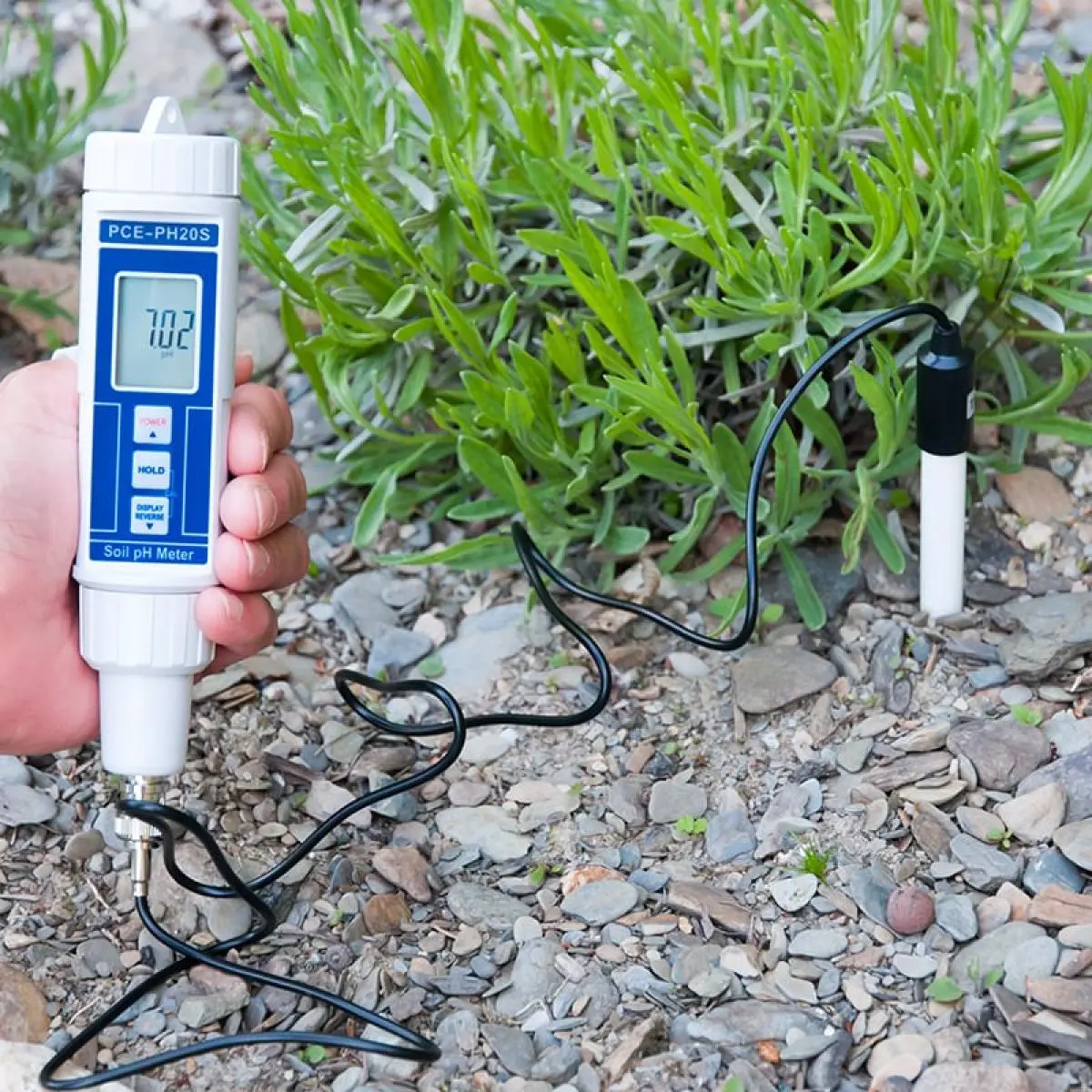

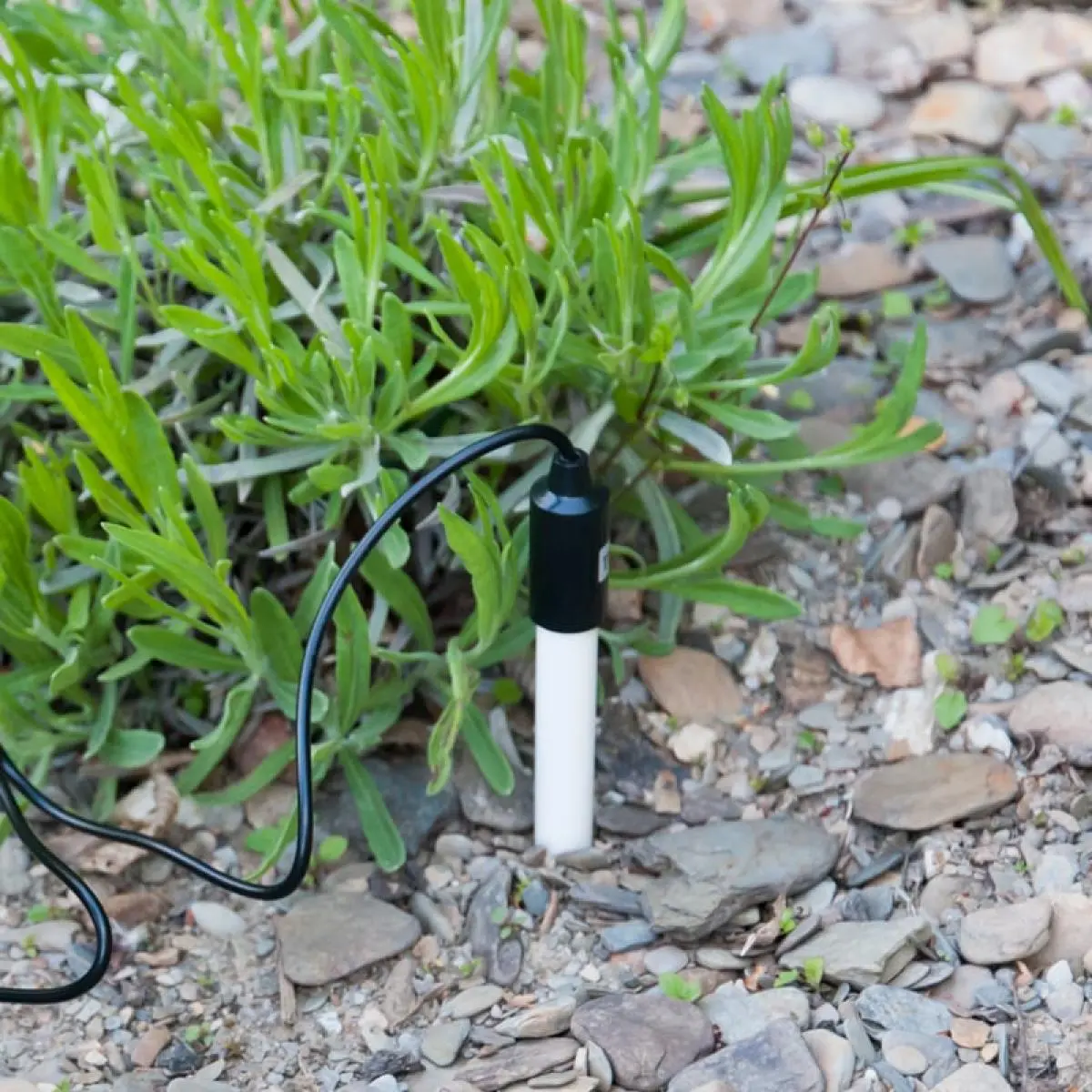

The Agricultural measuring device for soil has been developed with the purpose of finding an effective method for directly determining the pH value of soil. With the help of this Agricultural measuring device, it is possible to quickly and accurately measure the pH value of soil or a sample taken from the soil. To do this, simply insert the electrode into the previously loosened soil and read the pH value on the digital display.
Please, take into account that the first measurement requires that there is humidity in the soil. The device is always pre-calibrated by the manufacturer. The Agricultural measuring device can be constantly recalibrated using the calibration solutions that come with the device. Calibration data remains stored in the device even when the batteries have been changed. If you would like to carry out a measurement according to DIN or if you can not penetrate deep enough into the soil due to soil hardness, then you should prepare a DIN soil solution and use it for the exact measurement.
**Care must be taken when inserting probe to not break it**
Highlights
- Waterproof (IP 67)
- External electrode with cable
- Highly accurate
- Auto shut-off to protect battery life
- Calibration solutions are included
Technical specifications
- pH — Measuring range: 0 … 14 pH
- pH — Resolution: 0,01 pH
- pH — Accuracy: ±0.07 pH (within range 5 … 9 pH) / ±0.1 pH (within ranges 4 … 4.9 and 9.1 … 10 pH) / ±0.2 pH (within ranges 1 … 3.9 and 10 … 13 pH)

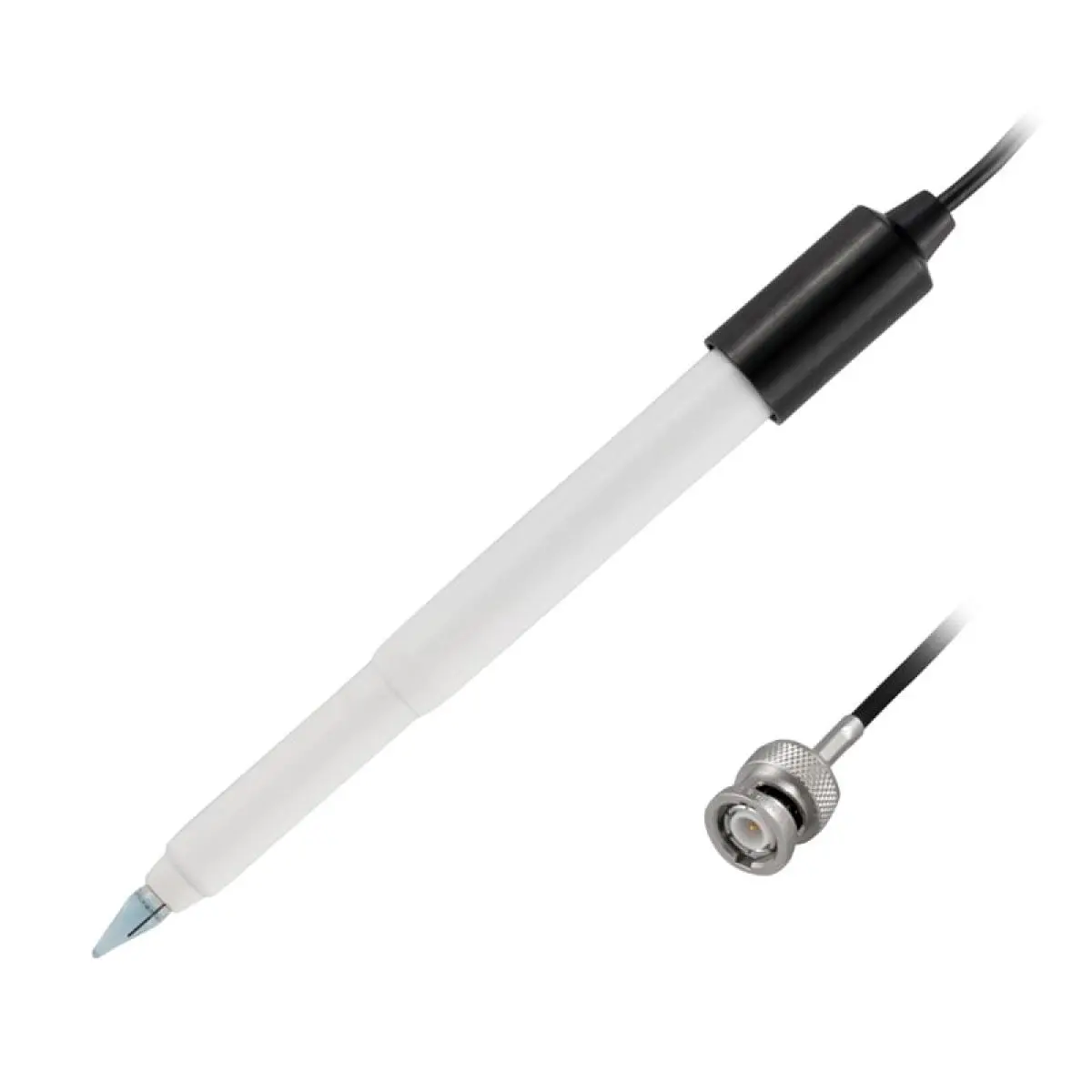

- Electrode: Designation PE-06HDA
- Electrode — Measuring range: 1 … 13 pH
- Electrode: Temperature range 5 … 60 °C
- Shank material Epoxy resin: Shank length 160 mm
- Shank material Epoxy resin: Shank diameter 12 mm
- Shank material Epoxy resin: Cable length 1 m
- General technical data — Measuring functions: HOLD
- General technical data — Display type: LCD
- General technical data — Display size: 1,35 Inch
- General technical data: Automatic power-off 10 min
- General technical data: Number of calibration points 3
- General technical data — Calibration: Automatically, at pH 4, pH 7, pH 10 using calibration solutions
- General technical data — Protection class (device): IP67
- General technical data — (Rechargeable) battery: 4 x 1,5 V AAA battery , Alkali-manganese
- General technical data — Capacity: 1200 mAh
- General technical data — Operating conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Storage conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Dimensions: ( L x W x H )180 x 40 x 32 mm
- General technical data — Weight: 220 g

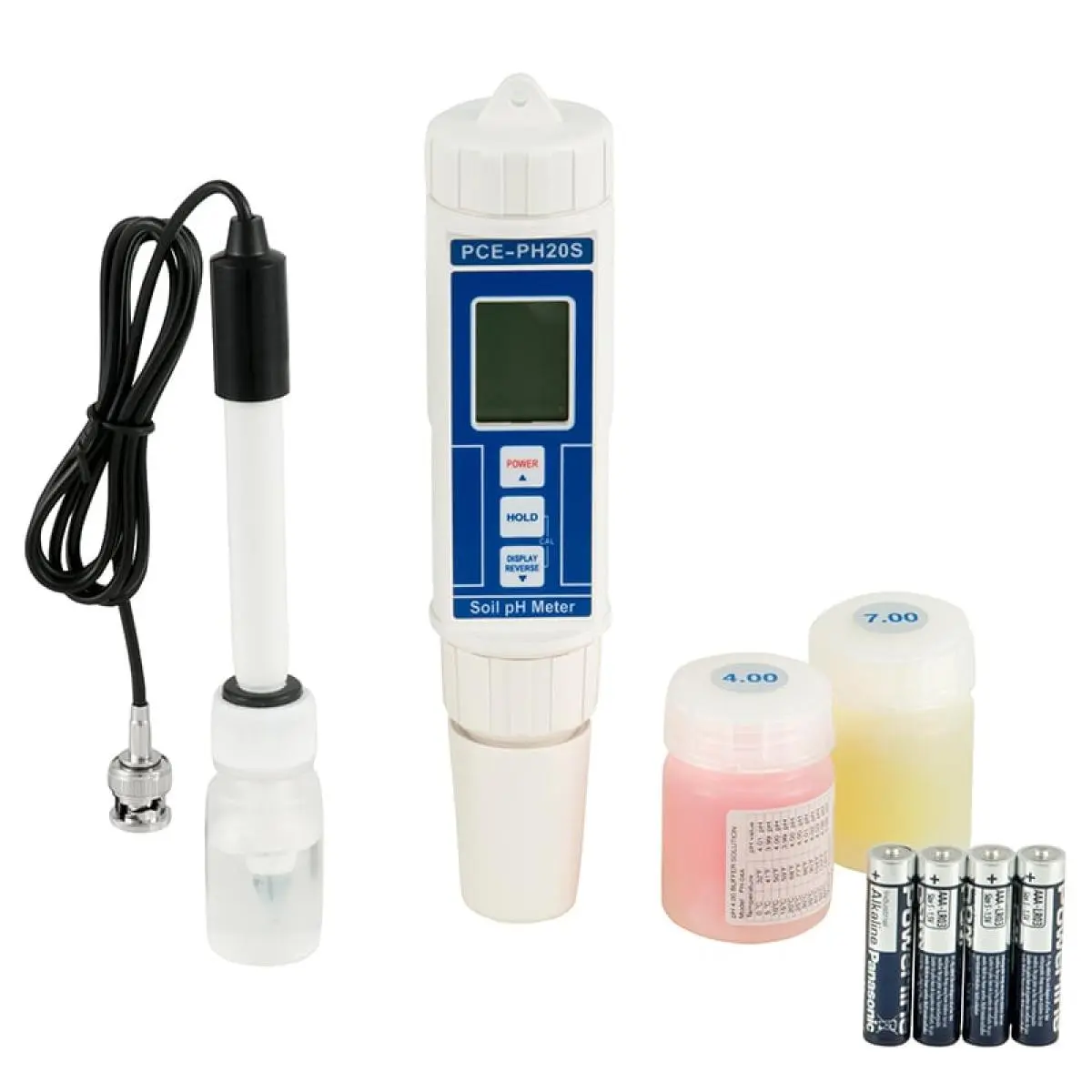

Delivery scope
- 1 x PCE-PH20S Agricultural measuring device
- 1 x pH electrode
- 4 x batteries
- 1 x set of calibration solutions for pH 4 and 7 (in 75 ml containers)
- 1 x user manual
