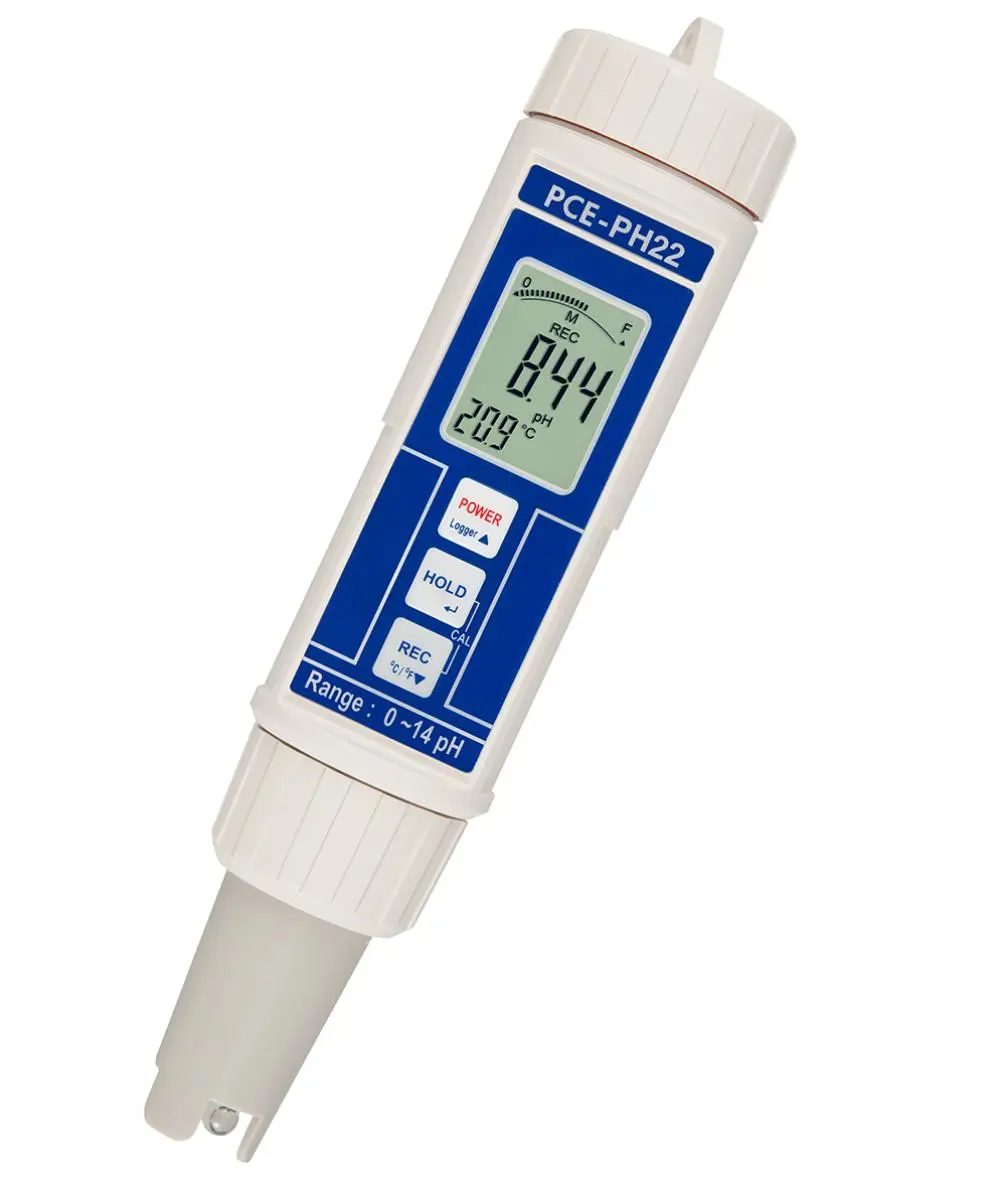

PCE-PH 22 W ater analysis meter Test device for the simultaneous measurement of pH and temperature
The waterproof water analysis meter is used for fast and accurate detection of pH and temperature. Due to the practical double display, both values can be read simultaneously on the water analysis meter. Due to the waterproof and robust housing (IP 67), the pH value tester can also be used under difficult conditions.
A recalibration always guarantees optimum accuracy and is very easy to perform using the optionally available calibration kits (automatic calibration function without calibration screws – to be performed only via the keyboard). With this water analysis meter, the electrode is integrated in the housing, the measured values are automatically temperature-compensated.
Highlights
- Double display pH and temperature: no separate thermometer is required
- Automatic temperature compensation
- (ATC) in the range 0 … 80°C / 32 … 176°F
- Temperature display (° C, ° F)
- Min / max-hold function (Data -Hold)
- 100 points datalogger (at the push of a button available in the display)
- Waterproof to IP 67
- Fully automatic calibration: Saves time and brings high accuracy
- Automatic shutdown
- Including batteries and manual
- Calibration solutions available optionally
Technical specifications
- pH — Measuring range: 0 … 14 pH
- pH — Resolution: 0,01 pH
- pH — Accuracy: ±0.02 pH
- Temperature — Measuring range: -5 … +80 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: ±0.8 °C
- Temperature — Measuring range: 23 … 176 °F
- Temperature — Resolution: 0,18 °F
- Temperature — Accuracy: ±1.44°F
- Shank material Plastic: Shank length 40 mm
- Shank material Plastic: Shank diameter 25 mm
- General technical data — Measuring functions: MIN, MAX, HOLD
- General technical data: Temperature compensation-5 … 80°C / 23 … 176°F, automatic
- General technical data — Display type: LCD
- General technical data — Display size: 1,35 Inch
- General technical data — Storage capacity: 100 Data records
- General technical data: Automatic power-off 10 min
- General technical data: Number of calibration points 3
- General technical data — Calibration: Automatically, at pH 4, pH 7, pH 10 using calibration solutions
- General technical data — Menu language: English, English (GB)
- General technical data — Protection class (device): IP67
- General technical data — (Rechargeable) battery: 4 x 1,5 V AAA battery , Alkali-manganese
- General technical data — Capacity: 1200 mAh
- General technical data — Operating conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Storage conditions: 0 … 60 °C , 0 … 80 % RH
- General technical data — Dimensions: ( L x W x H )186 x 40 x 32 mm
- General technical data — Weight: 130 g
Delivery scope
- 1 x pH meter PCE-PH 22
- 1 x Calibration solution PH 4
- 1 x Calibration solution PH 7
- 1 x Battery
- 1 x Operating manual
